Waste Receptacles

An accessible, durable waste receptacle is an essential part of any commercial space.

Bobrick offers a variety of bins and chutes designed to reduce contact with waste, for public safety and optimum hygienic conditions.

Designs
Specifications
Downloads

B-2250 - floor-standing

Satin finish; top self-closing doors

Vinyl wall bumper, rubber feet, liner hooks

13 gal. capacity

13-3/8" x 13-3/8" at top; 29-1⁄2" high

B-2260 - floor-standing

Satin finish; open top

Vinyl wall bumper, rubber feet, liner hooks

13 gal. capacity

12-1⁄2" x 12-1⁄2" at top; 22" high

B-2280 - floor-standing

Satin finish; open top

Vinyl wall bumper, rubber feet, liner hooks

21 gal. capacity

14" x 14" at top; 30" high

B-2300 - floor-standing

Satin finish; removable black dome top

Galvanized steel liner, grommeted lift holes

18 gal. capacity

15" diam. x 31" high; 6" dia. opening for no-touch disposal

B-2400 - floor-standing

Satin finish; removable funnel top, large capacity

Rigid plastic liner waste container with handle for easy removal

33 gal. capacity

18-1⁄4" dia. x 32" high; 8-1⁄4" dia. opening for no-touch disposal

B-275 - surface mount

Satin finish; bottom edges hemmed for max. safety

Hooks hold furnished, reusable, removable vinyl liner

20 gal. capacity

16-1⁄2" W x 23" H x 12-1⁄2"

B-277 - ConturaSeries® surface mount

Satin finish; furnished with LinerMate®

12.75 gal. capacity

Top hemmed edges; bottom recessed finger grip for safe handling

15-1⁄8" W x 23" H x 8-1⁄2" D

B-279 - ClassicSeries® surface mount

Satin finish; bottom edges hemmed for safety

Hooks hold furnished, reusable, removable vinyl liner

6.4 gal. capacity

14" W x 18" H x 6" D

B-3644 - ClassicSeries® recessed

Satin finish; seamless beveled flange

Removable, 12 gal. receptacle locks into cabinet

Hooks hold optional vinyl liner

Rough opening: 16" W x 29-1⁄4" H; 4" min. depth

B-43644 - ConturaSeries® recessed

Satin finish; furnished with LinerMate®

Removable front panel for easy cleaning

12.8 gal. capacity

Rough opening: 15-7⁄8" W x 26-1⁄4" H; 4" min. depth

B-527 - TrimLineSeries™ countertop mount

Satin finish; door is self-closing; flange has 90° return

Mounts in counters 3/4" to 1-1/2" thick

4-1/2" minimum clearance below mounting surface

Not included: waste bin/concealed housing below counter

B-529 - countertop mount

Circular waste chute in bright polished stainless steel with rolled flange

6-15⁄16" outside diam.; 5-1⁄2" inside diam.; chute depth 5"

Rough cutout: 5-5⁄8" dia.

Provides access to under-counter waste receptacle (not furnished)

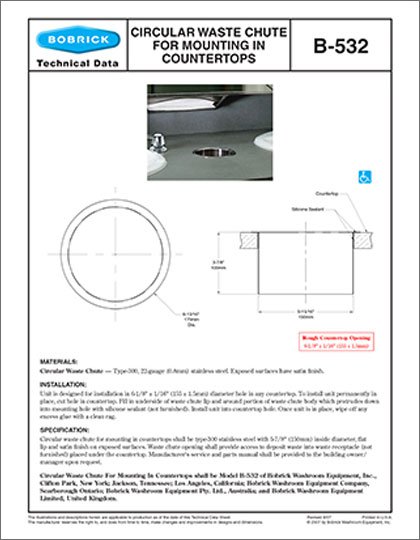

B-532 - TrimLineSeries™ countertop mount

Circular waste chute in satin stainless steel with flat flange

For counter, recessed or under-counter installation

6-3⁄16" outside diam.; 5-5⁄16" inside diam.; recess 3-7/8"

Provides access to under-counter waste receptacle (not included)

Waste Receptacles - Technical Data

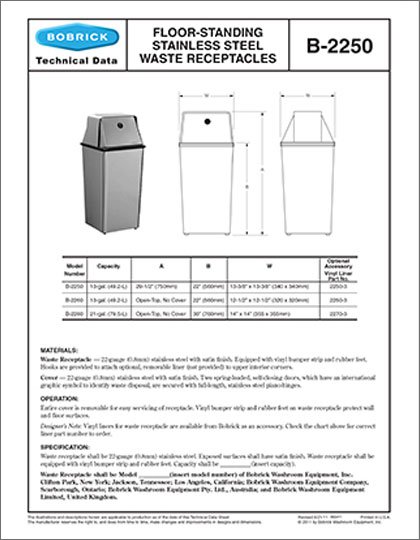

B-2250 FLOOR STANDING WASTE RECEPTACLE WITH TOP

Satin finish stainless steel
Top with self-closing doors
Vinyl wall bumper, rubber feet
Hooks for liners
Capacity: 13 gal. (49.2L)
Dimensions: 12-1⁄2" x 12-1⁄2" (320 x 320mm) at top, 29-1⁄2" (750mm) high

B-2280 FLOOR STANDING OPEN-TOP WASTE RECEPTACLE

Satin finish stainless steel
Open top
Vinyl wall bumper, rubber feet
Liner hooks
Capacity: 21 gal. (79.5L)
Dimensions: 14" x 14" (355 x 355mm) at top, 30" (760mm) high
B-2260: Similar to B-2280, but with 13 gal. (49.2L) capacity
- Dimensions: 12-1⁄2" x 12-1⁄2" (320 x 320mm) at top, 22" (560mm) high

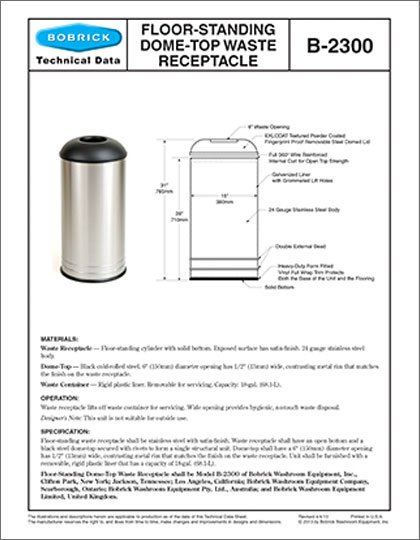

B-2300 FLOOR STANDING DOME-TOP WASTE RECEPTACLE

Satin finish stainless steel body with black steel domed top
Removable top with fingerprint-resistant textured powder coated finish has 6" (150mm) diameter opening for hygienic, no-touch disposal of waste
Galvanized steel liner has grommeted lift holes
Capacity: 18 gal. (68L)
Dimensions: 15" diameter x 31" H (380 x 785mm)

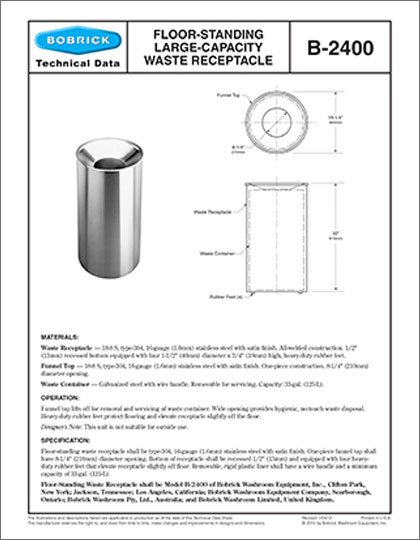

B-2400 FLOOR STANDING LARGE CAPACITY WASTE RECEPTACLE

Satin finish stainless steel
Removable funnel top with 8-1⁄4" (210mm) diameter opening for hygienic, no-touch disposal of waste
4 heavy duty rubber feet
Galvanized steel waste container has handle for easy removal
Capacity: 33 gal. (125L)
Dimensions: 18-1⁄4" diameter x 32" high (465 x 815mm)

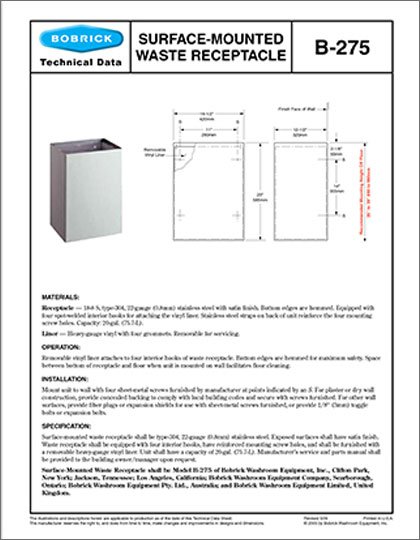

B-275 SURFACE MOUNTED WASTE RECEPTACLE

Satin finish stainless steel
Bottom edges hemmed for maximum safety
Hooks hold furnished reusable vinyl liner; removable for servicing
Capacity: 20 gal. (75.7L)
Dimensions: 16-1⁄2" W x 23" H x 12-1⁄2" D (420 x 585 x 320mm)

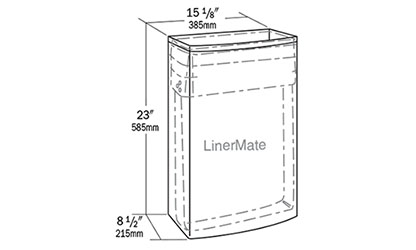

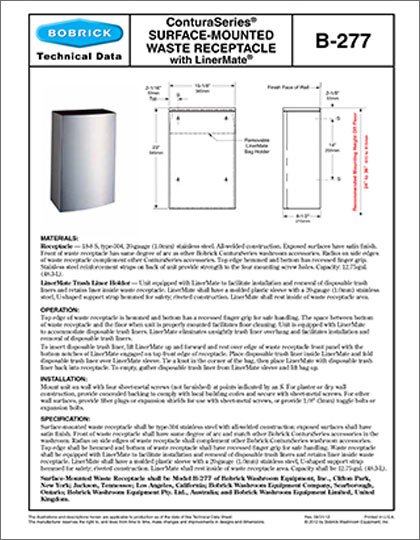

B-277 ConturaSeries SURFACE MOUNTED WASTE RECEPTACLE WITH LinerMate

Satin finish stainless steel
Capacity: 12.75 gal. (48.3L)
Top edges are hemmed and bottom of waste receptacle has recessed finger grip for safe handling
Dimensions: 15-1⁄8" W x 23" H x 8-1⁄2" D (385 x 585 x 215mm)

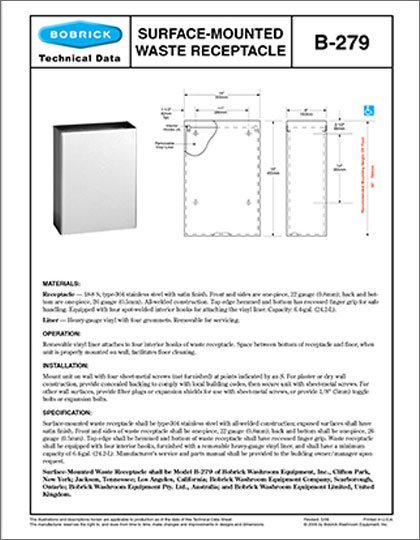

B-279 ClassicSeries SURFACE MOUNTED WASTE RECEPTACLE

Satin finish stainless steel
Bottom edges hemmed for safety
Hooks hold furnished reusable vinyl liner; removable for servicing
Capacity: 6.4 gal. (24.2L)
Dimensions: 14" W, 18" H, 6" D (355 x 455 x 150mm)

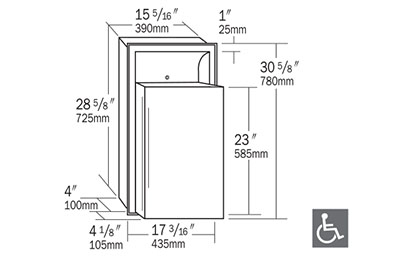

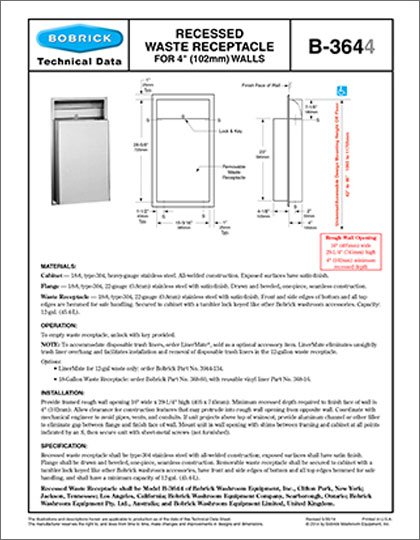

B-3644 ClassicSeries RECESSED WASTE RECEPTACLE

Satin finish stainless steel
Seamless beveled flange
Removable, 12 gal. (45.4L) receptacle locks into cabinet
Hooks hold optional vinyl liner
Rough Wall Opening: 16" W x 29-1⁄4" H x 4" min. depth (405 x 745 x 100mm)
Universal/Barrier-Free Mtg. Ht.: 42–46" (1065–1170mm) to top of unit
3944-134: LinerMate Accessory

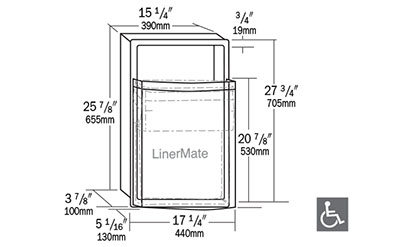

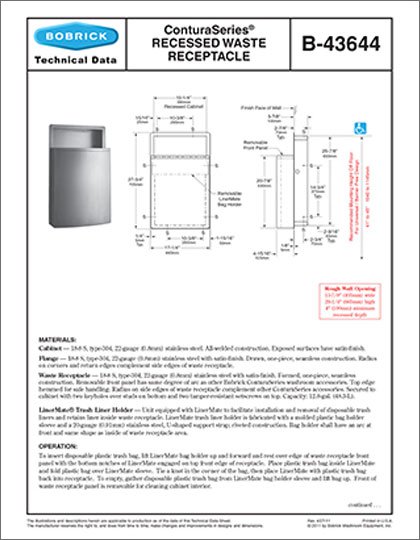

B-43644 ConturaSeries RECESSED WASTE RECEPTACLE WITH LinerMate

Satin finish stainless steel
Removable front panel for easy cleaning
Capacity: 12.8 gal. (48.3L)
Rough Wall Opening: 15-7⁄8" W x 26-1⁄4" H x 4" min. depth (405 x 665 x 100mm)
Universal/Barrier-Free Mtg. Ht.: 43–47" (1090–1195mm) to top of unit

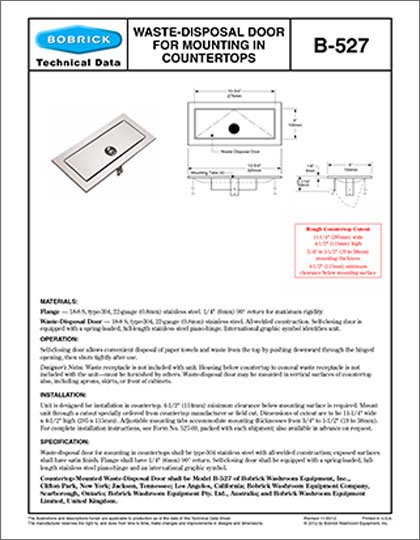

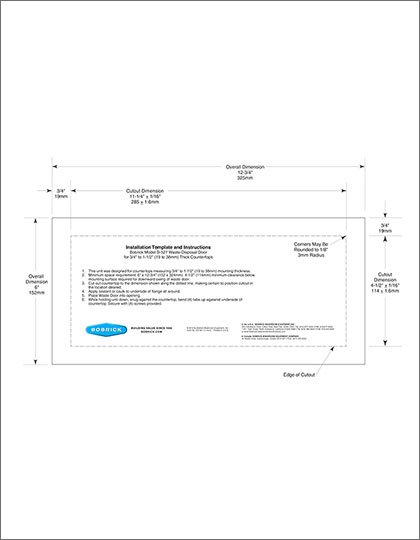

B-527 TrimLineSeries™ Waste-Disposal Door for Mounting in Countertops

Satin finish stainless steel
Door is self-closing
Flange has 90° return
Mounts in counters 3/4" to 1-1/2" (19 to 38mm) thick
4-1/2" (115mm) minimum clearance below mounting surface is required
Waste bin and housing below counter to conceal bin are not included

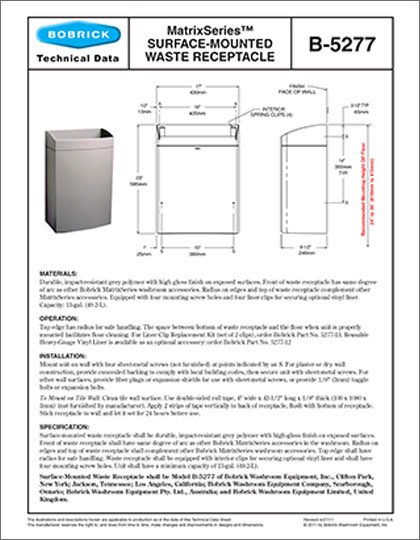

B-5277 MatrixSeries SURFACE MOUNTED WASTE RECEPTACLE

Impact-resistant polymer; grey color
Capacity: 13 gal. (49.2L).
Clips secure optional vinyl liner
Dimensions: 17" W x 23" H x 9-1⁄2" D (430 x 585 x 240mm)
Patented

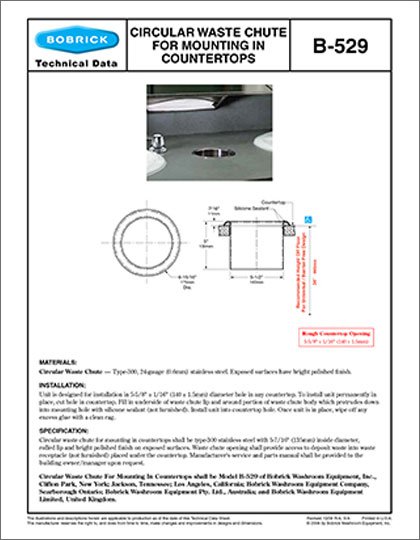

B-529 COUNTERTOP MOUNTED CIRCULAR WASTE CHUTE

Rolled flange and exposed surfaces bright-polished stainless steel
Outside diameter 6-15⁄16" (175mm); inside diameter 5-1⁄2" (140mm); chute depth 5" (130mm)
Rough Countertop Cutout: 5-5⁄8" diameter (140mm)
Provides waste deposit access to receptacle (not furnished) placed under countertop
Universal/Barrier-Free: Countertop must not exceed 34" (865mm) height, and have a clearance of at least 29" (735mm) from the bottom of the apron to the finished floor.
