Hand / Hair Dryers

Frost Product Specifications

Warm Air Hand / Hair Dryers

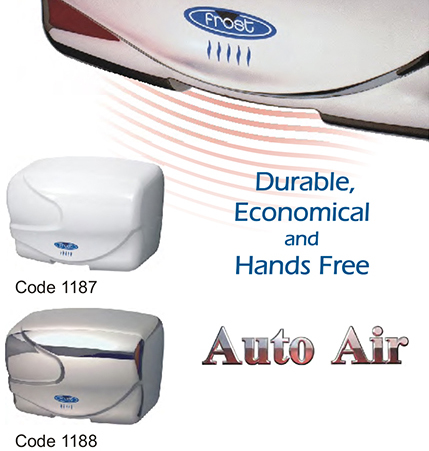

Code 1187: Automatic "no touch", white finish, 120 volts.
Code 1187-1: Automatic "no touch", white finish, 220 volts.
Code 1190: Automatic "no touch", brushed steel finish, 120 volts.
Code 1190-1: Automatic "no touch", brushed steel finish, 220 volts.

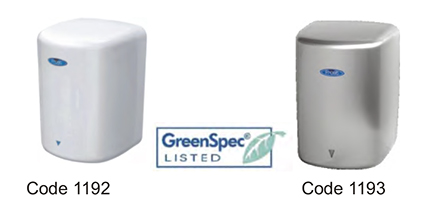

Code 1192: Automatic "no touch", High Speed, white finish, 120 v.
Code 1193: Automatic "no touch", High Speed, stainless steel, 120 v.

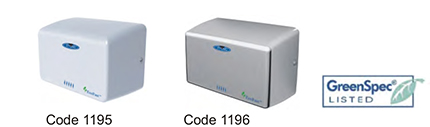

Code 1195: Ecofast, hands free dryer, white finish, 120 volts.
Code 1196: Ecofast, hands free dryer, stainless steel finish, 120v.

Specifications: Approximately 20 second drying time.

Features: Sensitive distance of sensor: 4-12” (10-30 cm). Touch free sensor is activated when hands are placed within the set range under spout. There is a 0.6 sec delay for on and a 2 second delay for off. The power will be cut off automatically in cases of irregular use over 120 seconds, sensor will reset during normal use. Sensor is 100% moisture proof. Warranty: 5 years.

Wind Measure: 161 cfm (274 m /h).

Wind Velocity: (16.5m/sec).

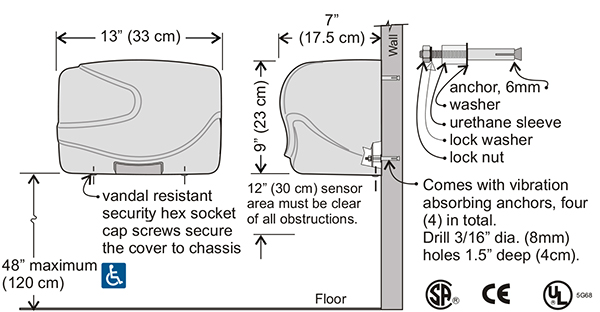

Installation: Insure when mounted that dryer is 12” (30cm) above any fixed or movable objects. For unrestricted access insure bottom of dryer does not exceed 48” (220 cm) from floor. Four threaded mounting anchors and hole location template provided.

Frost Guarantee

Frost products are guaranteed from defects in workmanship or material for a period of one year from date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.

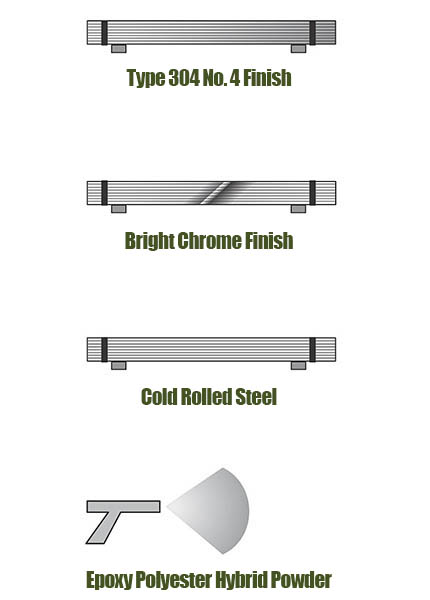

Frost Materials and Finishes

Type 304 No. 4 Finish: Type 304 stainless steel is a standard all-purpose grade, recommended for food, dairy, chemical and medical industries. It is also widely used in architectural applications due to its excellent corrosion resistance. The No.4 finish is widely used in restaurant, architectural, medical and food processing products. All Frost stainless steel products are shipped with a removable protective plastic coating to insure a blemish free product when installed on site.

Bright Chrome Finish: These products are fabricated from pre-chromed sheet steel, using the same processes as stainless steel, to provide an unblemished final product. Frost ships all pre-chromed products with a protective plastic film which is easily peeled off after installation.

Cold Rolled Steel: Frost uses a variety of material thicknesses ranging from 16 to 26 gauge. The variety of material gauges provide the optimum balance between durability and economy. All cold rolled stock is oiled and rust free during fabrication, and degreased before final finishing.

Epoxy Polyester Hybrid Powder: After a thorough degreasing, the assembled cold rolled products are coated with a formulated epoxy hybrid powder to a thickness of approximately 3 mls. An even coating is achieved by electrostatically charging the powder particles and spraying them onto the grounded product. All coated products are then oven cured at 400 degrees F. The result is a superior baked on finish with excellent mechanical/chemical characteristics and U.V. durability.

Detailed technical specifications are available upon request, or see our Downloads tab for information in pdf format.

Guarantee: Frost products are guaranteed from defects in workmanship or material for a period of one year from the date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.
