Toilet Tissue Dispensers

Toilet Tissue Dispensers - Technical Data

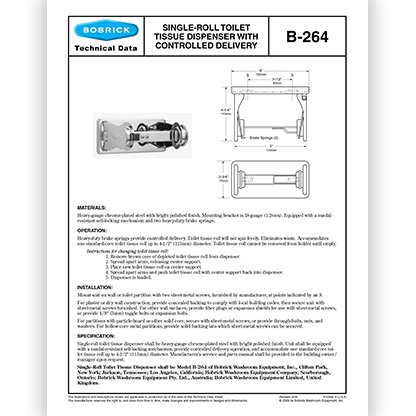

B-264 ClassicSeries SURFACE MOUNTED VANDAL-RESISTANT TOILET TISSUE DISPENSER FOR SINGLE ROLL

• Bright polished chrome plated steel
• Self-locking mechanism; controlled delivery
• Accommodates one standard-core toilet tissue roll up to 4-1⁄2" (115mm) diameter
• Roll cannot be removed from dispenser until empty
• Unit 6" W x 2-3⁄4" H (150 x 70mm); projects 4-1⁄4" (110mm) from wall

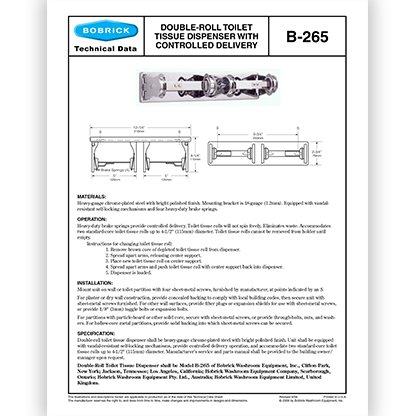

B-265 ClassicSeries SURFACE MOUNTED VANDAL-RESISTANT TOILET TISSUE DISPENSER FOR TWO ROLLS

• Bright polished chrome plated steel
• Self-locking mechanism; controlled delivery
• Accommodates two standard-core toilet tissue rolls up to 4-1⁄2" (115mm) diameter
• Rolls cannot be removed from dispenser until empty
• Unit 12-1⁄4" W x 2-3⁄4" H (310 x 70mm); projects 4-1⁄4" (110mm) from wall

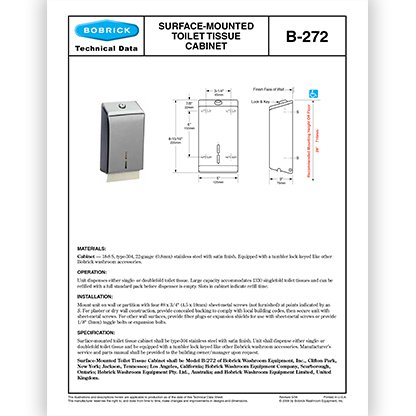

B-272 SURFACE MOUNTED TOILET TISSUE CABINET

• Satin finish stainless steel
• Equipped with tumbler lock; vandal-resistant
• Dispenses either single- or double-fold toilet tissue
• Large capacity: 1330 singlefold tissues
• Slots in cabinet indicate refill time
• May be refilled with full standard pack before dispenser is empty
• Dimensions: 5" W x 8-15⁄16" H x 3" D (125 x 225 x 710mm)

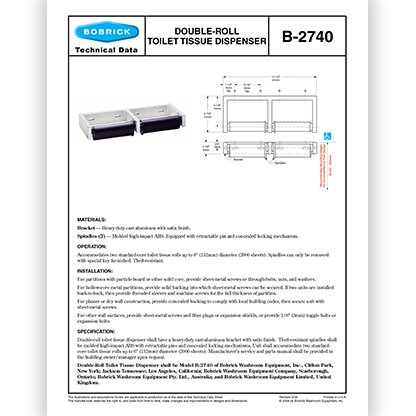

B-2740 ClassicSeries SURFACE MOUNTED TOILET TISSUE DISPENSER FOR TWO ROLLS

• Cast aluminum, satin finish
• Plastic spindles, concealed locking device; theft-resistant
• Holds two rolls up to 6" (150mm) diameter (2000 sheets)
• Dimensions: 12-1⁄2" (320mm) wide; projects 4-7⁄8" (125mm) from wall
• No controlled delivery
• Universal/Barrier-Free Mtg. Ht.: 19-3⁄4" (500mm) to top of unit

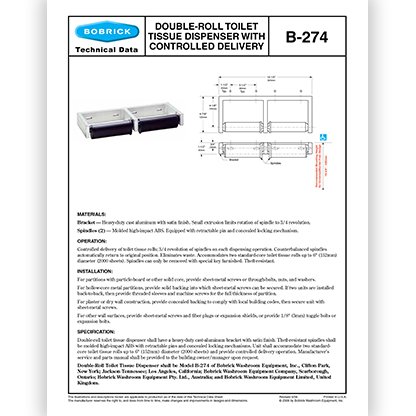

• B-274: Similar to B-2740, with controlled delivery

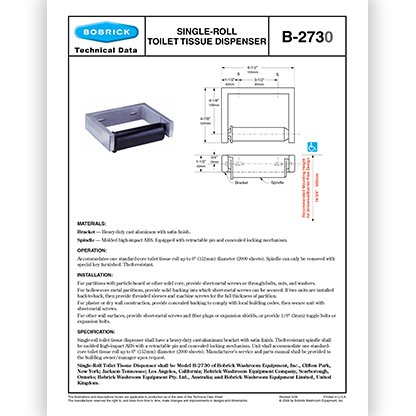

• B-2730: SINGLE ROLL TOILET TISSUE DISPENSER
  • Unit 6-1⁄2" (165mm) wide; no controlled delivery

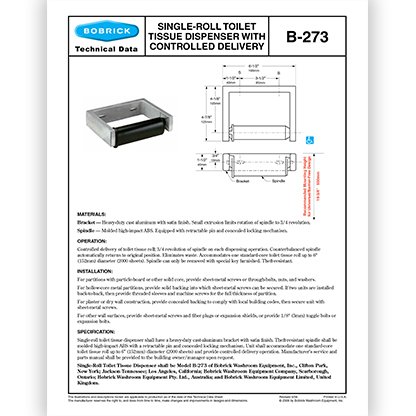

• B-273: Similar to B-2730, with controlled delivery

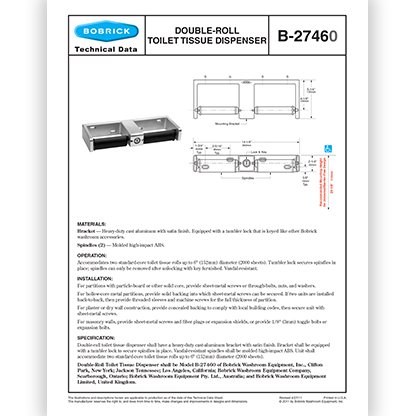

B-27460 SURFACE MOUNTED TOILET TISSUE DISPENSER FOR TWO ROLLS

• Vandal-resistant unit: heavy duty cast aluminum, satin finish
• Tumbler lock secures spindles in place
• High impact plastic spindles hold rolls up to 6" (150mm) diameter (2000 sheets)
• Unit: 14-1⁄8" (360mm) wide; projects 5-1⁄4" (135mm) from wall
• No controlled delivery
• Universal/Barrier-Free Mtg. Ht.: 20-1⁄8" (510mm) to top of unit; patented

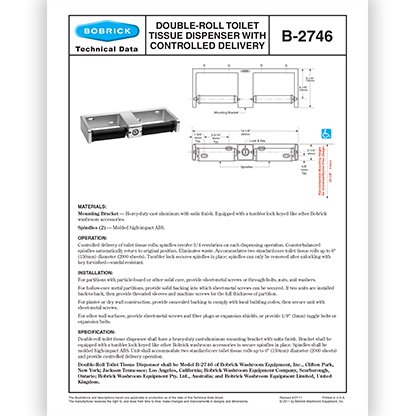

• B-2746: Similar to B-27460, with controlled delivery; patented

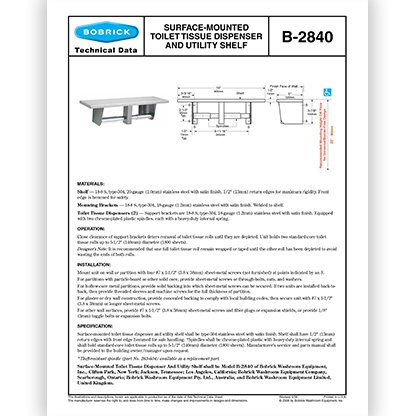

B-2840 SURFACE MOUNTED TOILET TISSUE DISPENSER WITH SHELF

• Satin finish stainless steel
• Shelf has 1⁄2" (13mm) returns, hemmed front edge
• Chrome plated plastic spindles hold rolls up to 5-1⁄2" (140mm) diameter (1800 sheets)
• Dimensions: 16" W x 4" H x 5" D (405 x 100 x 125mm)
• Universal/ Barrier-Free Mtg. Ht.: 22" (560mm) to top of unit
• Theft-Resistant Spindle (Part No. 283-604) option available

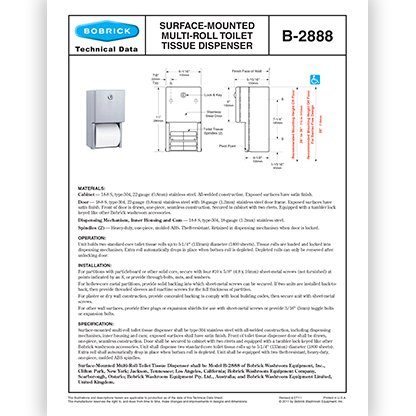

B-2888 ClassicSeries SURFACE MOUNTED MULTI-ROLL TOILET TISSUE DISPENSER

• Satin finish stainless steel unit with stainless steel dispensing mechanism
• Door has flat face with protruding tumbler lock
• Holds two rolls up to 5-1⁄4" (135mm) diameter (1800 sheets)
• Extra roll automatically drops in place when bottom roll is depleted
• Theft-resistant, heavy duty spindles
• Dimensions: 6-1⁄16" W x 11" H x 5-15⁄16" D (155 x 280 x 150mm)
• Av. Mtg. Ht.: 28–36" (710–915mm) to top of unit; Barrier-Free, 28" (710mm)

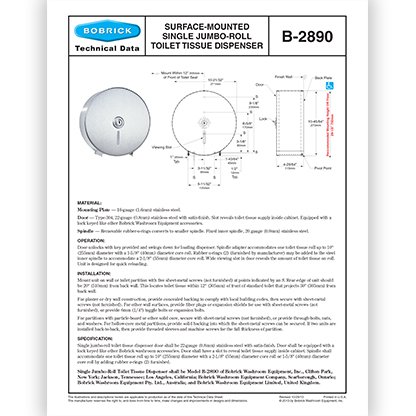

B-2890 SINGLE JUMBO ROLL SURFACE MOUNTED TOILET TISSUE DISPENSER

• Satin finish stainless steel
• Equipped with spring lock
• Spindle holds one 10" (255mm) diameter roll with 3" (75mm) diameter core
• Convertible for 2-11⁄16" (70mm) and 1-5⁄8" (40mm) diameter core rolls
• Powder-coated mounting plate
• Slot reveals tissue supply
• Dimensions: 10-5⁄8" W x 10-5⁄8" H x 4-1⁄2" D (270 x 270 x 115mm)
• Universal/Barrier-Free Mtg. Ht.: 29-1⁄2" (750mm) to top of unit

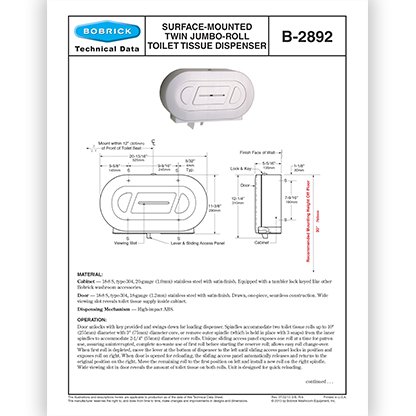

B-2892 ClassicSeries SURFACE MOUNTED TWIN JUMBO ROLL TOILET TISSUE DISPENSER

• Satin finish stainless steel
• Equipped with tumbler lock
• Spindles hold two 10" (255mm) diameter rolls with 2-1⁄4" (55mm) diameter core rolls; convertible for 3" (75mm) diameter core rolls
• Sliding access panel exposes one roll at a time, allows easy roll changeover
• Wide viewing slot in door; quick reloading
• Dimensions: 20-13⁄16" W x 11-3⁄8" H x 5-5⁄16" D (530 x 290 x 135mm)
• Universal/Barrier-Free Mtg. Ht.: 30" (760mm) to top of unit

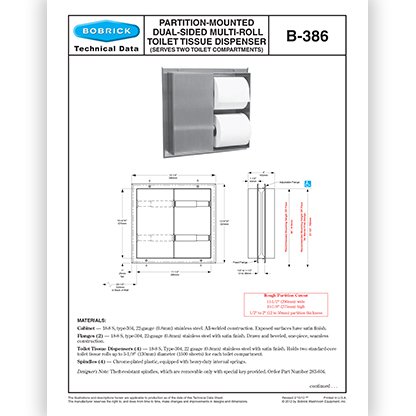

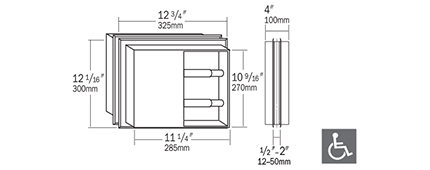

B-386 PARTITION MOUNTED MULTI–ROLL TOILET TISSUE DISPENSER (SERVES 2 COMPARTMENTS)

• Satin finish stainless steel
• Mounts centered through toilet partitions, 1⁄2–2" (12–50mm) thick; used from both sides
• Holds four standard core toilet tissue rolls up to 5-1⁄8" (130mm) diameter; two for each side
• Chrome plated plastic spindles with heavy-duty internal springs
• Rough Partition Opening: 11-1⁄2" W x 10-7⁄8" H (290 x 275mm)
• Av. Mtg. Ht.: 36" (915mm) to top of unit; Barrier-Free Mtg. Ht.: 27-1⁄2" (700mm)
• Theft-Resistant Spindle (Part No. 283-604) option available

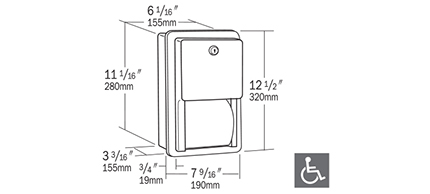

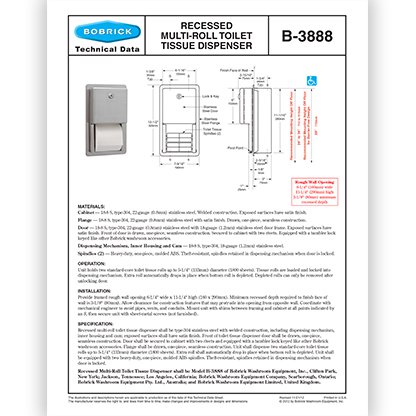

B-3888 ClassicSeries RECESSED MULTI-ROLL TOILET TISSUE DISPENSER

• Satin finish stainless steel unit and dispensing mechanism
• Door has flat face with protruding tumbler lock
• Holds two rolls up to 5-1⁄4" (133mm) diameter (1800 sheets)
• Extra roll drops in place when bottom roll is depleted
• Theft-resistant, heavy duty spindles
• Extends 2-3⁄4" (70mm) from wall
• Rough Wall Opening: 6-1⁄4" W x 11-1⁄4" H x 3-1⁄4" min. depth (160 x 285 x 85mm)
• Av. Mtg. Ht.: 28-3⁄4" to 36-3⁄4" (730–935mm) to top of unit; Barrier-Free, 28-3⁄4" (730mm)

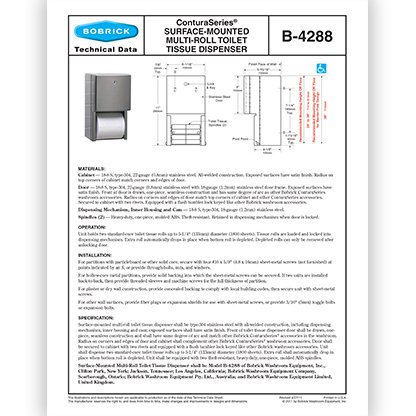

B-4288 ConturaSeries SURFACE MOUNTED MULTI-ROLL TOILET TISSUE DISPENSER

• Satin finish stainless steel unit with stainless steel dispensing mechanism
• Flush tumbler lock
• Holds two rolls up to 5-1⁄4" (135mm) diameter (1800 sheets)
• Extra roll automatically drops in place when bottom roll is depleted
• Theft-resistant, heavy duty spindles
• Dimensions: 6-1⁄16" W x 11" H x 5-15⁄16" D (155 x 280 x 150mm)
• Av. Mtg. Ht.: 28–36" (710–915mm) to top of unit; Barrier-Free, 28" (710mm)

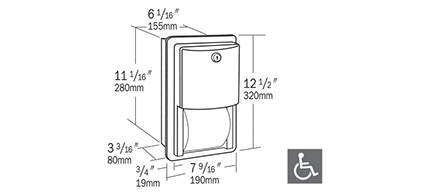

B-4388 ConturaSeries RECESSED MULTI-ROLL TOILET TISSUE DISPENSER

• Satin finish stainless steel unit and dispensing mechanism
• Flush tumbler lock
• Holds two rolls up to 5-1⁄4" (133mm) diameter (1800 sheets)
• Extra roll drops in place when bottom roll is depleted
• Theft-resistant, heavy duty spindles
• Extends 2-3⁄4" (70mm) from wall
• Rough Wall Opening: 6-1⁄4" W x 11-1⁄4" H x 3-1⁄4" min. depth (160 x 285 x 85mm)
• Av. Mtg. Ht.: 28-3⁄4" to 36-3⁄4" (730–935mm) to top of unit; Barrier-Free, 28-3⁄4" (730mm)

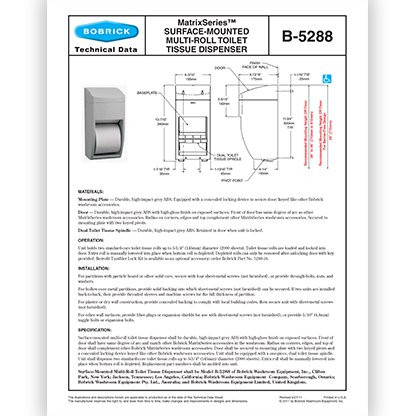

B-5288 MatrixSeries SURFACE MOUNTED MULTI-ROLL TOILET TISSUE DISPENSER

• Durable ABS plastic; grey color
• Two-roll dispensing mechanism for rolls up to 5-3⁄4" (145mm) diameter (2000 sheets)
• Extra roll easily shifts into place when bottom roll is depleted
• Concealed locking device
• Dimensions: 6-1⁄4" W x 13-1⁄2" H x 6-7⁄8" D (160 x 345 x 175mm)
• Av. Mtg. Ht.: 28–36" (710–915mm) to top of unit; Barrier-Free, 28" (710mm)
• Patented

B-52891 MatrixSeries SURFACE MOUNTED JUMBO ROLL TOILET TISSUE DISPENSER

• Durable ABS plastic; grey color
• Spindle holds one 10" (255mm) diameter roll with 3" (75mm) diameter core; convertible in field to hold 2-1⁄4" (55mm) diameter core roll
• Concealed locking device
• Viewing slot in door
• Dimensions: 10-3⁄4" W x 12-9⁄16" H x 5-1⁄4" D (275 x 320 x 135mm)
• Universal/Barrier-Free Mtg. Ht.: 31" (785mm) to top of unit; patented

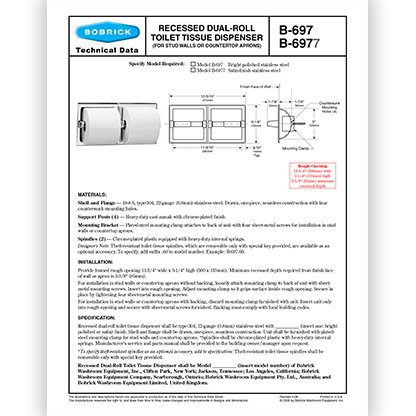

600 SERIES RECESSED TOILET TISSUE DISPENSERS

• Type 304 stainless steel with one-piece seamless construction
• Choice of finish: bright polished or satin
• Chrome plated plastic spindles hold rolls up to 5-1⁄8" (130mm) diameter (1500 sheets)
• Choice of capacity: single-roll models measure 6-1⁄8" W x 6-1⁄8" H (155 x 155mm); double-roll models measure 12-5⁄16" W x 6-1⁄8" H (315 x 155mm)
• Mounting: clamps for securing to stud walls or countertop aprons
• Rough Wall Openings: single-roll models require 5-1⁄2" W x 5-1⁄4" H x 3-3⁄8" min. depth (140 x 135 x 85mm); double-roll models require 11-3/4" W x 5-1⁄4" H x 3-3⁄8" min. depth (300 x 135 x 85mm)

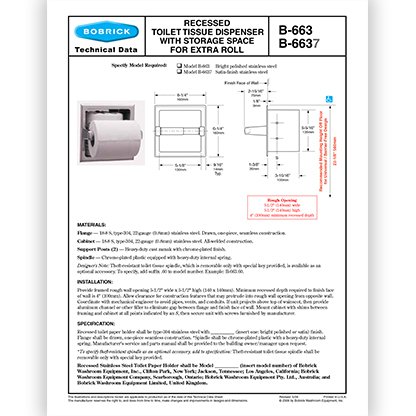

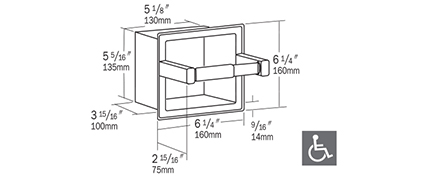

B-663 RECESSED TOILET TISSUE DISPENSER WITH STORAGE SPACE FOR EXTRA ROLL

• Bright polished stainless steel
• Chrome plated plastic spindle holds rolls up to 5-1⁄8" (130mm) diameter (1500 sheets)
• Recessed cabinet 3-15⁄16" (100mm) deep holds spare roll
• Dimensions: 6-1⁄4" W x 6-1⁄4" H (160 x 160mm)
• Rough Wall Opening: 5-1⁄2" W x 5-1⁄2" H; 4" min. depth (140 x 140 x 100mm)
• Universal/Barrier-Free Mtg. Ht.: 22-1⁄8" (560mm) to top of unit
• B-6637: Similar to B-663, but with satin finish
• Theft-Resistant Spindle (Part No. 283-604) option available

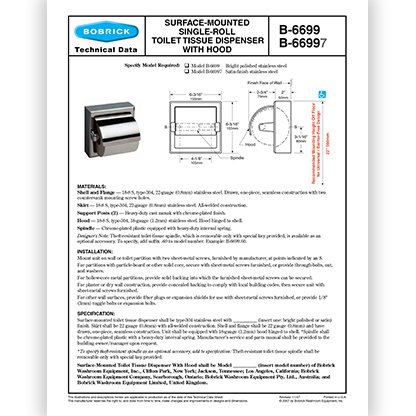

B-6699 SURFACE MOUNTED TOILET TISSUE DISPENSER WITH HOOD FOR SINGLE ROLL

• Bright polished stainless steel; hood protects paper
• Chrome plated plastic spindle holds rolls up to 5 1⁄8" (130mm) diameter (1500 sheets)
• Dimensions: 6-3⁄16" W x 6-3⁄16" H (155 x 155mm); hood projects 4-3⁄4" (120mm) from wall with full roll in place
• Universal/Barrier-Free Mtg. Ht.: 22" (560mm) to top of unit
• B-66997: Similar to B-6699, but with satin finish

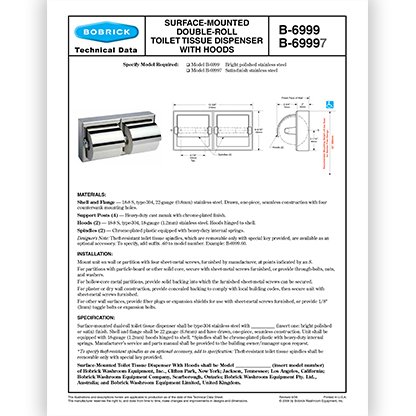

• B-6999: TOILET TISSUE DISPENSER WITH HOODS FOR TWO ROLLS
  • Bright polished finish
  • Dimensions: 12-3⁄8" W x 6-3⁄16" H (315 x 155mm); hoods project 4-3⁄4" (120mm) from wall with full roll in place
• B-69997: Similar to B-6999, but with satin finish

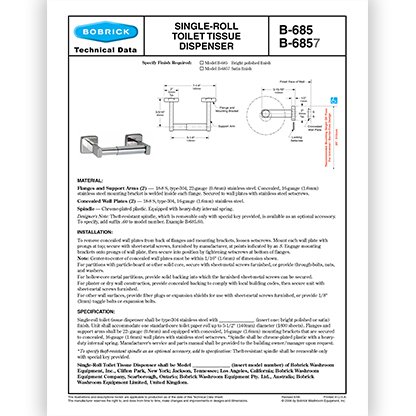

B-685 SURFACE MOUNTED TOILET TISSUE DISPENSER FOR SINGLE ROLL

• Bright polished stainless steel. Support-arm flanges lock to concealed stainless steel wall plate
• Chrome plated plastic spindle holds rolls up to 5-1⁄2" (140mm) diameter (1800 sheets)
• Dimensions: 7-1⁄4" W x 2" H (185 x 50mm); projects 3-15⁄16" (100mm) from wall
• Universal/Barrier-Free Mtg. Ht.: 20" (510mm) to top of unit
• B-6857: Similar to B-685, but with satin finish

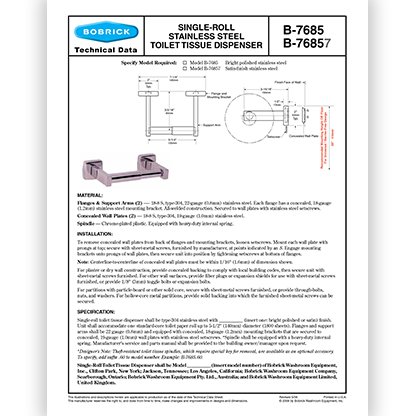

• B-7685: ClassicSeries SURFACE MOUNTED TOILET TISSUE DISPENSER FOR SINGLE ROLL
  • Bright polished stainless steel
  • Dimensions: 7-1⁄4" W x 2" H (185 x 50mm); projects 3-15⁄16" (100mm) from wall
• B-76857: Similar to B-7685, but with satin finish

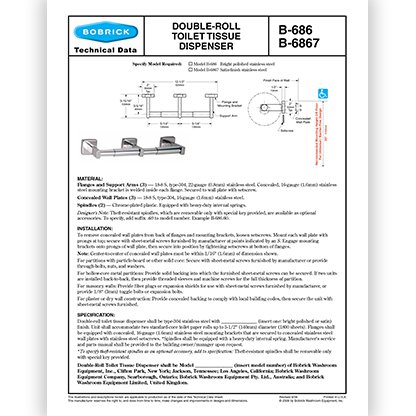

B-686 SURFACE MOUNTED TOILET TISSUE DISPENSER FOR TWO ROLLS

• Bright polished stainless steel
• Support-arm flanges lock to concealed stainless steel wall plate
• Chrome plated plastic spindle holds rolls up to 5-1⁄2" (140mm) diameter (1800 sheets)
• Dimensions: 12-1⁄2" W x 2" H (320 x 50mm); projects 3-15⁄16" (100mm) from wall
• B-6867: Similar to B-686, but with satin finish

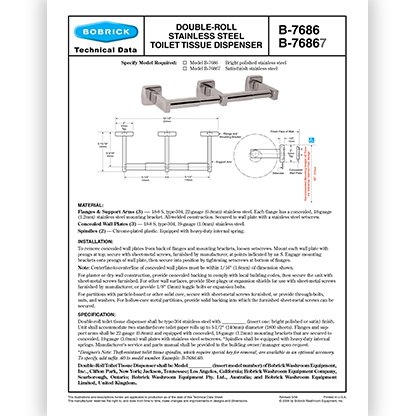

• B-7686: ClassicSeries SURFACE MOUNTED TOILET TISSUE DISPENSER FOR TWO ROLLS
  • Bright polished stainless steel
  • Dimensions: 12-1⁄2" W x 2" H (320 x 50mm); projects 3-15⁄16" (100mm) from wall
• B-76867: Similar to B-7686, but with satin finish
• Theft-Resistant Spindle (Part No. 283-604) option available

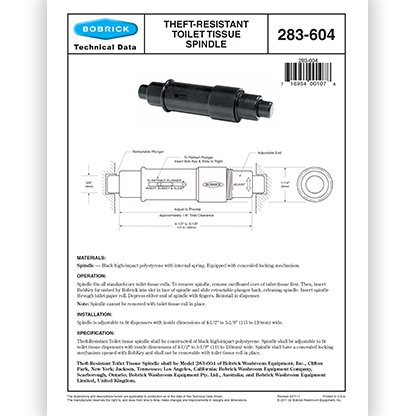

283-604 THEFT-RESISTANT SPINDLE

• Molded plastic spindle with concealed locking feature
• Option or replacement part for Bobrick surface mounted and recessed toilet tissue dispensers
• After rolls are depleted, theft-resistant spindle is removed with special key furnished


Bobrick – Building Value Since 1906

Bobrick is a century-old global washroom accessory and partition company with six manufacturing divisions across the United States and Canada, and business operations that extend into 85 markets worldwide.

A leader in product innovation and manufacturing, Bobrick prides itself as a company that delivers best-in-class products and service, while fostering an environment of collaboration and continuous learning.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.
© 2007 by Bobrick Washroom Equipment, Inc.
