Toilet Compartment Accessories - Technical Data

• Partition-Mounted Models B-347, B-3471, B-357, B-3571 mount through partitions 1⁄2" to 2" (13–51mm) thick, serving two compartments.

• Models B-3471, B-3474, B-3571, B-3574 meet accessibility guidelines.

• Toilet tissue dispensers hold 5-1⁄4" (135mm) diameter, 1800-sheet rolls.

• Flanges are one-piece seamless, doors secured with full length stainless steel hinges, and tumbler locks keyed like other Bobrick models.

• Constructed of type 304 stainless steel throughout with satin finish on all exposed surfaces; welded construction.

• Theft-resistant spindles included.

• 353-12: Disposable Paper Liners, 1,000 per case – available for models B-357, B-3571, B-3574, B-3579.


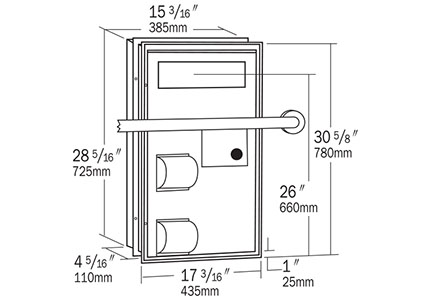

DESIGNER’S NOTES:

1. Partition-mounted units B-3471, B-3571 with one side flush to partition of Barrier-Free compartment have toilet tissue on left when facing unit.
2. Recessed units B-3474, B-3574 and surface-mounted units B-3479, B-3579 have toilet tissue on right when facing unit.
3. Position unit on panel or side wall with centerline of toilet tissue dispenser 7"–9" (180–230mm) in front of leading edge of toilet.
4. For B-3471 and B-3571 on left side of toilet (when seated on toilet) rear edge of panel cut-out should be 32-1/2" to 34-1/2" (825 to 876mm) from rear edge of panel to position toilet tissue dispensers centerline 7" to 9" (180 to 230mm) in front of leading edge of toilet. For units on right side of toilet, rear edge of panel cut-out should be 25" to 27" (635 to 685mm) from rear edge of panel. Cut-out locations based on toilet projecting 30" (760mm) from rear wall, and a 1/2" (13mm) gap between rear edge of panel and rear wall.
5. When combination units are mounted in an accessible toilet compartment through the shared toilet partition panel, the unit’s location in the adjoining toilet compartment must permit the unit’s complete operation, and allow for the unit’s door to swing clear of the toilet when custodians service the unit.
6. Cutouts in partitions for accessories can be pre-cut at factory, if location and size of cutouts are specified and orders for both partitions and accessories are received together.

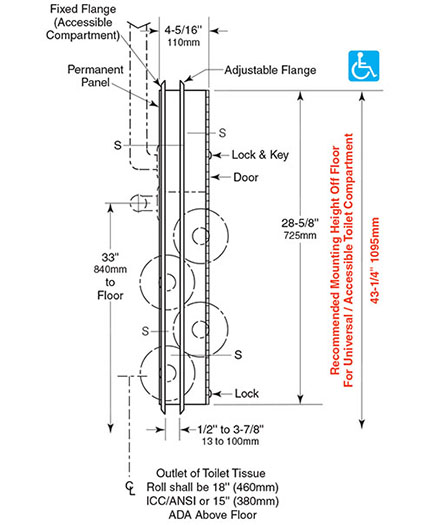

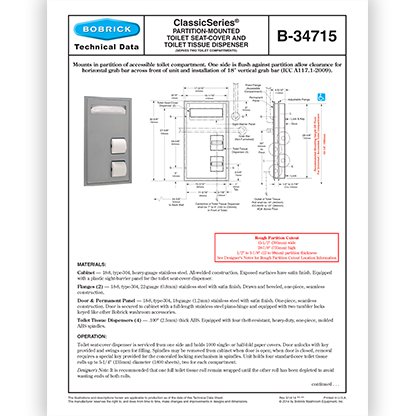

B-3471 ClassicSeries PARTITION MOUNTED SEAT-COVER DISPENSER AND TOILET TISSUE DISPENSER

• One side mounts flush against partition of Barrier-Free compartment to allow clearance for grab bar
• Used from both sides, serviced from one side
• Holds 500 toilet seat covers and two rolls of tissue for each compartment
• Theft-resistant spindles
• Rough Partition Opening: 15-1⁄2" W x 28-7⁄8" H (395 x 735mm)
• Universal/Barrier-Free Mtg. Ht.: 43-1⁄4" (1100mm) to top of unit

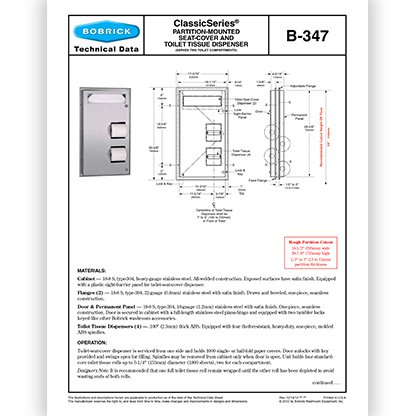

• B-347: Similar to B-3471, but mounts centered through toilet partition
  • Used from both sides, serviced from one side
  • Average Mounting Height: 60" (1525mm) to top of unit
• B-3474: Similar to B-3471, but for recessed installation in side wall of single compartment
  • Holds 500 toilet seat covers and two rolls of tissue
  • Rough Wall Opening: 16" W x 29-1⁄4" H x 4" min. depth (405 x 745 x 100mm)
  • Av. Mtg. Ht.: 60" (1525mm) to top of unit; Barrier-Free, 44-1⁄2" (1130mm)

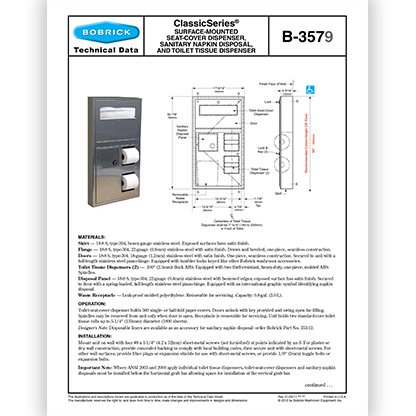

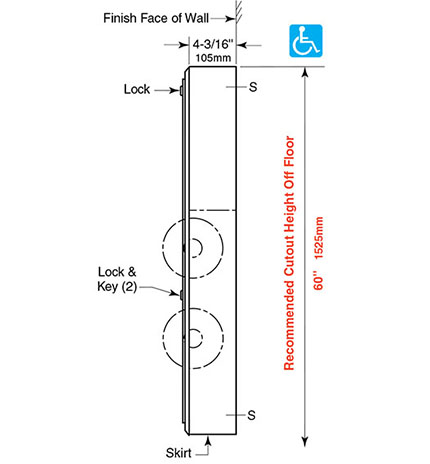

• B-3479: Similar to B-3474, but with stainless steel skirt for surface mounting
  • Av. Mtg. Ht.: 60" (1525mm) to top of unit

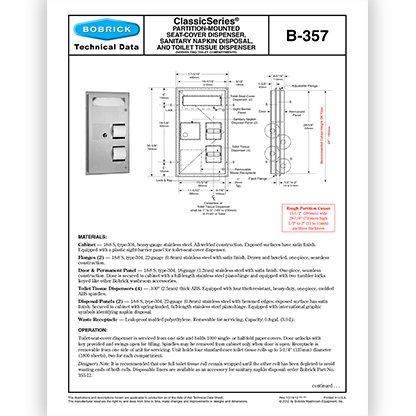

B-357 ClassicSeries PARTITION-MOUNTED SEAT-COVER DISPENSER, SANITARY NAPKIN DISPOSAL AND TOILET TISSUE DISPENSER

• Mounts centered through toilet partition
• Used from both sides, serviced from one side
• Capacity: 0.8 gal. (3.0L)
• Holds 500 toilet seat covers and two rolls of tissue for each compartment
• Theft-resistant spindles
• Rough Partition Opening: 15-1⁄2" W x 28-7⁄8" H (395 x 735mm)
• Av. Mtg. Ht.: 60" (1525mm) to top of unit

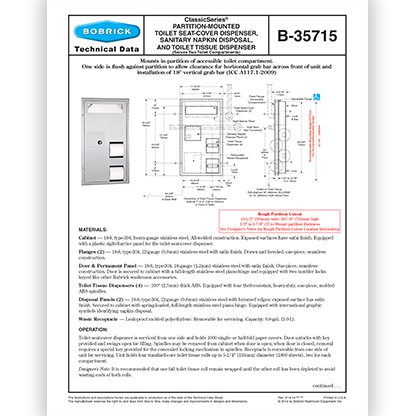

• B-3571: Similar to B-357, but one side mounts flush against partition of Barrier-Free compartment to allow clearance for grab bar
  • Universal/Barrier-Free Mtg. Ht.: 43-1⁄4" (1100mm) to top of unit

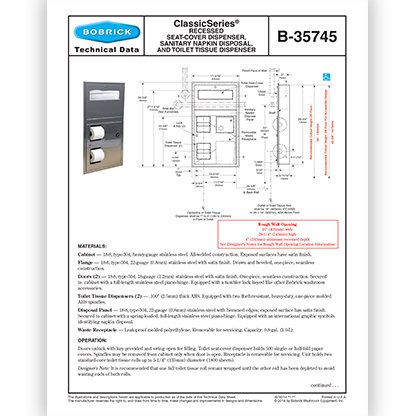

• B-3574: Similar to B-3571, but for recessed installation in side wall of single compartment
  • Holds 500 toilet seat covers and two rolls of tissue
  • Rough Wall Opening: 16" W x 29-1⁄4" H x 4" min. depth (405 x 745 x 100mm)
  • Av. Mtg. Ht.: 60" (1525mm) to top of unit; Barrier-Free, 44-1⁄2" (1130mm)
• B-3579: Similar to B-3574, but with stainless steel skirt for surface mounting
  • Av. Mtg. Ht.: 60" (1525mm) to top of unit
