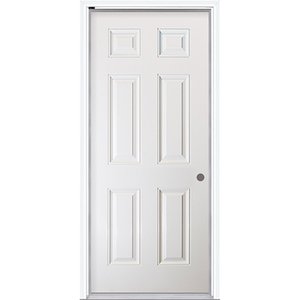

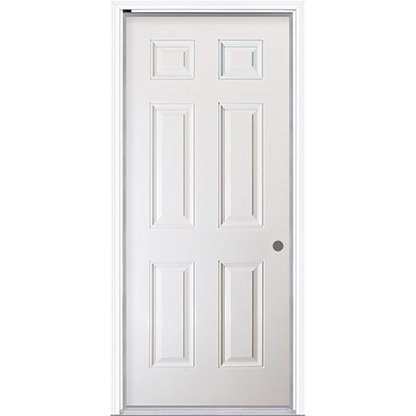

Titan
Fiberglass Slab | Composite Frame
The Titan Door System will provide years of worry-free performance due to its smooth white, pre-pigmented fiberglass door in a maintenance-free composite frame.
This product never requires painting, and maintains its appearance in heavy traffic areas.
Incomparable Stength
Nan Ya fiberglass door slabs will not dent, rust, split, warp, swell, crack, or rot. Paired with a Nan Ya composite frame, the Titan unit helps prevent forced entry due to superior material strength.
The Titan is a premium choice for light commercial and residential exterior applications.
- Designs
- Specifications
- Options
- Downloads
6'8" - 4 Lite External
6'8" - 4 Lite External
Standard widths:
2/8, 2/10 and 3/0
6'8" - 9 Lite External
6'8" - 9 Lite External
Standard widths:
2/8, 2/10 and 3/0
6'8" - 9 Lite Internal
6'8" - 9 Lite Internal
Standard widths:
2/8, 2/10 and 3/0
6'8" - Dual Clear Low-E
6'8" - Dual Clear Low-E
Standard widths:
2/8, 2/10 and 3/0
6'8" - Estate
6'8" - Estate
Standard widths:
2/8, 2/10 and 3/0

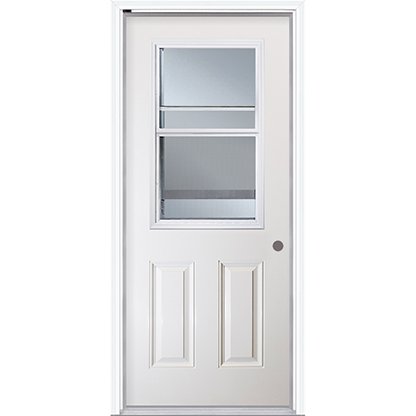

6'8" - Mini-Blinds
6'8" - Mini-Blinds
Standard widths:
2/8, 2/10 and 3/0
6'8" - Nouveau
6'8" - Nouveau
Standard widths:
2/8, 2/10 and 3/0
6'8" - Simplicity
6'8" - Simplicity
Standard widths:
2/8, 2/10 and 3/0
Titan Door System Specifications
The 20-minute fire rated fiberglass door combined with a durable composite frame makes this unit perfect for:
- One and two family dwellings
- Low-rise multifamily dwellings, low-rise professional offices, libraries and low-rise motels
- Lighter use industrial buildings and factories, hotels, and retail sales buildings

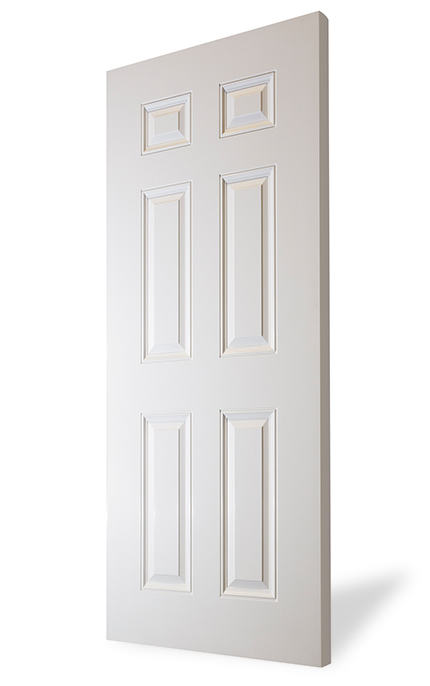

Smooth White Fiberglass Door
Slab: Made of high compression-molded fiberglass to provide superior protection and durability. Fiberglass reinforced door skins won't dent or delaminate like steel. Deeper embossing panel design. Surfaces are easy to stain or paint, and easy to clean.
Internal Wood Lock Block: Full-length wood and steel reinforcing to prevent thermal and moisture bow. Accepts a full range of door locks and hardware, including multi-point.
Waterproof Composite Stiles & Rails: No exposed wood; sealed edges and corners. Will not absorb moisture and will not rot. Easy to machine, with stronger screw holding capability and better performance than wood stiles. Will not delaminate, warp, rot or splinter. Ideal for livestock facilities.
Size: 6'8" height only; 2'8", 2'10" and 3'0" widths.
Core: 100% CFC-free Polyurethane foam injected, for an excellent R rating. Environmentally friendly. Rigid core to provide dimensional stability. 6X more energy efficient than wood doors.
Slab Finishing: Pre-pigmented smooth white skin requires no painting, and will not yellow. Surface will accept paint.
Glazing: See Designs tab for factory-installed glass options.
Smooth White Composite Frame
Features: Tough exterior finish will never discolour or "yellow", and eliminates problems due to water absorption – frame will never split, rot, mold, swell or warp.
Material: Prehung in white maintenance-free composite frame with white weatherstrip, white corner pad, quality sill, vinyl shoe, and zinc ball bearing hinges.
Jamb Width: 4-9/16" (2x4) or 6-9/16" (2x6). Left hand inswing or right hand inswing application only.
Preparation: Default single drill; optional double drill.
Brickmould: 2" 180 step composite material, complete with SnapBack nailing fins.
Nailing Fins: Madero's patented Snap-Back nailing fin incorporates a hinge-style design for installation flexibility. The nailing fin lays flat for ease of installation, without damaging composite brickmould, or snaps back for renovation projects.

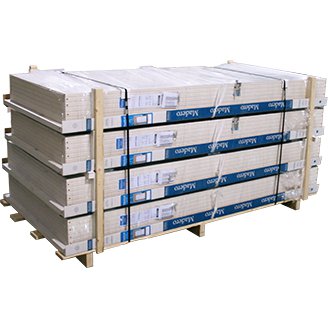

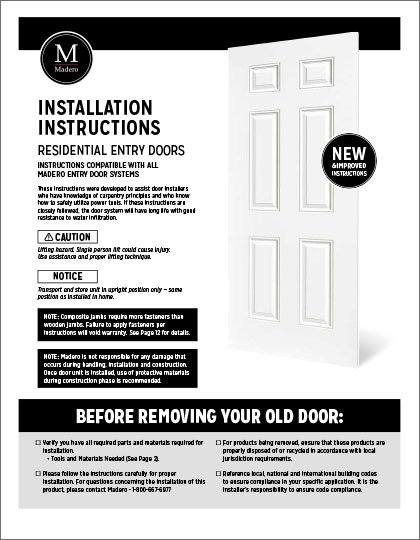

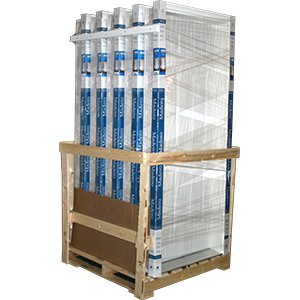

Packaging: Green corner protectors; Individually shrinkwrapped with installation instructions and screws included.
Rough Opening: For 6'8" Height:
- 2'8" Width: 34-7/16" x 82-1/8"
- 2'10" Width: 36-7/16" x 82-1/8"
- 3'0" Width: 38-7/16" x 82-1/8"
Warranty: 25-year limited warranty on fiberglass slab only – no painting required. Five-year limited warranty on composite frame and components – no painting required.
Energy Saving Low-E Glass
See infrared image below of two windows during winter conditions, as seen from the inside of a room. The window on the right has a low-e coating while the window on the left doesn't. Warmer temperatures indicate a better insulating window. The second window is cooler because it has a low-emissivity coating, or low-e, as it's known. It is an invisible layer of metal on the glass that acts as an insulator.
Image: LBNL

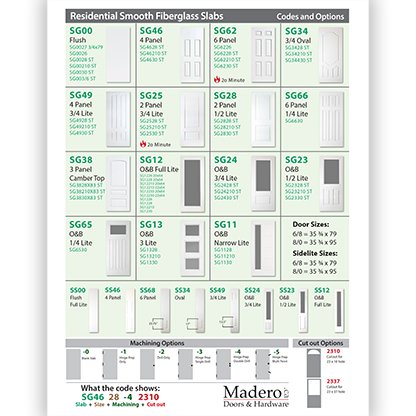

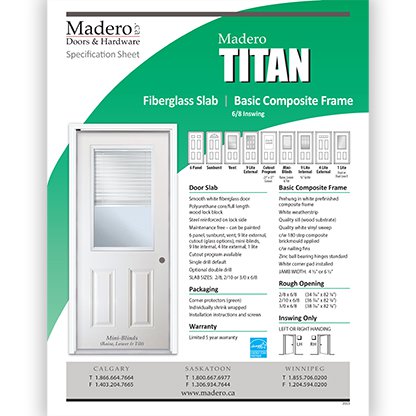

Smooth White Fiberglass Door Specifications

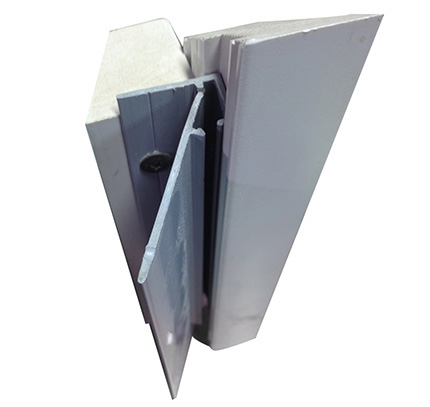

Patented "SnapBack" Nailing Fin
