SureFlo® Soap Dispensing System Specifications

Clearances and Mounting Requirements:

• 1-3/8" (35mm) diameter mounting hole required.
• 2" maximum counter thickness for short shank.
• Minimum 18" (430mm) vertical clearance needed below the counter.
• 5" (125mm) diameter clearance needed below the mounting hole to accommodate bottle and bottom housing.
• Minimum 2-1/4" (55mm) diameter clearance needed for mounting nut directly below the counter to clear sink rim.
• Recommend drilling mounting hole 6" to 8" (150 to 205mm) from the wall, and 2-1/2" to 3" (65 to 75mm) from sink rim.

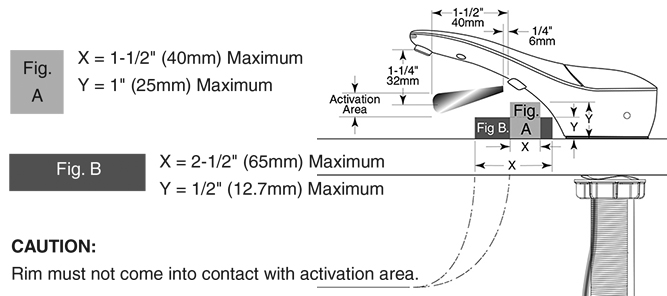

Unit is not compatible with sink rim over counter area greater than maximums (see Fig. A & B below):

For New Installation:

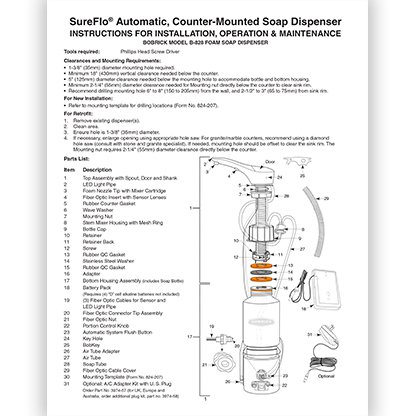

• Refer to mounting template for drilling locations
  (see Downloads tab).

For Retrofit:

1. Remove existing dispenser(s).
2. Clean area.
3. Ensure hole is 1-3/8" (35mm) diameter.
4. If necessary, enlarge opening using appropriate hole saw. For granite/marble counters, recommend using a diamond hole saw (consult with stone and granite specialist). If needed, mounting hole should be offset to clear the sink rim. The mounting nut requires 2-1/4" (55mm) diameter clearance directly below the counter.

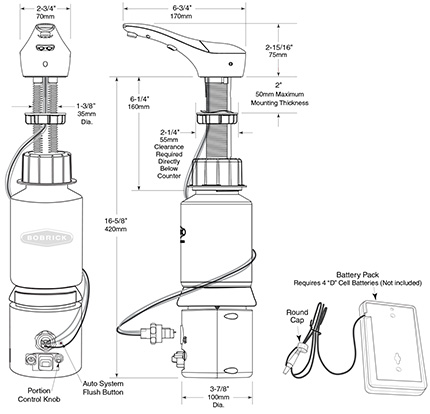

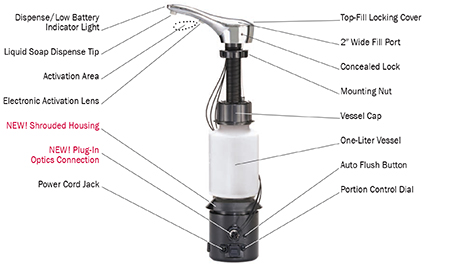

B-824 Automatic, Top-Fill Bulk Liquid Soap Dispenser

Materials: Spout and Shank Assembly – Above the counter, chrome plated ABS plastic spout. Unit equipped with a spring loaded 180° rotatable lid with concealed locking mechanism for top filling. Rotatable lid mechanism consists of metal components. Integrated to spout are a grey plastic dispense tip and activation lens housing. ABS shank connects to bottle. Soap Bottle – Translucent, shatter-resistant polyethylene.

Capacity: 34-fl oz (1.0-L). Pump and Soap Delivery System – A plastic gear pump submerged in the bottom of the bottle, pumps the liquid soap through a vinyl tube to spout. Bottom Housing – Water resistant, ABS plastic housing attached to the bottom of the bottle, houses the PC board, motor that drives the gear pump, and the gear pump housing. It includes a portion control knob, flush button to allow for system cleaning and maintenance, a connector for the fiber optic cables, and power port.

Electronic Activation/Indication System: Pair of plastic fiber optic cables connects the plastic activation lenses to an IR sensor located on a PC board in the bottom housing. A third plastic fiber optic cable connects an LED located on the PC board to an acrylic lens at the tip of the spout; a solid green LED indicates dispense activity and a red blinking LED light indicates low battery life. All three cables are intergrated into one fiber optic connector tip for ease of installation.

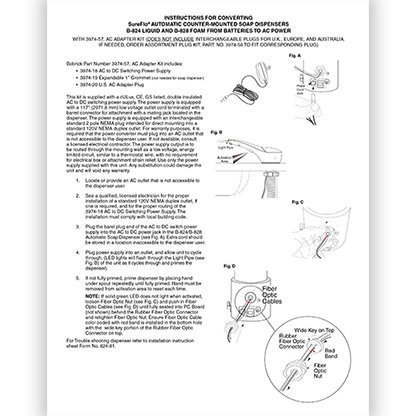

Battery Pack: Water-resistant, plastic material holds 4 alkaline “D” cell batteries (not included). ANSI-134A, IEC-LR20 designation. Optional 6V AC adapter with U.S. plug available, Part No. 3974-57. (For non-U.S. compatible plugs, order Part No. 3974-55).

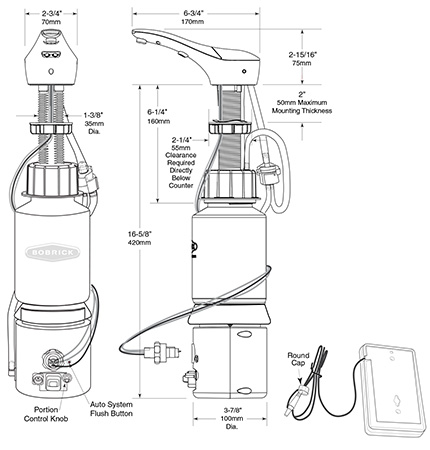

B-828 Automatic, Top-Fill Bulk Foam Soap Dispenser

Materials: Spout and Shank Assembly – Above the counter, chrome plated ABS plastic spout. Unit equipped with a spring loaded 180° rotatable lid with concealed locking mechanism for top filling. Rotatable lid mechanism consists of metal components. Integrated to spout are a grey plastic dispense tip and activation lens housing. ABS shank connects to bottle. Soap Bottle – Translucent, shatter-resistant polyethylene.

Capacity: 34-fl oz (1.0-L). Foam Mixer Cartridge – Located inside grey nozzle tip, mixer cartridge has nylon mesh ultrasonically welded on both ends and is removable for cleaning and maintenance. Air Pump – Diaphragm-operated electronic air pump connects to the air tube adapter and supplies air to the Foam Mixer Housing. Foam Mixer Housing with Mesh Ring – ABS plastic construction connects air tube and soap tube into a mixing chamber to create a preliminary mixture of foam. Ultrasonically welded mesh on ring inside housing is removable for cleaning and maintenance. Pump and Soap Delivery System – A plastic gear pump submerged in the bottom of the bottle, pumps the liquid foam soap through a vinyl tube to spout. Bottom Housing – Water-resistant, ABS plastic housing attached to the bottom of the bottle houses the PC board, motor that drives the gear pump, and the gear pump housing. It includes a portion control knob, flush button to allow for system cleaning and maintenance, a connector for the fiber optic cables, and power port.

Electronic Activation/Indication System: Pair of plastic fiber optic cables connects the plastic activation lenses to an IR sensor located on a PC board in the bottom housing. A third plastic fiber optic cable connects an LED located on the PC board to an acrylic lens at the tip of the spout; a solid green LED indicates dispense activity and a red blinking LED indicates low battery life. All three cables are intergrated into one fiber optic connector tip for ease of installation.

Battery Pack: Water-resistant, plastic material holds 4 alkaline “D” cell batteries (not included). ANSI-134A, IEC-LR20 designation, which includes most standard battery manufacturer’s D-batteries. Optional 6V AC adapter with U.S. plug available, Part No. 3974-57. (For U.K., Europe and Australia order additional assortment plug kit, Part No. 3974-58). (For non-U.S compatible plugs, order Part No. 3974-55).

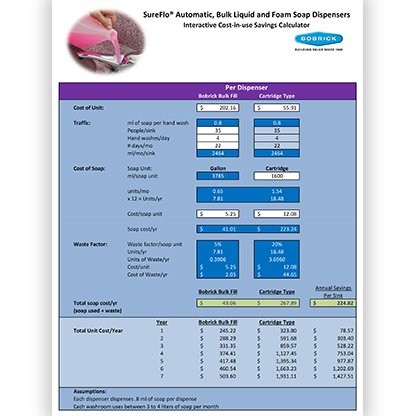

See Downloads tab for further specifications, installation and maintenance instructions.
