Hand Sanitation

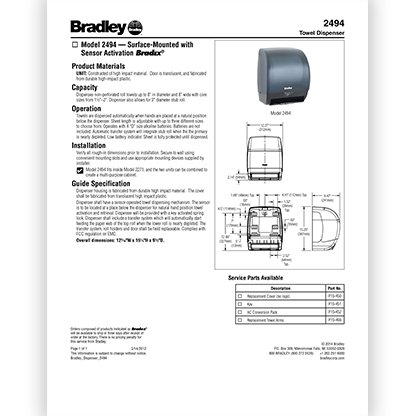

Bradley 2494 Automatic Towel Roll Dispenser Specifications

• Product Materials: Constructed of high impact material. Door is translucent, and fabricated from durable high-impact plastic.

• Capacity: Dispenses non-perforated roll towels up to 8" in diameter and 8" wide with core sizes from 11⁄2"–2". Dispenser also allows for 3" diameter stub roll.

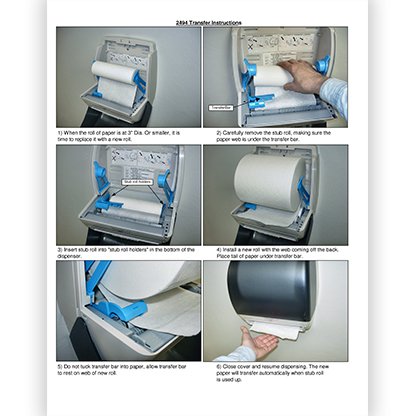

• Operation: Towels are dispensed automatically when hands are placed at a natural position below the dispenser. Sheet length is adjustable with up to three different sizes to choose from. Operates with 4 “D” size alkaline batteries. Batteries are not included. Automatic transfer system will integrate stub roll when the the primary is nearly depleted. Low battery indicator. Sheet is fully protected until dispensed.

• Installation: Verify all rough-in dimensions prior to installation. Secure to wall using convenient mounting slots and use appropriate mounting devices supplied by installer.

• Model 2494 fits inside Model 2271, and the two units can be combined to create a multi-purpose cabinet.

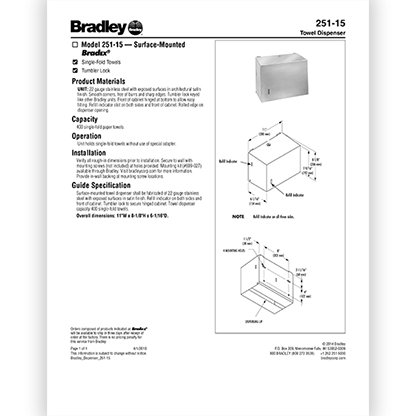

Bradley 251-15 Folded Towel Dispenser Specifications

• Product Materials: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Smooth corners, free of burrs and sharp edges. Tumbler lock keyed like other Bradley units. Front of cabinet hinged at bottom to allow easy filling. Refill indicator slot on both sides and front of cabinet. Rolled edge on dispenser opening.

• Capacity: 400 single-fold paper towels.

• Operation: Unit holds single-fold towels without use of special adapter.

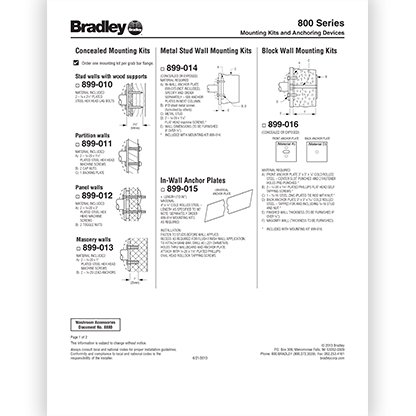

• Installation: Verify all rough-in dimensions prior to installation. Secure to wall with mounting screws (not included) at holes provided. Mounting kit (#899-027) available through Bradley. Visit bradleycorp.com for more information. Provide in-wall backing at mounting screw locations.

• Guide Specification: Surface-mounted towel dispenser shall be fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. Refill indicator on both sides and front of cabinet. Tumbler lock to secure hinged cabinet. Towel dispenser capacity 400 single-fold towels.

• Overall dimensions: 11"W x 8-1/8"H x 6-1/16"D.

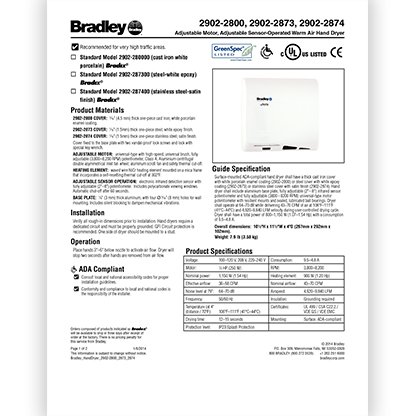

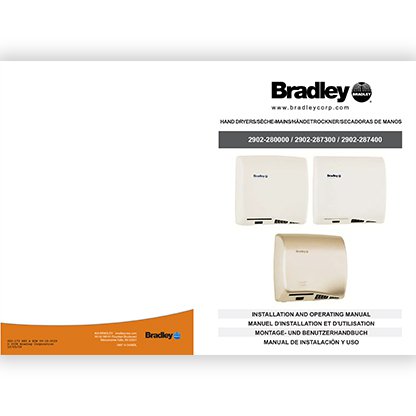

Bradley 2902-2873 Aerix Warm Air Hand Dryer Specifications

Recommended for very high traffic areas; faster drying time reduces electricity usage by up to 80%

 Standard Model 2902-280000 (cast iron white porcelain)
 Standard Model 2902-287300 (steel-white epoxy)
 Standard Model 2902-287400 (stainless steel-satin finish)

• Product Materials:

  • 2902-2800 COVER: 3⁄16" (4.5 mm) thick one-piece cast iron; white porcelain enamel coating

  • 2902-2873 COVER: 1⁄16" (1.5mm) thick one-piece steel; white epoxy finish

  • 2902-2874 COVER: 1⁄16" (1.5mm) thick one-piece stainless steel; satin finish

• Cover fixed to the base plate with two vandal-proof lock screws and lock with special key wrench.

• ADJUSTABLE MOTOR: universal-type with high-speed, universal brush, fully adjustable (3,800–8,200 RPM) potentiometer, Class A; Aluminium centrifugal double asymmetrical inlet fan wheel; aluminum scroll fan and safety thermal cut-off.

• HEATING ELEMENT: waved wire NiCr heating element mounted on a mica frame that incorporates a self-resetting thermal cut-off at 302° F.

• ADJUSTABLE SENSOR OPERATION: electronic infrared detection sensor with fully adjustable (2"–8") potentiometer. Includes polycarbonate viewing windows. Automatic shut-off after 60 seconds.

• BASE PLATE: 1⁄8" (3 mm) thick aluminum, with four Ø 5⁄16" (8 mm) holes for wall mounting. Includes silent blocking to dampen mechanical vibrations.

• Installation: Verify all rough-in dimensions prior to installation. Hand dryers require a dedicated circuit and must be properly grounded. GFI Circuit protection is recommended. One side of dryer should be mounted to a stud.

• Operation: Place hands 3"–6" below nozzle to activate air flow. Dryer will stop two seconds after hands are removed from air flow.

• Overall dimensions: 101⁄2"H x 111⁄2"W x 4"D (267mm x 292mm x 102mm). Weight: 7.9 lb (3.58 kg)
