SoftTek Collection

SoftTek pulls feature a durable, weather-resistant black 1-1/4" diameter Santoprene™ grip that provides a soft, warm feeling gripping surface.

Santoprene is a high performance engineered thermoplastic elastomer used for many consumer goods grip applications.

These pulls are suitable for both interior and exterior applications, and are comfortable to touch even in cold temperature extremes.

Straight and offset pulls as well as push bars are available in all architectural finishes.

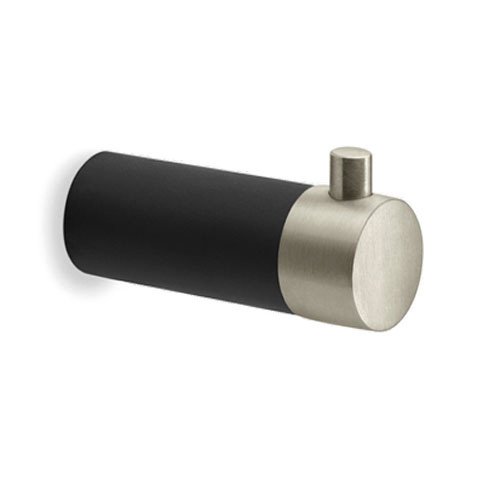

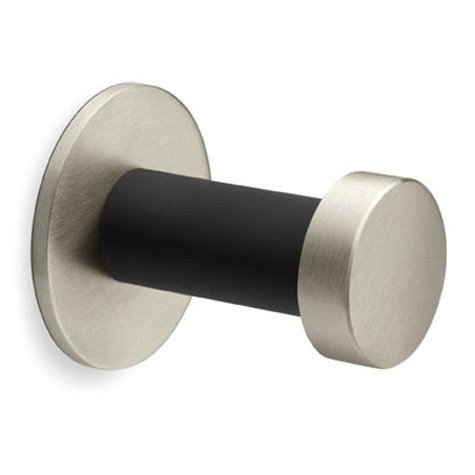

Complete your decor with SoftMet coat hooks, levers and other coordinated accessories.

(Santoprene™ is a trademark of
Santoprene™ Speciality Products.)

Designs
Specifications
Options
Finishes
Downloads

RM2610 - straight pull

1-1/4" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM2612 - push bar

1-1/4" diameter

Specify CTC

3" projection

RM2615 - straight push-pull

1-1/4" diameter

Specify push/pull CTC

3" projection

RM2640 - offset pull

1-1/4" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM2645 - offset push-pull

1-1/4" diameter

Specify push/pull CTC

3" projection

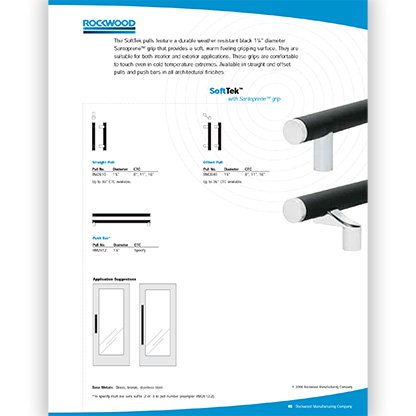

SoftTek Collection Specifications

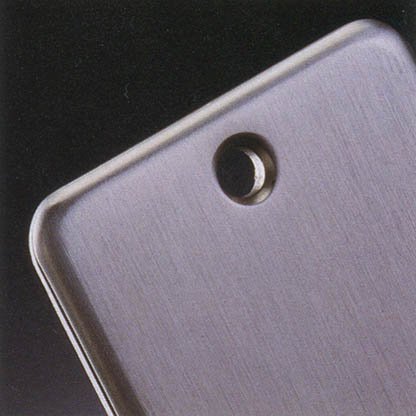

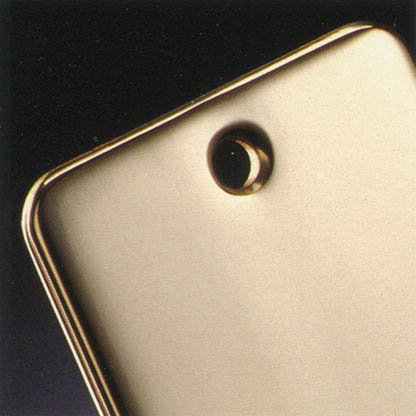

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metals for the SoftMet Collection are stainless steel, brass or bronze.

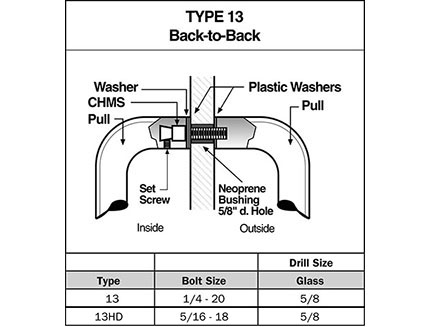

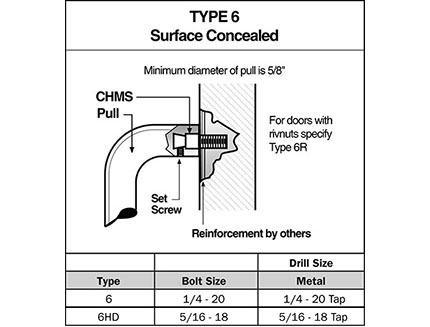

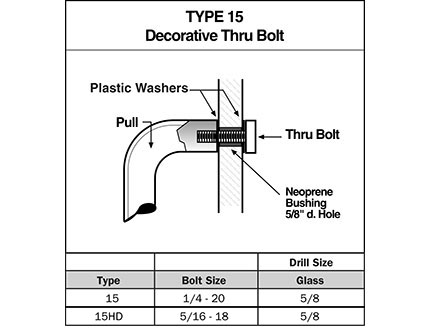

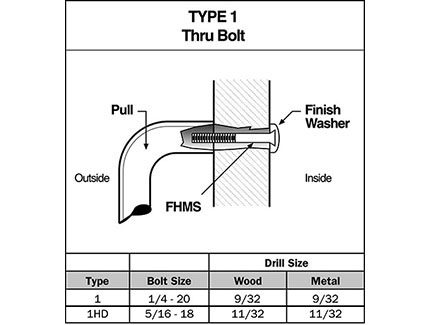

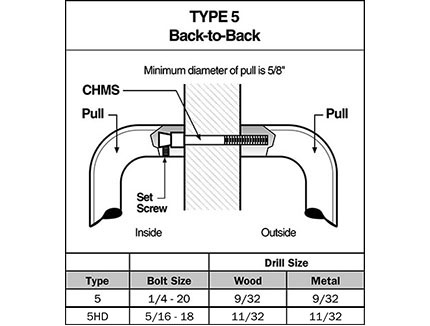

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM2612-2).

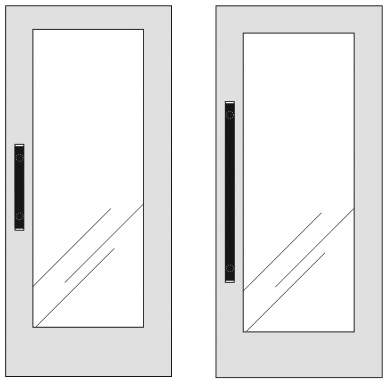

Application Suggestions

Straight Pull

RM2610 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"

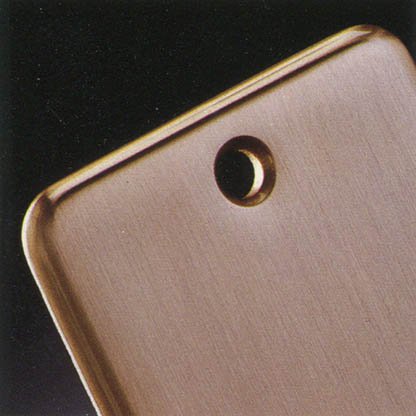

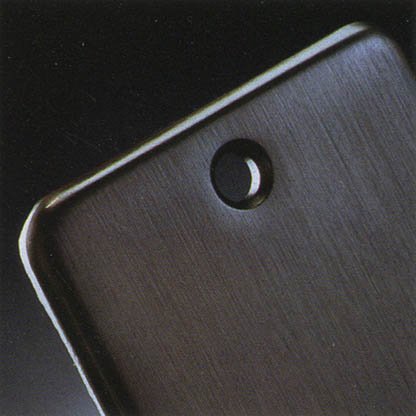

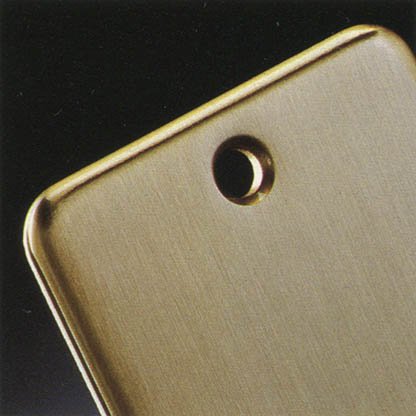

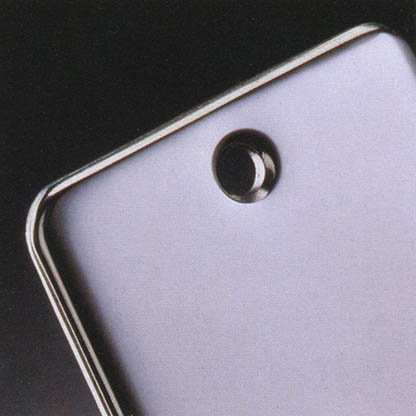

Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull

RM2640 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set

RM2615 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set

RM2645 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

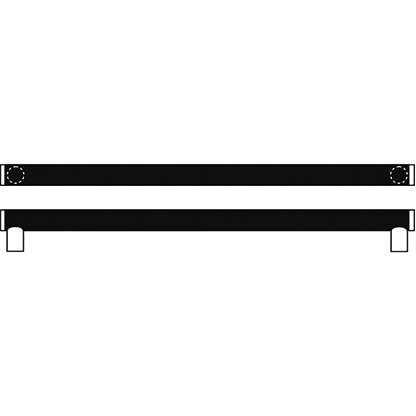

Push Bar

RM2612 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
