Soap Equipment

Frost Product Specifications

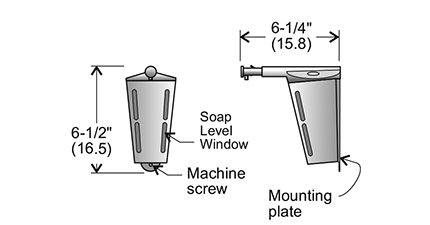

Surface Mounted Liquid Soap Chrome Pump Dispenser

• Code 705-100: Liquid soap dispenser.
• Features: All chrome plated body and mounting bracket. Chained keyed filter cap. Soap level indicator slots. All mounting screws concealed.
• Soap Types: 705-100 is for use with coconut oil base soap at 10-20% solution.
• Capacity: 12 oz. (340 g)
• Installation: Secure mounting plate to wall through holes with four mounting screws provided. Slip dispenser over mounting plate and secure with single machine screw at bottom.

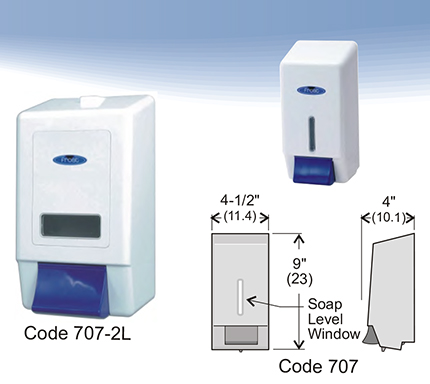

Surface Mounted ABS Lotion Soap Dispenser

• Code 707: Lotion soap dispenser;  Code 707-2L: Large capacity lotion soap dispenser.
• Site Location: All purpose push type dispenser is suitable for any location, with popular adhesive pad mounting for mirrored surfaces.
• Features: Quality ABS finish. Removable inner soap reservoir for easy cleaning and maintenance. Lockable front cover. Attractive blue and white colour scheme. Completely concealed wall mounting (no visible mounting screws).
• Soap Types: All purpose dispensing valve is suitable for easy flowing liquid or lotion soaps.
• Capacity: Code 707: 35 oz. capacity, (1 litre);  Code 707-2L: 70 oz. capacity, (2 litre).
• Installation: Secure unit to wall; screws, plugs and template provided. Alternately, use adhesive pads on smooth dry surfaces.

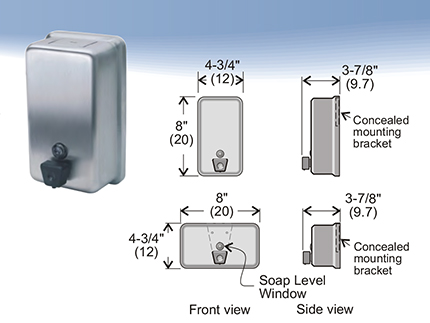

Surface Mounted Tank Type Soap Dispenser

• Code 708A: All purpose valve, vertical mounting; Code 710A: All purpose valve, horizontal mounting.
• Specifications: The surface mounted unit is intended for any type of wall material or construction.
• Features: Drawn and welded construction of 20 ga. stainless steel. Easy refill at top. Keyed lock filler cap. Lucite soap level indicator window. All mounting screws concealed.
• Soap Types: The code 708A & 710A dispense liquid soap at 10- 20% solution as well as more viscous synthetic detergents, lotions and antiseptic soaps. We do not recommend any soap types that have an ammonium based surfactant, ie. Ammonium Lauryl Sulfate.
• Capacity: 40 oz. capacity, (1.1 litre).
• Installation: Secure mounting plate to wall through holes with three mounting screws provided. Slip dispenser over mounting plate and secure with single screw through filler cap at top.

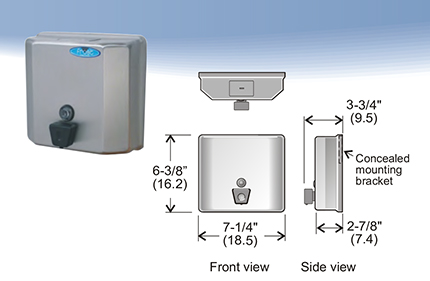

Surface Mounted Profile Soap DIspenser

• Code 711: All purpose valve, vertical mounting.
• Features: Drawn and welded construction of 20 ga. stainless steel. Easy refill at top. Keyed lock filler cap. Lucite soap level indicator window. All mounting screws concealed.
• Soap Types: Dispenses liquid soap at 10-20% solution as well as more viscous synthetic detergents, lotions and antiseptic soaps. We do not recommend any soap types that have an ammonium based surfactant, ie. Ammonium Lauryl Sulfate.
• Capacity: 55 oz. capacity, (1.5 litre).
• Installation: Secure mounting plate to wall through holes with three mounting screws provided. Slip dispenser over mounting plate and secure with single screw through filler cap at top.

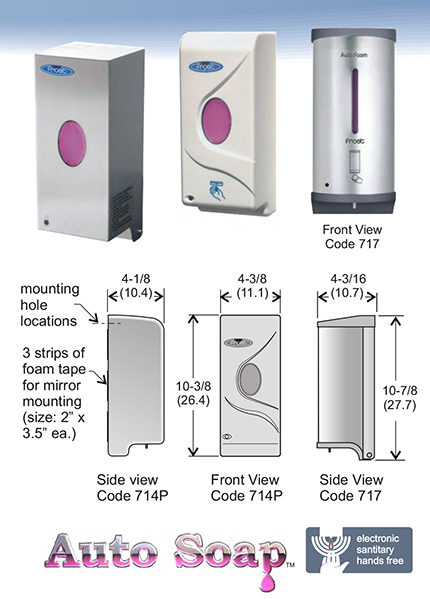

Surface Mounted Electronic Touch Free Soap Dispenser

• Code 714P: Lotion soap dispenser, plastic;  Code 714S: Lotion soap dispenser, stainless;  Code 717: Bulk foam dispenser.
• Site Location: Ideal for high traffic areas and multiple mirror mounting.
• Dispensing: Soap is dispensed when hand is placed within 2-1/4” (6cm) under the unit.
• Soap container capacity: 1 litre (33 ounces).
• Power Source: Unit is powered by 3 “c” alkaline batteries (not included). Battery life is 10,000 cycles. or one year. Low battery indicator (flashes red). Soap viscosity range: 2,000 - 5,000 cps (covers most liquid soap products).
• Shipping Weight: 2 lbs., (bulk packed 12 units per case).
• Installation: For unrestricted access, bottom of unit to floor should not exceed 44" (111.7). Insure unit is mounted 20 cm above any horizontal surface (30 cm for stainless steel).

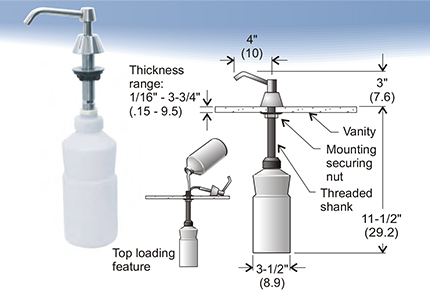

Built In Vanity Mounted Soap Dispenser

• Code 712: All purpose soap valve.
• Specifications: Ideal for all types of vanity and counter tops.
• Features: Less than 5 lbs. of force required to activate pump. Chrome plated brass housing. Concealed mounting assembly. Top loading.
• Soap Types: 712A dispenses liquid soap at 10-20% solution as well as more viscous synthetic detergents, lotions and antiseptic soaps.
• Capacity: 32 oz. capacity (1 litre).
• Installation: Insert threaded shank through 7/8" dia. hole in vanity with only housing and valve assembly exposed above counter. Secure with brackets provide below. Attach globe.

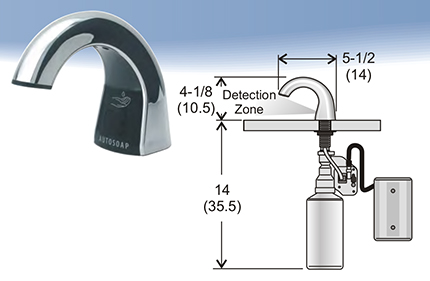

Built In Touch Free Countertop Soap Dispenser

• Code 715: Countertop mounted, Auto Soap dispenser, chrome finish.
• Code 715SK: Auto Soap Starter Kit – Includes dispenser, 800ml soap container, 4 “D” cell alkaline batteries.
• Code 715-500: Soap Refills (4 x 800 ml).
• Site Location: ADA compliant, no touch dispenser allows for easy-to-reach vanity mounting.
• Features: SmartSensor™ detects user’s hand to automatically dispense OneShot™ of soap. Controlled dosage provides 1000 hand washes per 800ml bottle. Refill indicator light appears when soap is low. Battery indicator light appears when batteries need replacing. Programmable for 800ml and 1600ml soap refilling settings. Shipping Weight: 2.5 lbs. (1.2 kg)
• Installation: Comes with detailed installation instructions.

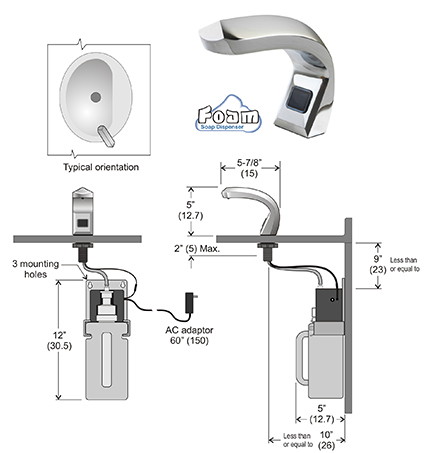

Built In Touch Free Foam Soap Dispenser, Bulk Fill

• Code 718: Bulk fill Auto Soap dispenser, countertop mount, touch free.
• Site Location: ADA compliant, no touch dispenser allows for easy-to-reach vanity mounting.
• Features: Foam soaps reduce consumption and improve washing effectiveness. Main housing is cast brass with polished chrome finish. LED indicators for low battery, empty soap and wrong soap type.
• Bulk loading refill capacity: 1.5 liters (non cartridge refill). Takes all foam suitable soaps. Activated sensor range: 3-4''.
• Power Supply: AC adaptor with 60” (1.5 meter) cord. Can take 4 AA alkaline batteries (not included). Battery life: 20,000 cycles or 1 year.
• Installation: Comes with detailed installation instructions.

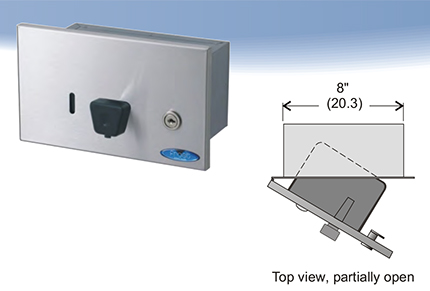

Recessed Soap Dispenser

• Code 719: Recessed all purpose soap valve.
• Specifications: Door manufactured from 22 ga. stainless steel # 4 finish. Full length SS piano hinge and keyed tumbler lock on door. Recessed corrosion resistant galvanized steel body. Soap tank formed from a tough leak proof thermo-formed plastic. Leak proof soap level indicator window.
• Soap Types: 719 dispenses liquid soap at 10-20% solution as well as more viscous synthetic detergents, lotions and antiseptic soaps.
• Capacity: 35 oz. capacity, (1.1 litre).
• Installation: Rough opening: 8-1/2 (21.6) wide x 4-1/2 (11.4) high x 4" (10.2) deep. Drill mounting holes as required.

Frost Guarantee

Frost products are guaranteed from defects in workmanship or material for a period of one year from date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.

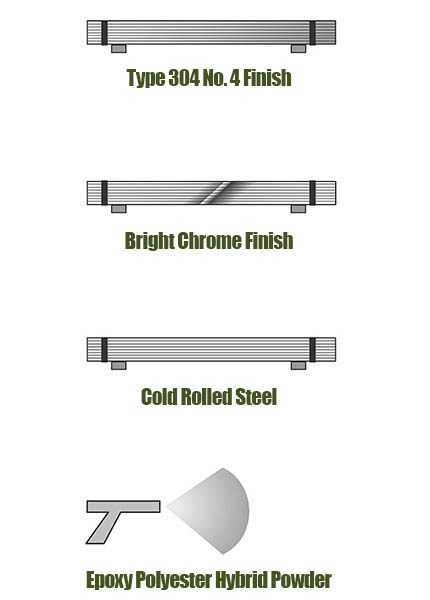

Frost Materials and Finishes

Type 304 No. 4 Finish: Type 304 stainless steel is a standard all-purpose grade, recommended for food, dairy, chemical and medical industries. It is also widely used in architectural applications due to its excellent corrosion resistance. The No.4 finish is widely used in restaurant, architectural, medical and food processing products. All Frost stainless steel products are shipped with a removable protective plastic coating to insure a blemish free product when installed on site.

Bright Chrome Finish: These products are fabricated from pre-chromed sheet steel, using the same processes as stainless steel, to provide an unblemished final product. Frost ships all pre-chromed products with a protective plastic film which is easily peeled off after installation.

Cold Rolled Steel: Frost uses a variety of material thicknesses ranging from 16 to 26 gauge. The variety of material gauges provide the optimum balance between durability and economy. All cold rolled stock is oiled and rust free during fabrication, and degreased before final finishing.

Epoxy Polyester Hybrid Powder: After a thorough degreasing, the assembled cold rolled products are coated with a formulated epoxy hybrid powder to a thickness of approximately 3 mls. An even coating is achieved by electrostatically charging the powder particles and spraying them onto the grounded product. All coated products are then oven cured at 400 degrees F. The result is a superior baked on finish with excellent mechanical/chemical characteristics and U.V. durability.

Detailed technical specifications are available upon request, or see our Downloads tab for information in pdf format.

Guarantee: Frost products are guaranteed from defects in workmanship or material for a period of one year from the date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.
