Soap Dispensers - Technical Data

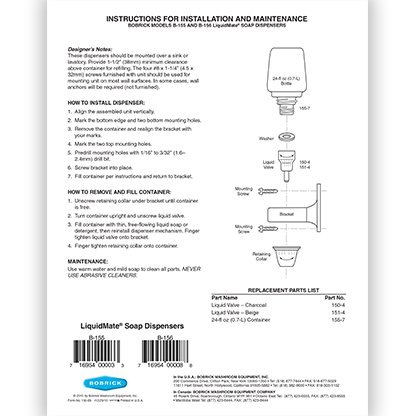

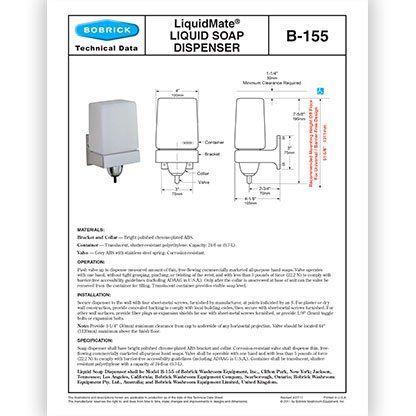

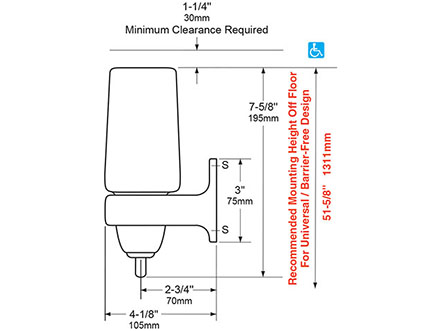

B-155 ClassicSeries® LiquidMate® WALL MOUNTED SOAP DISPENSER

• Corrosion-resistant valve dispenses thin, free-flowing commercially marketed all-purpose hand soaps
• Translucent polyethylene container provides visible soap level
• 24 fl oz (0.7L) capacity
• Dimensions: 4" W x 7-5⁄8" H (100 x 195mm)
• Universal/Barrier-Free Mtg. Ht.: 50-1⁄2" (1285mm) to top of unit with push-button 44" (1120mm) above floor
• Bright polished, chrome plated ABS mounting bracket

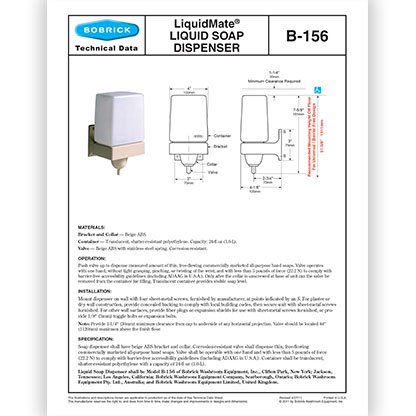

• B-156: Beige ABS mounting bracket

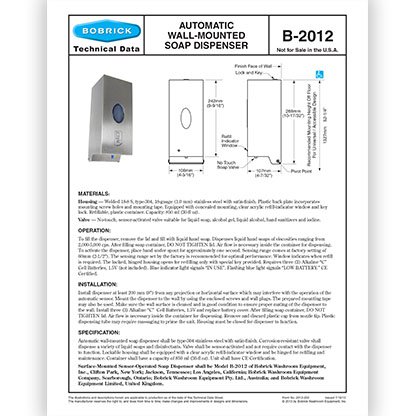

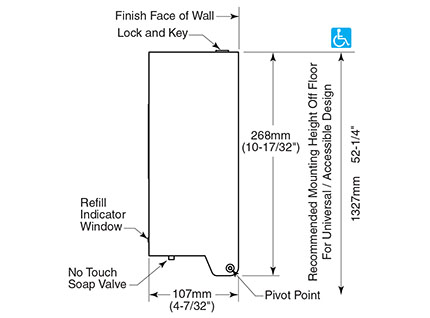

B-2012 Automatic Liquid Soap Wall Mounted Dispenser
(Gamco model G-950SA) * International only

• Automatic wall mounted soap dispenser stainless steel with satin finish
• Corrosion-resistant valve dispenses a variety of liquid soaps and disinfectants
• Sensor-activated valve does not require contact with dispenser to function
• Lockable housing equipped with a clear acrylic refill indicator window; hinged for refilling and maintenance
• Capacity of 850ml (30 fl oz)

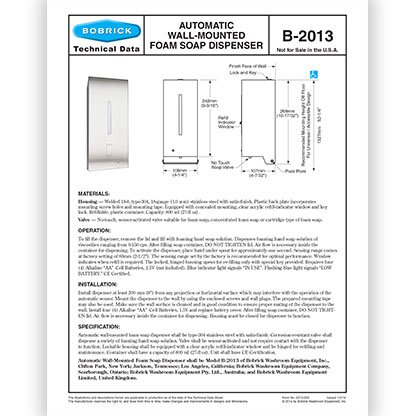

• B-2013: Foam Soap Wall Mounted Dispenser
  (Gamco model G-950FA) * International only

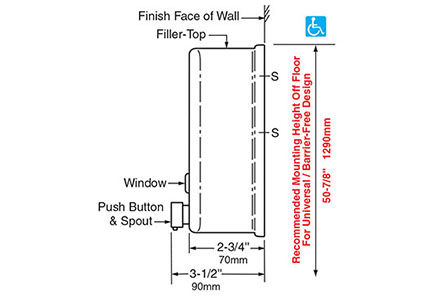

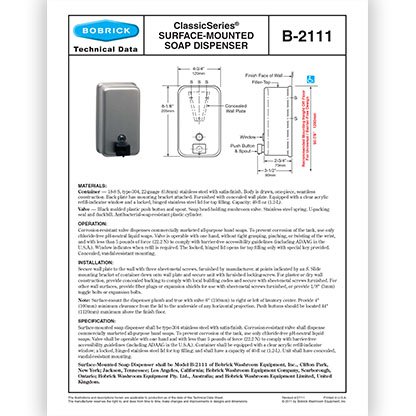

B-2111 ClassicSeries Vertical SURFACE MOUNTED SOAP DISPENSER

• Tank is satin finish stainless steel
• Valve dispenses all-purpose hand soaps
• Capacity: 40 fl oz (1.2L)
• Soap refill window
• Concealed wall fastening
• Hinged filler top requires special key to open
• Vandal resistant
• Dimensions: 4-3⁄4" W x 8-1⁄8" H (120 x 205mm); wall to push-button, 3-1⁄2" (90mm)
• Universal/Barrier-Free Mtg. Ht.: 50-7⁄8" (1290mm) to top of unit with push-button 44" (1120mm) above floor

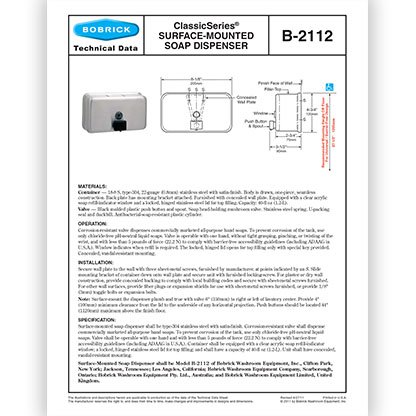

• B-2112: ClassicSeries Horizontal Surface Mounted Soap Dispenser

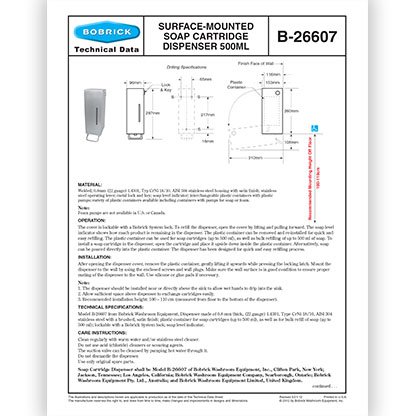

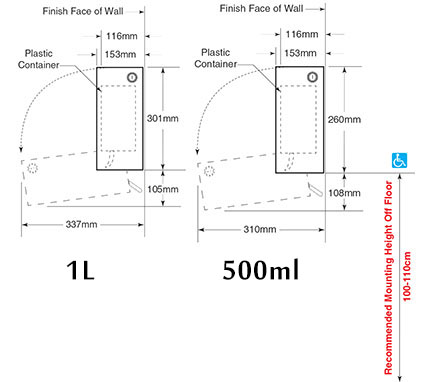

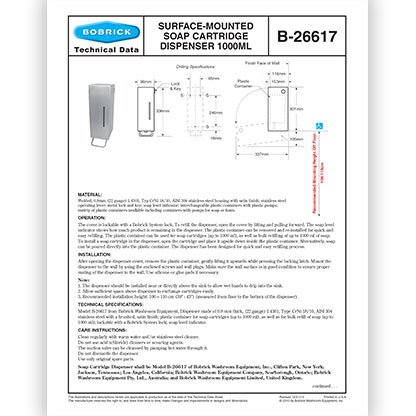

B-26600 TrimLineSeries™ Soap Cartridge Surface Mounted Dispensers

• Satin finish stainless steel
• Accepts liquid soap cartridges or bulk-fill soaps
• Push activated with less than 5 lbs. force
• Concealed wall fastening
• Hinged housing with key lock and soap refill window
• 500ml Unit Dimensions: 3-3/4” (95mm) x 11-3/4” (337mm) x 6” (153mm)
• 1L Unit Dimensions: 3-3/4” (95mm) x 13-1/4” (337mm) x 6” (153mm)
• B-26607: Liquid Soap Dispenser, 500ml capacity
• B-26617: Liquid Soap Dispenser, 1L capacity

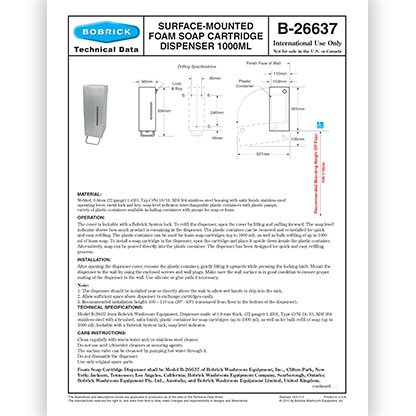

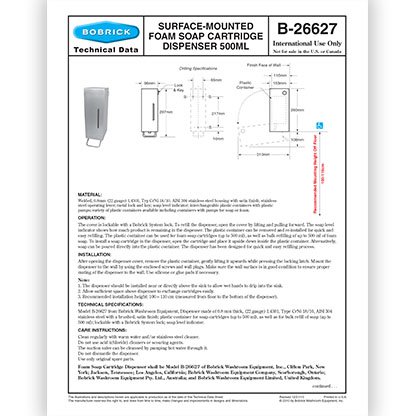

• B-26627: Foam Soap Dispenser, 500ml capacity
• B-26637: Foam Soap Dispenser, 1L capacity

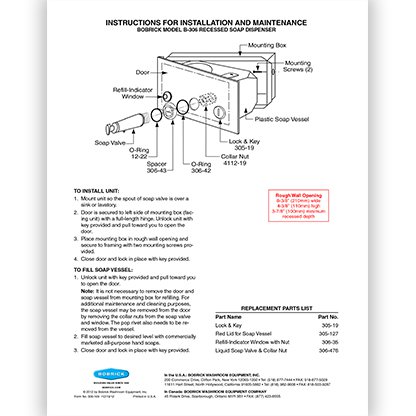

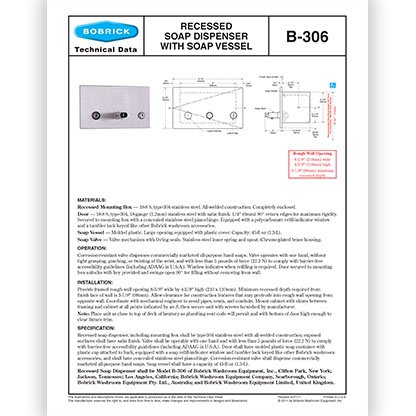

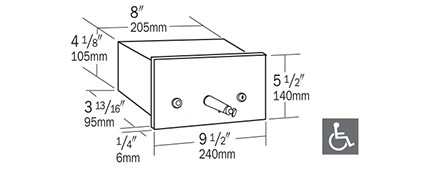

B-306 TrimLineSeries™ Recessed Soap Dispenser

• Satin finish stainless steel
• Door: 90° return, conceals flange
• Vessel on back of door swings open for filling
• Hinge and tumbler lock secure door to cabinet
• Capacity: 45 fl oz (1.3L)
• Valve dispenses all-purpose soaps
• Soap refill window
• Rough Wall Opening: 8-3⁄8" W x 4-3⁄8" H, 3-7⁄8" min. depth (215 x 110 x 100mm)

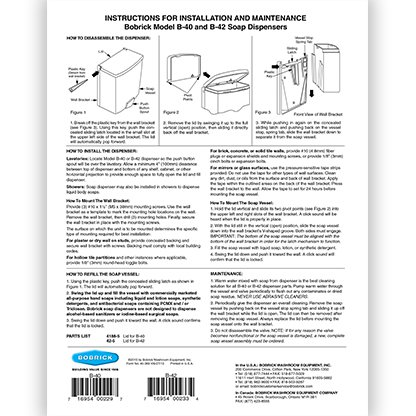

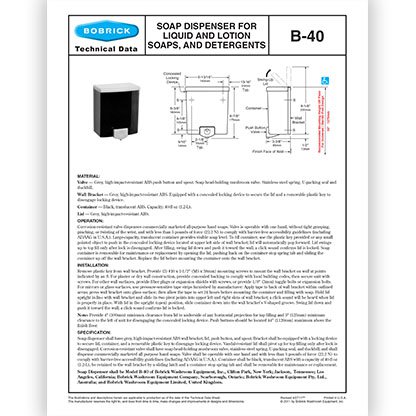

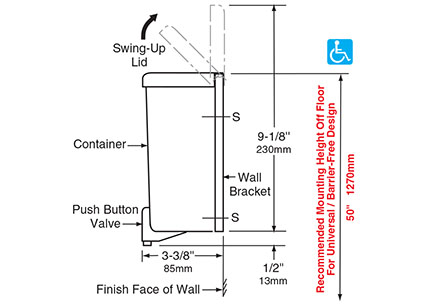

B-40 ClassicSeries® Surface Mounted Soap Dispenser

• 2-tone Grey/Black; high impact resistant ABS
• Valve dispenses all-purpose soaps
• Vandal-resistant lid has keyless locking device; pivots up for easy top filling
• Translucent container provides visible soap level
• Capacity: 40 fl oz (1.2L)
• Concealed wall/mirror mounting; removable for cleaning
• Dimensions: 5-13⁄16" W x 6-7⁄8" H (150 x 175mm); wall to push-button, 3-3⁄16" (80mm)

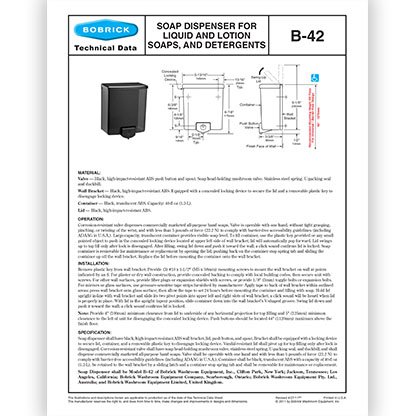

• B-42: ClassicSeries® in Black only; high impact resistant ABS

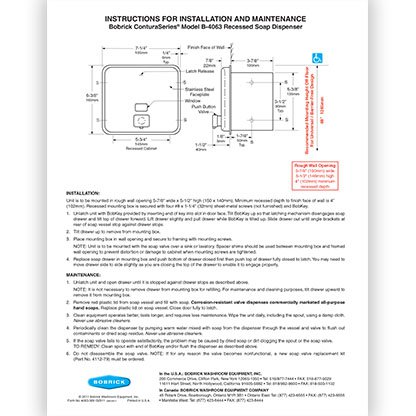

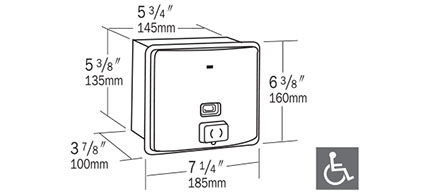

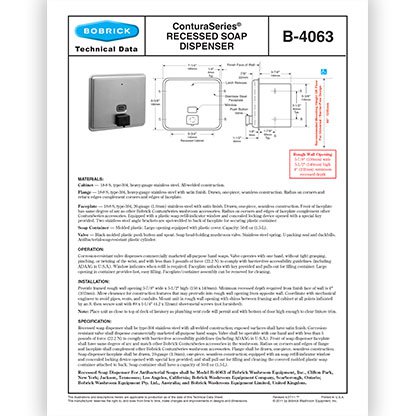

B-4063 ConturaSeries® Recessed Soap Dispenser

• Dispenses all-purpose soaps
• Drawn, 20 gauge (1.0mm), one-piece front, satin finish stainless steel with vessel attached to back
• Capacity: 50 fl oz (1.5L)
• Pulls out for filling
• Concealed locking device
• Wall to push-button, 1-5⁄8" (40mm)

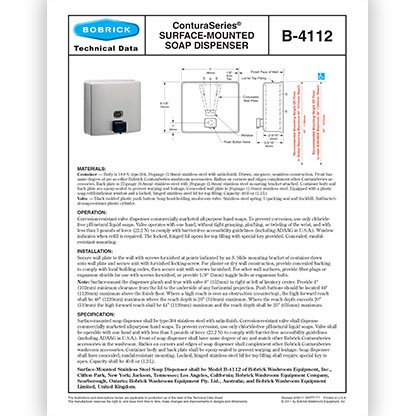

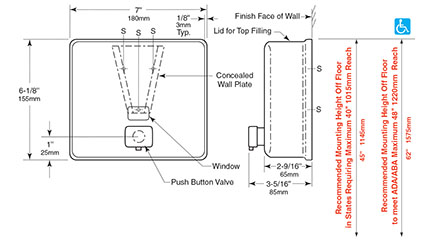

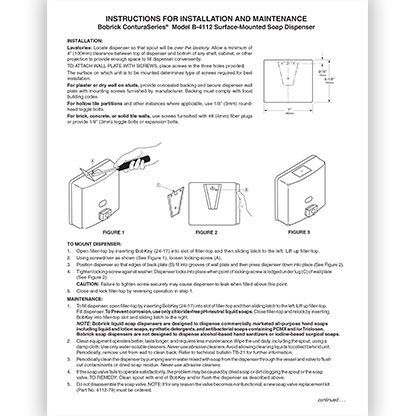

B-4112 ConturaSeries SURFACE MOUNTED SOAP DISPENSER

• Corrosion-resistant valve dispenses commercially marketed all-purpose hand soaps
• Container is satin finish stainless steel
• Capacity: 40 fl oz (1.2L)
• Soap refill window
• Concealed wall fastening
• Hinged filler-top requires special key to open
• Vandal-resistant
• Dimensions: 7" W x 6-1⁄8" H (180 x 155mm); wall to push-button, 3-5⁄16" (85mm)
• Universal/Barrier-Free Mtg. Ht.: 49" (1245mm) to top of unit with push-button 44" (1120mm) above floor

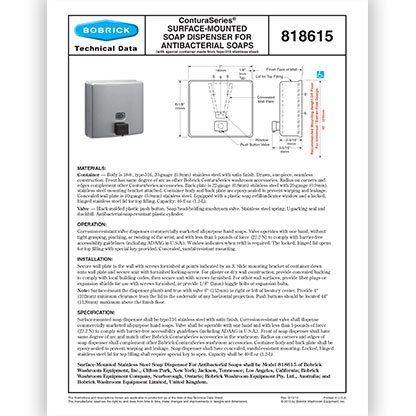

• 818615: Type 316 Stainless Steel for anti-bacterial soaps

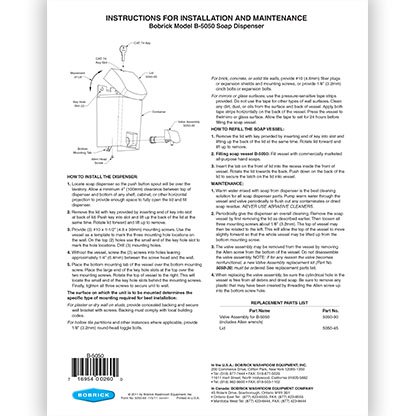

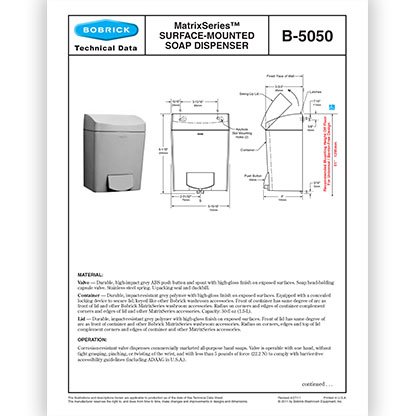

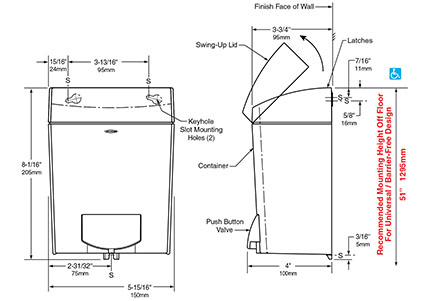

B-5050 MatrixSeries™ Surface Mounted Soap Dispenser

• Impact-resistant grey polymer
• Valve dispenses all-purpose hand soaps; removable for easy maintenance
• Lid has concealed locking device
• Concealed wall/mirror mounting
• Large-capacity container: 50 fl oz (1.5L)
• Dimensions: 6" W x 8-1⁄8" H (150 x 205mm); wall to push-button, 4" (100mm)

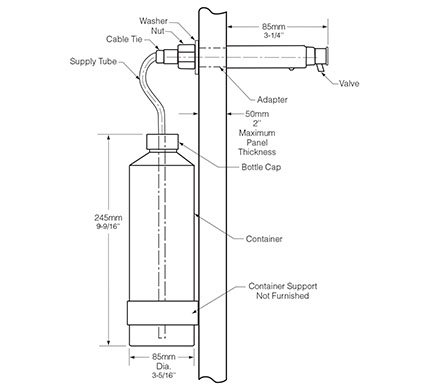

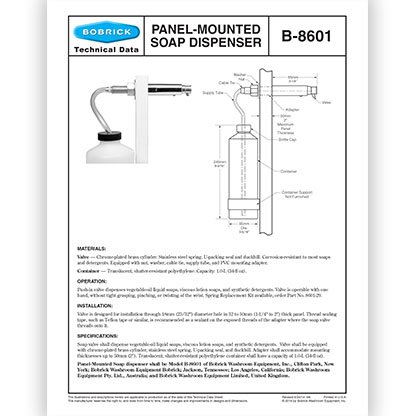

B-8061 Panel Mounted Soap Dispenser

• Corrosion-resistant valve mounts into 23/32" (18mm) diameter hole through 1-1/4" (32mm) to 2" (51mm) thick panel; projects 3-1/4" (83mm)
• Dispenses liquid and lotion soaps, and synthetic detergents
• Translucent, shatter-resistant polyethylene container mounts on opposite side of panel and feeds soap valve through supply tube
• Capacity 34-fl oz. (1.0L)
