TECTUS®: the concealed hinge
you don't need to hide.

Made in Germany, TECTUS is the most comprehensive concealed hinge system for premium flush doors. Large and heavy doors can be installed quickly.

Easily adjustable in 3-Dimensions, Simonswerk's TECTUS hinges bring an unparalleled level of performance, precision and control over what has previously been a difficult detail to build and maintain.

TECTUS is a comprehensive system offering options for wood, steel and aluminum frames, permanent power transfer, a complete range of optimized door capacities, and, of course, the ability to adjust them.

Designs
Specifications
Options
Finishes
Downloads

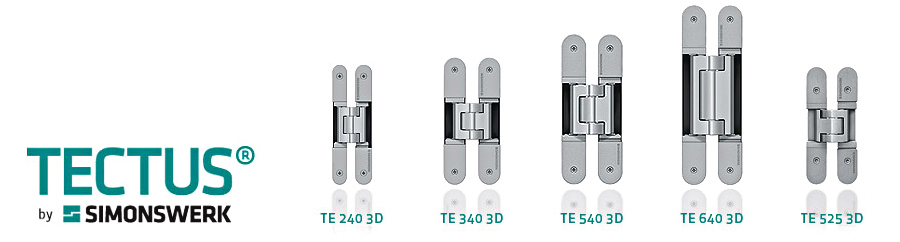

TE 240 3D

88 lbs door capacity

1" min. door thickness

For unrebated & rebated flush residential doors

TE 340 3D

176 lbs door capacity

1-3/8" min. door thickness

For unrebated residential doors

TE 525 3D

264 lbs door capacity

1-1/4" min. door thickness

Corrosion resistant, cast stainless steel

For flush commercial doors

TE 526 3D

264 lbs door capacity

1-1/4" min. door thickness

Corrosion resistant, solid stainless steel

For flush commercial doors

TE 527 3D

264 lbs door capacity

1-1/4" min. door thickness

Corrosion resistant, zinc-plated mild steel

For flush commercial doors

TE 540 3D

264 lbs door capacity

1-5/8" min. door thickness

For unrebated heavy duty doors with casing frames

TE 540 3D A8

220 lbs door capacity

1-7/8" min. door thickness

For unrebated heavy-duty doors with claddings up to 8 mm

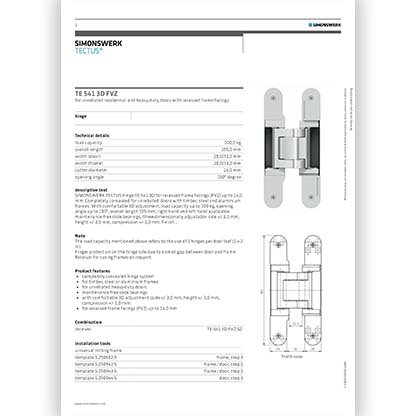

TE 541 3D FVZ

220 lbs door capacity

1-5/8" min. door thickness

For unrebated residential & heavy duty doors with recessed frame facings

TE 640 3D

440 lbs door capacity

1-9/16" min. door thickness

For unrebated high performance heavy duty doors

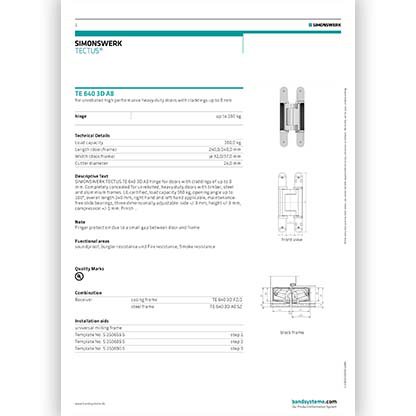

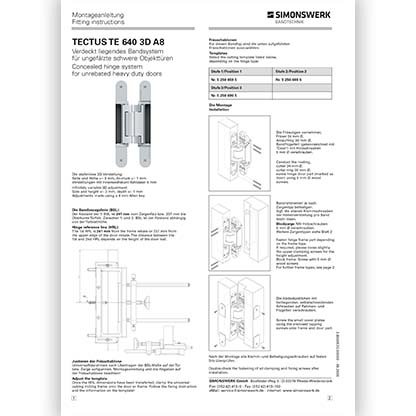

TE 640 3D A8

352 lbs door capacity

1-7/8" min. door thickness

For unrebated high performance heavy duty doors with claddings up to 8 mm

TE 645 3D

660 lbs door capacity

1-3/4" min. door thickness

For unrebated high performance heavy duty doors

THE REVOLUTIONARY CONCEALED HINGE SYSTEM

TECTUS® System Features

No other hinge can do all of this.

Easy Adjustment in 3 Dimensions: For precise and efficient installation and maintenance of flush doors.

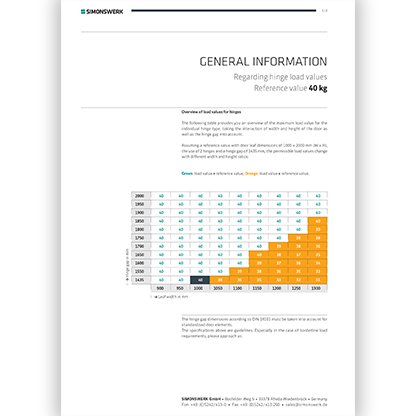

High Load Capacities: From 88 lbs. to 660 lbs. – with only two hinges installed.
Wide Range of Premium Quality Finishes: 12 standard architectural finishes. Custom finishes possible.
Mainenance-Free: Tested beyond 1,000,000 cycles without any wear. No oil or grease.
180° Opening Angle

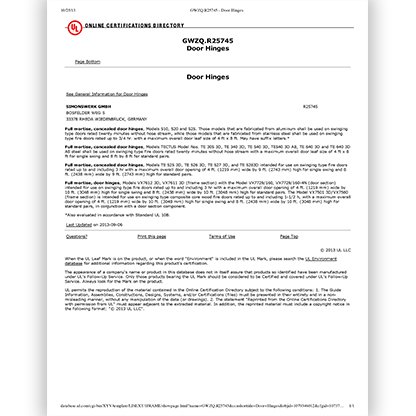

UL Listed Models: All but TE 240 3D provide 20 min./ TE 525 3D provides a 3-HOUR rating.
Models for Doors with Cladding up to 8mm (~5/16"): For laminates (e.g. mirror, stone facing, etc.)
Capability for Permanent Power Transfer: For electric lock and security systems – TECTUS® ENERGY.
Complete Milling and Installation Support: Installation tools and templates are available from your dealer.
Versatile: Works for wood, metal (with SZ Receiver) and casing frames (with FZ Fixing Plate).
Engineered and Made in Germany by Simonswerk: Unquestionable manufacturing standards.

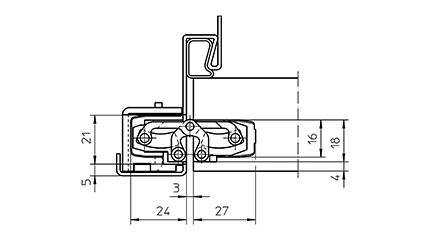

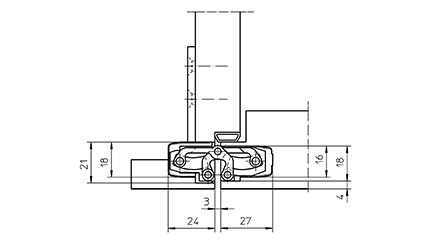

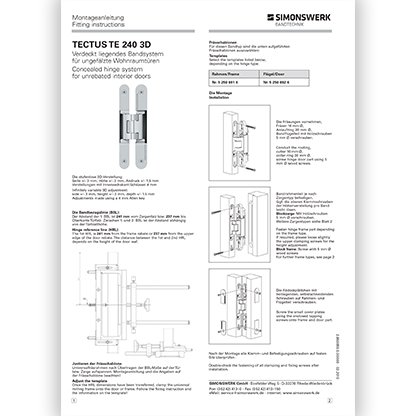

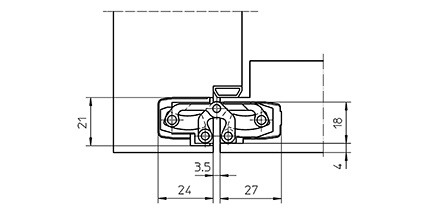

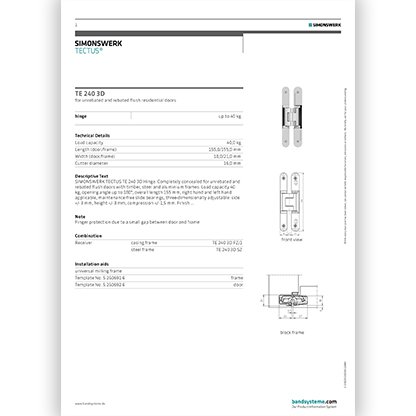

TECTUS® TE 240 3D – For unrebated & rebated flush residential doors

Specs

Capacity: w/ 2 installed: 88 lbs [40 kg]
Height: 6.1" [155mm]
Widths: frame: 0.82"[21mm] / leaf: 0.7" [18]
Depth: frame: 0.94"[24mm] / leaf: 1.06"[27]
Min. Door Thickness: 1" [25mm]
Router Bit Diameter: 16mm

Features

For wood, casing, steel and alu frames
Opening angle up to 180°
UL listed: not currently rated
Continuously adjustable in 3 dimensions
Side: + /– 3 mm; Height : + /– 3 mm; Depth : + /– 1.5 mm

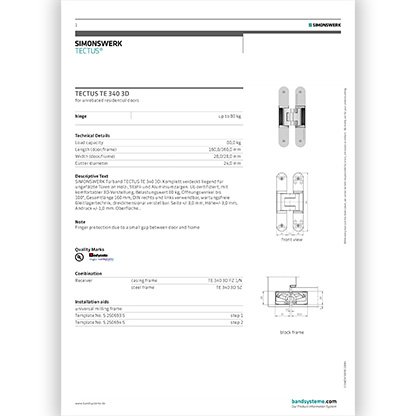

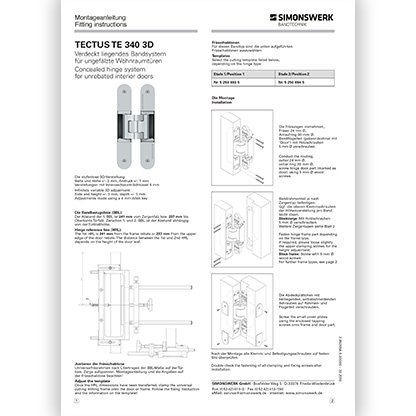

TECTUS® TE 340 3D – For unrebated residential doors

Specs

Capacity: w/ 2 installed: 176 lbs [80 kg]
Height: 6.3" [160mm]
Widths: frame: 1.1"[28mm] / leaf: 1.1" [28]
Depth: frame: 1.22"[31mm] / leaf: 1.32"[33.5]
Min. Door Thickness: 1-3/8" [40mm]
Router Bit Diameter: 24mm

Features

For wood, casing, steel and alu frames
Opening angle up to 180°
UL listed : 20 minutes
Continuously adjustable in 3 dimensions
Side: + /– 3 mm; Height : + /– 3 mm; Depth : + /– 1 mm

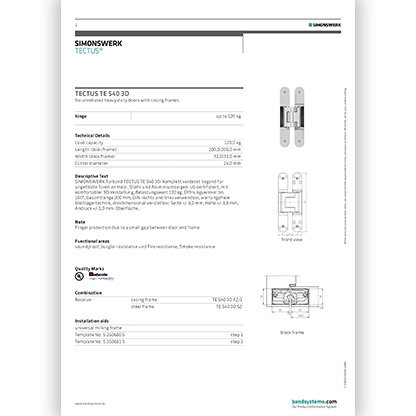

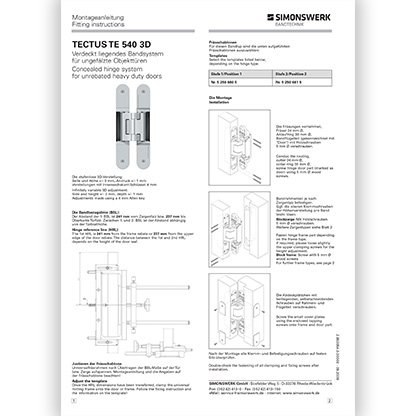

TECTUS® TE 540 3D – For unrebated heavy duty doors with casing frames

Specs

Capacity: w/ 2 installed: 264 lbs [120 kg]
Height: 7.874" [200mm]
Widths: frame: 1.26"[32mm] / leaf: 1.26" [32]
Depth: frame: 1.38"[35mm] / leaf: 1.44" [36.5]
Min. Door Thickness: 1-5/8" [40mm]
Router Bit Diameter: 24mm

Features

For wood, casing, steel and alu frames
Opening angle up to 180°
UL listed : 20 minutes
Continuously adjustable in 3 dimensions
Side: + /– 3 mm; Height : + /– 3 mm; Depth : + /– 1 mm

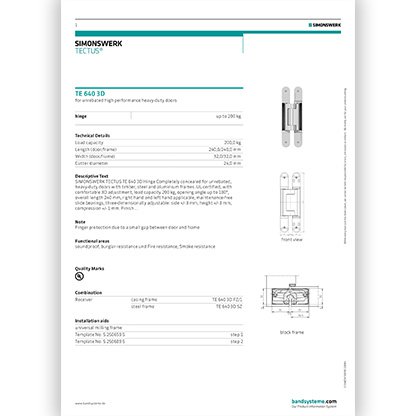

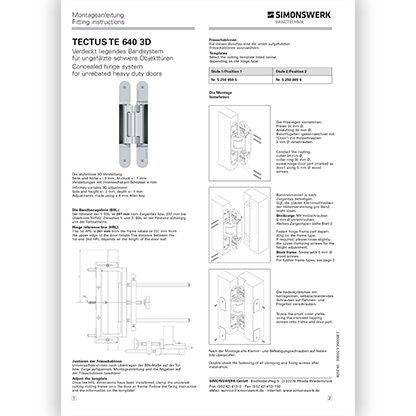

TECTUS® TE 640 3D – For unrebated high performance heavy duty doors

Specs

Capacity: w/ 2 installed: 440 lbs [200 kg]
Height: 9.4" [240mm]
Widths: frame: 1.26"[32mm] / leaf: 1.26" [32]
Depth: frame: 1.38"[35mm] / leaf: 1.44"[36.5]
Min. Door Thickness: 1-9/16" [40mm]
Router Bit Diameter: 24mm

Features

For wood, casing, steel and alu frames
Opening angle up to 180°
UL listed: 20 minutes
Continuously adjustable in 3 dimensions
Side: + /– 3 mm; Height : + /– 3 mm; Depth : + /– 1 mm

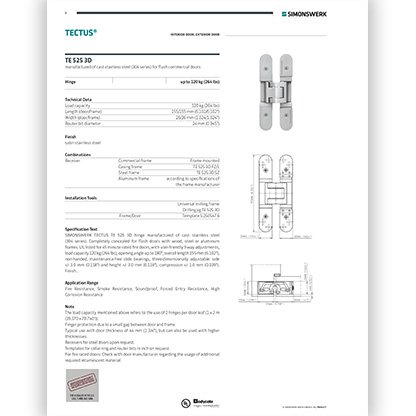

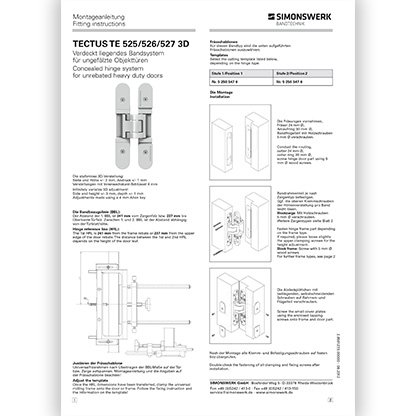

TECTUS® TE 525 3D Series – For flush commercial doors

Specs

Capacity w/ 2 installed: 264 lbs [ 120 kg ]
Height: 6.1" [ 155mm ]
Widths: door & frame: ~1"/ [ 26mm ]
Depth: door: 1.38" / frame: 1.44" [36/33mm]
Min. Door Thickness: 1-1/4" [25mm]
Router Bit Diameter: 24mm

Features

TE 525 3D: Cast in Stainless Steel
TE 526 3D: Die Cast from Stainless Steel
TE 527 3D: Zinc-plated Mild Steel
Superior corrosion resistance [maintenance-free]
For wood, casing, steel and alu frames
Opening angle up to 180°
UL listed: 3-Hours
Continuously adjustable in 3-dimensions
Side: + /– 3 mm; Height : + /– 3 mm; Depth : + /– 1mm

TECTUS® Energy Models

Concealed Hinges with Permanent Power Transfer

ENERGY Hinges preserve all the technical and visual features of their counterparts in the TECTUS® hinge system, including high load capacities, hassel-free installation and maintenance, and good looks when in the open position. Other features include:

Tamper-resistant cable is compatible with most designs for current electric locks, media devices, LED displays and other powered fittings.
Easy-to-fit pluggable/unpluggable reverse-polarity-protected plug connection with integrated tension relief.
Opening angle of 180° without pinching or damage during operation.
Rugged cable supply : All Energy hinges feature a 16-wire integrated ribbon cable with plug connection to round cable at both ends. "Integrated" means that the cable is not visible at all (no funky wrap-arounds), and so resists anyone tampering with it.
Cable set consists of 2 round cables both with reversepolarity-protected connecting socket for the special ribbon cables: one 3.0 m (118") round cable for frame ; one 3.0 m (118") round cable for door leaf.
Max. Voltage : 60 V / Max. Current : 0.8 A
Finishes : available in two standard finishes, F1-Satin Chrome Look and SSL-Stainless Steel Look.
Other finishes available. Contact Penner for minimum quantities and leadtimes.
Cable/Hinge System tested to 1,000,000 cycles.
