Series 94-95 INPACT
Von Duprin invented the first exit device in 1908. Since that time, there have been many imitators, but no other true innovator.

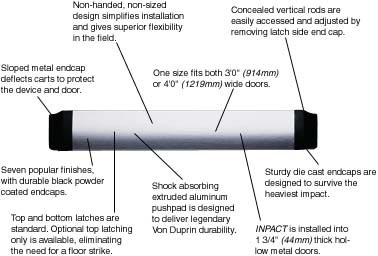

The unique, streamlined Von Duprin INPACT recessed exit device is a perfect example of how creative thinking and great engineering can turn a safety necessity into a stylishly understated fixture.

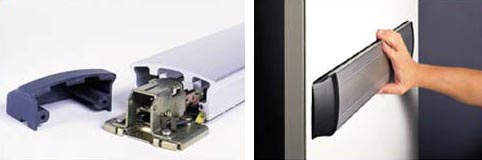

INPACT is fully integrated within a door
and combines a clean, tasteful appearance with Von Duprin’s unrivaled standards
of durability and performance.
The design is compatible with hollow metal doors, including doors manufactured by Steelcraft®, part of the IR Security & Safety product line.

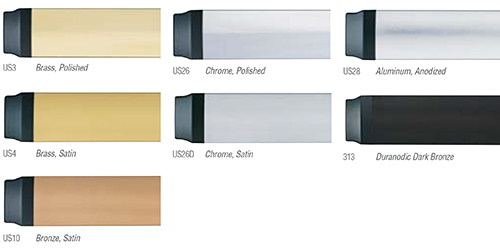

Available in a variety of finishes, INPACT
is UL® approved to meet the strictest building codes.





- Specifications
- Devices
- Trim
- Options
- Finishes
- Downloads

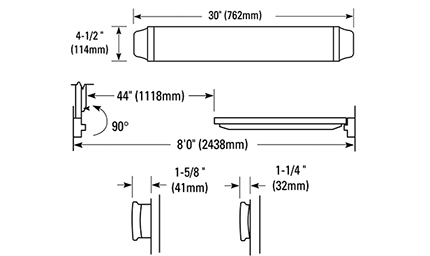

9447 smooth - concealed vertical rod

Close
9447 smooth - concealed vertical rod
For single and double doors
Non-handed
5/8" (16mm) throw latchbolt
Non-handed
5/8" (16mm) throw latchbolt

9447-F smooth - fire concealed vertical rod

Close
9447-F smooth - fire concealed vertical rod
For single and double doors
Non-handed
5/8" (16mm) throw latchbolt
Non-handed
5/8" (16mm) throw latchbolt

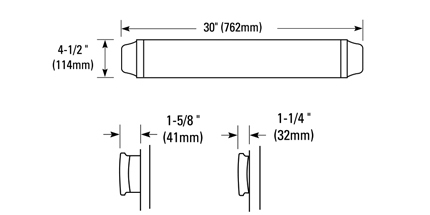

9475 smooth - mortise lock

Close
9475 smooth - mortise lock
For single and double doors
Non-handed
3/4" anti-friction latchbolt
Non-handed
3/4" anti-friction latchbolt

9475-F smooth - fire mortise lock

Close
9475-F smooth - fire mortise lock
For single and double doors
Non-handed
3/4" anti-friction latchbolt
Non-handed
3/4" anti-friction latchbolt

9547 grooved - concealed vertical rod

Close
9547 grooved - concealed vertical rod
For single and double doors
Non-handed
5/8" (16mm) throw latchbolt
Non-handed
5/8" (16mm) throw latchbolt

9547-F grooved - fire concealed vertical rod

Close
9547-F grooved - fire concealed vertical rod
For single and double doors
Non-handed
5/8" (16mm) throw latchbolt
Non-handed
5/8" (16mm) throw latchbolt

9575 grooved - mortise lock

Close
9575 grooved - mortise lock
For single and double doors
Non-handed
3/4" anti-friction latchbolt
Non-handed
3/4" anti-friction latchbolt

9575-F grooved - fire mortise lock

Close
9575-F grooved - fire mortise lock
For single and double doors
Non-handed
3/4" anti-friction latchbolt
Non-handed
3/4" anti-friction latchbolt

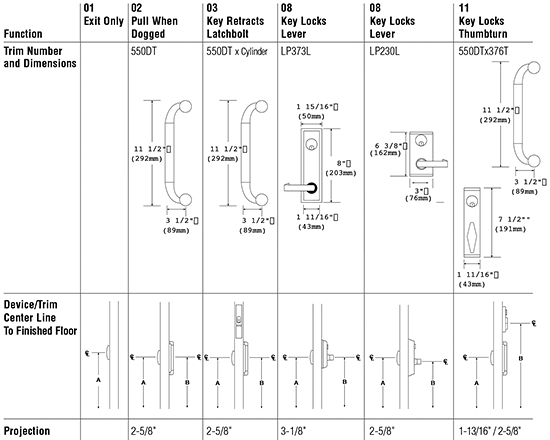

LP373L - standard lever

Close
LP373L - standard lever
Forged brass 1-3/8" (35mm) depth escutcheon

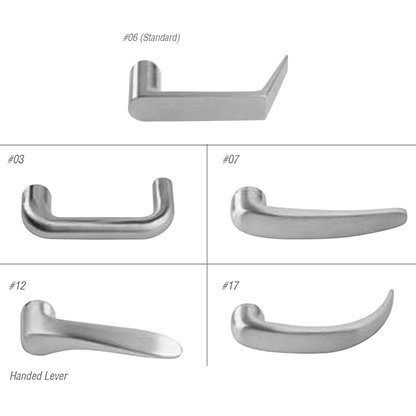

#06 lever standard; 4 optional styles available
Blank escutcheon available
#06 lever standard; 4 optional styles available
Blank escutcheon available

550DT - dummy pull

Close
550DT - dummy pull
Heavy aluminum forged brackets
10" (254mm) stainless steel pullbar
10" (254mm) stainless steel pullbar

376T - thumbturn

Close
376T - thumbturn
Forged brass 7/8" (22mm) escutcheon
Use with 550DT dummy pull
Only available with concealed rod devices
Use with 550DT dummy pull
Only available with concealed rod devices

LP230L - lever

Close
LP230L - lever
Cast aluminum 3/4" (19mm) depth escutcheon
#06 lever standard; #03 lever optional
#06 lever standard; #03 lever optional

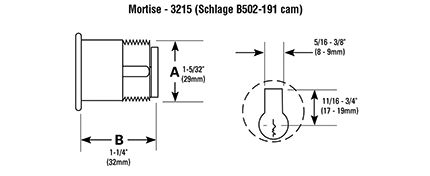

3215 - mortise cylinder

Close
3215 - mortise cylinder
Schlage “C” keyway
Custom keying not available
Specify finish
Custom keying not available
Specify finish

EL - electric latch retraction

Close
EL - electric latch retraction
Remote operation via control station operator
Continuous-duty 24 VDC solenoid
UL approved for Class II circuit application
Continuous-duty 24 VDC solenoid
UL approved for Class II circuit application

LBR - less bottom rod

Close
LBR - less bottom rod
For concealed vertical rod device; interior doors only
Spring-loaded auxiliary bolt in lower door edge
Spring-loaded auxiliary bolt in lower door edge

LX - latchbolt monitor

Close
LX - latchbolt monitor
Electronic switch for door opening signal
Connect to security alarm console
Connect to security alarm console
