Series 22

Series 22 Exit Device Specifications

Von Duprin offers a wide range of exit devices and outside trim operations to meet the needs of any application. The Series 22 exit devices offer:

• 22 Rim Exit Device & Standard Trim

• 22-F Rim Fire Exit Device & Standard Trim

• 2227 Surface Mounted Vertical Rod Device & Trim

• 2227-F Surface Mounted Vertical Rod Fire Exit Device & Trim

Touch bar exit devices are mounted on the egress side of the door.

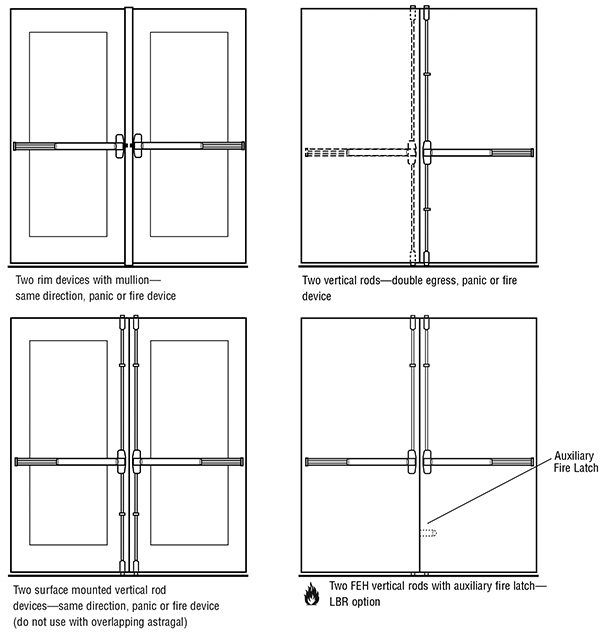

They can be mounted for rim, mortise, surface vertical, or concealed vertical applications.

Application Suggestions

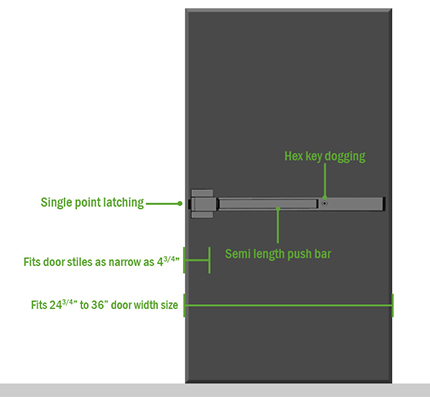

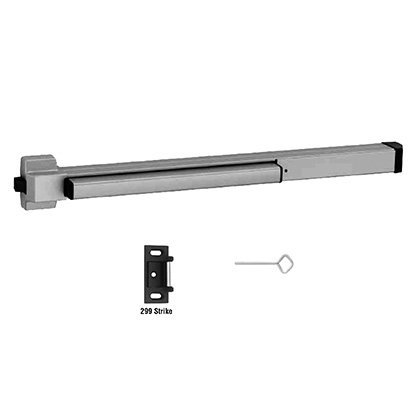

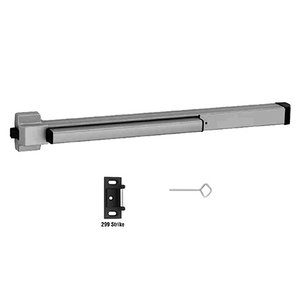

22 Rim Exit Device

For all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3-13/16" (97mm).

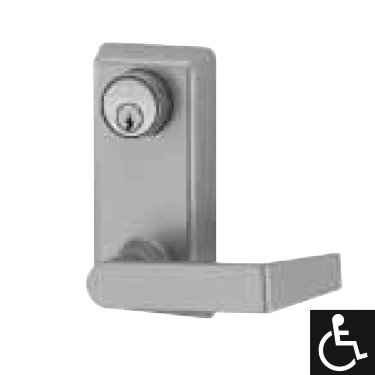

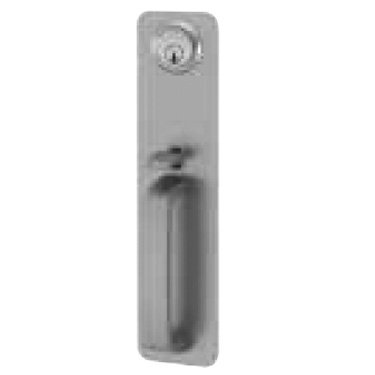

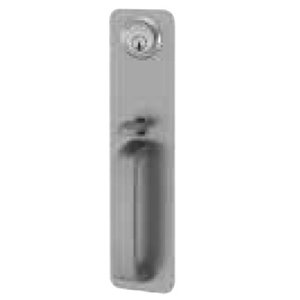

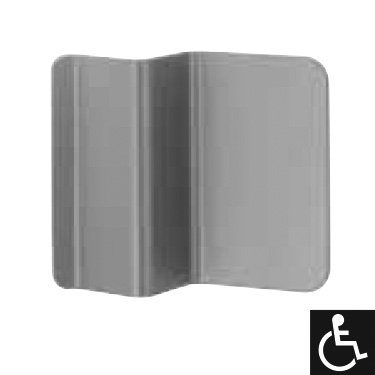

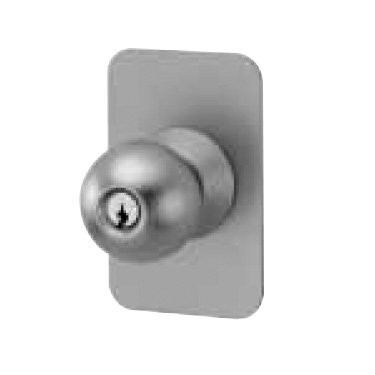

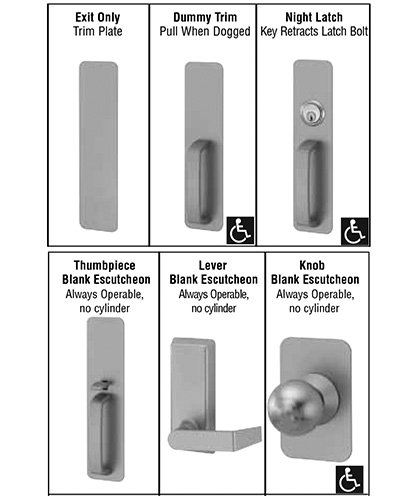

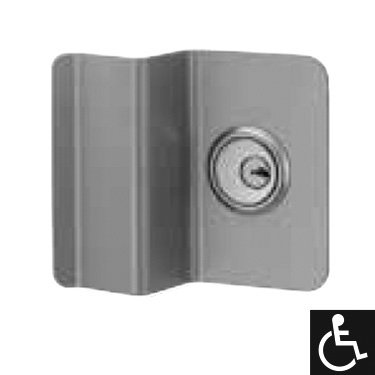

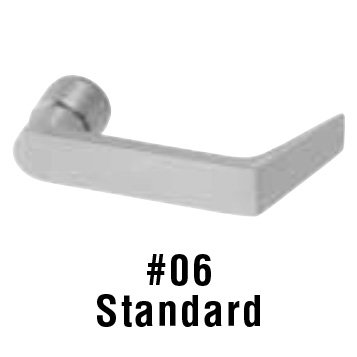

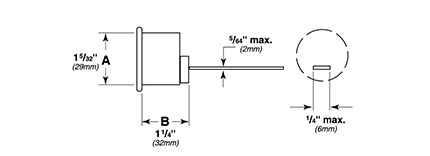

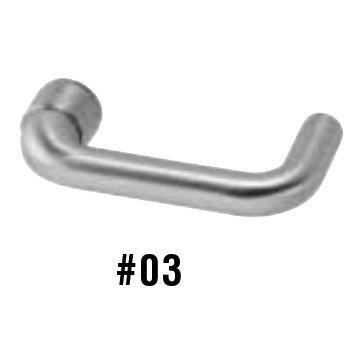

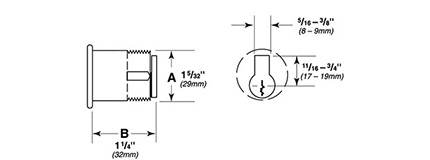

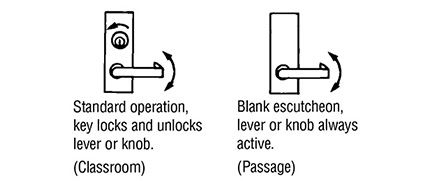

• Functions: Ships ready for all functions – EO, DT, NL, TP, K, L

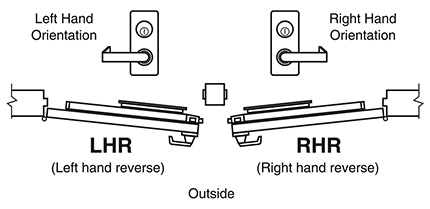

• Handing: Non-handed

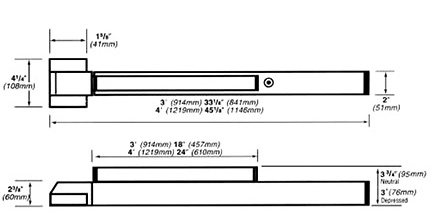

• Lengths: 3' (914mm); 4' (1219mm)

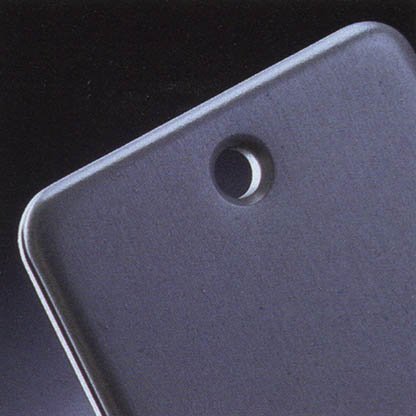

• Finishes: SP28, SP313
• Strikes: 299 Dull Black
• Dogging Feature: Hex key dogging standard

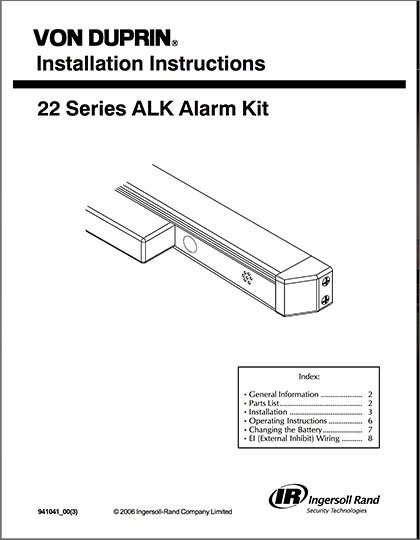

• Electric Options: LX Latchbolt Monitor Switch; RX Touch Bar Monitor Switch; RX2 Double Touch Bar Monitor Switch; ALK Alarm Exit Kit

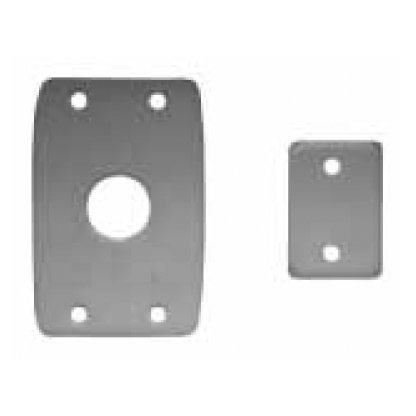

• Miscellaneous Options: GBK Glass Bead Kit
• Fasteners & Sex Bolts (SNB): Includes 1-3/4" (19mm) to 2-1/4" (57mm)
  wood & metal doors; optional SNB available for device
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Device Centerline from Finished Floor: 39-13/16" (1011mm) at center of device; 39-11/16" (1008mm) with mullion

22-F Rim Fire Exit Device

For all types of single doors up to 4’ x 8’ (1219mm x 3048mm) or 8’ x 8’ (2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for Fire Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Fits door stiles as narrow as 4-3/8" (111mm).

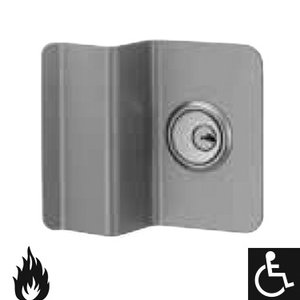

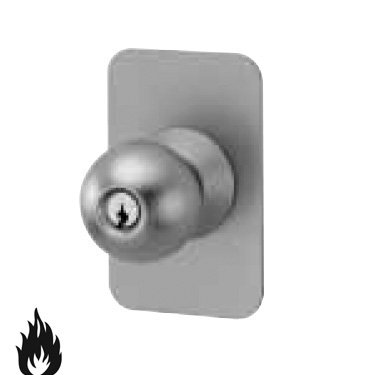

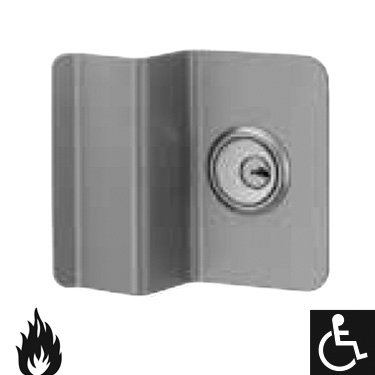

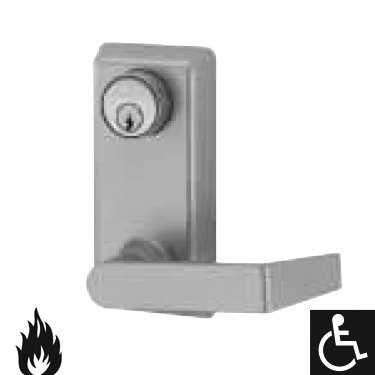

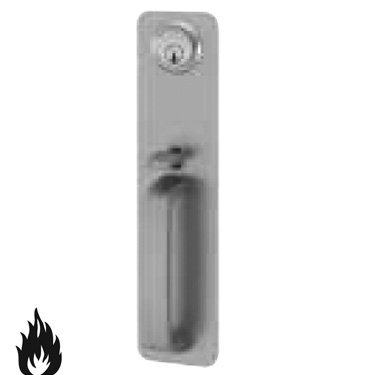

• Functions: Ships ready for all functions – EO, NL, TP, K, L
• Handing: Non-handed
• Lengths: 3' (914mm); 4' (1219mm)
• Finishes: SP28, SP313
• Strikes: 299F Dull Black, single door;  499F Dull Black, double doors with 9954 or 9854 mullion
• Dogging Feature: No mechanical dogging
• Electric Options: LX Latchbolt Monitor Switch; RX Touch Bar Monitor Switch; RX2 Double Touch Bar Monitor Switch; ALK Alarm Exit Kit
• Miscellaneous Options: GBK Glass Bead Kit
• Fasteners & Sex Bolts (SNB): Includes 1-3/4" (19mm) to 2-1/4" (57mm) wood & metal doors; optional SNB available for device. Sex bolts are required on wood fire doors.
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Device Centerline from Finished Floor: 39-13/16" (1011mm) at center of device; 39-11/16" (1008mm) with mullion

2227 Surface Mounted Vertical Rod Exit Device

For all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5|8" (92mm).

• Functions: Ships ready for all functions – EO, DT, NL, TP, K, L
• Handing: Non-handed
• Lengths: 3' (914mm); 4' (1219mm)

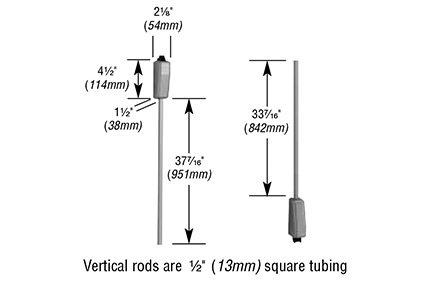

• Door Height: 7' (2134mm) – standard door height; extension rods available for door heights up to 10'
• Finishes SP28, SP313
• Strikes: Top, 299 – Dull Black; Bottom, 248L-4 and 304L – Unfinished
• Dogging Feature: Hex key dogging standard; optional LD – Less Dogging
• Electric Options: LX Latchbolt Monitor Switch; RX Touch Bar Monitor Switch; RX2 Double Touch Bar Monitor Switch; ALK Alarm Exit Kit

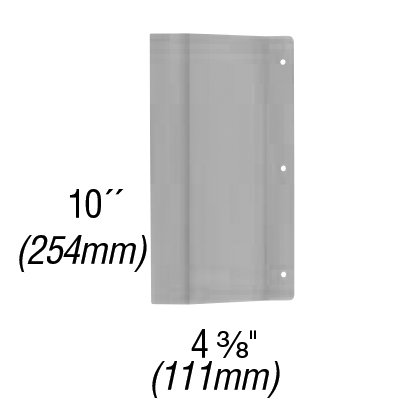

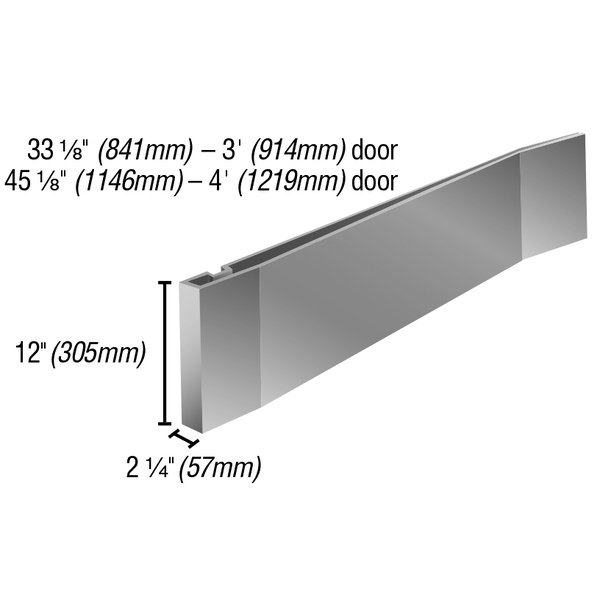

• Miscellaneous Options: PL – Pullman Latch; GBK Glass Bead Kit; RG Rod Guards; LG Latch Guards
• Fasteners & Sex Bolts (SNB): Includes 1-3/4" (19mm) to 2-1/4" (57mm)
  wood & metal doors; optional SNB available for device. Sex Bolts are furnished standard for top and bottom latches.
• Latch Bolt: Deadlocking, anti-friction top and bottom bolt, 5|8" (16mm) throw
• Device Centerline from Finished Floor: 39-13/16" (1011mm) at center of device
• Door Undercut: 1/4" (7mm) from finished floor recommended; 3/4" (19mm) maximum or 1/8" (3mm) from threshold

2227-F Surface Mounted Vertical Rod Fire Exit Device

For pairs of doors up to 8’ x 10’ (2438mm x 3048mm), UL listed for Fire Exit Hardware. Consult Penner for detailed information on UL listed fire exit hardware label and door opening size information. Devices are ANSI A156.3, 2001, Grade 1. Fits door stiles as narrow as 3-5/8" (92mm).

• Functions: Ships ready for all functions; EO, NL, TP, K, L
• Handing: Non-handed
• Lengths: 3' (914mm); 4' (1219mm)
• Door Height 7’ (2134mm) – standard door height; extension rods available for door heights up to 10’
• Finishes: SP28, SP313
• Strikes: Top, 299F (499F LBR) – Dull Black; Bottom, 304L – Unfinished
• Dogging Feature: No mechanical dogging
• Electric Options: LX Latchbolt Monitor Switch; RX Touch Bar Monitor Switch; RX2 Double Touch Bar Monitor Switch; ALK Alarm Exit Kit
• Miscellaneous Options: LBR Less Bottom Rod; GBK Glass Bead Kit; RG Rod Guards; LG Latch Guards
• Fasteners & Sex Bolts (SNB): Includes 1-3/4" (19mm) to 2-1/4" (57mm)
  wood & metal doors; optional SNB available for device. Sex Bolts are furnished standard for top and bottom latches.
• Latch Bolt: Deadlocking, anti-friction top and bottom bolt, 5|8" (16mm) throw
• Device Centerline from Finished Floor: 39-13/16" (1011mm) at center of device
• Door Undercut: 1/4" (7mm) from finished floor recommended; 3/4" (19mm) maximum or 3/8" (9mm) from threshold

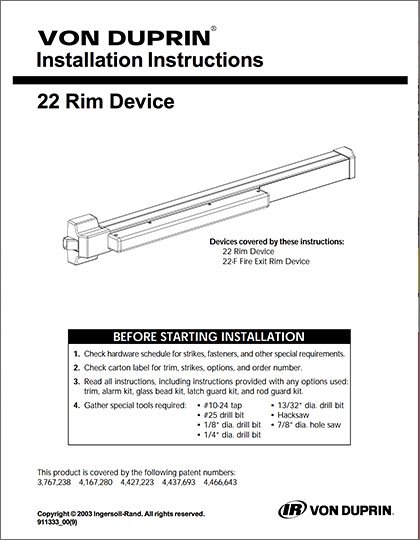

For additional specifications on individual models, see catalogue under Downloads tab.

Von Duprin created the first panic exit bar in response to the Iriqouis Theatre Fire of 1903 in Chicago. The fire caused the highest loss of life in history for a single building fire, taking a total of 602 lives in 20 minutes.
