Schlage ND-Series Grade 1 Cylindrical Locks Specifications

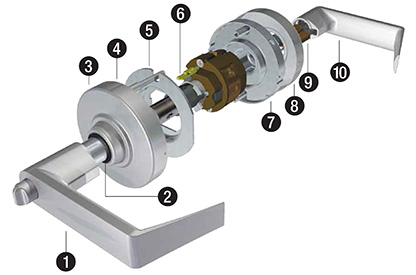

• Tested to three times the ANSI Grade 1 requirement
• Exceeds ANSI A156.2, Series 4000 Grade 1 locked lever torque requirements
• 10-year limited warranty

Handing: All ND-Series lever locksets are non-handed (reversible).

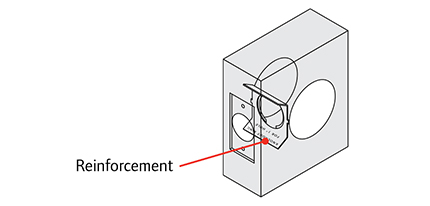

Door Thickness: 1-5/8” to 2-1/8” (41mm–54mm) standard, including Vandlgard® functions. 13/4” - 2” for function D85. Spacers required for 1-3/8” doors.

Backset: 2-3/4” (70 mm) standard. 2-3/8”, 3-3/4” and 5” (60 mm, 95 mm, 127 mm) optional.

Faceplate: Brass, bronze or stainless steel. 1-1/8” x 21/4” (29 mm x 57mm) square corner, beveled.

Lock Chassis: Zinc plated for corrosion resistance.

Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.

Exposed Trim: LEVERS - Pressure cast zinc, plated to match finish symbols.ROSES - Brass, bronze or zinc.

Strike: ANSI curved lip strike 11/4” x 47/8” x 13/16”lip to center standard. Optional strikes, lip lengths and ANSI strike box available.

Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.

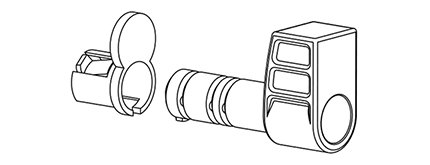

Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.

Warranty: Ten-year limited for all mechanical functions including Vandlgard; 1 year limited for electrified functions.

ND-Series with Vandlgard®

The ND-Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present, such as schools, universities, offices and commercial/public buildings. Vandlgard prevents damage to internal lock components caused by excessive force from hitting or standing on the lever to gain access. Vandlgard functions maintain total key system and architectural design compatibility with Schlage’s regular ND-Series cylindrical locks.

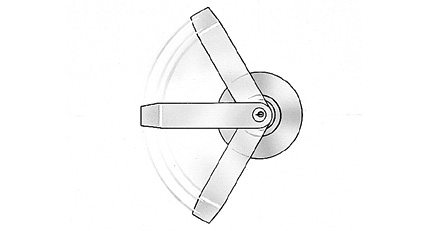

Locked lever freely rotates up and down while remaining securely locked. The Vandlgard function also increases resistance to over-rotation of the lever.

Primus XP Access Control and High Security Cylinders

Classic Primus XP cylinders are recommended for upgrading existing Classic key systems. Due to its extended patent life, the newly designed Everest 29 Primus XP is recommended for new key systems and for upgrading existing Everest 29 key systems. Specify keyway to differentiate between Everest 29 and Classic. Example: C or CP (Classic) vs. S123 (Everest 29).

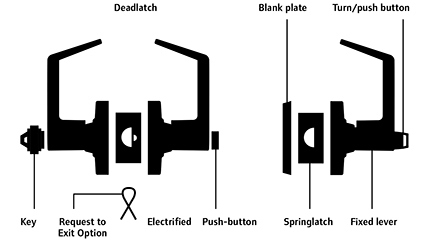

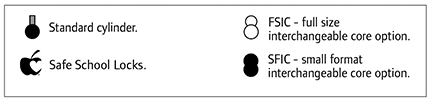

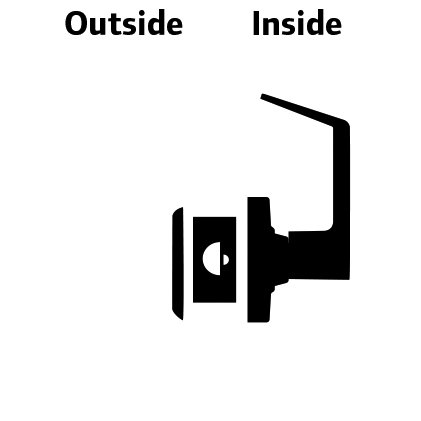

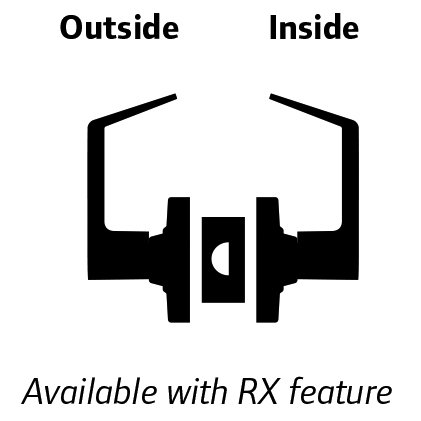

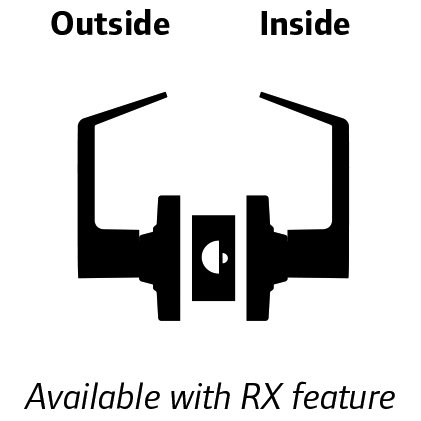

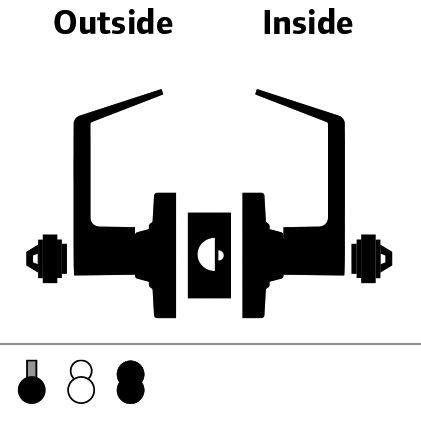

Legend Key for Lock Functions/Options

Caution: Double cylinder locks are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Certifications

• ANSI: Meets the requirements of ICC A117.1 Accessible and Usable Buildings and Facilities
• UL / cUL: All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol
• ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act
