Schlage L9000-Series

Schlage L9000-Series Mortise Lock Specifications

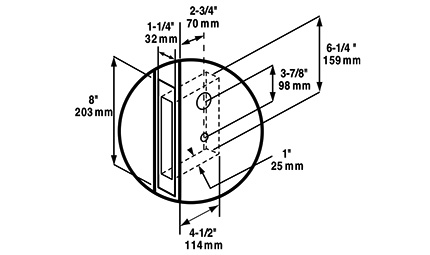

Door Thickness: 1-3/4” (44 mm) standard. 1-3/8” (35 mm) to 2-1/2” (64 mm) optional. Over 2-1/2” (64 mm) door ranges vary by function. No escutcheon available for 1-3/4” (44 mm) doors standard. 2” to 2-3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4”.

Backset: 2-3/4” (70 mm) only.

Armored Front:

• 1-1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) – standard
• 1-1/16” x 8” x 1-7/32” (27 mm x 203 mm x 6 mm) – optional

Case Size:

• L9000 Series: 4-7/16” x 6-1/16” x 1” (113 mm x 154 mm x 25 mm)
• L400 Series: 4-7/16” x 3-5/8” x 1” (113 mm x 92 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8” (98mm); knob or lever to thumbturn hub, 2-11/16” (68mm).

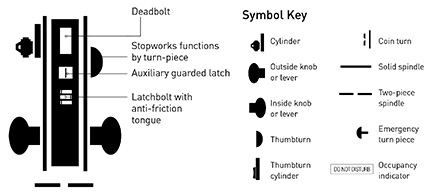

Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

• Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.

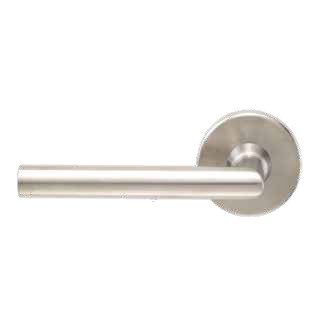

• Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.

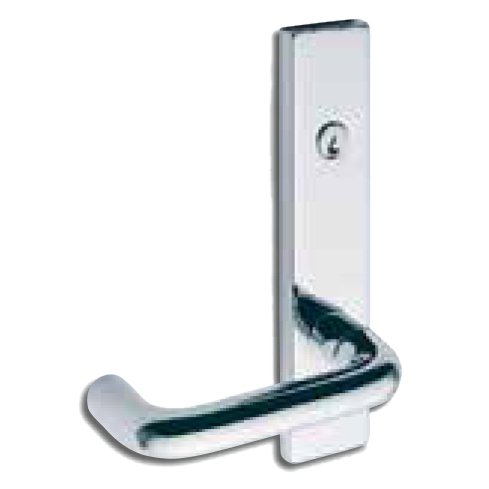

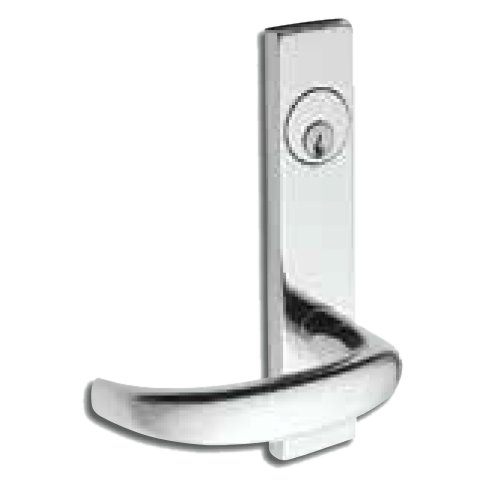

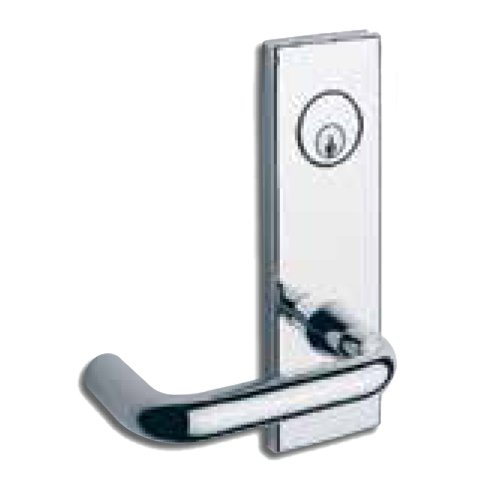

• Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

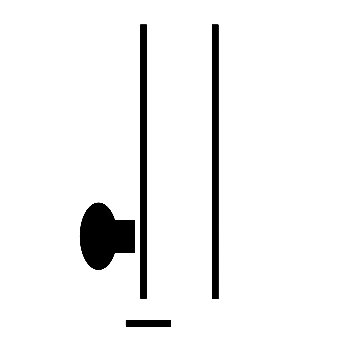

• Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
• Strike: ANSI curved lip strike 1-1/4” x 4-7/8” (32 mm x 124 mm) x 1-3/16” (30 mm) lip to center with dust box standard.
• Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.

Vandlgard

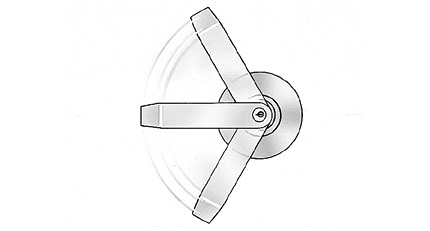

L-Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. Vandlgard prevents damage to internal lock components caused by excessive force from kicking, hitting or standing on the lever to gain access. It’s easy to retrofit standard L-Series locks with Vandlgard using the Vandlgard Retrofit Kit and an instructional DVD that shows installation on existing hardware.

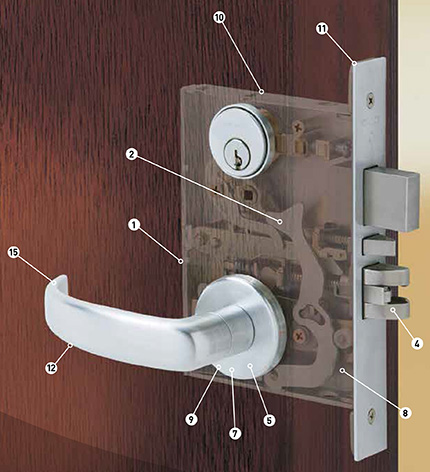

L9000 Series – Features and Benefits:

Strong/Durable

• Fully wrapped heavy gauge steel case protects against door edge attacks
• All metal zinc dichromate plated working parts
• Inside lock case protects electronic components
• 2-piece anti-friction tongue reduces wear and tear
• Outside and inside trim thru-bolted together and through the door

Secure

• Break-away spindle prevents unsecured failures and provides easy spindle replacement
• Hub blocking plate protects lock against spindle manipulation
• Spring-loaded fusible link provides fail secure mode in case of fire
• Inside lever applied by screwless shank mounting – no exposed trim mount screws

Adaptable

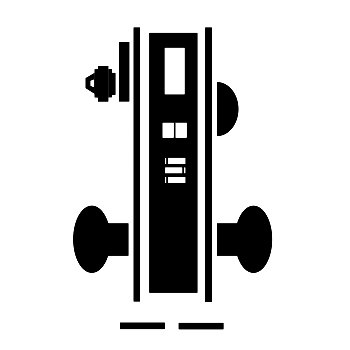

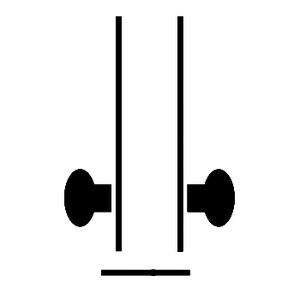

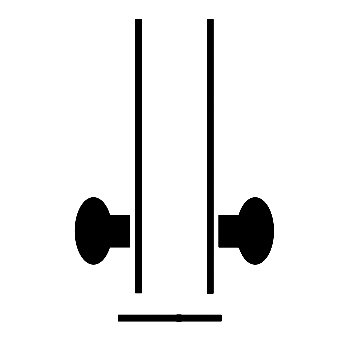

• Universal lock case – 10 functions in one case
• Floating mounting tabs automatically adjust to fit a beveled door edge
• Field reversible handing without opening lock case
• External spring cages allow for simple trim retrofit

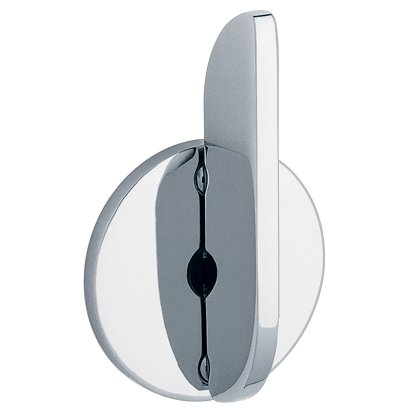

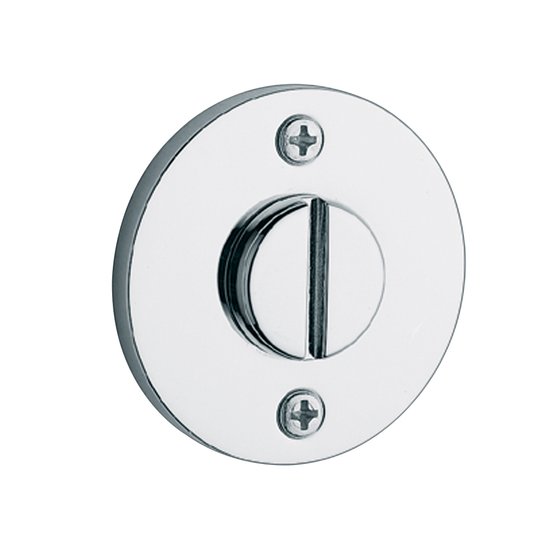

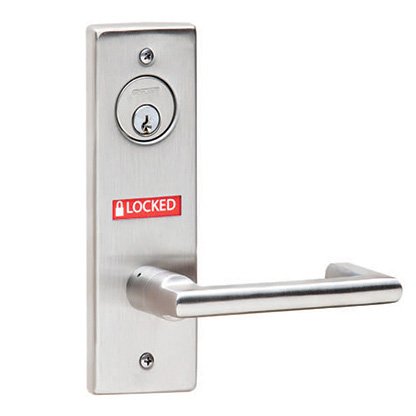

• Locking thumbturn on the inside of door visually shows when the door is locked and unlocked
• Lever rotation in both directions (up & down) for ease of use
• Independent lever rotation

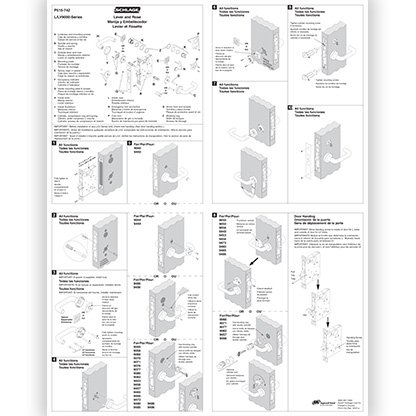

Door Handing: One of the revolutionary features of the L-Series mortise lock is that handing can be done quickly and easily without opening the lock case. This means off-the-shelf delivery to meet today’s fast-track construction requirements. With quickly reversible lock chassis and mix-and-match levers and knobs, the L-Series mortise lock provides the ultimate in stocking, ordering and installation flexibility.

Choose the right key system for your application

Schlage Classic and Everest key systems are designed to give you the level of security you need for every application. With optional keyway exclusivity, multi-level key hierarchy and cylinders that fit into a wide variety of locks, Schlage key systems and cylinders give you total control of your key system and building security. Unlike many other brands of high security cylinders, Schlage can easily intergrate its Primus XP and conventional cylinders into the same key system with no adverse effect on keying capacity. Primus XP keys will operate conventional cylinders, but conventional keys will not operate Primus XP cylinders. This means you can secure exterior doors and sensitive areas with Primus XP cylinders and use convential cylinders on the remaining doors. This cuts the cost of the overall job, and security can be tailored to meet the exact needs of each door without sacrificing the convenience of having a single building master key.

The Classic keyway family

Schlage Classic keyways provide security with no restrictions on duplication. Our Classic keyways can be easily upgraded or mixed with Primus XP for enhanced protection.

Primus XP High Security: The Primus XP keyway provides various levels of geographic exclusivity and requires authorization for duplication, ensuring better key control.

• Patented protection until July 2024
• Cylinders have a second set of pins for added security and pick resistance
• UL 437 versions available for additional protection against drilling and physical attacks
• Operates Primus XP and Classic (open) cylinders

The Everest patented keyway family

Everest patented keyways provide the highest levels of protection against unauthorized key duplication. Their patented design prevents non-authorized sources from manufacturing and distributing Everest key blanks. Our Everest key systems are suited for both new and existing key
systems, and give you the flexibility to expand and upgrade your key system as your needs change. The highest level of keyway security, Everest Primus XP keyways are distributed under careful protection guidelines to protect the exclusivity of the individual side bit milling patterns. Choose Everest Primus XP when the highest level of security and protection against unauthorized duplication is needed.

• Geographic exclusivity on key blanks
• Multiple patents protect against unauthorized key manufacture through July 2024
• Pick- and rake-resistant design
• Can be mixed and matched with non-Primus XP cylinders
• All key sections and master keying available at all levels of security
• Keys can be combinated using commonly available pin kits and key cutting equipment
• Keys are quick to cut and cylinders are easy to pin
• Thicker keys for added strength
• Three-year product warranty and a limited life-time warranty against key breakage
• Operates Everest Primus and Everest restricted cylinders

Choose the Right Cylinder for Each Application

Schlage cylinders are ideal for a wide range of commercial applications, including airports, hospitals, schools and universities, government and military buildings, offices and research laboratories. Choose from Classic Primus XP® or Everest® Primus XP high-security cylinders, Everest patented open and restricted cylinders, or the industry-standard Classic cylinders to fulfill your security needs and the demands of your specific installation.

Conventional Cylinders: Schlage locks are provided with cylinders precision-built to extremely close tolerances and the highest standards of accuracy. Using only solid brass bar stock plugs and shells, phosphor bronze springs, and nickel silver keys and bottom pins ensures long life and ease of operation.

Primus® High Security Cylinders: Primus high-security cylinders are available to add patented key control and varying degrees of geographical exclusivity to most Schlage 6-pin key systems, whether Everest or Classic keyways. In addition to a conventional pin tumbler mechanism, Primus cylinders incorporate a patented finger pin and sidebar design, providing a “dual-locking” cylinder that is virtually pick-proof. Resistance to drilling and other physical attack is optional by specifying 20-500 Series UL437 Listed cylinders.

Primus Lockout Cylinders: For doors where it is frequently desirable to disable all keys from operating the lock temporarily use lockout cylinders. The special lockout key can be removed while the plug is turned to the 11 o’clock position, preventing all normal operating keys, including master keys, from fully entering the cylinder. Suggested applications for lockout cylinders include laboratories, dark rooms, clean rooms and exterior doors to dormitories. Schlage will not master key lockout cylinders.

For more information, please see the L-Series Commercial Locks Catalog in the Downloads tab.

Caution: Double cylinder locks are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Certifications

• ANSI: L9000 - ANSI A156.13 Series 1000, Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9007). With interchangeable core cylinders: Grade 2 Security.
• With Concealed Shell Cylinder: A156.13 Grade 1 Operational and Security. ANSI/ASTM F476-76 Grade 40, UL Listed. L400: ANSI A156.5 Grade 1.

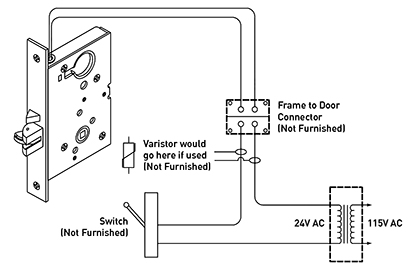

• UL / cUL: All locks listed for A label single doors, 4’ by 10’. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single-point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
