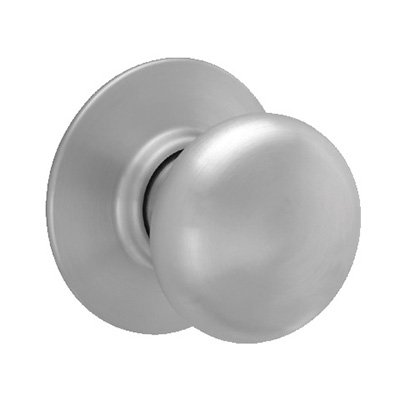

Plymouth Knob Shown in 626 Satin Chrome Finish

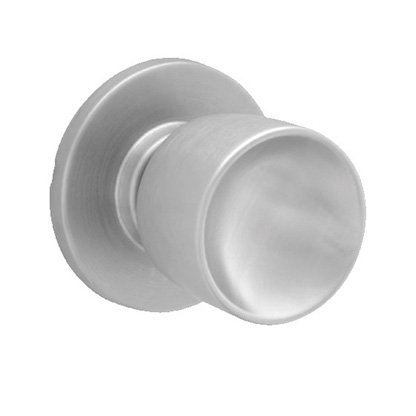

Tulip Knob Shown in 626 Satin Chrome Finish

Plymouth Knob Shown in 626 Satin Chrome Finish

Orbit Knob Shown in 626 Satin Chrome Finish
Schlage D-Series
Heavy duty performance for high traffic applications.
At Schlage we know that every product you specify has to stand up to constant use and abuse without compromising security.
The D-Series gets the job done with tough, dependable ANSI Grade 1 locks designed for use in military barracks, back-of-house hospitality and retrofit applications.
Built for heavy traffic applications, D-Series locks are easy to service and maintain, and come in a range of styles and finishes to fit your building.
Schlage D-Series
Schlage D-Series knobs are built to tough manufacturing standards that ensure a long life with smooth performance.
With finishes to fit your building design, and a choice of styles, the D-Series is one of the toughest knobs we make.




- Designs
- Specifications
- Options

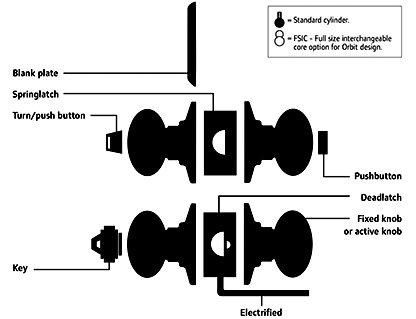

- Functions
- Finishes
- Downloads

ORB - Orbit

Close
ORB - Orbit
Wrought brass, bronze, or stainless steel

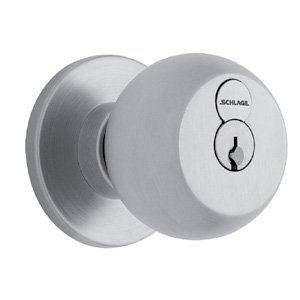

Standard cylinder, or full size interchangeable core option
Standard cylinder, or full size interchangeable core option

D10S - F75

Close
D10S - F75
Passage Latch
Both knobs always unlocked
Inside knob is always free for immediate egress
Both knobs always unlocked
Inside knob is always free for immediate egress

D40S - F76

Close
D40S - F76
Bath/Bedroom Privacy Lock
Push-button locking
Can be opened from outside with small screwdriver
Push-button locking
Can be opened from outside with small screwdriver

D44S

Close
D44S
Hospital Privacy Lock
Push-button locking
Unlock from outside by pushing emergency turn-button
Push-button locking
Unlock from outside by pushing emergency turn-button

D170

Close
D170
Single Dummy Trim
Dummy trim for one side of door
Used for door pull or as matching inactive trim
Dummy trim for one side of door
Used for door pull or as matching inactive trim

D53PD - F109

Close
D53PD - F109
Entrance Lock
Push button to lock outside knob
Knob stays locked until unlocked by key or by turning inside knob
Push button to lock outside knob
Knob stays locked until unlocked by key or by turning inside knob

D60PD - F88

Close
D60PD - F88
Vestibule Lock
Latch is retracted by key from the outside, when the outside knob is locked by a key in the inside knob
Latch is retracted by key from the outside, when the outside knob is locked by a key in the inside knob

D70PD - F84

Close
D70PD - F84
Classroom Lock
Outside knob is locked and unlocked by key
Inside knob always free for immediate egress
Outside knob is locked and unlocked by key
Inside knob always free for immediate egress

D72PD - F80

Close
D72PD - F80
Communicating Lock*
Key in either knob locks or unlocks its own knob independently
*Life safety hazard: not recommended for egress
Key in either knob locks or unlocks its own knob independently
*Life safety hazard: not recommended for egress

D73PD - F90

Close
D73PD - F90
Corridor Lock
Locked or unlocked by key from outside
Push-button locking from inside
Locked or unlocked by key from outside
Push-button locking from inside

D80PDEL - D12DEL

Close
D80PDEL - D12DEL

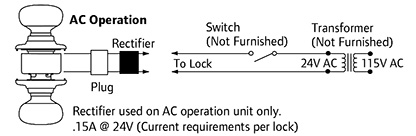

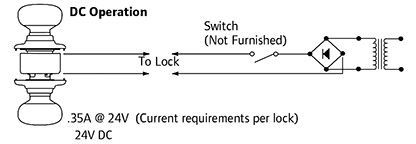

Electrically Locked (Fail Safe)
Auxiliary latch deadlocks latchbolt when door is closed
Outside knob continuously locked electrically until unlocked by key, switch or power failure
Auxiliary latch deadlocks latchbolt when door is closed
Outside knob continuously locked electrically until unlocked by key, switch or power failure

D80PDEU - D12DEU

Close
D80PDEU - D12DEU
Electrically Unocked (Fail Secure)
Auxiliary latch deadlocks latchbolt when door is closed
Outside knob continuously locked until it is unlocked by key or electric current
Auxiliary latch deadlocks latchbolt when door is closed
Outside knob continuously locked until it is unlocked by key or electric current
