Schlage BE-Series Electronic Deadbolts

Schlage BE-Series Electronic Deadbolts Specifications

• Applications: Residential single- and multi-family doors

• Certifications: Grade 2 ANSI/BHMA certified

• Keying: 5-pin tumbler C keyway with two nickel silver keys

• Door range: 1-3/8” to 1-3/4” (35mm-44mm) standard; thick door kit available on BE365

• Backset: Universal latches and deadbolts fit 2-3/8” (60mm) or 2-3/4” (70mm) backset

• Communications: 900 MHz (Z-Wave ® RF)

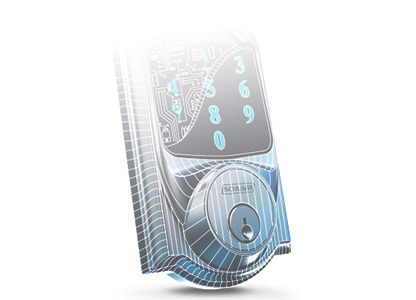

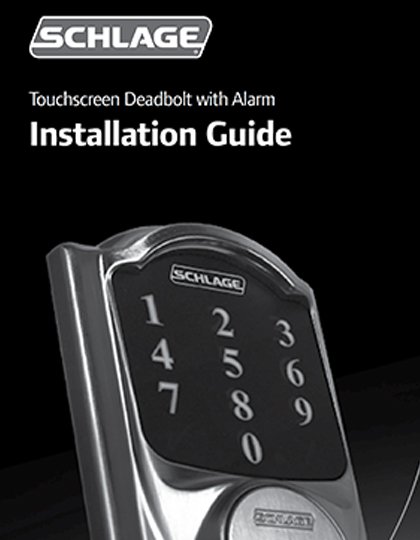

BE469NX Touchscreen Deadbolt with Alarm

BE469NX Functions:

• ANSI A156.5, 2001, Grade 1 Touchscreen Deadbolt
• Autothrow deadbolt is activated from outside by pressing Schlage button
• Deadbolt automatically retracted from outside by entering valid user code
• Key can be used to unlock as backup
• Built-in Alarm Technology alerts home owners to potential security threats
• Nexia™ Home Intelligence enable allows for remote locking/unlocking*

*For those homes equipped with the Nexia Home Intelligence system

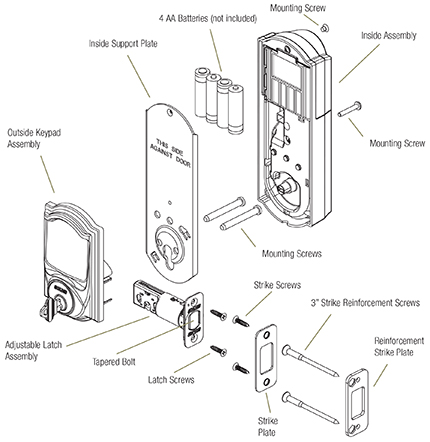

BE469NX Standard Features / Configurations:

• Certification ANSI/BHMA Grade 1
• Product Dimensions (w x h x d) exterior: 3” x 4 3/4” x 1”, interior: 3” x 8” x 2”
• Weight 3.6 lbs
• Warranty 1 year electronics, limited lifetime mechanical and finish
• Battery Powered by 4 AA batteries (not included)
• Latch Throw 1”
• Cylinder 5-pin tumbler, C Keyway
• Door Thickness 1 3/8” to 1 3/4”; thick door kit extends 1 7/8” to 2 1/2”

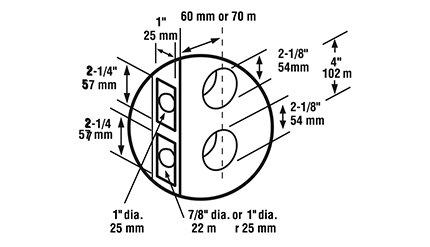

• Cross Bore 4“ center-to-center distance needed between cross bore holes*
• Edge Bore 1”
• Latch/Bracket Universal latch fits 2 3/8” or 2 3/4” backset
• Latch Faceplate Size 1” x 2 1/4”
• Latch Faceplate Options Round corner and drive-in
• Strike 1 1/8” x 2 3/4” round corners, strike reinforcer
• Keys 1 key included
• Codes Pre-set, unique six-digit programming code, 2 pre-set unique
• 4-digit user codes, storage of up to 30 user codes (4-8 digits)
• Communications 900 Mhz (Z-Wave® RF)**
• Operating Temperatures Outside lock body (exterior mounted): -35C to 66C
• Inside lock body (interior mounted): -10C to 49C
• Non-standard finishes are not available

  * May require greater than 4” center-to-center bore adjustment if used with non-standard decorative rose install.
** Z-Wave is a registered trademark of Zensys Inc. and/or its subsidiaries.

BE469NX Features:

• Innovative Turn Lock feature allows you to lock & leave without a key
• Provides the convenience of keyless access; customizable to fit your security needs
• Ideal for front doors, side & back doors, garage entry doors, etc.
• Easily replace most exisiting deadbolts with a screwdriver in about 30 minutes
• No programming required; preset with two user codes so it's ready to use right out of the box
• ANSI/BHMA Grade 2 Certified
• Fits standard door prep
• Easy installation, no need to run wires
• Battery operated with over 3 year battery life

Security:

• ANSI Grade 1 delivers highest level of durability and security for residential door locks
• Durable, resistive touchscreen with matte finish to protect against finger prints and smudges
• Motorized tapered bolt automatically locks and unlocks when code is entered
• Warning beep alerts you when the deadbolt is not fully extended
• Auto-lock feature automatically relocks door anytime it’s left unlocked
• Built-in alarm technology alerts home owners to potential security threats

Quality:

• Rugged, metal construction ensures durability
• Standard lock design fits most one-hole residential door preps
• Lifetime mechanical and finish warranty / 1 year electronics warranty

Convenience:

• Keyless security so you never have to worry about keys to lose, hide, carry or forget
• Installation requires only a screwdriver
• Auto-handing intuitively detects the direction the bolt needs to be thrown during installation
• Memory holds up to 30 4- to 8-digit user codes
• Lock-and-leave offers easy one-button locking upon exiting the house
• Programming done right at the lock or via Nexia™ Home Intelligence portal*
• Nexia-enabled allows for remote locking/unlocking*

* For those homes equipped with the Nexia Home Intelligence system

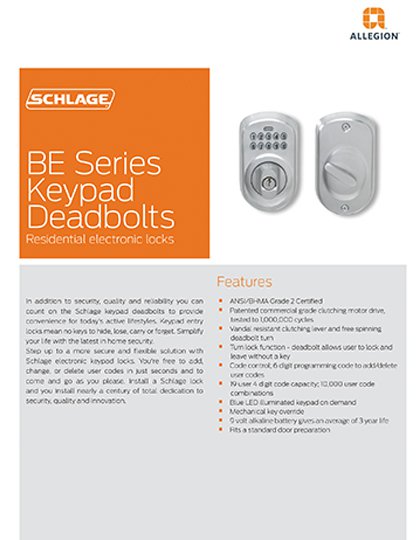

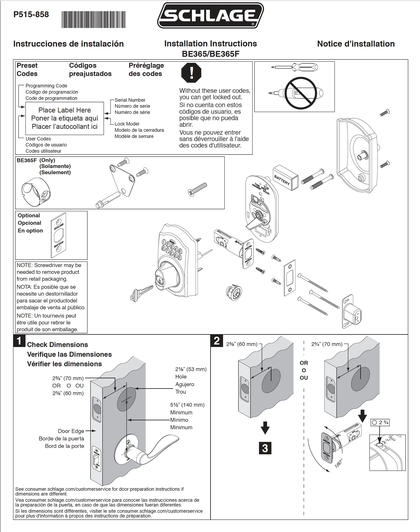

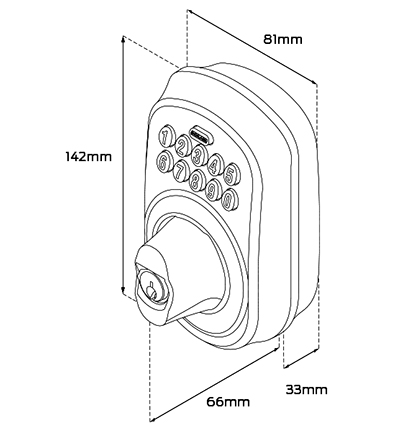

BE365 Programmable Keypad Deadbolt

BE365 Functions:

• Deadbolt thrown from outside by keyway turn after pressing Schlage button or by inside thumbturn
• Deadbolt retracted from outside by entering valid user code then rotating keyway turn or by inside thumbturn
• Key can be used to unlock as backup

BE365 Standard Features / Configurations:

• Certification: ANSI A 156.5-2001 Grade 2 auxiliary locks, ANSI A 156.2-2003 bored locks and latches
• Lock: 1” x 2-1/4” Radius corner faceplate, 7/8” housing diameter, 1/2” throw springlatch with
• Triple-Option™ square corner, radius corner and circular drive-in faceplates
• Deadbolt: 1” x 2-1/4” radius corner faceplate, 1” Housing Diameter – requires 1” Edge Bore, 1” throw with Triple-Option™ square corner, radius corner and circular drive-in faceplates
• Latch Strikes: 1-5/8” x 2-1/4”, Square and radius corner, full lip, latch strikes
• Deadbolt Strike: 1-1/8”x 2-3/4”, round corner, latch strike, strike reinforcer

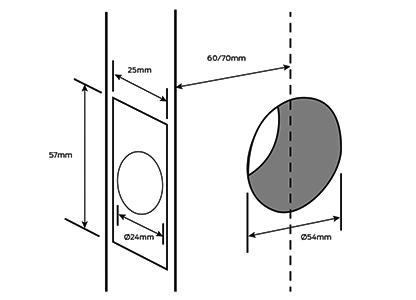

• Backset: Fits 2-3/8” or 2-3/4” backset
• Cylinder: 5-pin solid brass, keyed 5-pin, C keyway, keyed different (KD)
• Door Range: 1-3/8” to 1-3/4”
• Keys: 2 keys, 5-pin, C-Key
• Codes: Pre-set, unique, six-digit programming code, two pre-set unique four-digit user codes (19 code capacity)

General:

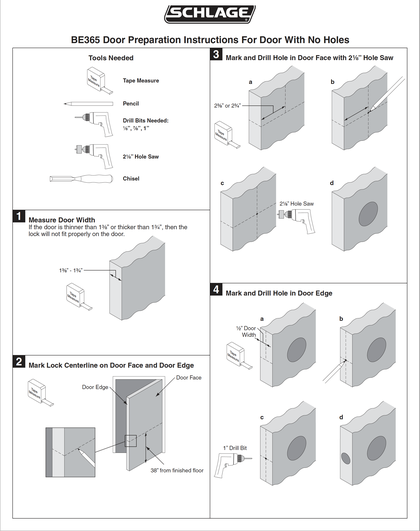

• Minimum 5-1/2” center-to-center distance needed between cross bore holes
• 9-volt battery included with average three-year battery life
• Rugged chassis and escutcheons
• Silicone rubber, wear-resistant buttons with LED backlight
• FCC Part 15
• CE Mark

*Locks are furnished with standard features unless otherwise specified.

Professional Grade Security and Quality:

• Grade 2 ANSI/BHMA certified
• Patented commercial grade clutching motor drive; tested to one million cycles
• Vandal resistant clutching lever and knob design; free spinning deadbolt turn
• Code control; 6-digit programming code required to add and delete user codes
• Warning code sounds after four incorrect codes entered; keypad disabled for 30 seconds
• Mechanical key override; patent pending

Convenience:

• Convenient keyless access; no keys to hide, lose or forget
• Pre-set with random 6-digit programming code and two random 4-digit user codes
• 19 user code capacity; 10,000 user code combinations
• Easily programmed right at the keypad; no need to remove inside escutcheon
• Blue LEDs illuminate the keypad on demand
• Reversible levers for left- or right-handed doors
• Locks can be re-keyed to match existing locks
• 9-volt alkaline battery included
• Up to 3 year battery life with low battery alert
