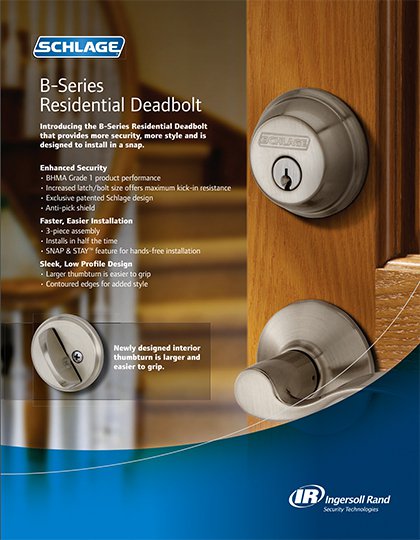

Schlage B-Series Residential

B-Series Residential Deadbolts Specifications

• Applications: Residential single- and multi-family doors

• Certifications: Meets Grade 1 BHMA requirements

• U.L. Listed: Locks for up to three-hour fire doors available

• Keying: 5-pin tumbler C keyway standard, with two brass keys; 6-pin cylinder available

• Door thickness range: 1-3/8” to 1-3/4” (5mm-51mm) standard

• Backset: Universal deadbolts fit 2-3/8” or 2-3/4” backset

Security:

• BHMA Grade 1 product performance
• Increased latch/bolt size offers maximum kick-in resistance
• Exclusive patented Schlage design
• Anti-pick shield protects against hammer and crowbar attacks

Quality:

• Schlage Limited Lifetime Mechanical and Finish Warranty

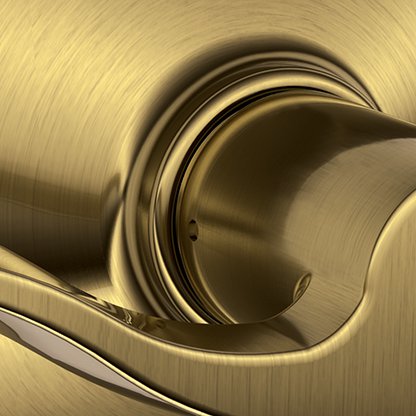

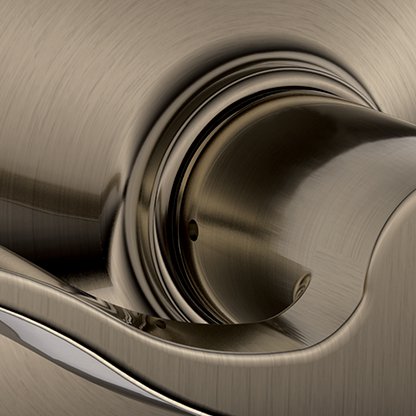

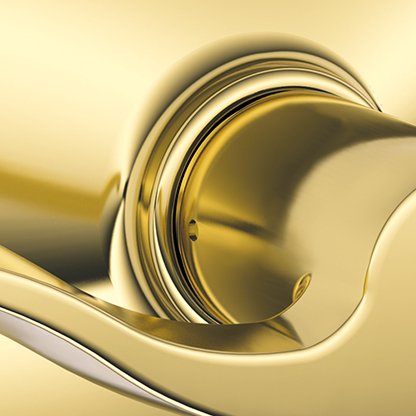

• Finishes that feature ultraviolet (UV) resistance up to 4 times the BHMA standard: Satin Nickel, Bright Brass, Antique Brass, and Antique Pewter
• Contoured edges for added style

Convenience:

• SNAP & STAY™ design cuts installation time in half
• Larger thumb turn is easier to grip
• 3-piece assembly
• Fits all standard door preps

Bored Auxiliary Deadbolt Lock Features

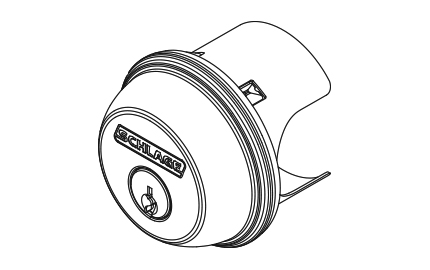

B60: Single Cylinder Deadbolt Lock

• Certification: ANSI A156.5, 2001, Grade 1 auxiliary lock
• Deadbolt: 1” x 2-1/4”, radius corner, 1” housing diameter, 1” throw, latch number 12-321
• Strike: 1-1/8” x 2-3/4”, 1/4” radius corner, strike number 10-116
• Backset: Adjustable for 2-3/8” or 2-3/4”
• Cylinder: 5-pin solid brass, keyed 5-pin, C keyway, keyed a like in fours (KA4)
• Door Range: 1-3/8” to 1-3/4” thickness
• Keys: Two brass cut keys per lock, 5-pin, C section
• Reinforcement: Door frame strike reinforcer with 3” screws

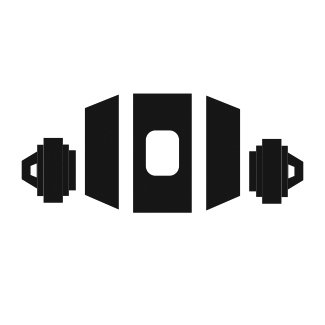

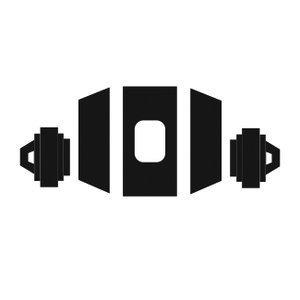

B62: Double Cylinder Deadbolt Lock

• Double cylinder deadbolt
• Unique Snap & Stay™ design
• ANSI Grade 1--professional grade security
• Biggest adjustable bolt available
• Pick and bump resistant
• Adjusts to fit all standard door preparations
• Quality finishes for lasting beauty
• Lifetime finish and mechanical guarantee
