Sargent R8200 Series
Mortise Lock with Roseless Trim
This elegant trim by SARGENT seamlessly unifies the lever and the door.
Compatible with most Studio Collection and Coastal Series decorative levers, Simplí™ creates a flawless aesthetic vision on any door opening.
Simpli™ is offered on the R8200 Series mortise lock, which was specially designed to accept the roseless trim.
In addition to the R8200 Series, Simpli™ is also available with the RDL Series tubular locks and Harmony R8200 Series mortise locks.
- Designs
- Specifications
- Functions
- Finishes
- Downloads
Studio Collection - levers
Close
Studio Collection - levers
Choose from Aventura, Centro, Gramercy, Notting Hill, Odeon, Rialto designs
(Designer Hardware > Architectural Levers > Sargent)
(Designer Hardware > Architectural Levers > Sargent)
Coastal Series - levers
Close
Coastal Series - levers
Choose from Gulfport (Handed), Rockport (O/S Trim), Sanibel (O/S Trim), Yarmouth (O/S Trim)

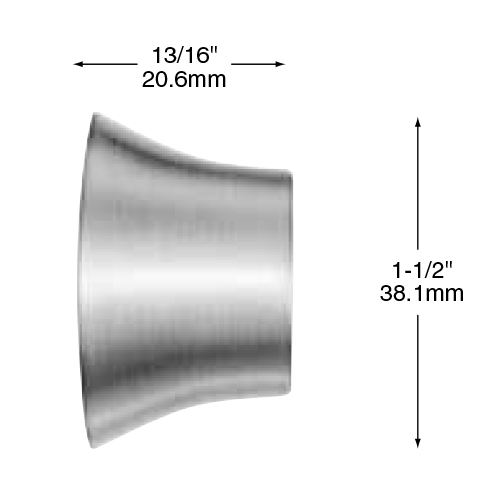

Simpli Roseless Trim
Close
Simpli Roseless Trim
Can only be used with RDL Locks
Levers return within 1/2" of door face
Levers return within 1/2" of door face
Sargent R8200 Series Mortise with Roseless Trim

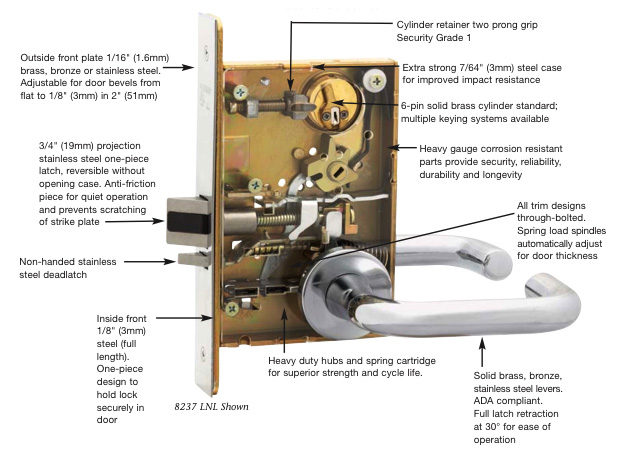

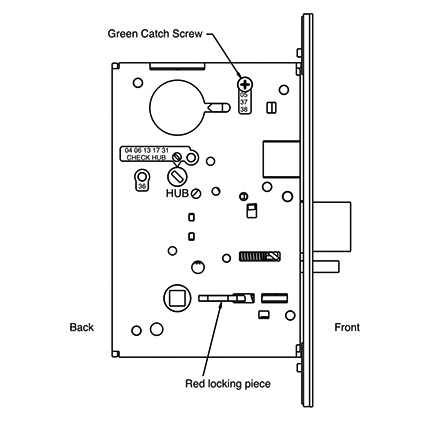

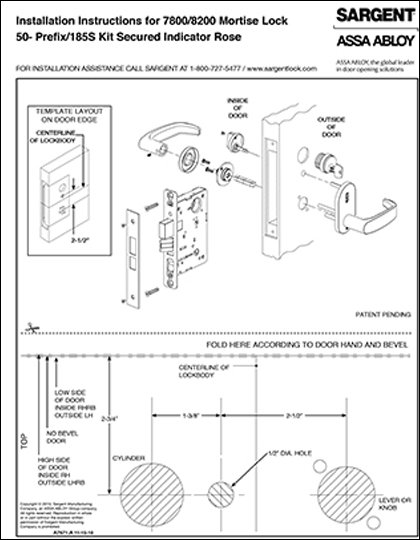

Sargent Multi-Functional Lockbody
8200/R8200/7800 Mortise Locks

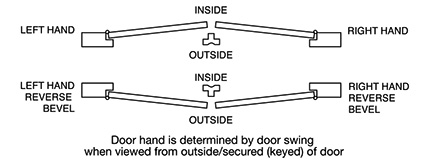

Door Handing

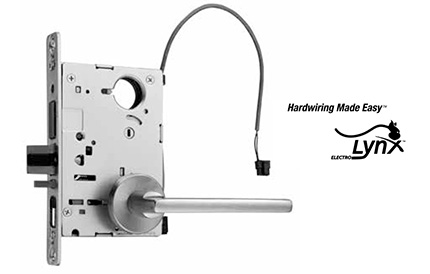

ElectroLynx™ Plug-in Connector System
MicroShield™ Permanently Suppresses Destructive Bacteria
Shaded lever in diagram, indicates rigid at all times.
04 Storeroom or Closet (F07)
Close
04 Storeroom or Closet (F07)
• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
05 Office or Entry (F04)
Close
05 Office or Entry (F04)
• Key outside retracts latchbolt; locks & unlocks outside trim
• Trim inside always retracts latchbolt; trim outside remains locked
• Thumbturn inside locks & unlocks outside trim
• Auxiliary deadlatch
• Trim inside always retracts latchbolt; trim outside remains locked
• Thumbturn inside locks & unlocks outside trim
• Auxiliary deadlatch
06 Storeroom or Service
Close
06 Storeroom or Service
• No trim outside, cylinder only
• Key outside retracts latchbolt
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Same as 04 Function without trim outside
• Key outside retracts latchbolt
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Same as 04 Function without trim outside
31 Utility
Close
31 Utility
• Key outside retracts latchbolt
• Trim outside is always locked
• No inside trim or cylinder
• Auxiliary deadlatch
• Trim outside is always locked
• No inside trim or cylinder
• Auxiliary deadlatch
36 Closet
Close
36 Closet
• Key locks and unlocks trim
• No inside trim or cylinder
• Auxiliary deadlatch
• No inside trim or cylinder
• Auxiliary deadlatch
37 Classroom (F05)
Close
37 Classroom (F05)
• Key outside retracts latchbolt; locks & unlocks outside trim
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
55 Office or Entry
Close
55 Office or Entry
• Key outside retracts latchbolt
• Trim inside always retracts latchbolt; outside trim remains locked
• Trim outside is locked & unlocked by toggle only
• Trim inside always retracts latchbolt; outside trim remains locked
• Trim outside is locked & unlocked by toggle only
56 Office & Inner Entry Lock
Close
56 Office & Inner Entry Lock
• Key outside retracts latchbolt
• Trim inside always retracts latchbolt; unlocks outside trim
• Trim outside is locked by thumbturn or key
• Auxiliary deadlatch
• Trim inside always retracts latchbolt; unlocks outside trim
• Trim outside is locked by thumbturn or key
• Auxiliary deadlatch
67 Institutional Privacy (F26)
Close
67 Institutional Privacy (F26)
• Key outside retracts latchbolt, overriding thumbturn when held in locked position
• Thumbturn inside locks & unlocks outside trim
• Trim outside unlocks when the door closes or by operating trim inside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
Note: Key does not lock trim outside, only unlocks it.
• Thumbturn inside locks & unlocks outside trim
• Trim outside unlocks when the door closes or by operating trim inside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
Note: Key does not lock trim outside, only unlocks it.
24 Storeroom Door (F21)
Close
24 Storeroom Door (F21)
• Key outside or thumbturn inside, retracts & projects deadbolt
• Trim either side retracts latchbolt
• Latchbolt & deadbolt operate independently of each other
• Trim either side retracts latchbolt
• Latchbolt & deadbolt operate independently of each other
25 Dormitory or Exit (F13)
Close
25 Dormitory or Exit (F13)
• Key outside or thumbturn inside, retracts & projects deadbolt
• Trim from either side retracts latchbolt, when deadbolt is in retracted position
• Trim outside is locked, when deadbolt is projected
• When deadbolt is projected, trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
• Trim from either side retracts latchbolt, when deadbolt is in retracted position
• Trim outside is locked, when deadbolt is projected
• When deadbolt is projected, trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
27 Closet or Storeroom
Close
27 Closet or Storeroom
• Key outside retracts and projects deadbolt
• Trim from either side retracts latchbolt
• Same as 24 function without thumbturn
• Latchbolt & deadbolt operate independently of each other
• Trim from either side retracts latchbolt
• Same as 24 function without thumbturn
• Latchbolt & deadbolt operate independently of each other
28 Dummy Trim Deadlock
Close
28 Dummy Trim Deadlock
• Deadbolt operation only
• Key outside retracts and projects deadbolt
• Trim inside always retracts deadbolt
• Trim outside is always locked
• Thumbturn inside retracts & projects deadbolt
• Key outside retracts and projects deadbolt
• Trim inside always retracts deadbolt
• Trim outside is always locked
• Thumbturn inside retracts & projects deadbolt
30 Dummy Trim Deadlock
Close
30 Dummy Trim Deadlock
• Deadbolt operation only
• Key outside retracts and projects deadbolt
• Trim inside always retracts deadbolt
• Trim outside is always locked
• Same as 28 Function without a thumbturn
• Key outside retracts and projects deadbolt
• Trim inside always retracts deadbolt
• Trim outside is always locked
• Same as 28 Function without a thumbturn
35 Storeroom
Close
35 Storeroom
• Key outside retracts and projects deadbolt
• Trim outside retracts latchbolt, except when deadbolt is projected
• No inside trim or cylinder
• Trim outside retracts latchbolt, except when deadbolt is projected
• No inside trim or cylinder
43 Apartment Corridor Door (F20)
Close
43 Apartment Corridor Door (F20)
• Key and thumbturn both retract & project deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside always retracts latchbolt/deadbolt simultaneously, trim outside remains locked
• Auxiliary deadlatch
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside always retracts latchbolt/deadbolt simultaneously, trim outside remains locked
• Auxiliary deadlatch
45 Dormitory or Exit (F12)
Close
45 Dormitory or Exit (F12)
• Key and thumbturn both retract & project deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside always retracts latchbolt/deadbolt simultaneously, trim outside remains locked
• Same as 8243, without Auxiliary Deadlatch
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside always retracts latchbolt/deadbolt simultaneously, trim outside remains locked
• Same as 8243, without Auxiliary Deadlatch
47 Front Door/Apartment Corridor Door (F08/F10)
Close
47 Front Door/Apartment Corridor Door (F08/F10)
• Key and thumbturn both retract & project deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside retracts latchbolt only, deadbolt is retracted manually & trim outside remains locked
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside retracts latchbolt only, deadbolt is retracted manually & trim outside remains locked
50 Hotel Guest (F15)
Close
50 Hotel Guest (F15)
• Hotel Cylinder (50 Function) Required (Standard & Emergency Keys)
• Standard Key retracts latchbolt only, will not retract or project deadbolt
• Emergency Key will retract latchbolt & deadbolt and also project deadbolt
• Thumbturn retracts & projects deadbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Standard Key retracts latchbolt only, will not retract or project deadbolt
• Emergency Key will retract latchbolt & deadbolt and also project deadbolt
• Thumbturn retracts & projects deadbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
51 Storeroom Deadbolt
Close
51 Storeroom Deadbolt
• Key and thumbturn both retract & project deadbolt
• Key will also retract latchbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Same as 50 function with a std. cylinder
• Key will also retract latchbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Same as 50 function with a std. cylinder
16 Apartment, Exit or Public Restroom (F09)
Close
16 Apartment, Exit or Public Restroom (F09)
• Key outside retracts latchbolt
• Key inside is required to lock and unlock trim outside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Special -105 cam, required for inside cylinder (supplied)
• Key inside is required to lock and unlock trim outside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Special -105 cam, required for inside cylinder (supplied)
17 Asylum or Institutional (F30)
Close
17 Asylum or Institutional (F30)
• Key from either side retracts latchbolt
• Trim on both sides are locked at all times
• Auxiliary deadlatch
• Trim on both sides are locked at all times
• Auxiliary deadlatch
38 Classroom Security Intruder Latchbolt (F32)
Close
38 Classroom Security Intruder Latchbolt (F32)
• Key from either side locks & unlocks outside trim
• Key from either side retracts latchbolt
• Trim outside retracts latchbolt, except when locked
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Key from either side retracts latchbolt
• Trim outside retracts latchbolt, except when locked
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
59 Double Locking/School Security
Close
59 Double Locking/School Security
• Key from either side locks & unlocks both inside & outside trims
• Key from either side retracts latchbolt
• Key from either side can retract latchbolt without unlocking trims
• Auxiliary deadlatch
• Key from either side retracts latchbolt
• Key from either side can retract latchbolt without unlocking trims
• Auxiliary deadlatch
26 Store Door (F14)
Close
26 Store Door (F14)
• Key from either side retracts & projects deadbolt
• Trim from either side retracts latchbolt
• Latchbolt and deadbolt are independent of each other
• Trim from either side retracts latchbolt
• Latchbolt and deadbolt are independent of each other
29 Dummy Trim Deadlock
Close
29 Dummy Trim Deadlock
• Deadbolt operation only
• Key on either side retracts & projects deadbolt
• Trim inside retracts deadbolt
• Trim outside is always locked
• Key on either side retracts & projects deadbolt
• Trim inside retracts deadbolt
• Trim outside is always locked
39 Classroom Security Intruder Deadbolt (F33)
Close
39 Classroom Security Intruder Deadbolt (F33)
• Key either from side retracts or projects deadbolt, which also unlocks or locks outside trim
• Trim outside retracts latchbolt, except when locked
• Trim outside is only locked by projecting deadbolt
• Trim inside retracts both latchbolt/deadbolt simultaneously; unlocks outside trim
• Trim outside retracts latchbolt, except when locked
• Trim outside is only locked by projecting deadbolt
• Trim inside retracts both latchbolt/deadbolt simultaneously; unlocks outside trim
40 Classroom Security Intruder Deadbolt (F34)
Close
40 Classroom Security Intruder Deadbolt (F34)
• Key from either side retracts or projects deadbolt which also unlocks or locks outside trim
• Trim outside retracts latchbolt, except when locked
• Trim outside is only locked by projecting deadbolt
• Trim inside retracts both latchbolt/deadbolt simultaneously; unlocks outside trim
• Auxiliary deadlatch
• Same as an 8239 with Auxiliary deadlatch
• Trim outside retracts latchbolt, except when locked
• Trim outside is only locked by projecting deadbolt
• Trim inside retracts both latchbolt/deadbolt simultaneously; unlocks outside trim
• Auxiliary deadlatch
• Same as an 8239 with Auxiliary deadlatch
41 Classroom Security Intruder Deadbolt
Close
41 Classroom Security Intruder Deadbolt
• Key from either side retracts and projects deadbolt
• When deadbolt is projected, 1st key rotation retracts deadbolt, 2nd key rotation unlocks trim outside
• Key retraction of latchbolt from either side unlocks trim outside
• Trim outside retracts latchbolt, except when locked
• Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously and the outside trim remains locked
• When deadbolt is projected, 1st key rotation retracts deadbolt, 2nd key rotation unlocks trim outside
• Key retraction of latchbolt from either side unlocks trim outside
• Trim outside retracts latchbolt, except when locked
• Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously and the outside trim remains locked
46 Dormitory or Exit
Close
46 Dormitory or Exit
• Key from either side retracts and projects deadbolt
• Key from either side retracts both latchbolt/deadbolt; trim outside remains locked
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously, and the outside trim remains locked
• Key from either side retracts both latchbolt/deadbolt; trim outside remains locked
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously, and the outside trim remains locked
48 Store Door (F25)
Close
48 Store Door (F25)
• Key from either side retracts and projects deadbolt
• Key from either side retracts latchbolt
• Trim outside is locked by toggle or projecting deadbolt and unlocked by toggle only
• Trim inside (when deadbolt is projected) retracts latchbolt only, and outside trim
• Key from either side retracts latchbolt
• Trim outside is locked by toggle or projecting deadbolt and unlocked by toggle only
• Trim inside (when deadbolt is projected) retracts latchbolt only, and outside trim
49 Security Deadbolt
Close
49 Security Deadbolt
• Key from either side retracts and projects deadbolt
• Key from either side retracts latchbolt
• Trim inside & outside are locked only when deadbolt is projected
• Key from either side retracts latchbolt
• Trim inside & outside are locked only when deadbolt is projected
52 Institutional Deadbolt
Close
52 Institutional Deadbolt
• Key from either side retracts and projects deadbolt
• Key from either side retracts latchbolt
• Trim inside and out are always locked
• Auxiliary deadlatch
• Key from either side retracts latchbolt
• Trim inside and out are always locked
• Auxiliary deadlatch
13 Exit Latch (F31)
Close
13 Exit Latch (F31)
• No outside trim or cylinder
• Trim inside retracts latchbolt
• Auxiliary deadlatch
• Trim inside retracts latchbolt
• Auxiliary deadlatch
15 Passage or Closet (F01)
Close
15 Passage or Closet (F01)
• Trim from either side retracts latchbolt at all times
65 Privacy Bath/Bedroom (F22)
Close
65 Privacy Bath/Bedroom (F22)
• Trim outside retracts latchbolt except when locked by thumbturn
• Trim inside retracts latchbolt and unlocks outside trim
• Emergency Release locks/unlocks trim outside: by coin, screwdriver or emergency key option
• Thumbturn locks and unlocks trim outside
• Closing the door will unlock outside trim
• Trim inside retracts latchbolt and unlocks outside trim
• Emergency Release locks/unlocks trim outside: by coin, screwdriver or emergency key option
• Thumbturn locks and unlocks trim outside
• Closing the door will unlock outside trim
66 Privacy Bath/Bedroom (F19)
Close
66 Privacy Bath/Bedroom (F19)
• Trim outside retracts latchbolt except when deadbolt is projected
• Trim inside retracts both latchbolt and deadbolt simultaneously, unlocking outside trim
• Emergency Release retracts and projects deadbolt: by coin, screw driver or emergency key option
• Thumbturn retracts and projects deadbolt
• Trim inside retracts both latchbolt and deadbolt simultaneously, unlocking outside trim
• Emergency Release retracts and projects deadbolt: by coin, screw driver or emergency key option
• Thumbturn retracts and projects deadbolt
68 Privacy Bath/Bedroom (F02)
Close
68 Privacy Bath/Bedroom (F02)
• Trim from either side retracts latchbolt at all times
• Thumbturn retracts and projects deadbolt
• Emergency release retracts and projects deadbolt — by coin, screwdriver or emergency key option
• Latchbolt and deadbolt are independent of each other
• Thumbturn retracts and projects deadbolt
• Emergency release retracts and projects deadbolt — by coin, screwdriver or emergency key option
• Latchbolt and deadbolt are independent of each other
93 Trim Dummy
Close
93 Trim Dummy
• Trim on inside of door is always rigid
• Trim only used as door pull
• For double door applications, installed on the inactive door, use template #4298 to accept latchbolt from active door
Note: Lever is through-bolted
• Trim only used as door pull
• For double door applications, installed on the inactive door, use template #4298 to accept latchbolt from active door
Note: Lever is through-bolted
94 Trim Dummy
Close
94 Trim Dummy
• Trim on both sides are always rigid
• Trim only used as door pull
• Recommended for double door applications on the inactive door, use template #4298, to accept latchbolt from active door
Note: Lever not surface mounted
• Trim only used as door pull
• Recommended for double door applications on the inactive door, use template #4298, to accept latchbolt from active door
Note: Lever not surface mounted
95 Single Trim Dummy
Close
95 Single Trim Dummy
• Trim inside only
• Trim is always rigid
• Includes lock case and armor front
• Not recommended on double door applications (will not accept latchbolt from active door)
• Trim is always rigid
• Includes lock case and armor front
• Not recommended on double door applications (will not accept latchbolt from active door)
96 Double Trim Dummy
Close
96 Double Trim Dummy
• Trim on both sides of the door
• Both trims are always rigid
• Includes lock case and armor front
• Not recommended on double door applications (will not accept latchbolt from active door)
• Both trims are always rigid
• Includes lock case and armor front
• Not recommended on double door applications (will not accept latchbolt from active door)
97 Active Trim Dummy
Close
97 Active Trim Dummy
• Trim on both sides are active
• Includes lock case and armor front
• Not recommended on double door applications (will not accept latchbolt from active door)
• Includes lock case and armor front
• Not recommended on double door applications (will not accept latchbolt from active door)
70 Electrical (Fail Safe)
Close
70 Electrical (Fail Safe)
Power ON, locks outside lever
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
• Key outside retracts latchbolt
• Lever outside retracts latchbolt, except when locked
• Lever outside can only be locked electronically
• Lever inside always retracts latchbolt
• Auxiliary deadlatch
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
• Key outside retracts latchbolt
• Lever outside retracts latchbolt, except when locked
• Lever outside can only be locked electronically
• Lever inside always retracts latchbolt
• Auxiliary deadlatch
71 Electrical (Fail Secure)
Close
71 Electrical (Fail Secure)
Power ON, unlocks outside lever
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
• Key outside retracts latchbolt
• Lever outside retracts latchbolt, except when locked
• Lever outside can only be locked electronically
• Lever inside always retracts latchbolt
• Auxiliary deadlatch
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
• Key outside retracts latchbolt
• Lever outside retracts latchbolt, except when locked
• Lever outside can only be locked electronically
• Lever inside always retracts latchbolt
• Auxiliary deadlatch
72 Electrical (Fail Safe)
Close
72 Electrical (Fail Safe)
Power ON, locks both levers
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
• Key on either side retracts latchbolt
• Lever from either side retracts latchbolt, except when levers are locked
• Both Levers can only be locked & unlocked electronically
• Levers can not be locked separately, only together
• Auxiliary deadlatch
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
• Key on either side retracts latchbolt
• Lever from either side retracts latchbolt, except when levers are locked
• Both Levers can only be locked & unlocked electronically
• Levers can not be locked separately, only together
• Auxiliary deadlatch
73 Electrical (Fail Secure)
Close
73 Electrical (Fail Secure)
Power ON, unlocks both levers
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
• Key on either side retracts latchbolt
• Lever from either side retracts latchbolt, except when levers are locked
• Both Levers can only be locked & unlocked electronically
• Levers can not be locked separately, only together
• Auxiliary deadlatch
• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
• Key on either side retracts latchbolt
• Lever from either side retracts latchbolt, except when levers are locked
• Both Levers can only be locked & unlocked electronically
• Levers can not be locked separately, only together
• Auxiliary deadlatch
