Sargent PT Trim & 7800 Lock
7800 Mortise Lock with Push/Pull Trim (PT)
The Push/Pull design commonly known for its ease of operation is coupled with the strength and integrity of a mortise lock to provide greater versatility.
The PT 7800 is perfect for facilities that require more durability and security features than that of a cylindrical lock.
SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability.
- Specifications
- Options
- Turns
- Functions
- Finishes

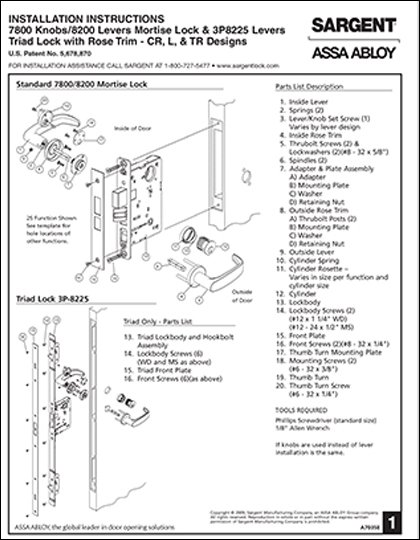

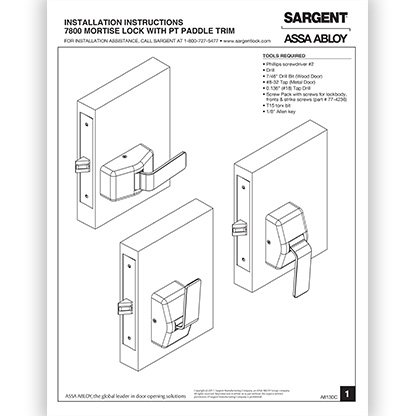

- Downloads

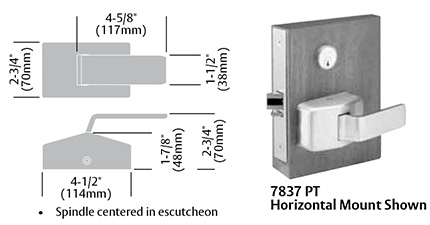

Sargent 7800 Series PT Dimensions

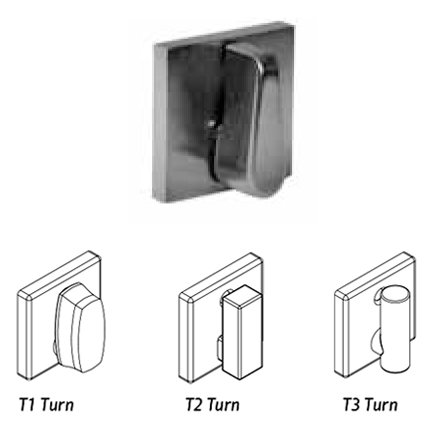

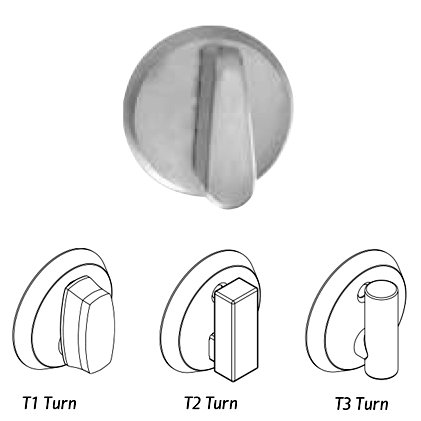

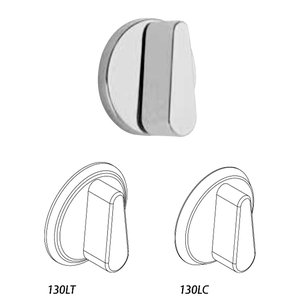

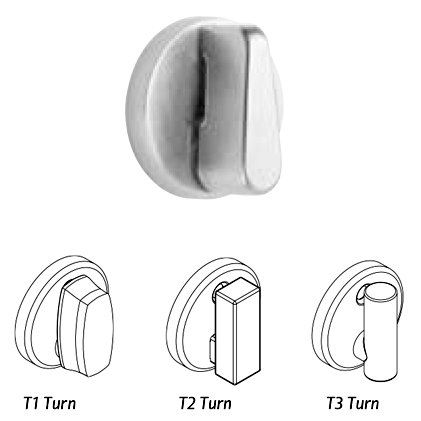

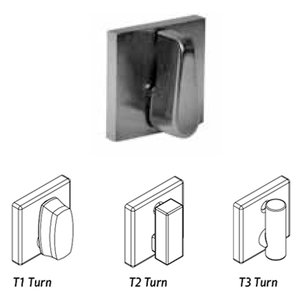

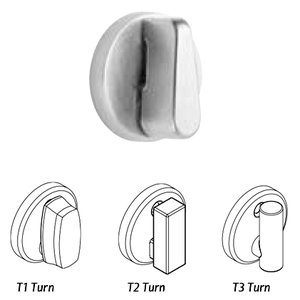

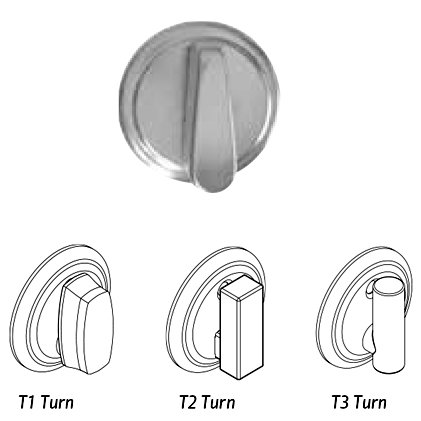

130KALP
Close
130KALP
For use with 8200 mortise ALP trim
2-3/4" x 1-13/16"
Brass or stainless steel housing
2-3/4" x 1-13/16"
Brass or stainless steel housing
Shaded paddle in diagrams, indicates rigid at all times. Note: All functions can be used with paddles in any orientation.
04 Storeroom or Closet (F07)
Close
04 Storeroom or Closet (F07)
• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Multi-Function Lock Body
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Multi-Function Lock Body
05 Office or Entry (F04)
Close
05 Office or Entry (F04)
• Key outside retracts latchbolt; also locks & unlocks outside trim
• Trim inside always retracts latchbolt; trim outside remains locked
• Thumbturn inside locks & unlocks outside trim
• Auxiliary deadlatch
• Multi-Function Lock Body
• Trim inside always retracts latchbolt; trim outside remains locked
• Thumbturn inside locks & unlocks outside trim
• Auxiliary deadlatch
• Multi-Function Lock Body
37 Classroom (F05)
Close
37 Classroom (F05)
• Key outside retracts latchbolt, also locks & unlocks outside trim
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Multi-Function Lock Body
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Multi-Function Lock Body
24 Storeroom Door (F21)
Close
24 Storeroom Door (F21)
• Key outside or thumbturn inside retracts and projects deadbolt
• Trim either side retracts latchbolt
• Latchbolt & deadbolt operate independently of each other
• Trim either side retracts latchbolt
• Latchbolt & deadbolt operate independently of each other
43 Apartment Corridor Door (F20)
Close
43 Apartment Corridor Door (F20)
• Key and thumbturn both retract & project the deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt; trim outside remains locked
• Trim inside always retracts latchbolt (and deadbolt simultaneously); trim outside remains locked
• Auxiliary deadlatch
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt; trim outside remains locked
• Trim inside always retracts latchbolt (and deadbolt simultaneously); trim outside remains locked
• Auxiliary deadlatch
45 Dormitory or Exit (F12)
Close
45 Dormitory or Exit (F12)
• Key and thumbturn both retract & project the deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt; trim outside remains locked
• Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked
• Same as an 8243 without auxiliary deadlatch
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt; trim outside remains locked
• Trim inside always retracts latchbolt (and deadbolt simultaneously), trim outside remains locked
• Same as an 8243 without auxiliary deadlatch
50 Hotel Guest (F15)
Close
50 Hotel Guest (F15)
• Hotel Cylinder (50 Function) Required (Standard & Emergency Keys)
• Standard Key retracts latchbolt only; will not retract or project deadbolt
• Emergency Key will retract latchbolt & deadbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Available with Conventional, LFIC (60- & 63-) and Keso (82- & F1-82-) key systems
• Standard Key retracts latchbolt only; will not retract or project deadbolt
• Emergency Key will retract latchbolt & deadbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Available with Conventional, LFIC (60- & 63-) and Keso (82- & F1-82-) key systems
16 Apartment, Exit or PUblic Restroom (F09)
Close
16 Apartment, Exit or PUblic Restroom (F09)
• Key outside retracts latchbolt
• Key inside is required to lock and unlock trim outside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Special -105 cam, required for inside cylinder (supplied)
• Key inside is required to lock and unlock trim outside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Special -105 cam, required for inside cylinder (supplied)
17 Asylum or Institutional (F30)
Close
17 Asylum or Institutional (F30)
• Key from either side retracts latchbolt
• Trim on both sides are locked at all times
• Auxiliary deadlatch
• Trim on both sides are locked at all times
• Auxiliary deadlatch
38 Classroom Security Intruder Latchbolt (F32)
Close
38 Classroom Security Intruder Latchbolt (F32)
• Key from either side locks & unlocks outside trim
• Key from either side retracts latchbolt
• Trim outside retracts latchbolt, except when locked
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Key from either side retracts latchbolt
• Trim outside retracts latchbolt, except when locked
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
26 Store Door (F14)
Close
26 Store Door (F14)
• Key from either side retracts & projects deadbolt
• Trim from either side retracts latchbolt
• Latchbolt and deadbolt are independent of each other
• Trim from either side retracts latchbolt
• Latchbolt and deadbolt are independent of each other
15 Passage or Closet (F01)
Close
15 Passage or Closet (F01)
• Trim from either side retracts latchbolt at all times
65 Privacy Bath/Bedroom (F22)
Close
65 Privacy Bath/Bedroom (F22)
• Trim outside retracts latchbolt except when locked by thumbturn
• Trim inside retracts latchbolt and unlocks outside trim
• Emergency Release locks/unlocks trim outside: by coin, screwdriver or optional emergency key
• Thumbturn locks and unlocks trim outside
• Closing the door will unlock outside trim
• Trim inside retracts latchbolt and unlocks outside trim
• Emergency Release locks/unlocks trim outside: by coin, screwdriver or optional emergency key
• Thumbturn locks and unlocks trim outside
• Closing the door will unlock outside trim
