Sargent BHD Trim & 7800/9200 Lock
BHD Trim for 7800 or 9200
Mortise Lock
Sargent BHD Trim is designed to provide additional safety on openings that withstand extreme adbuse, vandalism and malicious impact.
It is well-suited for psychiatric and minimum security detention facilities, as well as exposed perimeter doors in commercial facilities.
- Specifications
- Functions
- Finishes
- Downloads
Sargent BHD Trim with 7800 or 9200 Mortise Lock

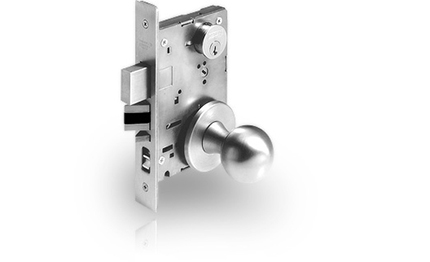

7800 Knob Mortise Lock

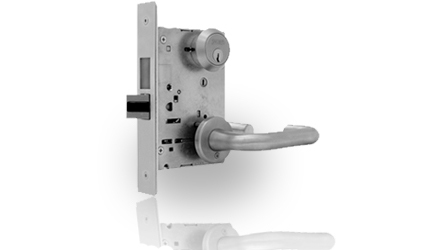

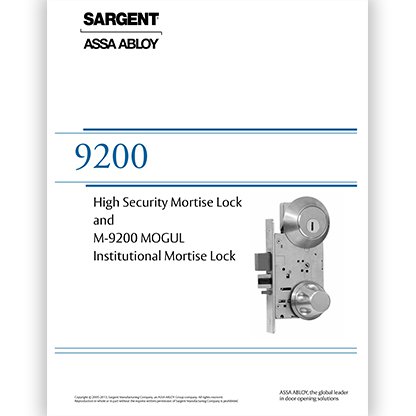

9200 High Security Mortise Lockset
MicroShield™ Permanently Suppresses Destructive Bacteria
Shaded lever in diagrams, indicates rigid at all times.
04 Storeroom or Closet (F86)
Close
04 Storeroom or Closet (F86)
• Deadlocking latch
• Latch by lever inside or key outside
• Outside lever rigid at all times
• Latch by lever inside or key outside
• Outside lever rigid at all times
05 Entrance or Office (F109)
Close
05 Entrance or Office (F109)
• Deadlocking latch
• Latch by either lever unless outside lever is locked by push/turn button in inside lever
• Push button released by key outside or lever inside
• Turn button must be released manually
• Key retracts latch when outside lever is locked
• Latch by either lever unless outside lever is locked by push/turn button in inside lever
• Push button released by key outside or lever inside
• Turn button must be released manually
• Key retracts latch when outside lever is locked
24 Entrance or Office (F82)
Close
24 Entrance or Office (F82)
• Deadlocking latch
• Latch by either lever unless outside lever is locked by push button in inside lever
• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button
• Latch by either lever unless outside lever is locked by push button in inside lever
• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button
37 Classroom (F84)
Close
37 Classroom (F84)
• Deadlocking latch
• Latch by either lever unless outside lever is locked by key
• Key in outside lever locks or unlocks outside lever and retracts latch
• Inside lever always operative
• Latch by either lever unless outside lever is locked by key
• Key in outside lever locks or unlocks outside lever and retracts latch
• Inside lever always operative
04 Storeroom or Closet (F07)
Close
04 Storeroom or Closet (F07)
• Key outside retracts latchbolt
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Trim outside locked at all times
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
05 Office or Entry (F04)
Close
05 Office or Entry (F04)
• Key outside retracts latchbolt; locks & unlocks outside trim
• Trim inside always retracts latchbolt; trim outside remains locked
• Thumbturn inside locks & unlocks outside trim
• Auxiliary deadlatch
• Trim inside always retracts latchbolt; trim outside remains locked
• Thumbturn inside locks & unlocks outside trim
• Auxiliary deadlatch
37 Classroom (F05)
Close
37 Classroom (F05)
• Key outside retracts latchbolt; locks & unlocks outside trim
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
55 Office or Entry
Close
55 Office or Entry
• Key outside retracts latchbolt
• Trim inside always retracts latchbolt; outside trim remains locked
• Trim outside is locked & unlocked by toggle only
• Trim inside always retracts latchbolt; outside trim remains locked
• Trim outside is locked & unlocked by toggle only
56 Office & Inner Entry Lock
Close
56 Office & Inner Entry Lock
• Key outside retracts latchbolt
• Trim inside always retracts latchbolt; unlocks outside trim
• Trim outside is locked by thumbturn or key
• Auxiliary deadlatch
• Trim inside always retracts latchbolt; unlocks outside trim
• Trim outside is locked by thumbturn or key
• Auxiliary deadlatch
67 Institutional Privacy (F26)
Close
67 Institutional Privacy (F26)
• Key outside retracts latchbolt, overriding thumbturn when held in locked position
• Thumbturn inside locks & unlocks outside trim
• Trim outside unlocks when the door closes or by operating trim inside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
Note: Key does not lock trim outside; only unlocks it.
• Thumbturn inside locks & unlocks outside trim
• Trim outside unlocks when the door closes or by operating trim inside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
Note: Key does not lock trim outside; only unlocks it.
24 Storeroom Door (F21)
Close
24 Storeroom Door (F21)
• Key outside or thumbturn inside, retracts & projects deadbolt
• Trim either side retracts latchbolt
• Latchbolt & deadbolt operate independently of each other
• Trim either side retracts latchbolt
• Latchbolt & deadbolt operate independently of each other
25 Dormitory or Exit (F13)
Close
25 Dormitory or Exit (F13)
• Key outside or thumbturn inside, retracts & projects deadbolt
• Trim from either side retracts latchbolt, when deadbolt is in retracted position
• Trim outside is locked, when deadbolt is projected
• When deadbolt is projected, trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
• Trim from either side retracts latchbolt, when deadbolt is in retracted position
• Trim outside is locked, when deadbolt is projected
• When deadbolt is projected, trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
27 Closet or Storeroom
Close
27 Closet or Storeroom
• Key outside retracts and projects deadbolt
• Trim from either side retracts latchbolt
• Same as 24 function without thumbturn
• Latchbolt & deadbolt operate independently of each other
• Trim from either side retracts latchbolt
• Same as 24 function without thumbturn
• Latchbolt & deadbolt operate independently of each other
30 Dummy Trim Deadlock
Close
30 Dummy Trim Deadlock
• Deadbolt operation only
• Key outside retracts and projects deadbolt
• Trim inside always retracts deadbolt
• Trim outside is always locked
• Same as 28 Function without a thumbturn
• Key outside retracts and projects deadbolt
• Trim inside always retracts deadbolt
• Trim outside is always locked
• Same as 28 Function without a thumbturn
43 Apartment Corridor Door (F20)
Close
43 Apartment Corridor Door (F20)
• Key and thumbturn both retract & project deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside always retracts latchbolt/deadbolt simultaneously, trim outside remains locked
• Auxiliary deadlatch
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside always retracts latchbolt/deadbolt simultaneously, trim outside remains locked
• Auxiliary deadlatch
45 Dormitory or Exit (F12)
Close
45 Dormitory or Exit (F12)
• Key and thumbturn both retract & project deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside always retracts latchbolt/deadbolt simultaneously, trim outside remains locked
• Same as 8243, without Auxiliary Deadlatch
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside always retracts latchbolt/deadbolt simultaneously, trim outside remains locked
• Same as 8243, without Auxiliary Deadlatch
47 Front Door/Apartment Corridor Door (F08/F10)
Close
47 Front Door/Apartment Corridor Door (F08/F10)
• Key and thumbturn both retract & project deadbolt
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside retracts latchbolt only, deadbolt is retracted manually & trim outside remains locked
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Key retracts both latchbolt and deadbolt, trim outside remains locked
• Trim inside retracts latchbolt only, deadbolt is retracted manually & trim outside remains locked
50 Hotel Guest (F15)
Close
50 Hotel Guest (F15)
• Hotel Cylinder (50 Function) Required (Standard & Emergency Keys)
• Standard Key retracts latchbolt only, will not retract or project deadbolt
• Emergency Key will retract latchbolt & deadbolt and also project deadbolt
• Thumbturn retracts & projects deadbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Standard Key retracts latchbolt only, will not retract or project deadbolt
• Emergency Key will retract latchbolt & deadbolt and also project deadbolt
• Thumbturn retracts & projects deadbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
51 Storeroom Deadbolt
Close
51 Storeroom Deadbolt
• Key and thumbturn both retract & project deadbolt
• Key will also retract latchbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Same as 50 function with a std. cylinder
• Key will also retract latchbolt
• Trim inside retracts latchbolt & deadbolt simultaneously
• Trim outside is always locked
• Auxiliary deadlatch
• Same as 50 function with a std. cylinder
26 Store or Storeroom (F91)
Close
26 Store or Storeroom (F91)
• Deadlocking latch
• Latch by either lever
• Key in either lever locks or unlocks both levers
• Latch by either lever
• Key in either lever locks or unlocks both levers
38 Classroom Security Intruder
Close
38 Classroom Security Intruder
• Deadlocking latch
• Latch by either lever unless outside lever is locked by key
• Key in either lever locks or unlocks outside lever
• Inside lever always operable
• Locked indication on inside rose standard with this function
• Latch by either lever unless outside lever is locked by key
• Key in either lever locks or unlocks outside lever
• Inside lever always operable
• Locked indication on inside rose standard with this function
16 Apartment, Exit or Public Restroom (F09)
Close
16 Apartment, Exit or Public Restroom (F09)
• Key outside retracts latchbolt
• Key inside is required to lock and unlock trim outside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Special -105 cam, required for inside cylinder (supplied)
• Key inside is required to lock and unlock trim outside
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Special -105 cam, required for inside cylinder (supplied)
17 Asylum or Institutional (F30)
Close
17 Asylum or Institutional (F30)
• Key from either side retracts latchbolt
• Trim on both sides are locked at all times
• Auxiliary deadlatch
• Trim on both sides are locked at all times
• Auxiliary deadlatch
38 Classroom Security Intruder Latchbolt (F32)
Close
38 Classroom Security Intruder Latchbolt (F32)
• Key from either side locks & unlocks outside trim
• Key from either side retracts latchbolt
• Trim outside retracts latchbolt, except when locked
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
• Key from either side retracts latchbolt
• Trim outside retracts latchbolt, except when locked
• Trim inside always retracts latchbolt
• Auxiliary deadlatch
59 Double Locking/School Security
Close
59 Double Locking/School Security
• Key from either side locks & unlocks both inside & outside trims
• Key from either side retracts latchbolt
• Key from either side can retract latchbolt without unlocking trims
• Auxiliary deadlatch
• Key from either side retracts latchbolt
• Key from either side can retract latchbolt without unlocking trims
• Auxiliary deadlatch
26 Store Door (F14)
Close
26 Store Door (F14)
• Key from either side retracts & projects deadbolt
• Trim from either side retracts latchbolt
• Latchbolt and deadbolt are independent of each other
• Trim from either side retracts latchbolt
• Latchbolt and deadbolt are independent of each other
29 Dummy Trim Deadlock
Close
29 Dummy Trim Deadlock
• Deadbolt operation only
• Key on either side retracts & projects deadbolt
• Trim inside retracts deadbolt
• Trim outside is always locked
• Key on either side retracts & projects deadbolt
• Trim inside retracts deadbolt
• Trim outside is always locked
39 Classroom Security Intruder Deadbolt (F33)
Close
39 Classroom Security Intruder Deadbolt (F33)
• Key either from side retracts or projects deadbolt, which also unlocks or locks outside trim
• Trim outside retracts latchbolt, except when locked
• Trim outside is only locked by projecting deadbolt
• Trim inside retracts both latchbolt/deadbolt simultaneously; unlocks outside trim
• Trim outside retracts latchbolt, except when locked
• Trim outside is only locked by projecting deadbolt
• Trim inside retracts both latchbolt/deadbolt simultaneously; unlocks outside trim
40 Classroom Security Intruder Deadbolt (F34)
Close
40 Classroom Security Intruder Deadbolt (F34)
• Key from either side retracts or projects deadbolt which also unlocks or locks outside trim
• Trim outside retracts latchbolt, except when locked
• Trim outside is only locked by projecting deadbolt
• Trim inside retracts both latchbolt/deadbolt simultaneously; unlocks outside trim
• Auxiliary deadlatch
• Same as an 8239 with Auxiliary deadlatch
• Trim outside retracts latchbolt, except when locked
• Trim outside is only locked by projecting deadbolt
• Trim inside retracts both latchbolt/deadbolt simultaneously; unlocks outside trim
• Auxiliary deadlatch
• Same as an 8239 with Auxiliary deadlatch
46 Dormitory or Exit
Close
46 Dormitory or Exit
• Key from either side retracts and projects deadbolt
• Key from either side retracts both latchbolt/deadbolt; trim outside remains locked
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously, and the outside trim remains locked
• Key from either side retracts both latchbolt/deadbolt; trim outside remains locked
• Trim outside is locked by toggle or projecting deadbolt
• Trim outside is unlocked by toggle only
• Trim inside (when deadbolt is projected) retracts both latchbolt and deadbolt simultaneously, and the outside trim remains locked
48 Store Door (F25)
Close
48 Store Door (F25)
• Key from either side retracts and projects deadbolt
• Key from either side retracts latchbolt
• Trim outside is locked by toggle or projecting deadbolt and unlocked by toggle only
• Trim inside (when deadbolt is projected) retracts latchbolt only, and outside trim
• Key from either side retracts latchbolt
• Trim outside is locked by toggle or projecting deadbolt and unlocked by toggle only
• Trim inside (when deadbolt is projected) retracts latchbolt only, and outside trim
52 Institutional Deadbolt
Close
52 Institutional Deadbolt
• Key from either side retracts and projects deadbolt
• Key from either side retracts latchbolt
• Trim inside and out are always locked
• Auxiliary deadlatch
• Key from either side retracts latchbolt
• Trim inside and out are always locked
• Auxiliary deadlatch
65 Privacy Bath/Bedroom (F22)
Close
65 Privacy Bath/Bedroom (F22)
• Trim outside retracts latchbolt except when locked by thumbturn
• Trim inside retracts latchbolt and unlocks outside trim
• Emergency Release locks/unlocks trim outside: by coin, screwdriver or emergency key option
• Thumbturn locks and unlocks trim outside
• Closing the door will unlock outside trim
• Trim inside retracts latchbolt and unlocks outside trim
• Emergency Release locks/unlocks trim outside: by coin, screwdriver or emergency key option
• Thumbturn locks and unlocks trim outside
• Closing the door will unlock outside trim
66 Privacy Bath/Bedroom (F19)
Close
66 Privacy Bath/Bedroom (F19)
• Trim outside retracts latchbolt except when deadbolt is projected
• Trim inside retracts both latchbolt and deadbolt simultaneously, unlocking outside trim
• Emergency Release retracts and projects deadbolt: by coin, screw driver or emergency key option
• Thumbturn retracts and projects deadbolt
• Trim inside retracts both latchbolt and deadbolt simultaneously, unlocking outside trim
• Emergency Release retracts and projects deadbolt: by coin, screw driver or emergency key option
• Thumbturn retracts and projects deadbolt
68 Privacy Bath/Bedroom (F02)
Close
68 Privacy Bath/Bedroom (F02)
• Trim from either side retracts latchbolt at all times
• Thumbturn retracts and projects deadbolt
• Emergency release retracts and projects deadbolt — by coin, screwdriver or emergency key option
• Latchbolt and deadbolt are independent of each other
• Thumbturn retracts and projects deadbolt
• Emergency release retracts and projects deadbolt — by coin, screwdriver or emergency key option
• Latchbolt and deadbolt are independent of each other
