Sargent ALP Trim & HP Lock

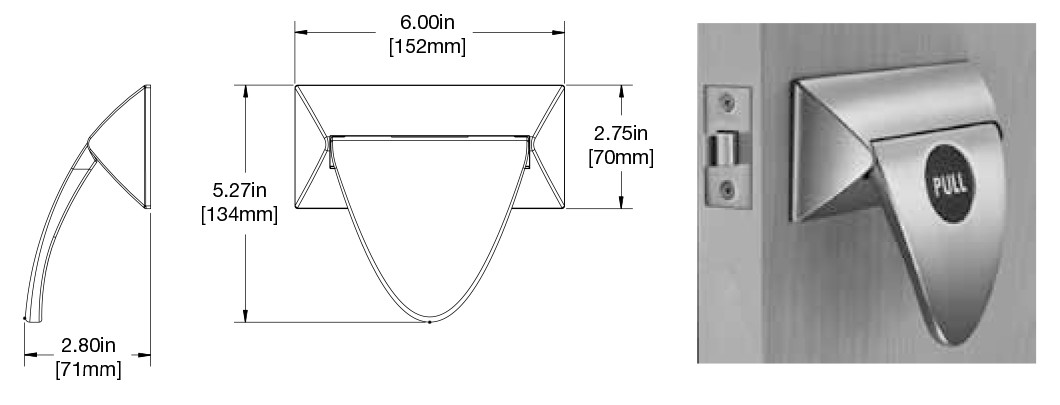

ALP Paddle Trim with HP Bored Lock

• Paddle trim can be mounted in horizontal (up or down) or vertical (sideways) orientations in the field

• Easy installation

• 15 function trim is non-handed; lockbody is easily field reversible

• Through-bolted trim for stability

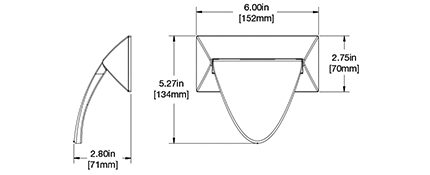

• Available in 2-3/4”, 5” or 7” backsets; 5" backset standard

• ANSI/BHMA Grade 1

• UL Fire Rating standard on doors up to 4' x 8'

• Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in a specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

• Torx® and spanner screws optional with ALP

• Lead lining is optional: specify 74- option

• Covers and paddles are cast stainless steel or brass

• Patent Pending

Solutions

MicroShield™ Hardware Finish Coating

MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.

• Supresses microbes
• Long lasting
• Non-toxic
• Available on most SARGENT product lines
• Lasts for the life of the hardware
• State-of-the-art protection and peace of mind 24/7

MicroShield treated hardware reduces bacterial growth quickly!

MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.

The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)

Options/Prefixes:

• 36 - 6 lobe security head screws
• 37 - Spanner Head Screws
• 74 - Lead Lining or Wrapping
• SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
• WBS - Wrought Box Strike
