Sargent 7 Line

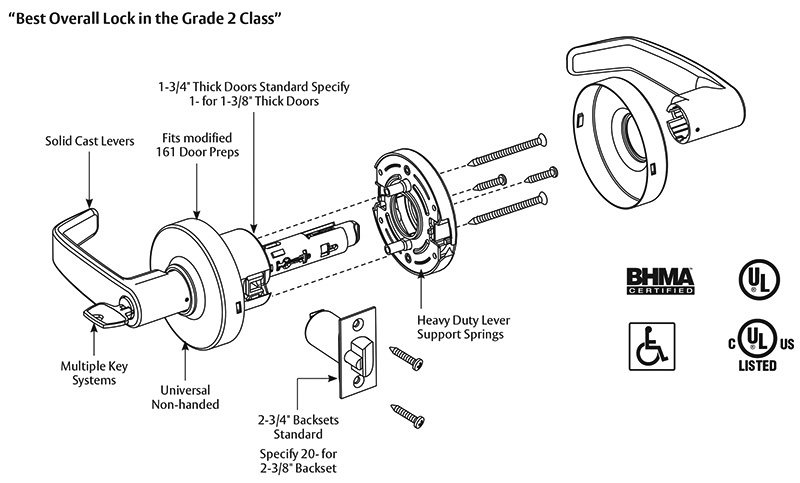

Best overall lock in the Grade 2 class.

A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities.

Exceeds ANSI/BHMA A156.2 standards for cycling and durability.

Designs
Specifications
Functions
Finishes
Downloads

B - lever

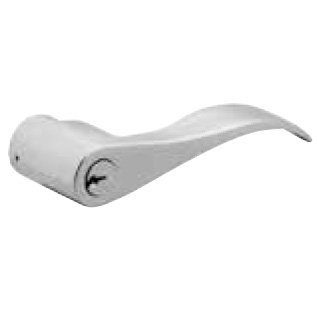

G - decorative lever

Gulfport design - Coastal Series

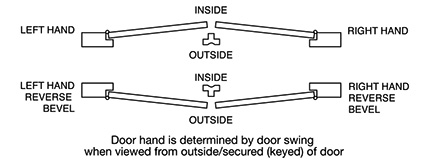

Handed

L - lever

L - rose

Heavy wrought

P - lever

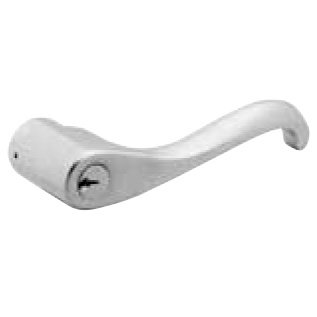

Y - decorative lever

Yarmouth design - Coastal Series

Handed

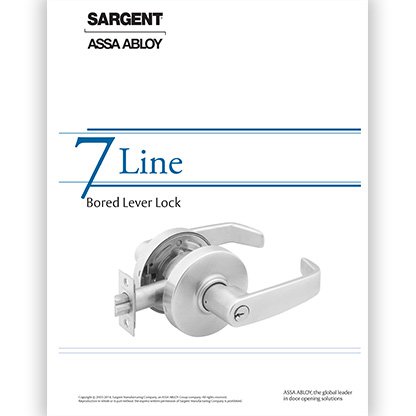

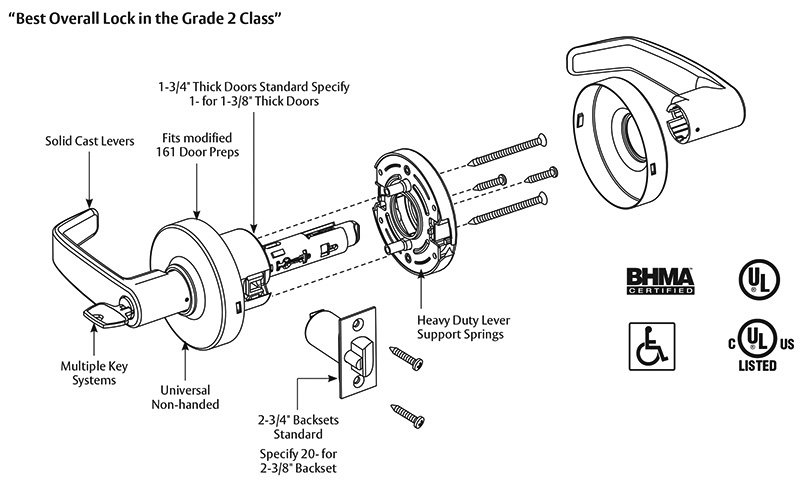

Sargent 7 Line® Bored Lever Lock Specifications

Strength and Durability

Cycle Test: Exceeds 2-1/2 times ANSI/BHMA A156.2 Grade 2 cycle requirements
5 Year limited warranty. No service required.

Convenience

Installs in 1 minute or less
Non-handed design for ease of installation and efficient warehousing -
with standard lever designs (Except G & Y)
User friendly packaging and instructions

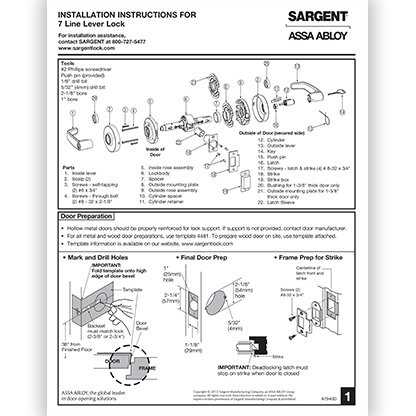

Convenient installation diagram on box

Design

Solid feel and precise lever action
Decorative Levers - Coastal Series designs - Gulfport and Yarmouth
Levers are solid one piece cast construction

Flexibility

Fits modified 161 door preps. Internal through-bolts supply strength and stability without requiring additional door preparation
11 Architectural grade finishes
10 Standard Functions (special functions available- 13, 16, 17, 24, 26, 30 and 44-Consult factory)
SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications

Security

Torx® and spanner screws optional
Security key systems available (V-10, Signature, XC, Keso and Keso F1)
Vandal resistant trim optional (FW- prefix)
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Solutions

MicroShield™ Hardware Finish Coating

MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.

Supresses microbes
Long lasting
Non-toxic
Available on most SARGENT product lines
Lasts for the life of the hardware
State-of-the-art protection and peace of mind 24/7

MicroShield treated hardware reduces bacterial growth quickly!

MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.

The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)

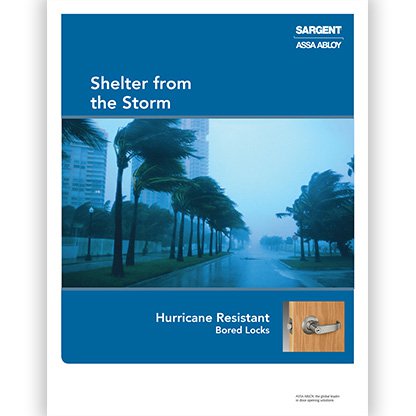

Tornado and Hurricane Resistant Products

SARGENT® leads the industry in developing products that withstand vigorous hurricane and tornado codes and standards. We have a broad selection of products designed to meet the needs in the most vulnerable locations in the country.

SARGENT products are tested to meet these codes and standards: FEMA (Federal Emergency Management Agency), NSSA (National Storm Shelter Association), IBC (International Building Code), FBC (Florida Building Code), including the Florida HVHZ (High Velocity Hurricane Zone), and ANSI A250.13.

Options/Prefixes:

1 - 1-1/16" (27mm) wide front for 1-3/8" (35mm) doors
10 - SARGENT Signature key system
10-21 - SARGENT Signature construction key system (lost ball)
10-63 - SARGENT Signature removable core cylinder
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
14 - Full Lip Strike #505
20 - 2-3/8" (60mm) Backset
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
28 - Curved Lip Strike (#808)
30 - Lever to accept Schlage Cylinder; no cylinder provided
36 - 6 lobe security head screws
37 - Spanner Head Screws
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
75 - Tactile Warning: Handicap warning milled on backside of inside lever
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
77 - Milled Both Levers (Mortise) Handicap Warning on Both Levers (Cylindrical)Abrasive Strip on rail, abrasive coating on lever (Exits)
80 - Levers to accept Keso and Keso F1 Cylinders - No cylinder provided
82 - SARGENT Keso Security Cylinder (existing systems only)
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
BR - Bump Resistant Cylinder
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-65- - Degree Level 3 Unassembled/Uncombined Core
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
FW - Freewheeling Lever Feature
LC- - Less Cylinder
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SF - Lever to accept Medeco Keymark & Schlage Large Format Interchangeable Core – No core provided
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
WBS - Wrought Box Strike

Shaded lever in diagrams, indicates rigid at all times.

04 Storeroom/Closet (F86)

• Deadlocking latch
• Latch by lever inside or key outside
• Outside lever rigid at all times

05 Entrance/Office (F109)

• Deadlocking latch
• Latch by either lever unless outside lever is locked by push/turn button in inside lever
• Push button released by key outside or lever inside
• Turn button must be released manually
• Key retracts latch when outside lever is locked

37 Classroom (F84)

• Deadlocking latch
• Latch by either lever unless outside lever is locked by key
• Key in outside lever locks or unlocks outside lever and retracts latch
• Inside lever always operative

15 Passage (F75)

• Latch by either lever

15-3 Exit/Communicating

• Deadlocking latch
• Blank rose outside
• Latch by lever inside
• Minimum clearance of 2" required between doors

65 Privacy/Bathroom (F76)

• Latch by either lever unless outside lever is locked by push button in inside lever
• Turning inside lever or closing door releases button
• Emergency button in outside lever unlocks, with use of a blade screw driver in outside lever and releases inside button

68 Hospital Privacy

• Latch by either lever unless outside lever is locked by push button in inside lever
• Turning inside lever or closing door releases button
• Rotating thumbturn in outside lever unlocks outside lever and releases inside button

93 Single Lever Pull

• For wood or custom hollow metal doors
• Lever and rose attached by two through-bolts and two surface applied screws
• Requires special door preparation; consult Penner

94 Double Lever Pull

• For wood or custom hollow metal doors
• Lever and rose both sides by two through-bolts and four surface applied screws
• Requires special door preparation; consult Penner

94-2 Double Lever Pull

• Lever and rose attached by two through-bolts and four surface applied screws
• Dummy latch plate
• Requires special door preparation; consult Penner
