Sanitary Napkin Vendors

Frost Product Specifications

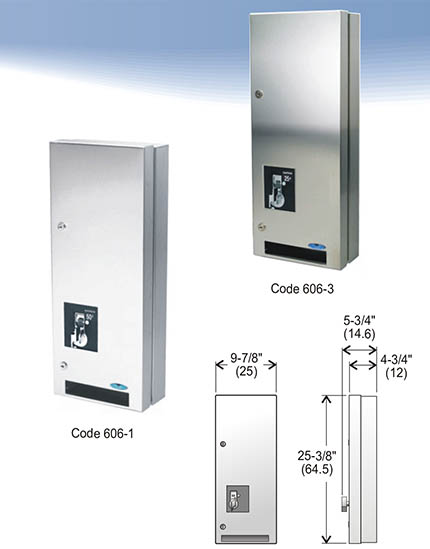

Single Vendor, Napkin or Tampon

• Code 606-1: Napkin Vendor, white epoxy finish;  Code 606-3: Napkin Vendor, stainless steel, type 304 no. 4 brushed finish;  Code 607-1: Tampon Vendor, white epoxy finish;  Code 607-3: Tampon Vendor, stainless steel, type 304 no. 4 brushed finish.

• Site Location: The surface mounted vendor line provides easy flexible mounting on any type of wall material or construction.

• Epoxy Finish: All welded construction of 20 and 22 gauge steel. Door hinged with full length steel piano hinge and secured with two tumbler keyed locks.

• Stainless steel: All welded stainless steel construction, 20 & 22 gauge type 304 No. 4 brushed finish. Door hinged with full length stainless steel piano hinges and secured with two tumbler keyed locks. All units have removable coin box with tumbler lock keyed different from door. Coin mechanism for free, $.10, $.25, $.50 or $1.00 (coin) vending.

• Shipping weight: 20 lbs. (9 kg) per unit.

• Capacity: 606: 15 no. 4 napkin packages; 607: 22 standard tampon tubes.

• Installation: Secure unit to wall through holes in the back of unit with the four mounting screws provided. For barrier free mounting insure that the coin mechanism handle does not exceed 48" (120 cm)

• above floor level.

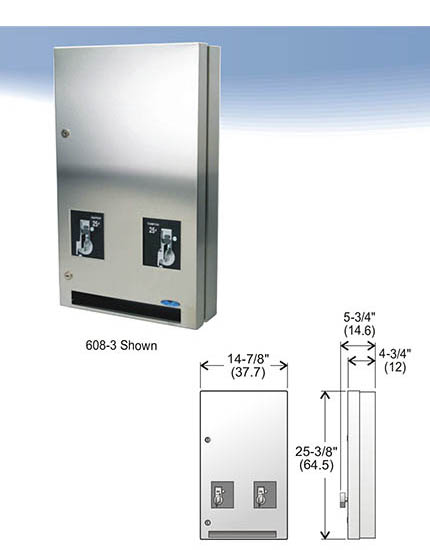

Double Napkin or Tampon Vendors

• Code 608-1: Double Napkin/Tampon vendor, white epoxy finish, surface mount;  Code 608-3: Double Napkin/Tampon vendor, stainless steel type 304 no. 4 brushed finish, surface mount.

• Specifications: The surface mounted vendor line provides easy flexible mounting on any type of wall material or construction.

• Epoxy Finish: All welded construction of 20 and 22 gauge steel. Door hinged with full length steel piano hinge and secured with two tumbler keyed locks.

• Stainless steel: All welded stainless steel construction, 20 & 22 ga. type 304 No. 4 brushed finish. Door hinged with full length stainless steel piano hinge and secured with two tumbler keyed locks. All units have removable coin box with tumbler lock keyed different from door. Coin mechanism for free, $.10, $.25, $.50 or $1.00 (coin) vending.

• Shipping weight: 25 lbs. (11.25 kg) per unit.

• Capacity: 15 no.4 napkin packages, and 22 standard tampon tubes.

• Installation: Secure unit to wall through holes in the back of unit with the four mounting screws provided. For barrier free mounting insure that the coin mechanism handle does not exceed 48" (120 cm) above floor level.

Recessed Single Vendor, Napkin or Tampon

• Code 610-5: Recessed Napkin Vendor, stainless steel, type 304 no. 4 brushed finish;  Code 610-6: Recessed Tampon Vendor, stainless steel, type 304 no. 4 brushed finish.

• Site Location: The recess mounted vendor line is detailed for architectural applications requiring minimal projection from wall.

• Features: Coverall door is all welded stainless steel construction, 20 gauge type 304 No. 4 brushed finish. Door hinged with full length stainless steel piano hinges and secured with two tumbler keyed locks. Recessed wall box of 20 gauge satin coat galvanized steel. All units have removable coin box with tumbler lock keyed different from door. Interchangeable coinage mechanism for free, $.10, $.25, $.50 or $1.00 (coin) vending.

• Shipping weight: 18 lbs. (8.2 kg) per unit.

• Capacity: 610-5: 15 no. 4 napkin packages; 610-6: 22 standard tampon tubes.

• Installation: Provide wall opening of 25-5/8"H (65) x 10-1/4"W (26) x 4"D (10.2). Drill mounting holes as required and secure to wall. For barrier free mounting insure that the coin mechanism does not exceed 48" (120 cm) above floor level.

Recessed Double Vendor

• Code 615-5: Double Napkin/Tampon vendor, stainless steel type 304 no. 4 brushed finish.

• Site Location: The recess mounted vendor line is detailed for architectural applications requiring minimal projection from wall.

• Features: Coverall door is all welded stainless steel construction, 20 gauge type 304 No. 4 brushed finish. Door hinged with full length stainless steel piano hinges and secured with two tumbler keyed locks. Recessed wall box of 20 gauge satin coat galvanized steel. All units have removable coin box with tumbler lock keyed different from door. Interchangeable coinage mechanism for free, $.10, $.25, $.50 or $1.00 (coin) vending.

• Shipping weight: 22 lbs. (10 kg) per unit.

• Capacity: 15 no. 4 napkin packages, and 22 standard tampon tubes.

• Installation: Provide wall opening of 25-5/8"H (65) x 15"W (38.3) x 4"D (10.2). Drill mounting holes as required and secure to wall. For barrier free mounting insure that the coin mechanism handle does not exceed 48" (120 cm) above floor level.

Sanitary Products

• Code 650-NA: #4 Naturelle® Maxi Napkin – folded maxi with twin grooves and cloth like cover. Product dim.: 4-1/2” x 3” x 1-1/8”. Case dim.: 21-13/16” x 10-7/8” x 15” Shipping weight: 12 lbs.

• Code 650-TA: Naturelle® Tampons, 100% biodegradable, flushable cardboard applicator tampon, 200/case. Product dim.: 5-1/8” long tube, 5/8” dia., Shipping weight: 5 lbs.

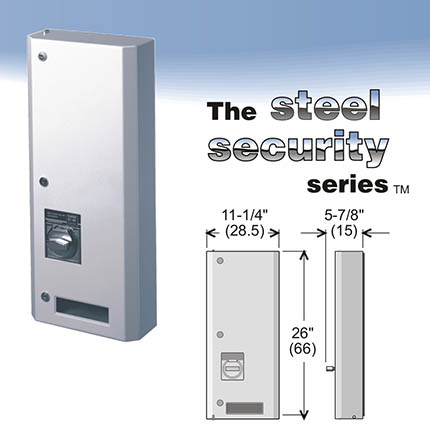

Steel Security Heavy Duty Vendors

• Code 616: Napkin vendor, Capacity 16 napkins; Code 617: Tampon vendor, Capacity 22 tampons; Code 619: Condom vendor, Capacity 54 condoms; Code 619-500: Ultra Condoms, Quantity: 72 (1/2 gross).

• Features: Coin mechanisms can be free or specified to take, 25 cent, two quarter 50 cent or 1 dollar Canadian coin. Full coverall door designed with tapered corners. Heavy duty 16 gauge steel door mounted onto 18 gauge chassis. All metal coin mechanism with built in slip clutch. Three tumbler keyed locks. Full length solid steel dead bolt secures door to chassis. Semi-concealed padlock mounting to dead

• bolt. Padlock is not included. Optional mounting holes for 1/4" diameter lag type bolts.

• Shipping weight: 27 lbs. (12.3 kg).

• Installation: To provide barrier free access insure that crank handle on coin mechanism does not exceed 47" (120) above the floor.

• Padlock: Padlock for dead bolt should have a 5/16" shank diameter.

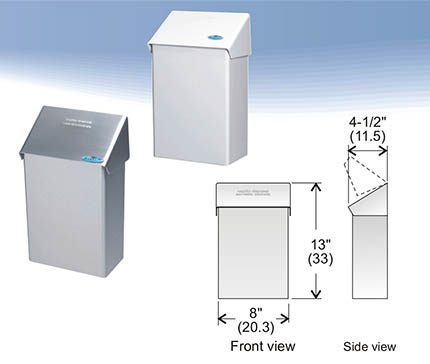

Surface Mounted Napkin Disposals

• Code 620: White epoxy finish;  Code 621: Disposable waxed paper sanitary bag liner;  Code 622: Stainless Steel type 304 no. 4 brushed finish.

• Specifications: Economical surface mounted unit provides flexible mounting and ease of maintenance for partition panel systems or any type of wall construction.

• Features: Pivoting self closing lid. French/English napkin disposal label is embossed on lid.

• Materials: Code 620: All welded crs construction (22 ga.). Code 622: All welded stainless steel construction (22 ga.). Pivoting lid on both units utilize full length piano hinges (ss hinge on Code 622). 621 bag size: 10-1/4 long x 7" wide x 4" open span.

• Shipping weight: 4 lbs. (1.8 kg) per unit

• Installation: Secure to wall using mounting holes and screws provided. For barrier free mounting insure that top of unit does not exceed 48" (120 cm) above floor level.

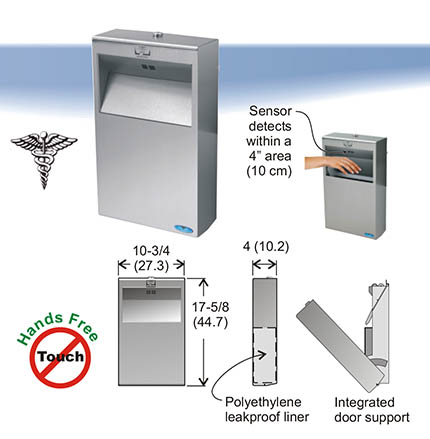

Hands Free Napkin Disposal

• Code 625: Stainless steel coverall door.

• Site location: Ideal for high traffic areas requiring hands free operation. Hands free operation helps reduce the risk of cross contamination and blood borne pathogens.

• Dispensing: Door is opened when hand is placed within 4” (10 cm) of sensor in door opening area and remains open for 5 seconds there after. Counterbalanced door swings freely in the event of depleted or missing batteries. Unit is powered by 4 “c” alkaline batteries (not included). Battery life is 10,000 cycles, or 2 years.

• Materials: All metal construction, stainless steel cover all design.

• Polyethylene leakproof liner

• Capacity: 5.1 litres. (1.1 gal.) Shipping weight: 8.5 lbs. (4 kg).

• Installation: For unrestricted access, sensor area of unit to floor should not exceed 48" (120 cm). Mounting screws and instructions included.

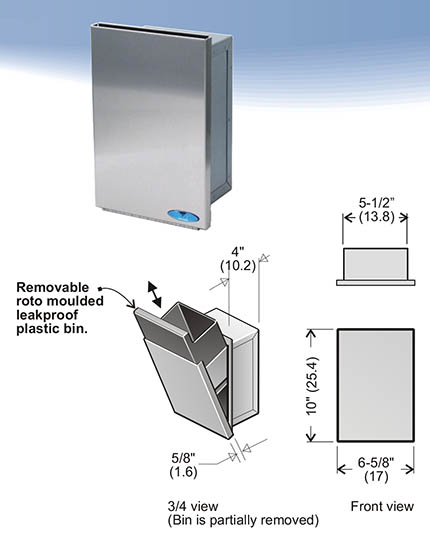

Napkin Disposal, Recessed with Coverall Door

• Code 633-2: Fully recessed, stainless steel type 304, coverall door.

• Site location: Recessed coverall door napkin disposal can be mounted into any wall configuration requiring a minimum of 4" depth.

• Features: Coverall door design provides easy access on top of unit. Waste bin is completely removable for convenient maintenance. Easy and safe removal of bin.

• Materials: 22 gauge stainless steel type 304 No. 4 brushed finish on door. Door is self closing counter balanced and secured to recessed body. Recessed body is made of corrosion resistant galvanized steel.

• Liner: Leakproof roto moulded plastic, completely removable.

• Shipping weight: 6 lbs.(2.5 kg) per unit.

• Installation: Provide wall opening 5-7/8" (15) wide x 9" (23) high x 4" (10) deep. Drill mounting holes in wall box as required. For barrier free mounting insure top of unit, when mounted, does not exceed 48" (120) from floor level. Apply English/French "Napkin Disposal" label to lower front of unit.

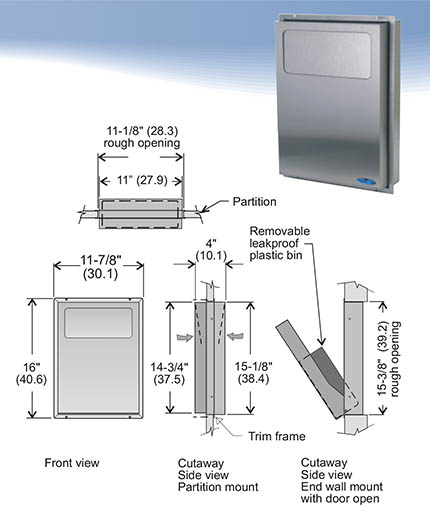

Partition Mounted Napkin Disposal

• Code 640: Partition mounted napkin disposal, stainless steel type 304.

• Site location: The Code 640 unit is designed for use with standard partition systems with one unit serving two compartments.

• Features: The same unit is used for end wall mounting when there is an odd number of compartments. One unit serves two compartments. Removable leakproof plastic waste bin for easy maintenance.

• Liner capacity: 5 litres, 1 imp. gallon, 1.3 US gallons. Waste bin removable from one side. Self closing inlet doors. Comes with English/French labels.

• Materials: Full length stainless steel piano hinges. All welded stainless steel construction, 22 gauge type 304 No. 4 brushed finish.

• Installation: Provide wall opening 11-1/8”W (28.5) x 15-3/8”H (39.2), end wall installation requires 3" of depth (7.6). Secure to opening by sandwiching partition wall with frame sections of unit. Position top edge of unit 26" (66) from floor. For barrier free mounting insure that top of unit does not exceed 48" (120 cm) above floor level.

Frost Guarantee

Frost products are guaranteed from defects in workmanship or material for a period of one year from date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.

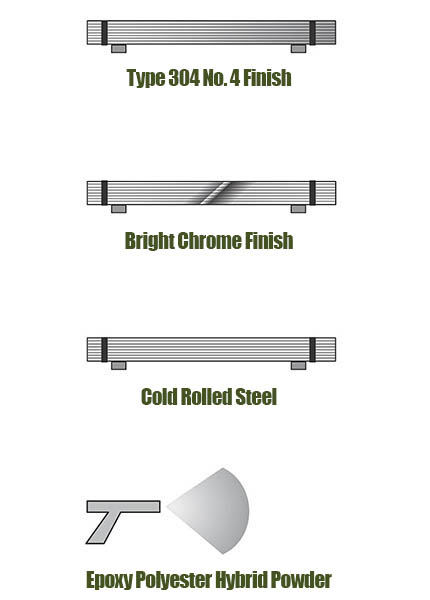

Frost Materials and Finishes

Type 304 No. 4 Finish: Type 304 stainless steel is a standard all-purpose grade, recommended for food, dairy, chemical and medical industries. It is also widely used in architectural applications due to its excellent corrosion resistance. The No.4 finish is widely used in restaurant, architectural, medical and food processing products. All Frost stainless steel products are shipped with a removable protective plastic coating to insure a blemish free product when installed on site.

Bright Chrome Finish: These products are fabricated from pre-chromed sheet steel, using the same processes as stainless steel, to provide an unblemished final product. Frost ships all pre-chromed products with a protective plastic film which is easily peeled off after installation.

Cold Rolled Steel: Frost uses a variety of material thicknesses ranging from 16 to 26 gauge. The variety of material gauges provide the optimum balance between durability and economy. All cold rolled stock is oiled and rust free during fabrication, and degreased before final finishing.

Epoxy Polyester Hybrid Powder: After a thorough degreasing, the assembled cold rolled products are coated with a formulated epoxy hybrid powder to a thickness of approximately 3 mls. An even coating is achieved by electrostatically charging the powder particles and spraying them onto the grounded product. All coated products are then oven cured at 400 degrees F. The result is a superior baked on finish with excellent mechanical/chemical characteristics and U.V. durability.

Detailed technical specifications are available upon request, or see our Downloads tab for information in pdf format.

Guarantee: Frost products are guaranteed from defects in workmanship or material for a period of one year from the date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.
