Sanitary Napkin Disposals

Sanitary Napkin Disposals – Technical Data

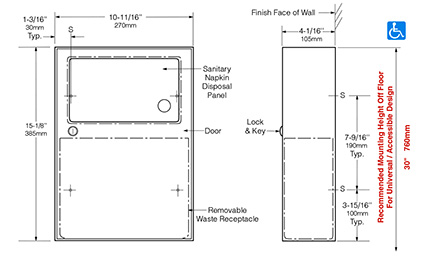

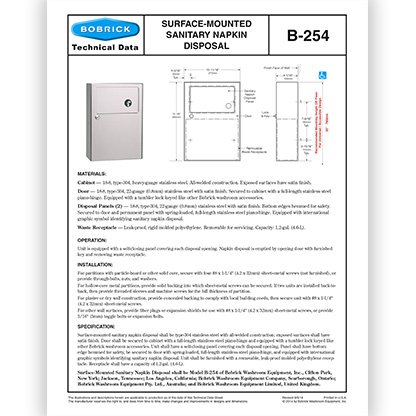

B-254 ClassicSeries® SURFACE MOUNTED SANITARY NAPKIN DISPOSAL

• 18-8 S, type-304, 22-gauge (0.8mm) stainless steel
• All-welded construction; exposed surfaces have satin finish
• Door has tumbler lock
• Self-closing panel covers disposal opening
• Removable, leak-proof, 1.2 gal. (4.6L) rigid moulded polyethylene receptacle
• Dimensions: 10-11⁄16" W, 15-1⁄8" H, 4-1⁄16" D (270 x 385 x 105mm)
• Universal/Barrier-Free Mtg. Ht.: 30" (760mm) to top of unit

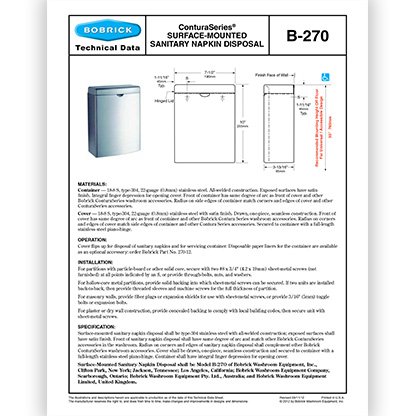

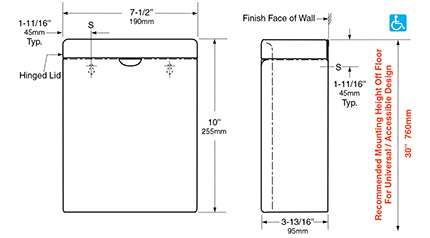

B-270 ConturaSeries® SURFACE MOUNTED SANITARY NAPKIN DISPOSAL

• 18-8 S, type-304, 22-gauge (0.8mm) stainless steel
• All-welded construction; exposed surfaces have satin finish
• Cover is drawn, one-piece construction; secured to cabinet with full length, stainless steel piano hinge
• Radius on side edges of container & cover, complement other ConturaSeries accessories
• Capacity: 1.0 gal. (3.8L)
• Dimensions: 7-1⁄2" W, 10" H, 3-13⁄16" D (190 x 255 x 95mm)
• Universal/Barrier-Free Mtg. Ht.: 25–30" (635–760mm) to top of unit

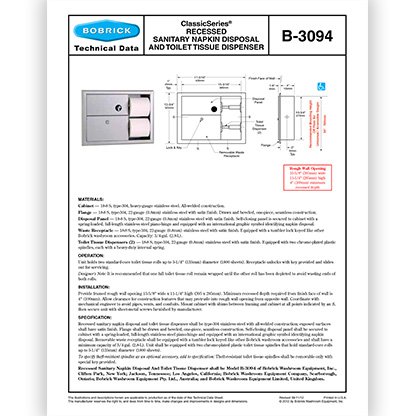

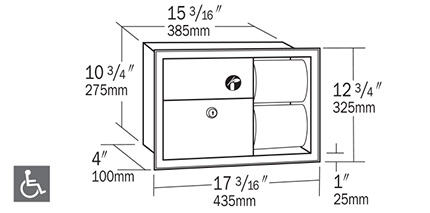

B-3094 ClassicSeries® RECESSED SANITARY NAPKIN DISPOSAL AND TOILET TISSUE DISPENSER

• 18-8 S, type-304, 22-gauge (0.8mm) stainless steel
• Disposal door is self closing with spring-loaded, full length stainless steel piano hinge
• Receptacle retained in cabinet by keyed tumbler lock
• Equipped with 2 chrome plated plastic spindles, each with a heavy duty internal spring
• Capacity: 3⁄4 gal. (2.8L)
• Holds two rolls up to 5-1⁄4" (135mm) diameter (1,800 sheets)
• Rough Wall Opening: 15-5⁄8" W, 11-1⁄4" H, 4" min. depth (395 x 285 x 100mm)
• Universal/Barrier-Free Mtg. Ht.: 30" (760mm) to top of unit
• 283-604: Optional Theft Resistant Spindle with special key provided

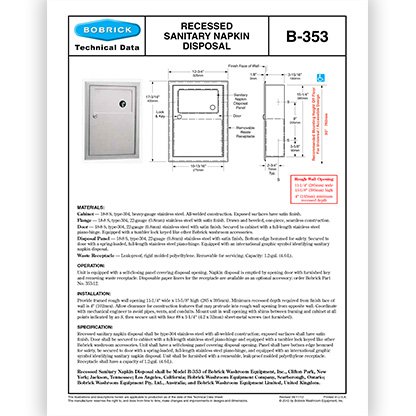

B-353 ClassicSeries® RECESSED SANITARY NAPKIN DISPOSAL

• 18-8 S, type-304, 22-gauge (0.8mm) stainless steel
• All-welded construction; exposed surfaces have satin finish
• Seamless beveled flange
• Door has tumbler lock
• Self closing panel covers disposal opening
• Removable, leak-proof, 1.2 gal. (4.6L) rigid moulded polyethylene receptacle
• Rough Wall Opening: 11-1⁄4" W, 15-5⁄8" H, 4" min. depth (285 x 395 x 100mm)
• Universal/Barrier-Free Mtg. Ht.: 31" (785mm) to top of unit

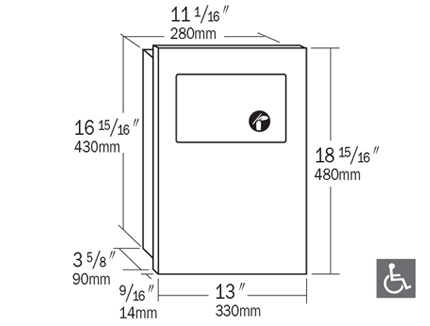

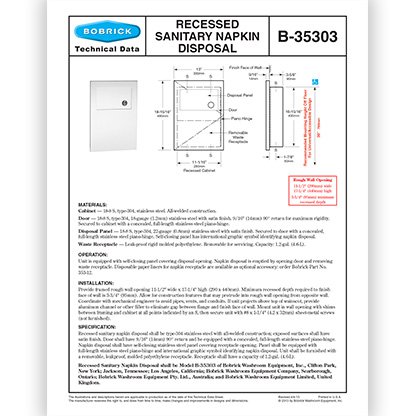

B-35303 TrimLineSeries™ RECESSED SANITARY NAPKIN DISPOSAL

• 18-8 S, type-304, 22-gauge (0.8mm) stainless steel
• All-welded construction; exposed surfaces have satin finish
• Door has 90° return for maximum rigidity; conceals flange
• Secured to cabinet with a concealed, full length, stainless steel piano hinge
• Self-closing panel covers disposal opening
• Removable, leak-proof, 1.2 gal. (4.6L) plastic receptacle
• Rough Wall Opening: 11-1⁄2" W, 17-1⁄4" H, 3-3⁄4" min. depth (290 x 440 x 95mm)
• Universal/Barrier-Free Mtg. Ht.: 31" (785mm) to top of unit

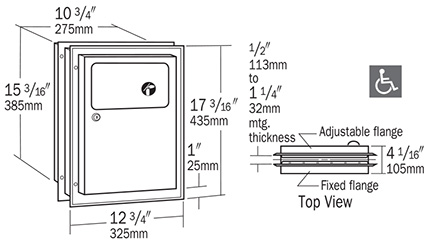

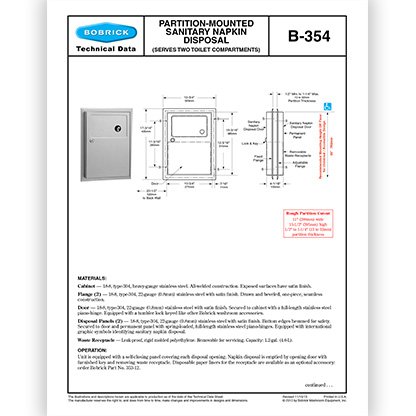

B-354 ClassicSeries® PARTITION MOUNTED SANITARY NAPKIN DISPOSAL

• 18-8 S, type-304, 22-gauge (0.8mm) stainless steel
• All-welded construction; exposed surfaces have satin finish
• Mounts in partitions 1⁄2" to 1-1⁄4" (13–32mm) thick
• Self-closing panels cover openings
• Secured to cabinet with a full length, stainless steel piano hinge
• Drawn and beveled one-piece flange with seamless construction
• Removable, leakproof, 1.2 gal. (4.6L) rigid moulded polyethylene receptacle
• Rough Partition Opening: 11" W, 15-1⁄2" H (280 x 395mm)
• Universal/Barrier-Free Mtg. Ht.: 31" (785mm) to top of unit

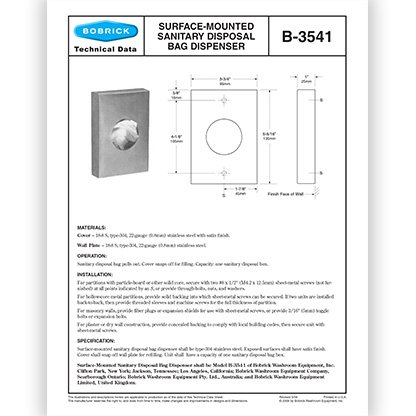

B-3541 Surface Mounted Sanitary Disposal Bag Dispenser

• Satin finish stainless steel
• Equipped with concealed locking device
• Concealed wall plate 22-gauge (0.8mm) type 304 stainless steel
• Holds one pack of 25 two-ply plastic bags (not included)
• Dimensions: 3-3/4" (95mm) x 4-1/8" (105mm) x 1" (25mm)

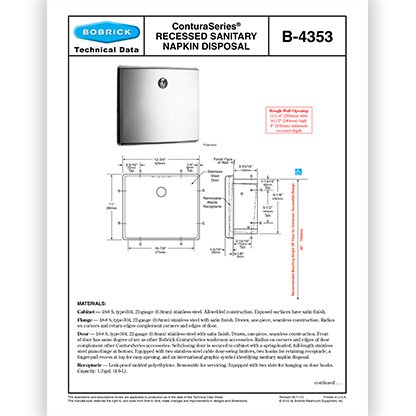

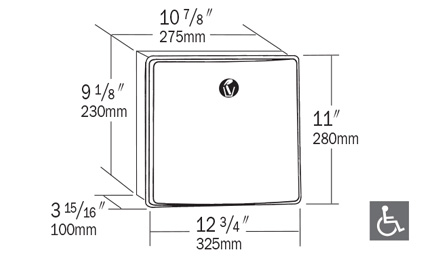

B-4353 ConturaSeries® RECESSED SANITARY NAPKIN DISPOSAL

• 18-8 S, type-304, 22-gauge (0.8mm) stainless steel
• All-welded construction; exposed surfaces have satin finish
• Drawn, one-piece, seamless construction
• Radius on corners and return edges complement corners and edges of door
• Self-closing door is secured to cabinet with a spring-loaded, full length, stainless steel piano hinge at bottom
• Equipped with two stainless steel cable door swing limiters, two hooks for retaining receptacle, a finger pull recess at top for easy opening, and an international graphic symbol identifying sanitary napkin disposal
• Furnished with removable, leak-proof 1.2 gal. (4.6L) rigid moulded polyethylene receptacle
• Rough Wall Opening: 11-1⁄4" W, 9-1⁄2" H, 4" min. depth (285 x 240 x 100mm)
• Universal/Barrier-Free Mtg. Ht.: 31" (785mm) to top of unit

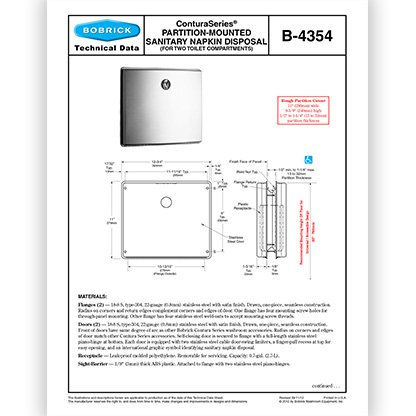

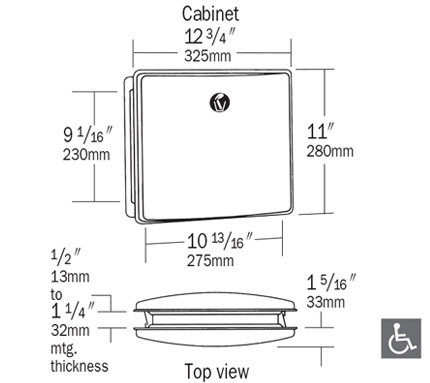

B-4354 ConturaSeries PARTITION MOUNTED SANITARY NAPKIN DISPOSAL

• 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish
• Drawn, one-piece seamless construction
• Mounts in toilet partition 1⁄2" to 1-1⁄4" (13–32mm) thick
• One flange has four mounting screw holes for through-panel mounting
• Other flange has four stainless steel weld-nuts to accept mounting screw threads
• Self-closing doors pull down with less than 5 lbs of force (22.2 N) for access to disposal
• Removable, leak-proof, 0.7 gal. (2.7L) plastic receptacle
• Rough Partition Opening: 11" W, 9-3⁄8" H (280 x 240mm)
• Universal/Barrier-Free Mtg. Ht.: 31" (785mm) to top of unit; patented

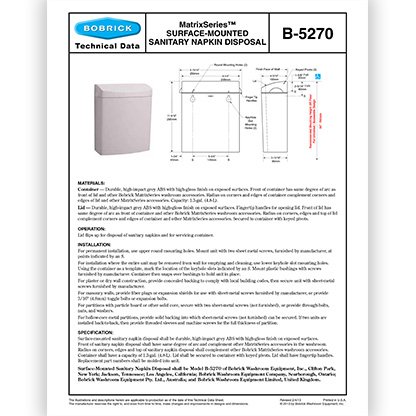

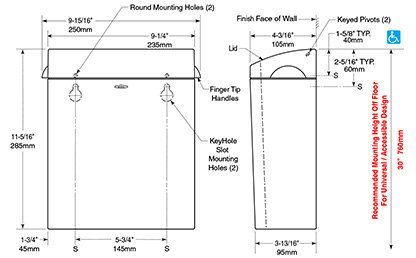

B-5270 MatrixSeries SURFACE-MOUNTED SANITARY NAPKIN DISPOSAL

• Durable, high-impact grey ABS plastic with high-gloss finish on exposed surfaces
• Lid features finger tip handles for easy access; secured to container with keyed pivots
• Radius on corners and edges of container & lid, complement other MatrixSeries accessories
• Capacity: 1.3 gal. (4.8L)
• Dimensions: 9-1⁄4" W, 11-3⁄8" H, 3-7⁄8" D (235 x 290 x 100mm)
• Universal/ Barrier-Free Mtg. Ht.: 25–30" (635–760mm) to top of unit; patented

Bobrick – Building Value Since 1906

Bobrick is a century-old global washroom accessory and partition company with six manufacturing divisions across the United States and Canada, and business operations that extend into 85 markets worldwide.

A leader in product innovation and manufacturing, Bobrick prides itself as a company that delivers best-in-class products and service, while fostering an environment of collaboration and continuous learning.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.
