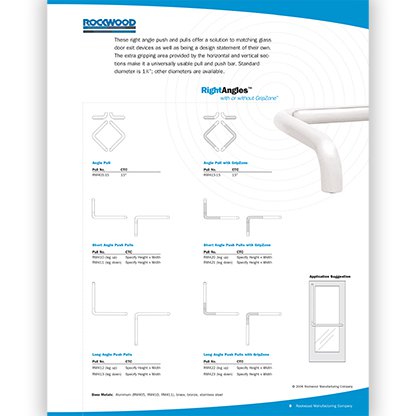

RightAngles Collection

These right angle push and pulls offer a solution to matching glass door exit devices, as well as being a design statement of
their own.

The extra gripping area provided by the horizontal and vertical sections make it
a universally usable pull and push bar.

Standard diameter is 1-1/4"; other diameters are available.

Designs
Specifications
Finishes
Downloads

RM405-15 - angle pull

1-1/4" diameter

15" CTC

3" projection

RM410 - push-pull, short angle

1-1/4" diameter

Specify height/width CTC

3" projection

Specify door handing

RM411 - push-pull, short angle

1-1/4" diameter

Specify height/width CTC

3" projection

Specify door handing

RM412 - push-pull, long angle

1-1/4" diameter

Specify height/width CTC

3" projection

Specify door handing

RM413 - push-pull, long angle

1-1/4" diameter

Specify height/width CTC

3" projection

Specify door handing

RM415-15 - angle pull, GripZone

1-1/4" diameter

15" CTC

3" projection

RM420 - push-pull, short angle GripZone

1-1/4" diameter

Specify height/width CTC

3" projection

Specify door handing

RM421 - push-pull, short angle GripZone

1-1/4" diameter

Specify height/width CTC

3" projection

Specify door handing

RM422 - push-pull, long angle GripZone

1-1/4" diameter

Specify height/width CTC

3" projection

Specify door handing

RM423 - push-pull, long angle GripZone

1-1/4" diameter

Specify height/width CTC

3" projection

Specify door handing

RightAngles Collection Specifications

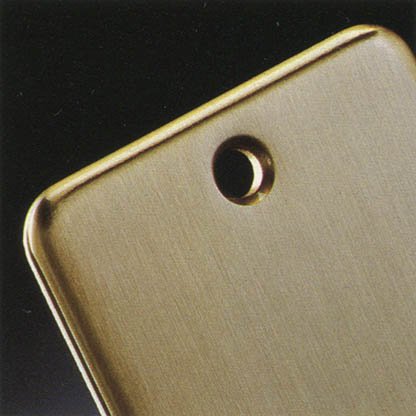

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metals for the RightAngles Collection are aluminum (RM405, RM410, RM411), stainless steel, brass or bronze.

Rockwood Door Pulls – Mounting Types

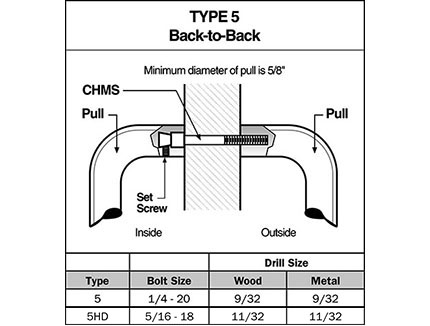

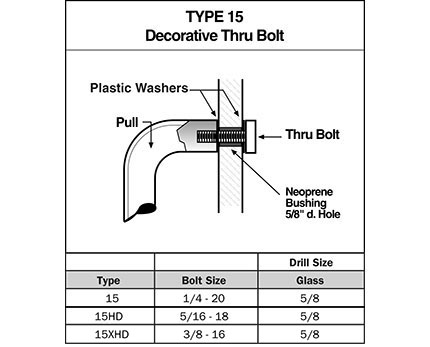

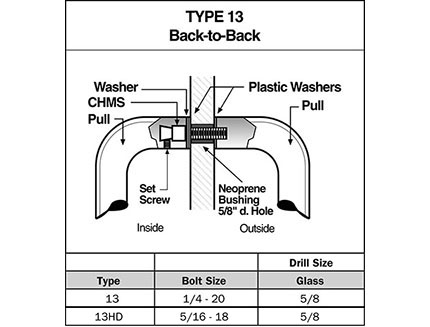

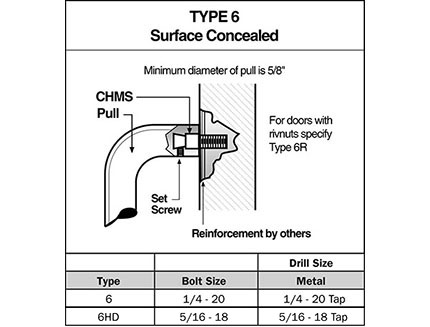

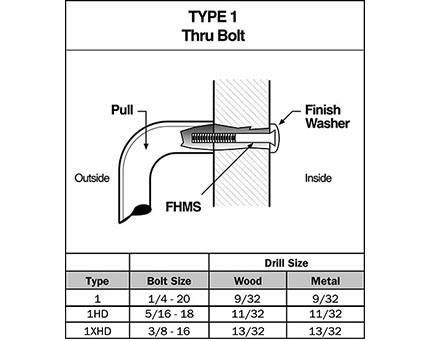

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Aluminum pulls - use 1HD, 5HD, 6HD, 13HD, 15HD mountings.

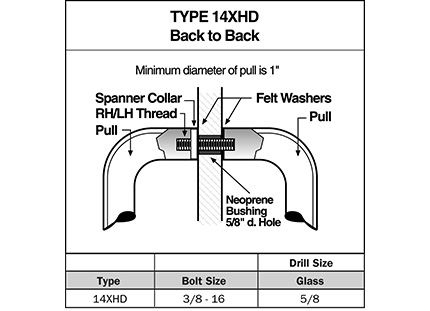

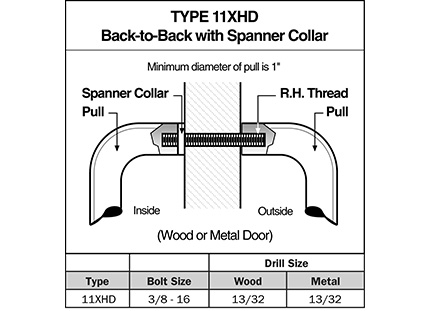

Brass, Bronze, and Stainless Steel pulls - use 6HD, 1XHD, 11XHD & 5HD, 14XHD & 13HD, 15XHD mountings.

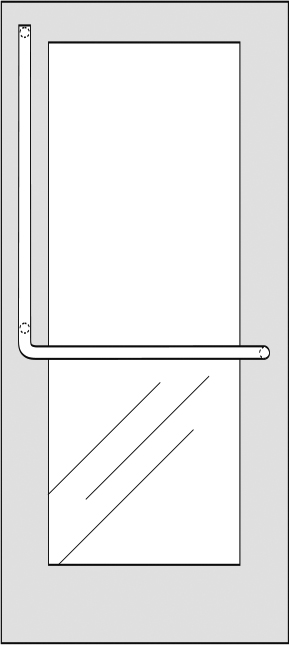

Application Suggestion

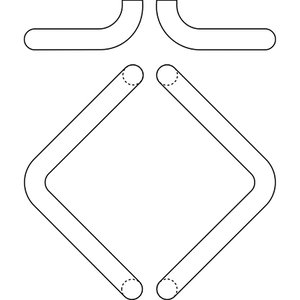

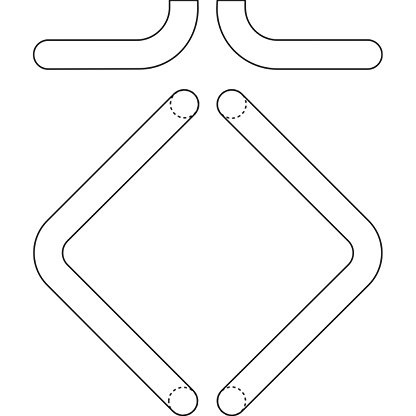

Right Angle Pull

RM405-15 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 15" CTC (center-to-center measurement between mounts)
Projection: 3"

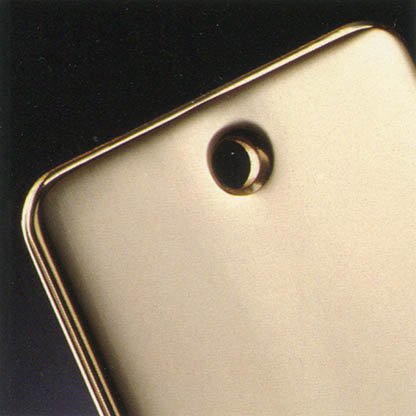

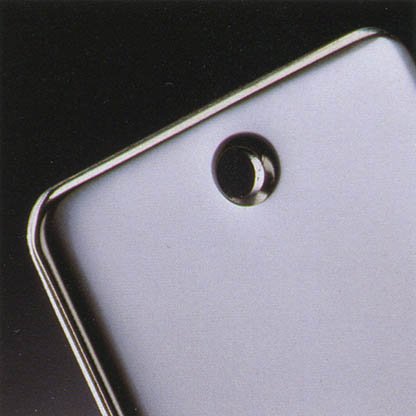

Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Right Angle Pull with GripZone

RM415-15 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 15" CTC (center-to-center measurement between mounts)
Projection: 3"

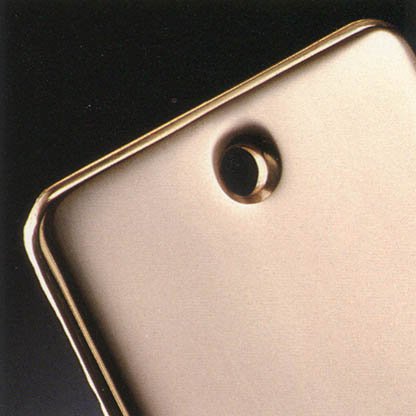

Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US4 / BHMA 606; US3 / BHMA 605

Short Angle Push-Pull

RM410 Specifications (leg up):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify height/width CTC (center-to-center measurement between mounts)
Projection: 3"
Ordering: Specify door handing
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM411 Specifications (leg down):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify height/width CTC (center-to-center measurement between mounts)
Projection: 3"
Ordering: Specify door handing
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Short Angle Push-Pull with GripZone

RM420 Specifications (leg up):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify height/width CTC (center-to-center measurement between mounts)
Projection: 3"
Ordering: Specify door handing
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US4 / BHMA 606; US3 / BHMA 605

RM421 Specifications (leg down):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify height/width CTC (center-to-center measurement between mounts)
Projection: 3"
Ordering: Specify door handing
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US4 / BHMA 606; US3 / BHMA 605

Long Angle Push-Pull

RM412 Specifications (leg up):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify height/width CTC (center-to-center measurement between mounts)
Projection: 3"
Ordering: Specify door handing
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM413 Specifications (leg down):

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify height/width CTC (center-to-center measurement between mounts)
Projection: 3"
Ordering: Specify door handing
Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Long Angle Push-Pull with GripZone

RM422 Specifications (leg up):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify height/width CTC (center-to-center measurement between mounts)
Projection: 3"
Ordering: Specify door handing
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US4 / BHMA 606; US3 / BHMA 605

RM423 Specifications (leg down):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify height/width CTC (center-to-center measurement between mounts)
Projection: 3"
Ordering: Specify door handing
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
