Paper Towel Dispensers

Paper Towel Dispensers – Technical Data

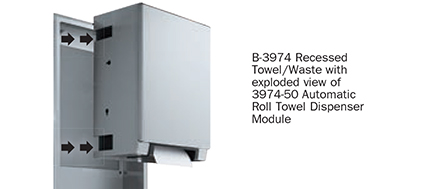

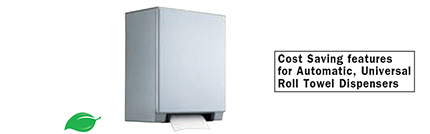

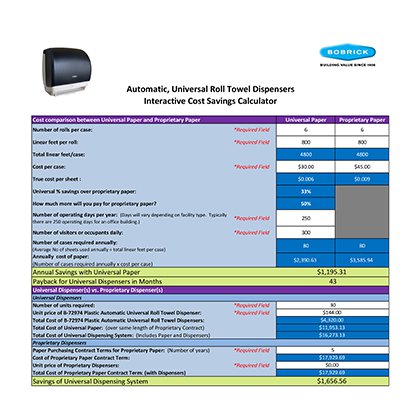

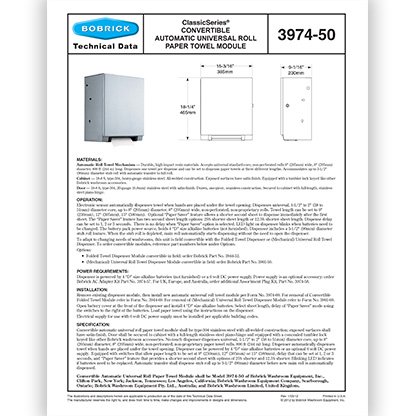

Cost Saving Features for Automatic, Universal Roll Towel Dispensers: (B-2974, B-29744, B-3974-50, B-72974)

• Accepts economically priced, universal, non-perforated, non-proprietary roll paper towels 8" (205mm) diameter, 8" (205mm) wide, 800 ft (244m) long with 1-1⁄2" to 2" (38 to 51mm) diameter standard core

• Adjustable paper towel first dispense length: 9", 12", 15" (230mm, 305mm, 380mm)

• Adjustable second dispense length: 25% and 12.5% of first dispense

• Adjustable second dispense time delay: 1, 2 or 3 seconds

• Accommodates stub roll up to 3-1⁄2" (90mm) diameter with automatic transfer

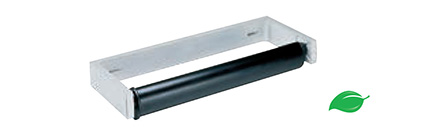

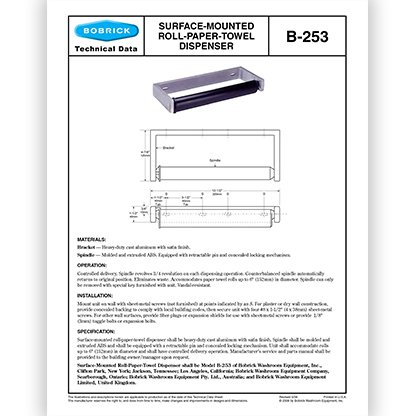

B-253 SURFACE MOUNTED ROLL TOWEL DISPENSER

• Heavy duty aluminum casting, satin finish
• Molded plastic spindle has concealed locking device (removable with special key furnished)
• Controlled delivery
• Holds paper towel rolls up to 6" (150mm) diameter
• Unit 12-1⁄2" wide and projects 4-7⁄8" from wall (320 x 125mm)

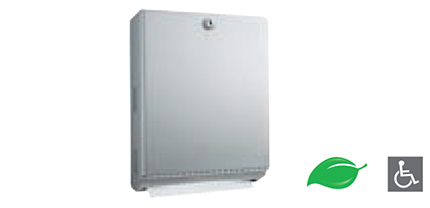

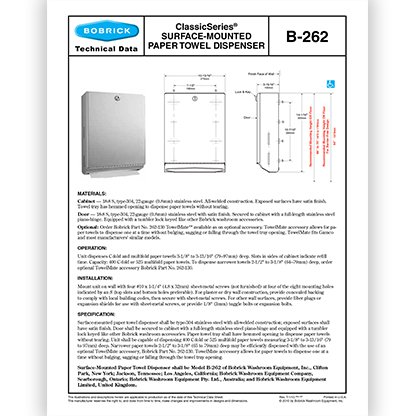

B-262 ClassicSeries® SURFACE MOUNTED PAPER TOWEL DISPENSER

• Satin finish stainless steel
• Dispenses 400 C-fold or 525 multifold towels
• Door has tumbler lock and piano hinge
• Hemmed towel tray opening
• Unit 10-3⁄4" W x 14" H x 4" D (275 x 355 x 100mm)
• Av. Mtg. Ht.: 66–70" (1675–1780mm) to top of unit
• Barrier-Free, 54" (1370mm)

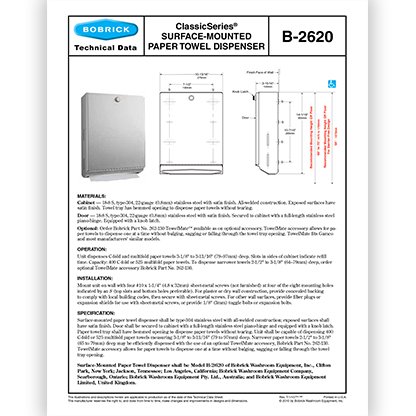

• B-2620 Similar to B-262, but with knob latch

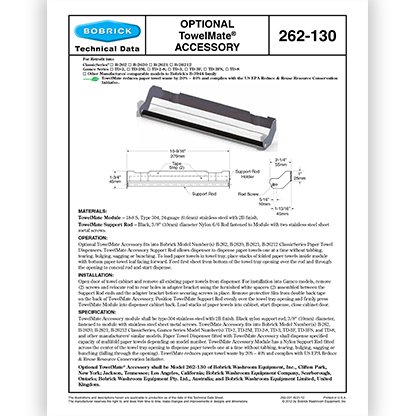

• 262-130 TowelMate Accessory

• Satin finish stainless steel
• Dispenses 200 C-fold or 275 multifold towels
• Door has knob latch
• Hemmed towel tray opening
• Unit 10-3⁄4" W x 7-1⁄8" H x 4" D (275 x 180 x 100mm)
• Av. Mtg. Ht.: 58–62" (1475–1575mm) to top of unit
• Barrier-Free, 47" (1195mm)

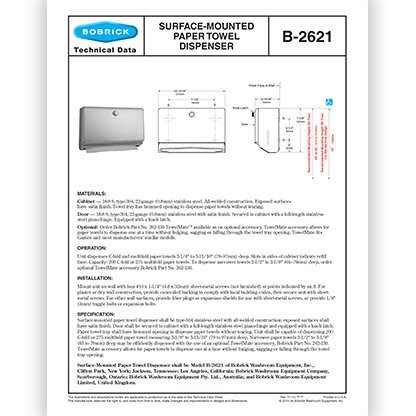

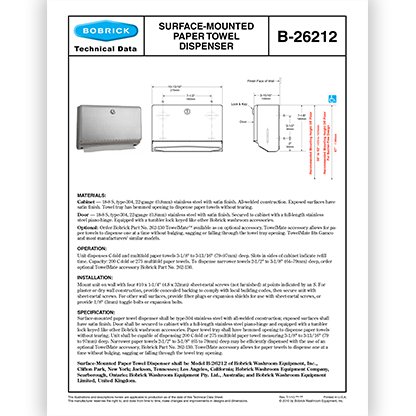

• B-26212 Similar to B-2621, but with tumbler lock
• 262-130 TowelMate Accessory

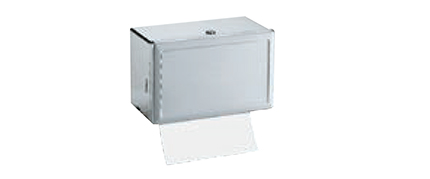

• Satin finish stainless steel
• Tumbler lock on top of cabinet
• Dispenses 400 singlefold towels
• Cabinet slots indicate refill time
• Unit 12-1⁄8" W x 7-1⁄4" H x 6-1⁄8" D (310 x 185 x 155mm)

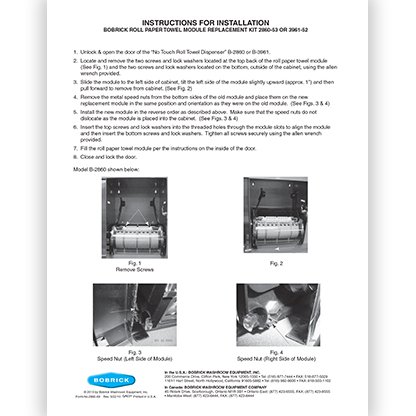

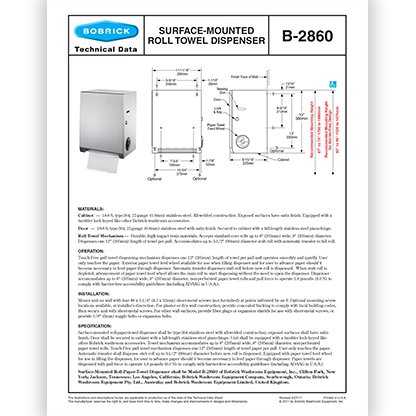

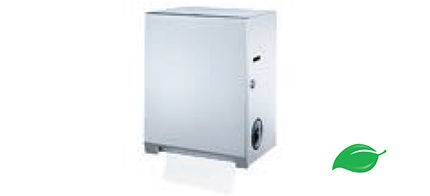

B-2860 SURFACE MOUNTED ROLL TOWEL DISPENSER

• Satin finish stainless steel
• Touch-free, pull towel mechanism dispenses 12" (305mm) length per pull [1.8 lbs (8.0 N)] of universal towels
• Accommodates 8" (205mm) wide, up to 8" (205mm) diameter rolls, 800 ft (244m) long, plus 3-1⁄2" (90mm) dia. stub roll with automatic transfer
• Door has tumbler lock and piano hinge
• Unit 11-3⁄4" W x 15" H x 9" D (300 x 380 x 230mm)
• Av. Mtg. Ht.: 67–74" (1700–1880mm) to top of unit
• Barrier-Free 60–66" (1525–1675mm)
• Patented

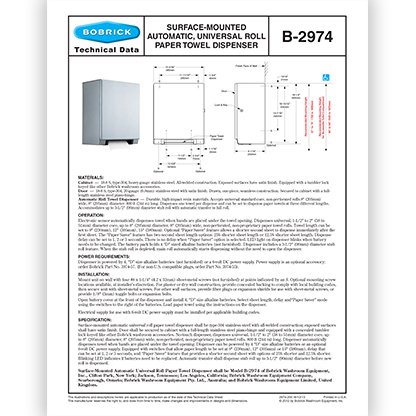

B-2974 AUTOMATIC, UNIVERSAL SURFACE MOUNTED ROLL TOWEL DISPENSER

• Satin finish stainless steel
• Door has tumbler lock and piano hinge
• Unit 15-3/16" W x 18-1/4" H x 9-1/16" D (385 x 465 x 230mm)
• Barrier-Free, 60-66" (1525-1675mm)
• Battery requirements: 4 Alkaline D cells (not included)
• Patented
• 3974-57 AC External Adapter (6V) available

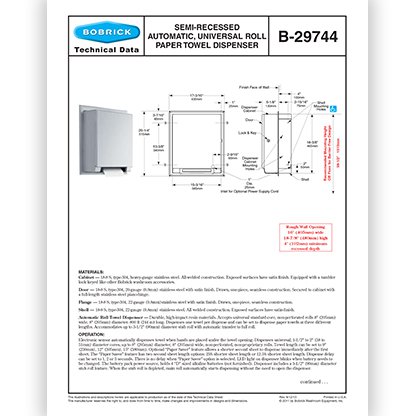

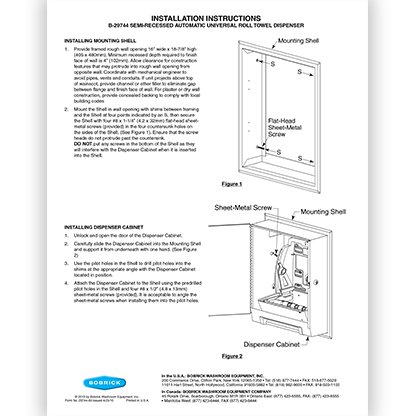

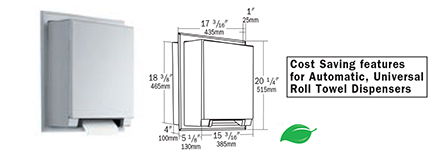

B-29744 AUTOMATIC, UNIVERSAL SEMI-RECESSED ROLL TOWEL DISPENSER

• Similar to B-2974 with seamless satin finish stainless steel beveled flange
• Designed for semi-recessed installation in wall opening
• Unit 16" W x 18-7/8" H x 4" D (405 x 480 x 100mm)
• Extends 5-1/8" (130mm) from wall
• Patented
• 3974-57 AC External Adapter (6V) available

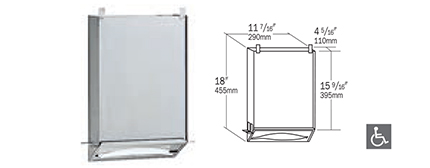

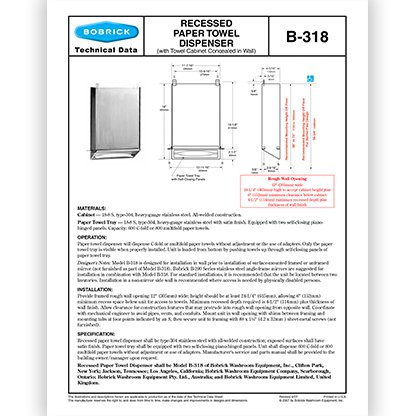

B-318 RECESSED PAPER TOWEL DISPENSER

• Satin finish stainless steel
• Dispenses 600 C-fold or 800 multifold towels
• Towels load into bottom of cabinet concealed behind wall or mirror; only the towel tray is visible
• Rough Wall Opening: 12" W x 18-1⁄4" H (305 x 465mm) to accept cabinet height, plus 6" (150mm) min. clearance space below towel tray; 4-1⁄2" (115mm) min. depth
• Av. Mtg. Ht.: 68–73" (1725–1855mm) to top of unit
• Barrier-Free, 56-3⁄4" (1440mm)

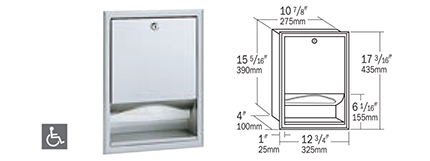

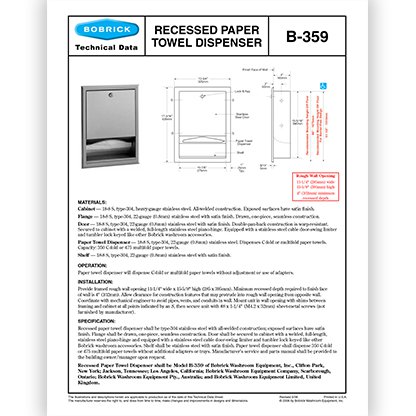

B-359 ClassicSeries® RECESSED PAPER TOWEL DISPENSER

• Satin finish stainless steel
• Seamless beveled flange
• Dispenses 350 C-fold or 475 multifold towels
• Door equipped with full-length stainless steel piano hinge at bottom; swings down for easy filling
• Rough Wall Opening: 11-1⁄4" W x 15-5⁄8" H x 4" min. depth (285 x 395 x 100mm)
• Av. Mtg. Ht.: 67" (1700mm) to top of unit
• Barrier-Free, 52-1⁄2" (1335mm)
• 369-130 TowelMate Accessory

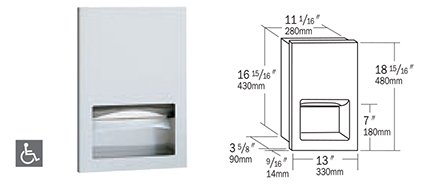

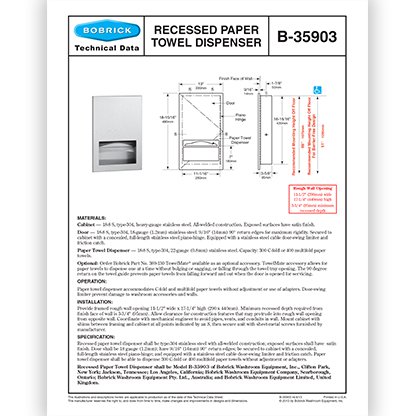

B-35903 TrimLineSeries™ RECESSED PAPER TOWEL DISPENSER

• Satin finish stainless steel
• Door has 90° return, conceals flange
• Dispenses 300 C-fold or 400 multifold towels
• Rough Wall Opening: 11-1⁄2" W x 17-1⁄4" H x 3-3/4" min. depth (290 x 440 x 95mm)
• Av. Mtg. Ht.: 67" (1700mm) to top of unit
• Barrier-Free, 52" (1320mm)
• 369-130 TowelMate Accessory

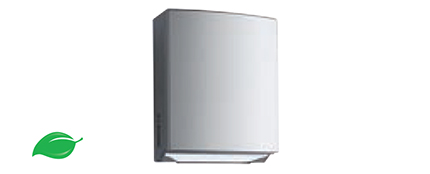

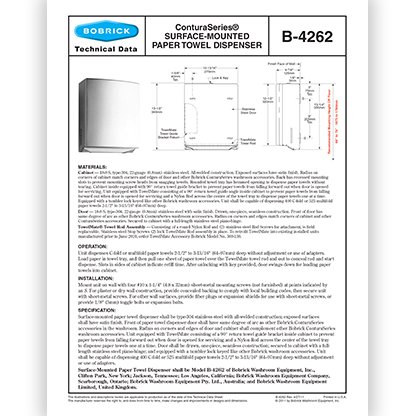

B-4262 ConturaSeries® SURFACE MOUNTED PAPER TOWEL DISPENSER WITH TowelMate

• Satin finish stainless steel
• Tumbler lock on top of cabinet
• Door swings down for loading towels
• Dispenses 400 C-fold or 525 multifold towels
• Cabinet slots indicate refill time
• Unit 10-13⁄16" W x 13-1⁄4" H x 4-7⁄8" D (275 x 335 x 125mm)

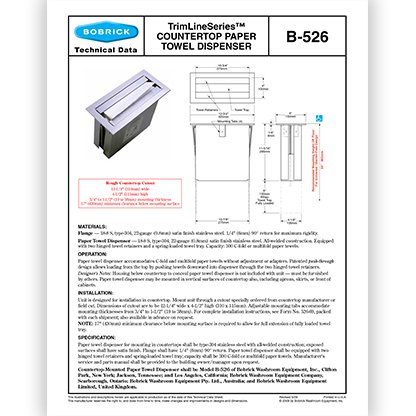

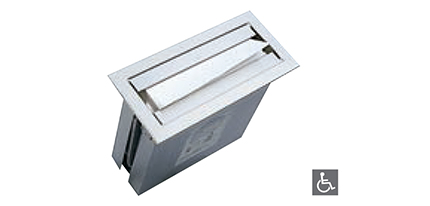

B-526 TrimLineSeries™ COUNTERTOP MOUNTED PAPER TOWEL DISPENSER

• Satin finish stainless steel
• Flange has 90° return
• Towels load into top of dispenser
• Dispenses 300 C-fold or multifold towels
• Unit 12-3/4" W x 6" front to back depth (325 x 150mm); 17" (430mm) min. clearance below mounting surface is required
• Rough Countertop Cutout: 12-1/4" W (310mm), 4-1/2" front to back depth (115mm), 3/4" to 1-1/2" (19 to 38mm) mounting thickness
• Housing below countertop to conceal dispenser is not included.
• Barrier-free countertop must not exceed 34" (865mm) height, and have a clearance of at least 29" (735mm) from the bottom of the apron to the finish floor.

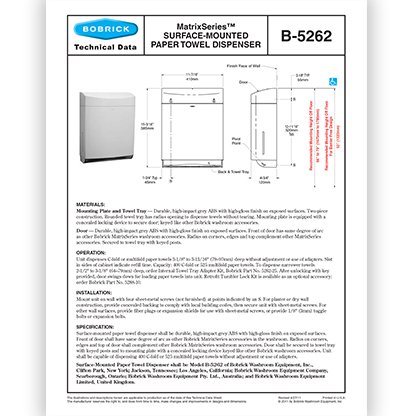

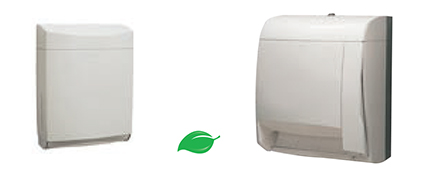

B-5262 MatrixSeries™ SURFACE MOUNTED PAPER TOWEL DISPENSER

• Durable ABS plastic – grey color
• Dispenses 400 C-fold or 525 multifold towels
• Cabinet slots indicate refill time
• Door has concealed locking device
• Unit 11-1⁄2" W x 15-1⁄4" H x 4-3⁄4" D (290 x 385 x 120mm)
• Patented
• 5262-25 Internal Towel Tray Adapter Kit optional for B-5262, to dispense narrower paper towels 2-1⁄2" to 3-1⁄8" (64–79mm) deep

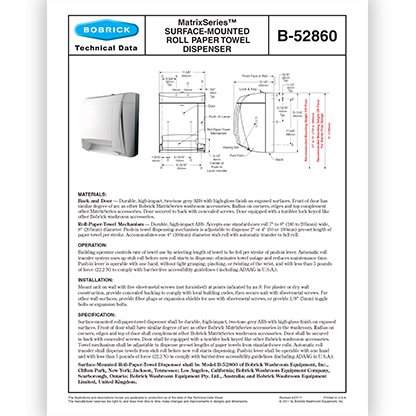

B-52860 MatrixSeries™ SURFACE MOUNTED ROLL PAPER TOWEL DISPENSER

• Durable ABS plastic – grey color
• Delivers preset length of paper towel: 2" or 4" (50 or 100mm) per stroke
• 4" (100mm) stub roll
• Accepts standard core rolls 7-1⁄4" to 8" (185 to 205mm) wide, up to 8" diameter (205mm)
• Unit 11-5⁄8" W x 15-1⁄16" H (295 x 385mm), wall to lever 10-1⁄8" (255mm)
• Patented

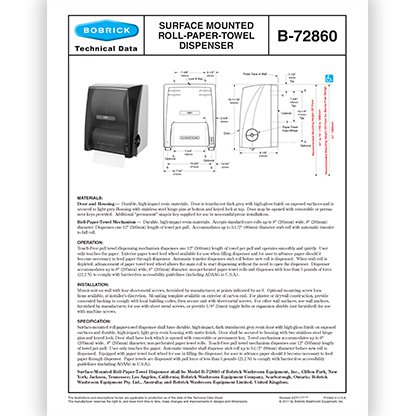

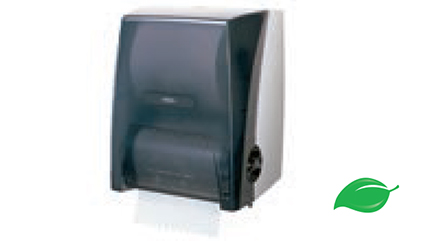

B-72860 SURFACE MOUNTED ROLL PAPER TOWEL DISPENSER

• Durable plastic construction; translucent cover
• Touch-free, pull towel mechanism dispenses 12" (305mm) length per pull [1.8 lbs (8.0 N)] of universal towels
• Accommodates 8" (205mm) wide, up to 8" (205mm) diameter rolls, 800 ft (244m) long, plus 3-1⁄2" (90mm) diameter stub roll with automatic transfer
• Locking cabinet with removable and permanent keys
• Unit 12-1⁄2" W x 15-1⁄2" H x 9-1⁄2" D (320 x 395 x 240mm)
• Patented

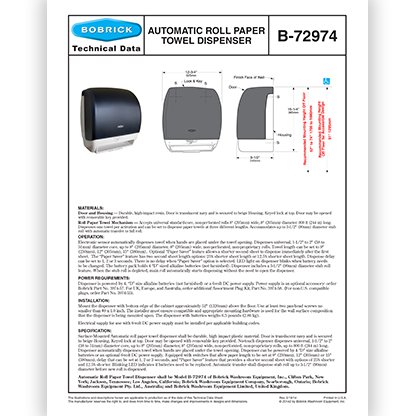

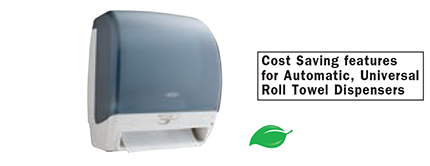

B-72974 AUTOMATIC, UNIVERSAL SURFACE MOUNTED ROLL TOWEL DISPENSER

• Durable plastic construction; translucent navy cover
• Locking cabinet
• Unit 12-3⁄8" W x 15-1/4" H x 9-1/2" D (310 x 385 x 240mm)
• Operates with 4 “D” alkaline batteries (not included) or 6-volt DC power supply
• Patented
• 3974-57 AC External Adapter (6V) available
