NoirMet Collection

The becoming, yet subtle luster of the satin black hard coat anodized aluminum grip makes a striking contrast to the selected finish of the end sections.

Mirror polished stainless steel is shown, but many alternative finishes are available.

This compelling design is also practical due to its durability and high visibility.

NoirMet is available in three diameters and a variety of lengths.

Designs
Specifications
Options
Finishes

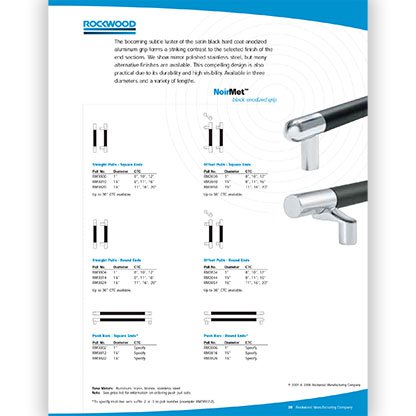

Downloads

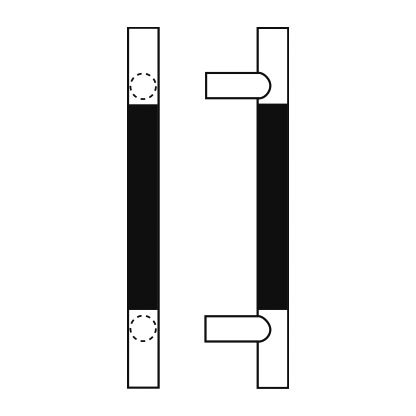

RM1410 - small straight pull, square ends

5/8" diameter

5", 6" CTC; or specify custom length

1-1/2" projection

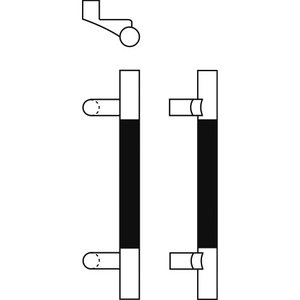

RM1430 - small offset pull, square ends

5/8" diameter

5", 6" CTC; or specify custom length

1-7/8" projection

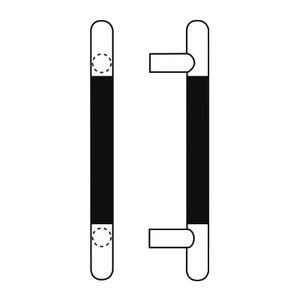

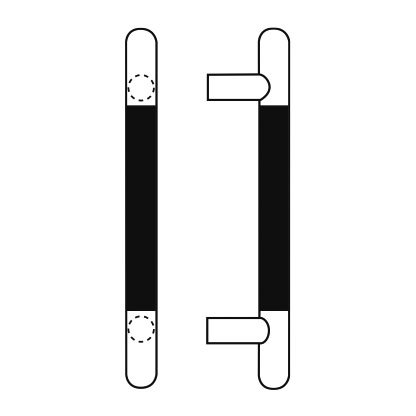

RM1450 - small straight pull, round ends

5/8" diameter

5", 6" CTC; or specify custom length

1-1/2" projection

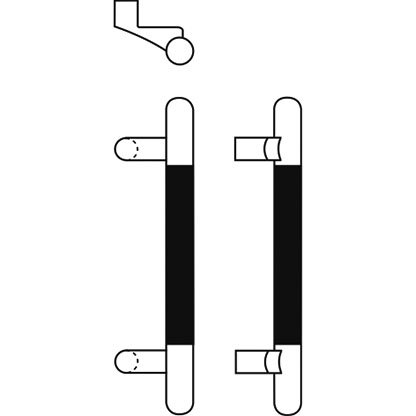

RM1470 - small offset pull, round ends

5/8" diameter

5", 6" CTC; or specify custom length

1-7/8" projection

RM3800 - straight pull, square ends

1" diameter

8", 10", 12", up to 36" CTC

2-3/4" projection

RM3802 - push bar, square ends

1" diameter

Specify CTC

2-3/4" projection

RM3804 - straight pull, round ends

1" diameter

8", 10", 12", up to 36" CTC

2-3/4" projection

RM3805 - straight push-pull, square ends

1" diameter

8" pull CTC; specify push CTC

2-3/4" projection

RM3806 - push bar, round ends

1" diameter

Specify CTC

2-3/4" projection

RM3807 - straight push-pull, round ends

1" diameter

8" pull CTC; specify push CTC

2-3/4" projection

RM3810 - straight pull, square ends

1-1/4" diameter

8", 11", 16", up to 36" CTC

3" projection

RM3812 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM3814 - straight pull, round ends

1-1/4" diameter

8", 11", 16", up to 36" CTC

3" projection

RM3815 - straight push-pull, square ends

1-1/4" diameter

8" pull CTC; specify push CTC

3" projection

RM3816 - push bar, round ends

1-1/4" diameter

Specify CTC

3" projection

RM3817 - straight push-pull, round ends

1-1/4" diameter

8" pull CTC; specify push CTC

3" projection

RM3820 - straight pull, square ends

1-1/2" diameter

11", 16", 20", up to 36" CTC

3-1/4" projection

RM3822 - push bar, square ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3824 - straight pull, round ends

1-1/2" diameter

11", 16", 20", up to 36" CTC

3-1/4" projection

RM3825 - straight push-pull, square ends

1-1/2" diameter

11" pull CTC; specify push CTC

3-1/4" projection

RM3826 - push bar, round ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3827 - straight push-pull, round ends

1-1/2" diameter

11" pull CTC; specify push CTC

3-1/4" projection

RM3830 - offset pull, square ends

1" diameter

8", 10", 12", up to 36" CTC

2-1/2" projection

RM3834 - offset pull, round ends

1" diameter

8", 10", 12", up to 36" CTC

2-1/2" projection

RM3835 - offset push-pull, square ends

1" diameter

8" pull CTC; specify push CTC

2-3/4" projection

RM3837 - offset push-pull, round ends

1" diameter

8" pull CTC; specify push CTC

2-3/4" projection

RM3840 - offset pull, square ends

1-1/4" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM3844 - offset pull, round ends

1-1/4" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM3845 - offset push-pull, square ends

1-1/4" diameter

8" pull CTC; specify push CTC

3" projection

RM3847 - offset push-pull, round ends

1-1/4" diameter

8" pull CTC; specify push CTC

3" projection

RM3850 - offset pull, square ends

1-1/2" diameter

11", 16", 20", up to 36" CTC

3" projection

RM3854 - offset pull, round ends

1-1/2" diameter

11", 16", 20", up to 36" CTC

3" projection

RM3855 - offset push-pull, square ends

1-1/2" diameter

11" pull CTC; specify push CTC

3-1/4" projection

RM3857 - offset push-pull, round ends

1-1/2" diameter

11" pull CTC; specify push CTC

3-1/4" projection

NoirMet Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the NoirMet Collection are aluminum, stainless steel, brass or bronze.

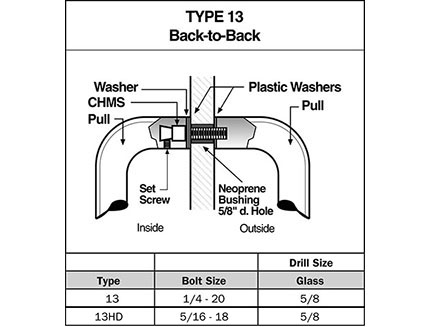

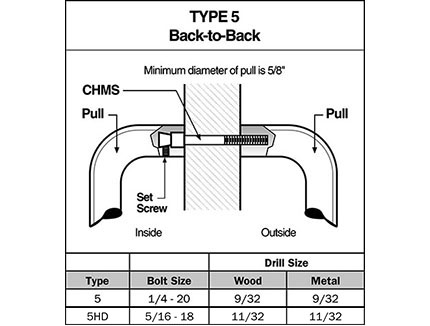

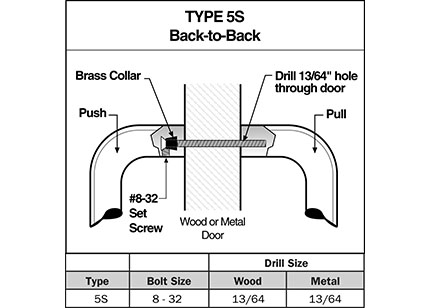

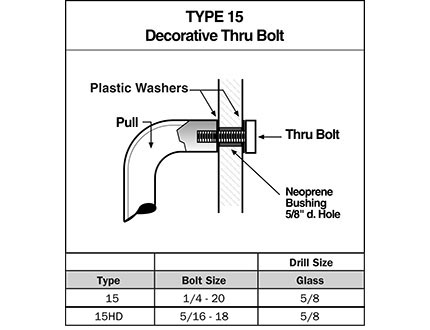

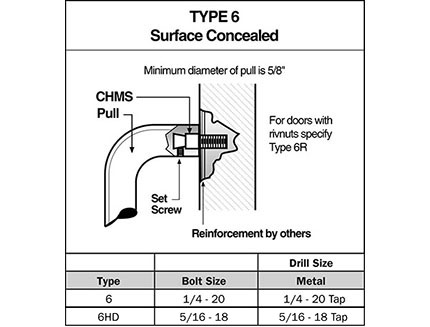

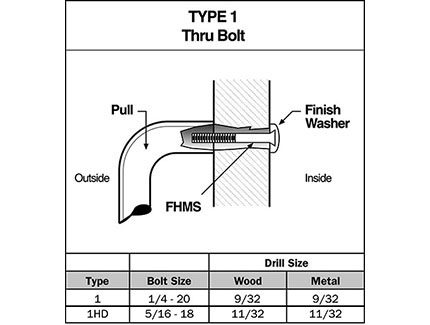

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Post location on push bars can be located 1/8" from end for narrow and medium stile doors, and 1" from end for flush and wide stile doors.
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM3802-2).

Straight Pulls - Square Ends

RM3800 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12", up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"

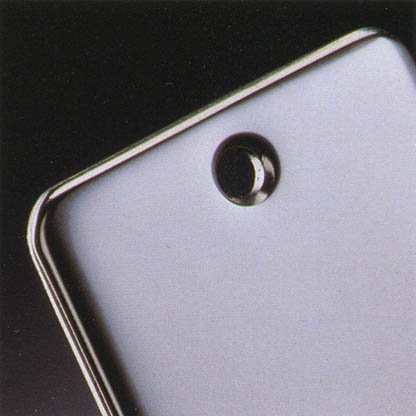

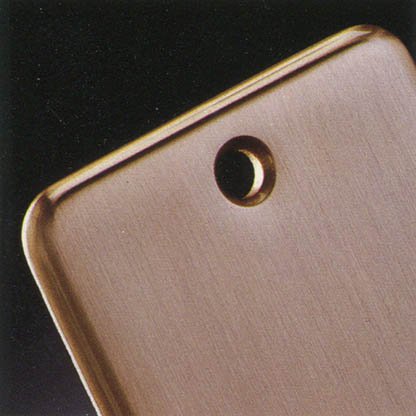

Finishes: US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3810 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3820 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pulls - Round Ends

RM3804 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12", up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3814 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3824 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 36" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pulls - Square Ends

RM3830 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12", up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3840 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3850 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pulls - Round Ends

RM3834 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8", 10", 12", up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3844 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16", up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3854 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20", up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push/Pull Set - Square Ends

RM3805 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3815 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3825 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push/Pull Set - Round Ends

RM3807 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3817 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3827 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push/Pull Set - Square Ends

RM3835 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3845 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3855 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push/Pull Set - Round Ends

RM3837 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3847 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3857 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Square Ends

RM3802 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"

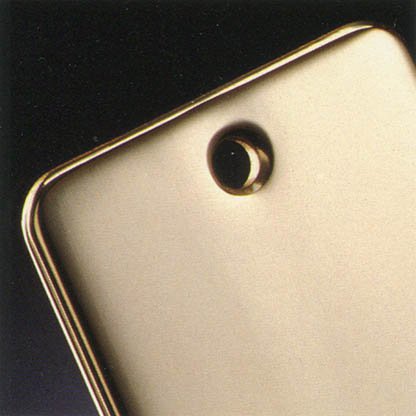

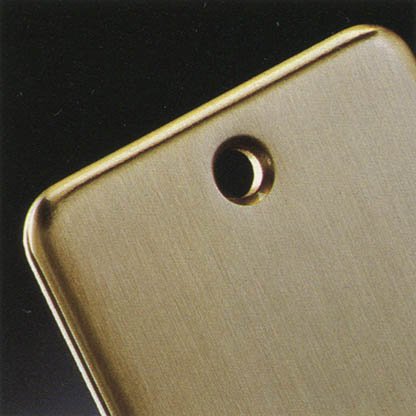

Finishes: US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3812 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3822 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Round Ends

RM3806 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3816 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3826 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
