NeoCylinder Collection

The fresh design of the NeoCylinder pull is available in straight and offset versions.

1-1/4" tubing blends seamlessly into the terminating flat end posts.

NeoCylinder pulls are available with Rockwood's popular "GripZone" finish.

Designs
Specifications
Finishes

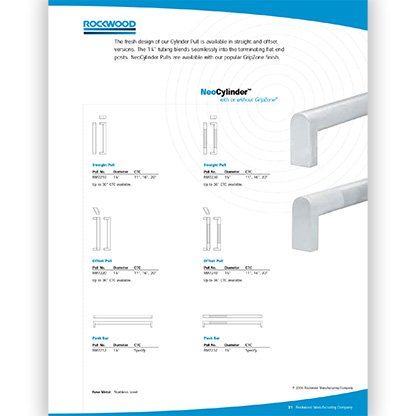

Downloads

RM7210 - straight pull

1-1/4" diameter

11", 16", 20", up to 36" CTC

2-3/4" projection

RM7212 - push bar

1-1/4" diameter

11", 16", 20", up to 36" CTC

2-3/4" projection

RM7220 - offset pull

1-1/4" diameter

Specify CTC

2-3/4" projection

RM7230 - straight pull, GripZone

1-1/4" diameter

11", 16", 20", up to 36" CTC

2-3/4" projection

RM7232 - push bar, GripZone

1-1/4" diameter

Specify CTC

2-3/4" projection

RM7240 - offset pull, GripZone

1-1/4" diameter

11", 16", 20", up to 36" CTC

2-3/4" projection

NeoCylinder Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal for the NeoCylinder Collection is stainless steel.

Rockwood Door Pulls – Mounting Types

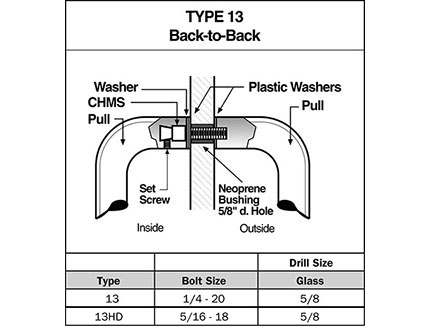

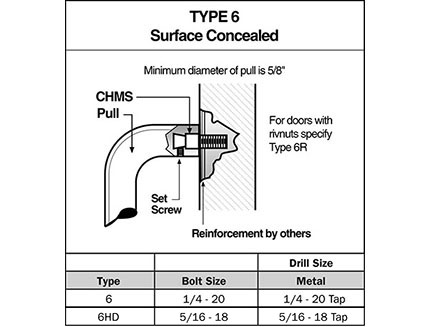

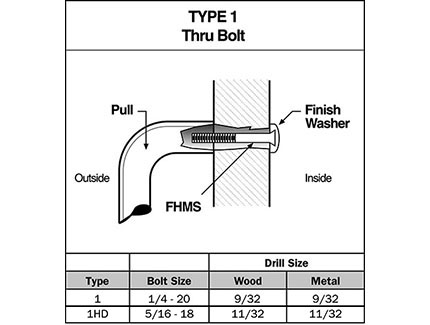

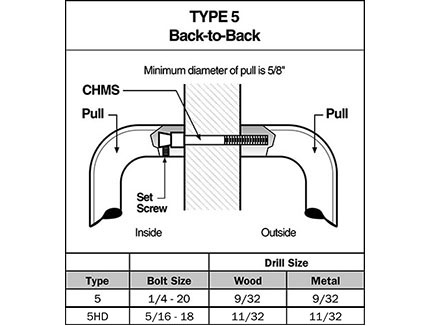

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Straight Pull (without GripZone)

RM7210 Specifications (HD Mounting):

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"

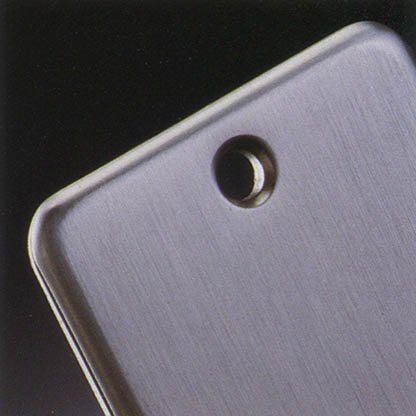

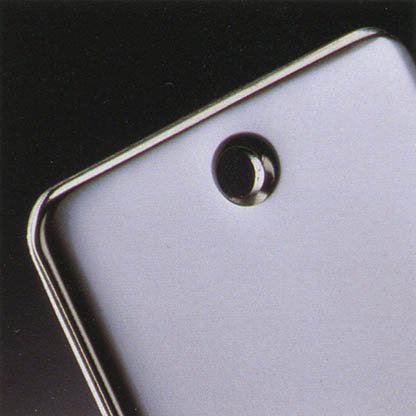

Finishes: US32D / BHMA 630; US32 / BHMA 629

Straight Pull (with GripZone)

RM7230 Specifications (HD Mounting):

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

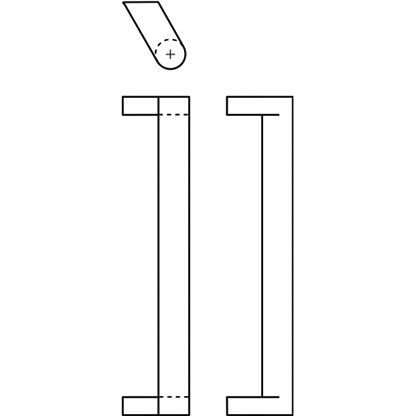

Offset Pull (without GripZone)

RM7220 Specifications (HD Mounting):

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629

Offset Pull (with GripZone)

RM7240 Specifications (HD Mounting):

Base Metal: Stainless Steel
Diameter: 1-1/4"
Lengths: 11", 16", 20"; up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

Push Bar (without GripZone)

RM7212 Specifications (HD Mounting):

Base Metal: Stainless Steel
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629

Push Bar (with GripZone)

RM7232 Specifications (HD Mounting):

Base Metal: Stainless Steel
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finish: US32 / BHMA 629

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
