                Doors > Suite Entry

                20M Moulded Panel

                Masonite's collection of 20-minute fire rated doors feature a smooth primed product for painting. Composite material provides a highly durable product at great value and a timeless design for years to come.

                A 20-minute rated doors meets requirements for a 45-minute wall rating. For more information, please refer to 'Specifications'.

                • Designs
                • Specifications
                • Downloads
                • All
                  ×
                • Smooth Primed
                • Textured Woodgrain
                • Smooth Primed - 5 Panel: 80", 84"
                • Smooth Primed - 6 Panel: 96"
                • All
                  ×
                • 1/6 (18")
                • 2/0 (24")
                • 2/4 (28")
                • 2/6 (30")
                • 2/8 (32")
                • 2/10 (34")
                • 3/0 (36")
                • 3/6 (42")
                • 4/0 (48")
                • 5/0 (60")
                • 6/0 (72")
                • All
                  ×
                • 6/8 (80")
                • 7/0 (84")
                • 8/0 (96")
                • Custom
                • All
                  ×
                • Particle Core
                • Polyurethane Core
                • All
                  ×
                • Non Rated
                • 20 Min Rated
                • 45 Min Rated
                • 60 Min Rated
                • 90 Min Rated
                • All
                  ×
                • 1-3/8"
                • 1-3/4"
                • All
                  ×
                • Unfinished Wood Flush Panel
                • Prefinished Flush Panel

                Lincoln Park 20M

                LINC



                Close

                LINC

                Lincoln Park 20M

                Masonite's Heritage® Series features stile and rail inspired designs with clean, simple lines that will provide a distinctive look for any interior decor.

                Primed, smooth surface is ready to paint.
                Width 2/8 (32"), 3/0 (36")
                Height 6/8 (80")
                Core Particle Core
                Fire Rating 20 Min Rated
                Thickness 1-3/4"
                Panel SurfaceSmooth Primed

                Berkley 20M

                BER



                Close

                BER

                Berkley 20M

                Masonite’s West End™ Collection features metropolitan inspired designs with bold, graphic lines for eye-catching profiles. These clean, simple styles will complement any contemporary interior decor. West End doors are very affordable, giving you the most value for a modern look.

                Primed, smooth surface is ready to paint.
                Width 2/8 (32"), 3/0 (36")
                Height 6/8 (80")
                Core Particle Core
                Fire Rating 20 Min Rated
                Thickness 1-3/4"
                Panel SurfaceSmooth Primed

                Carrara 20M

                CARR



                Close

                CARR

                Carrara 20M

                The Masonite Moulded Panel Series is the industry benchmark for all moulded wood doors. This series utilizes a composite wood construction for a more durable product that resists warping, shrinking, and cracking better than a solid wood door.

                Primed, smooth surface is ready to paint.
                Width 2/8 (32"), 3/0 (36")
                Height 6/8 (80")
                Core Particle Core
                Fire Rating 45 Min Rated
                Thickness 1-3/4"
                Panel SurfaceSmooth Primed

                6 Panel 20M

                COL



                Close

                COL

                6 Panel 20M

                The Masonite Moulded Panel Series is the industry benchmark for all moulded wood doors. This series utilizes a composite wood construction for a more durable product that resists warping, shrinking, and cracking better than a solid wood door.

                Primed smooth surface is ready to paint.
                Width 2/8 (32"), 3/0 (36")
                Height 6/8 (80")
                Core Particle Core
                Fire Rating 20 Min Rated
                Thickness 1-3/4"
                Panel SurfaceSmooth Primed

                Riverside 20M

                RIV



                Close

                RIV

                Riverside 20M

                The Masonite Collection of doors feature a smooth primed product ready for painting. Composite material provides a highly durable product at great value and a timeless look for years to come.

                Primed, smooth surface is ready to paint.
                Width 2/8 (32"), 3/0 (36")
                Height 6/8 (80")
                Core Particle Core
                Fire Rating 20 Min Rated
                Thickness 1-3/4"
                Panel SurfaceSmooth Primed

                Primed Hardboard 20M

                HARD



                Close

                HARD

                Primed Hardboard 20M

                Unfinished hardboard or wood veneer with high-quality wood conditioner.

                Requires primer, paint or stain.

                Width 2/8 (32"), 3/0 (36")
                Height 6/8 (80")
                Core Particle Core
                Fire Rating 20 Min Rated
                Thickness 1-3/4"
                Finish Unfinished Wood Flush Panel

                20M Moulded Panel Door Specifications

                Masonite makes a variety of 1-3/4" thick interior doors that are available with a 20-minute fire rating. Several of these doors are also available with a fire-rating of 45-, 60-, or 90-minutes in duration. All doors that are fire-rated will have a fire label affixed to the hinge side of the door stating the specific fire rating.

                Door: Paintable moulded wood; smooth primed surface.

                Core: Particle core

                Special Order: 2/0 to 3/6 widths and 7/0 heights

                Fire Rated: A 20 minute fire rated door meets requirements for a 45-minute wall rating.

                • Doors: Fire rated to 20-minutes with a label attached
                • Doors: Fire rated to 45-minutes with a label attached (Cararra and Primed Hardboard only)

                Door Preparation / Templates: For door and frame templates, see 'Specifications'

                Hardware Consideration: Door stile widths are designed to accomodate standard roses on residential lever locks. Commercial and architectural hardware may require special consideration.

                Fire Rated Frame Options

                When safety standards are a priority, choose fire rated doors and frames. Madero’s interior door product line features the standard 20 minute Warnock Hersey fire rating, with optional 45, 60, and 90 minute ratings available.

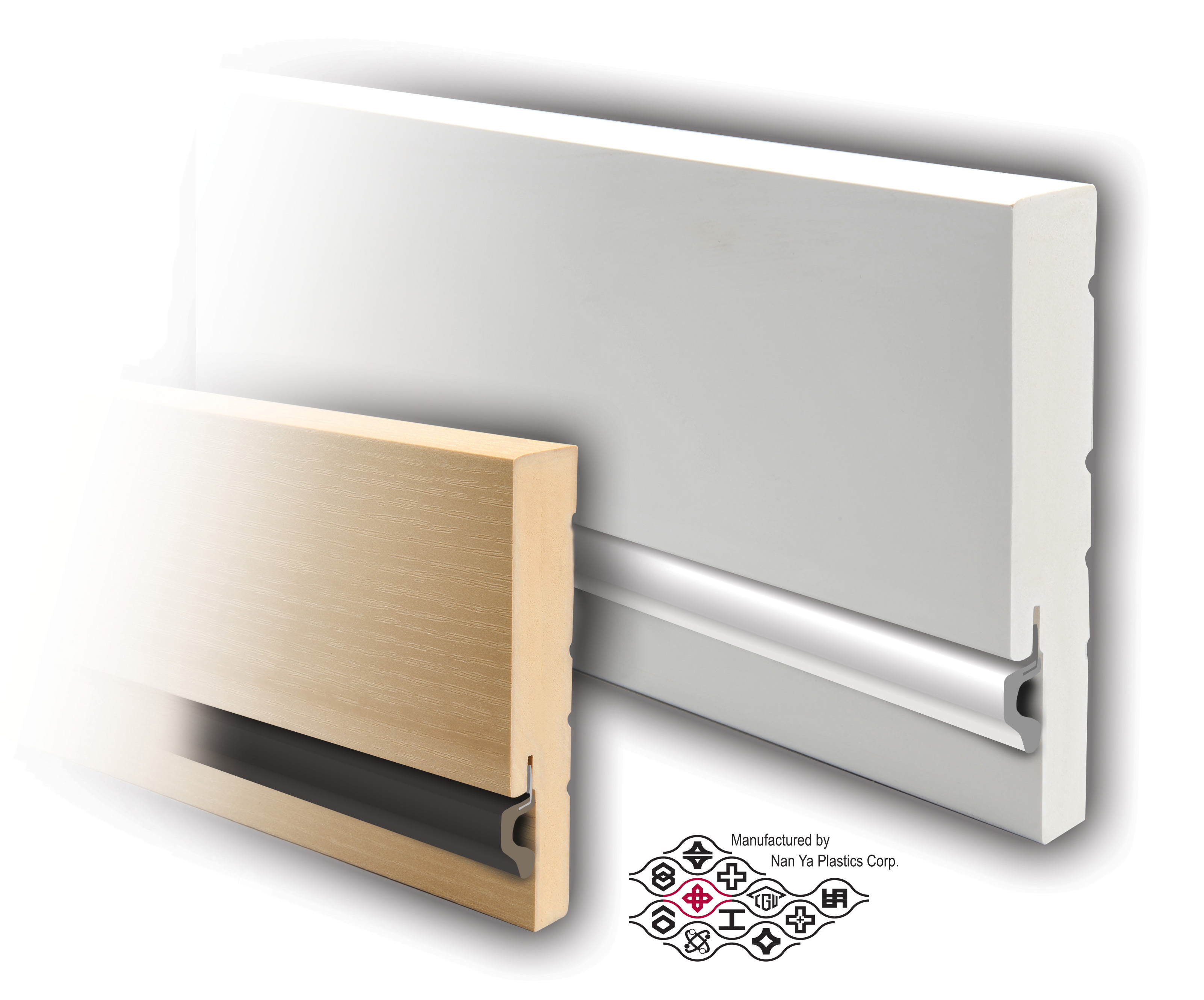

                20 Minute Fire Rated Composite Frame

                Our unique composite jamb product offers built-in advantages that are unmatched in the door industry. Maintenance-free product means less work for you and longer life for the entry unit. Composite frames are very strong, with superior screw holding power and a tough exterior finish. Available in both smooth white and textured woodgrain finishes, these frames are designed to coordinate with any colour and style of door.

                • Available in 4-9/16", 6-9/16" pr 8-9/16" jamb depths only
                • Prefinished Smooth White can be painted
                • Textured Woodgrain requires stain or paint

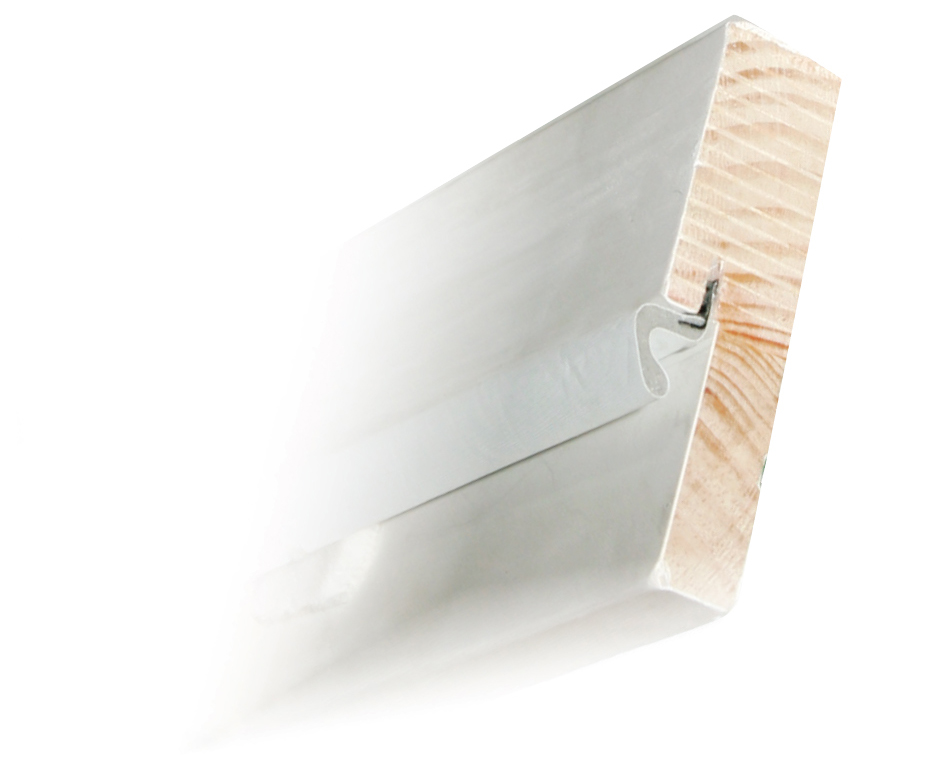

                20 Minute Fire Rated Finger Joint Pine Frame (Primed)

                Primed, kiln-dried fingerjointed pine frames provide beauty and strength with a Warnock Hersey certified 20 minute fire rating. They are suitable for interior or exterior use when painted or stained.

                • Available up to 8-7/8" jamb depth
                • Available with or without kerf application

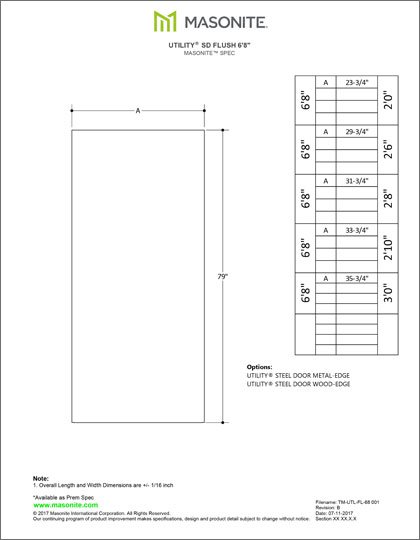

                Masonite Technical Specifications

                Masonite Technical Specifications

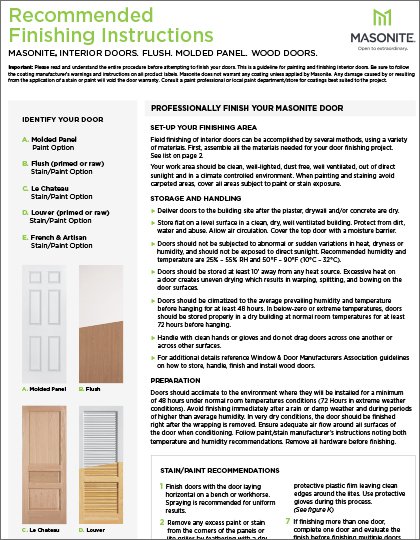

                Masonite Finishing Instructions

                Masonite Finishing Instructions
