Mirrors/Tilt Mirrors

Bobrick Mirrors Technical Data

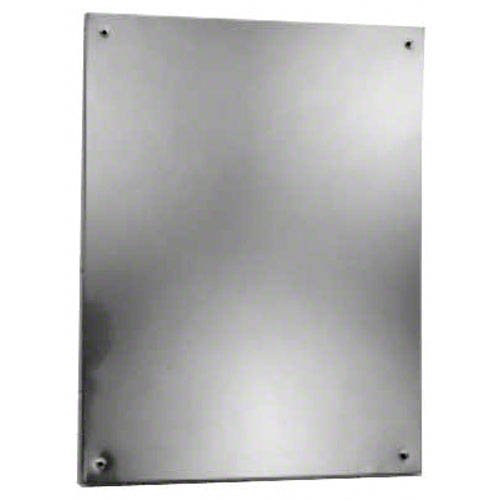

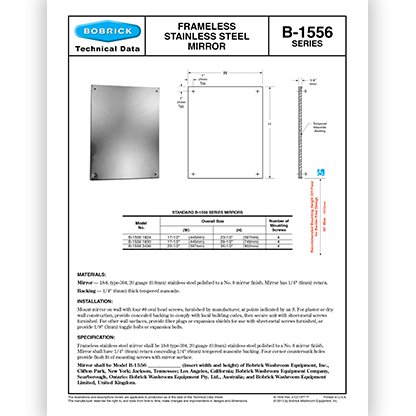

B-1556 SERIES – FRAMELESS MIRRORS

• Bright polished stainless steel
• Mirror has 1⁄4" return, concealing 1⁄4" tempered masonite backing
• Furnished with 4 mounting screws
• 1824 dimensions:  17-1/2" x 23-1/2" (44 x 60 cm)
  1830 dimensions:  17-1/2" x 29-1/2" (44 x 75 cm)
  2436 dimensions:  23-1/2" x 35-1/2" (60 x 90 cm)

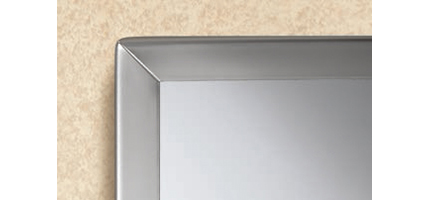

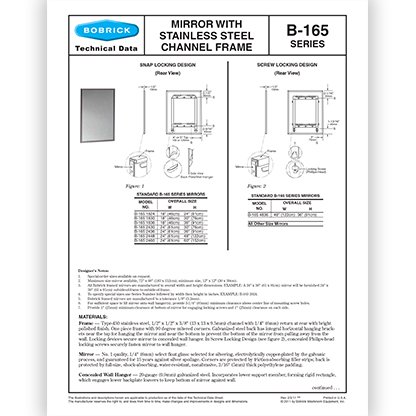

B-165 SERIES – CHANNEL FRAME MIRRORS

• One-piece, 1⁄2" x 1⁄2" x 3⁄8" (13 x 13 x 9.5mm) channel frame
• Type 430 stainless steel with bright polished finish
• Mitered corners
• Frame screw permits easy replacement of glass
• No.1 quality, 1⁄4" (6mm) glass mirror; warranted against silver spoilage for 15 years
• Galvanized steel back
• Secured to concealed wall hanger with theft resistant mounting
• 1824 dimensions:  18" x 24" (46 x 61 cm)
  1830 dimensions:  18" x 30" (46 x 76 cm)
  1836 dimensions:  18" x 36" (46 x 91 cm)
  2430 dimensions:  24" x 30" (61 x 76 cm)
  2436 dimensions:  24" x 36" (61 x 91 cm)
  2448 dimensions:  24" x 48" (61 x 122 cm)
  2460 dimensions:  24" x 60" (61 x 152 cm)
  4836 dimensions:  48" x 36" (122 x 91 cm)
• Special order custom sizes:
  Maximum size mirror: 72" x 60" (183 x 152cm)

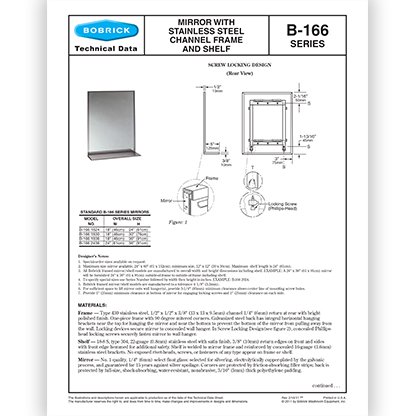

B-166 SERIES – CHANNEL FRAME, MIRROR/SHELF COMBINATIONS

• Same mirror as B-165 Series
• Type 304 satin-finish stainless steel shelf
• Shelf projects 5" with 3⁄8" return on front and sides; front return edge hemmed for rigidity and safety
• 1824 dimensions: 18" x 24" (46 x 61 cm)
  1830 dimensions: 18" x 30" (46 x 76 cm)
  1836 dimensions: 18" x 36" (46 x 91 cm)
  2436 dimensions: 24" x 36" (61 x 91 cm)
• Special order custom sizes:
  Maximum size mirror: 24" x 60" (61 x 152cm)
  Maximum shelf length: 24" (61cm)


Tempered Glass Mirrors

Tempered glass mirrors are engineered for heavy traffic, vandal prone restrooms in K–12 school buildings, stadiums, outdoor recreation centers and low supervision facilities such as parks and highway rest stops.

Tempered glass mirrors resist breakage and provide a measure of safety from broken glass, but differ in color and reflective quality from standard glass mirrors.

Bobrick uses the highest quality tempered glass mirrors. Modest distortion or heat-generated markings are normal in the tempered glass mirror manufacturing process. Therefore, Bobrick will not accept returns of tempered glass mirrors with random distortion or markings.

SPECIAL ORDER REFLECTIVE SURFACES

Polished Stainless Steel, Tempered and Laminated Glass Mirrors resist breakage and provide a measure of safety from broken glass, but differ in color and reflective quality from standard glass mirrors. Modest distortion is normal and not a returnable condition. Available on special order.

POLISHED STAINLESS STEEL:

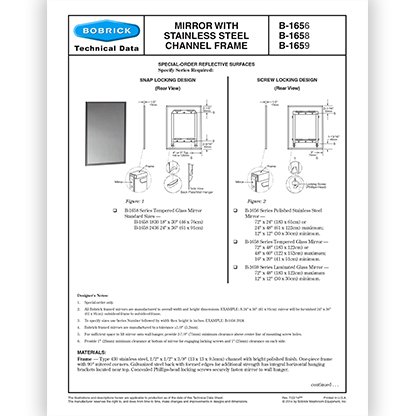

• B-1656 Series Mirrors (up to 60" x 36"; 152 x 92cm)

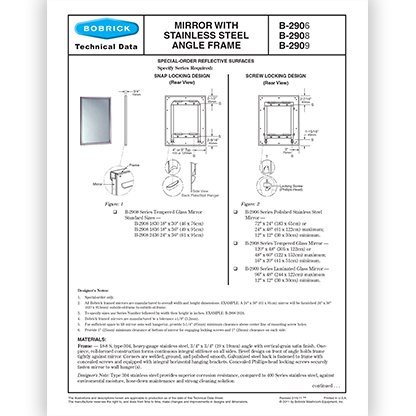

• B-2906 Series Mirrors (up to 60" x 24"; 152 x 61cm)

TEMPERED GLASS:

• B-1658 Series Mirrors (up to 72" x 48"; 183 x 122cm)
• B-2908 Series Mirrors (up to 120" x 48"; 305 x 122cm)

LAMINATED GLASS:

• B-1659 Series Mirrors (up to 72" x 48"; 183 x 122cm)
• B-2909 Series Mirrors (up to 84" x 48"; 214 x 122cm)

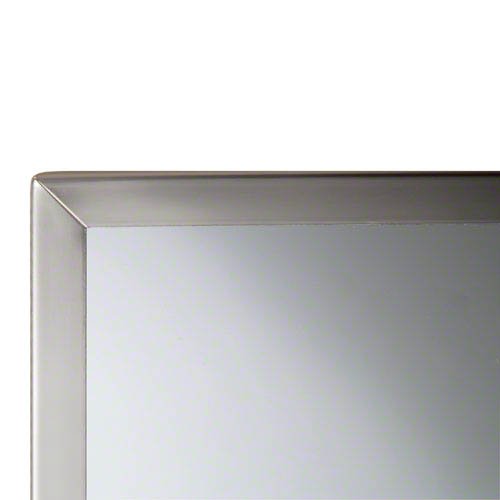

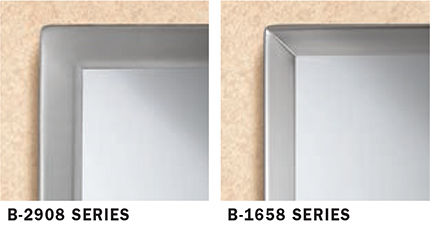

B-1658 SERIES STANDARD SIZE TEMPERED GLASS CHANNEL-FRAME MIRRORS

• Same frame as B-165 Series
• 1⁄4" (6mm) tempered glass mirror
• 1830 dimensions: 18" x 30" (46 x 76 cm)
  2436 dimensions: 24" x 36" (61 x 91 cm)

B-2908 SERIES STANDARD SIZE TEMPERED GLASS WELDED-FRAME MIRRORS

• Same frame as B-290 Series
• 1⁄4" (6mm) tempered glass mirror
• 1830 dimensions: 18" x 30" (46 x 76 cm)
  1836 dimensions: 18" x 36" (46 x 91 cm)
  2436 dimensions: 24" x 36" (61 x 91 cm)

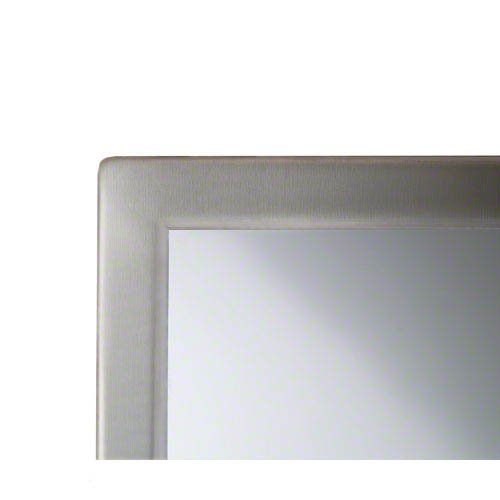

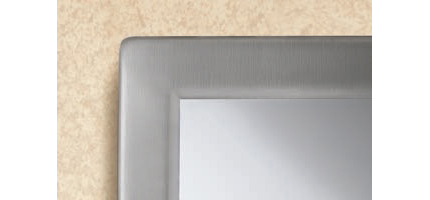

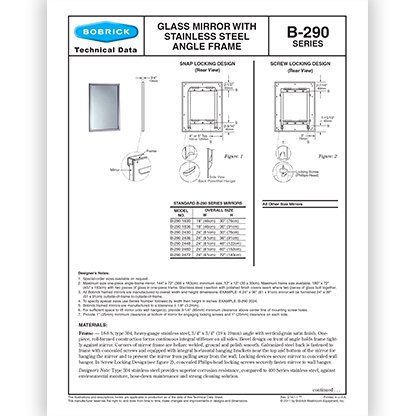

B-290 SERIES WELDED-FRAME MIRRORS

• One-piece, roll-formed 3⁄4" x 3⁄4" (19 x 19mm) angle-frame
• Type 304 stainless steel angle with satin finish
• Corners heliarc welded, ground and polished smooth
• Beveled frame edge at mirror for improved appearance
• No.1 quality, 1⁄4" (6mm) glass mirror; warranted against silver spoilage for 15 years
• Galvanized steel back
• Secured to concealed wall hanger with theft resistant mounting
• 1830 dimensions: 18" x 30" (46 x 76 cm)
  1836 dimensions: 18" x 36" (46 x 91 cm)
  2430 dimensions: 24" x 30" (61 x 76 cm)
  2436 dimensions: 24" x 36" (61 x 91 cm)
  2448 dimensions: 24" x 48" (61 x 122 cm)
  2460 dimensions: 24" x 60" (61 x 152 cm)
  2472 dimensions: 24" x 72" (61 x 183 cm)
• Special order custom sizes:
  Maximum size of one piece mirror: 144" x 72" (366 x 183 cm)
  Maximum frame size: 180" x 72" (457 x 183 cm) with two pieces of glass

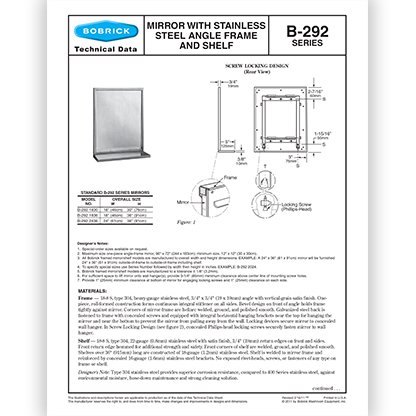

B-292 SERIES WELDED-FRAME MIRROR/SHELF COMBINATION

• Same mirror as B-290 Series
• Type 304 satin finish stainless steel shelf
• Shelf projects 5" (127mm), with 3⁄4" (19mm) return on front and sides; front return edge hemmed for rigidity and safety
• Shelf corners heliarc welded, ground and polished smooth
• 1830 dimensions: 18" x 30" (46 x 76 cm)
  1836 dimensions: 18" x 36" (46 x 91 cm)
  2436 dimensions: 24" x 36" (61 x 91 cm)
• Special order custom sizes:
  Maximum frame size available: 96" x 72" (244 x 183cm)
  with one piece of glass
  Maximum size of shelf: 96" (244cm) furnished as one piece


Tilted Mirrors (Fixed & Dual-Position)

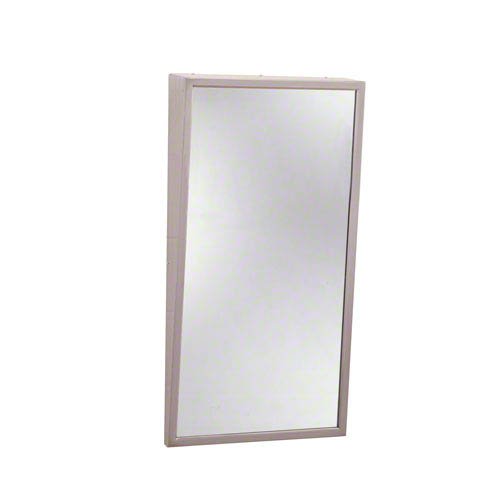

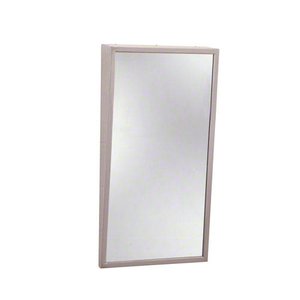

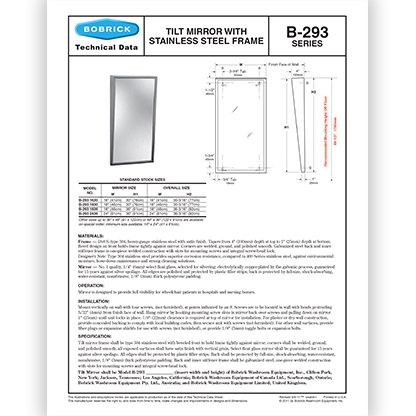

B-293 SERIES FIXED POSITION TILT MIRRORS

• Provide visibility for wheelchair patients
• Frame is type 304 stainless steel satin finish
• Beveled edges of frame hug mirror; provides gapless fit for improved appearance, and safety when cleaning mirror
• No.1 quality, 1⁄4" glass mirror; warranted against silver spoilage for 15 years
• Mirror extends 4" from wall at top and tapers to 1" at bottom
• 1630 dimensions: 16" x 30" (41 x 76 cm)
  1830 dimensions: 18" x 30" (46 x 76 cm)
  1836 dimensions: 18" x 36" (46 x 91 cm)
  2430 dimensions: 24" x 30" (61 x 76 cm)
• Special order custom sizes:
  Maximum size mirror: 36" x 48" (91 x 122 cm)

B-294 SERIES ANGLE FRAME TWO POSITION TILT MIRROR

• Tilt forward to provide full visibility for wheelchair patients or return to upright position
• Frame is 3⁄4" x 3⁄4" (19 x 19mm), type 304 stainless steel angle, satin finish
• Beveled edges of frame hug mirror; provides gapless fit for improved appearance, and safety when cleaning mirror
• No.1 quality, 1⁄4" (6mm) glass mirror; warranted against silver spoilage for 15 years
• Top of mirror tilts 7" (180mm) from wall with self-locking mechanisms; bottom of mirror mounts to wall with full-length stainless steel hinge
• 1630 dimensions:  16" x 30" (41 x 76 cm)
• Special order custom sizes:
  Maximum size mirror:  24" x 36" (61 x 91 cm)

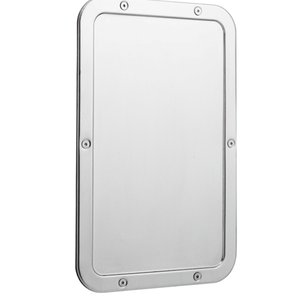

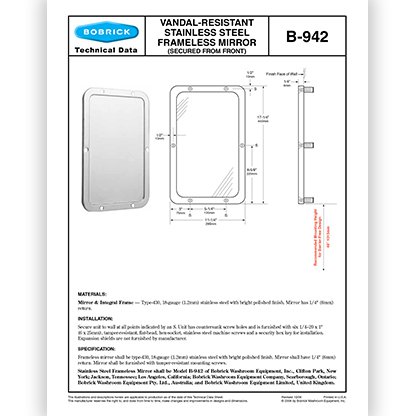

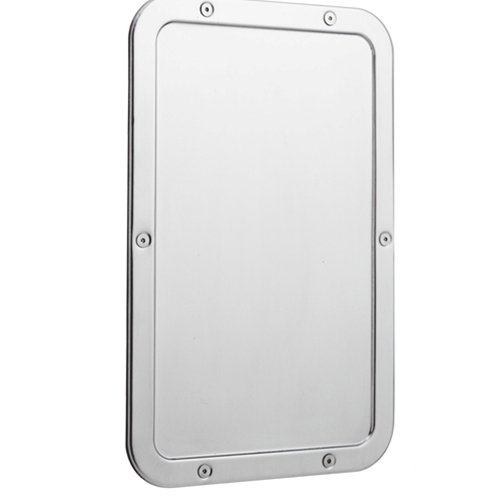

B-942 FRAMELESS MIRROR (FRONT SECURED)

• Mirror is 11-1⁄4" x 17-1⁄4" (285 x 440mm) overall; 1⁄4" (6mm) deep
• 18-gauge (1.2mm) type 430 stainless steel with bright polished finish


Bobrick – Building Value Since 1906

Bobrick is a century-old global washroom accessory and partition company with six manufacturing divisions across the United States and Canada, and business operations that extend into 85 markets worldwide.

A leader in product innovation and manufacturing, Bobrick prides itself as a company that delivers best-in-class products and service, while fostering an environment of collaboration and continuous learning.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.
© 2007 by Bobrick Washroom Equipment, Inc.
