Mirrors/Tilt Mirrors

Frost Product Specifications

Stock Series Mirrors

Frost Products is a leading manufacturer of mirrors for regular and barrier free installations. We offer a wide range of mirror designs and sizes to
suit any requirement for both commercial and institutional installations. The following outlines the various products available.

• Code 941: Standard vandal resistant mirror
• Code 941AT: Barrier free adjustable tilt mirror
• Code 941FT: Barrier free fixed tilt mirror
• Code 941TG: Tempered glass mirror
• Code 941LM: Laminated glass mirror
• Code 941SS: Stainless steel face mirror
• Code 942: Frameless mirror
• Code 942SS: Frameless stainless face mirror
• Code 945: Solid Frame mirror
• Code 945FT: Solid Frame, Barrier free fixed tilt mirror

Stock Series Handicap Mirrors

• Code 941AT: Adjustable tilt (handicap)
• Code 941FT: Fixed tilt (handicap)
• Specifications: One piece frame of type 430 bright annealed polished stainless steel with mitred corners. Fixed tilt portion of mirror is
  20 ga. bright annealed stainless steel. Mirror is  4 mm float glass conforming to GS12GD5A type IB guaranteed against silver spoilage for 10 years. Mirror back plate consists of shock resistant primary back combined with galvanized secondary back. Vandal resistant mounting.

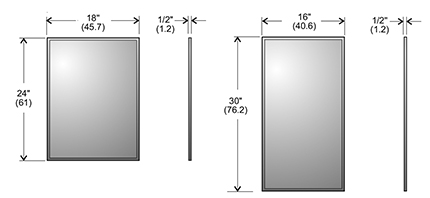

• Standard size: 18" (46 cm) x 24" (61cm) and 16" (40.6 cm) x 30"
  (76.2 cm).

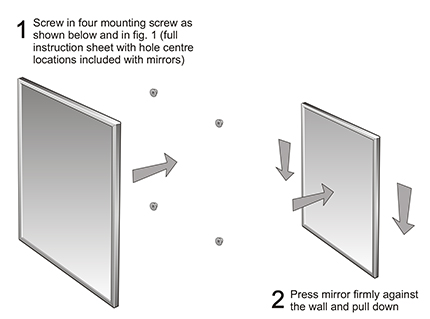

• Installation: Position bottom of tilt mirrors 48" (121) from floor. Positions may vary depending on the type of installation.

Stock Series Mirrors

• Code 941-1624: Vandal resistant mirror, 16" x 24"
• Code 941-1630: Vandal resistant mirror, 16" x 30"
• Code 941-1824: Vandal resistant mirror, 18" x 24”
• Code 941-1830: Vandal resistant mirror, 18" x 30"
• Code 941-2424: Vandal resistant mirror, 24" x 24"
• Code 941-2430: Vandal resistant mirror, 24" x 30"
• Code 941-2436: Vandal resistant mirror, 24" x 36"

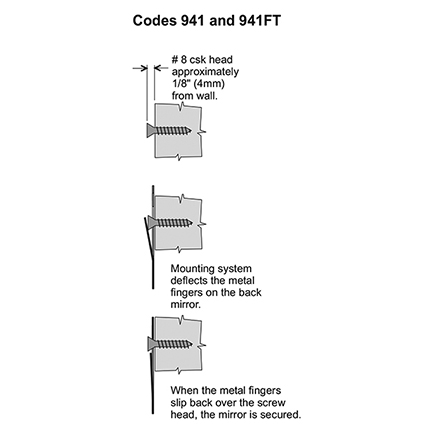

• Specifications: One piece stainless steel channel frame with mitred corners provides rigid assembly. Comes in bright annealed finish. Vandal resistant concealed three way mounting. Comes in flush wall mount and fixed tilt. 4 mm glass with shock resistant primary back. Full galvanized back panel.
• Shipping Weight: 10 kg. (23 lbs.), shipped two per carton.
• Installation: Position bottom of non tilt mirrors 39" (100 cm) from floor. Positions may vary depending on the type of installation.

Frost Guarantee

Frost products are guaranteed from defects in workmanship or material for a period of one year from date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.

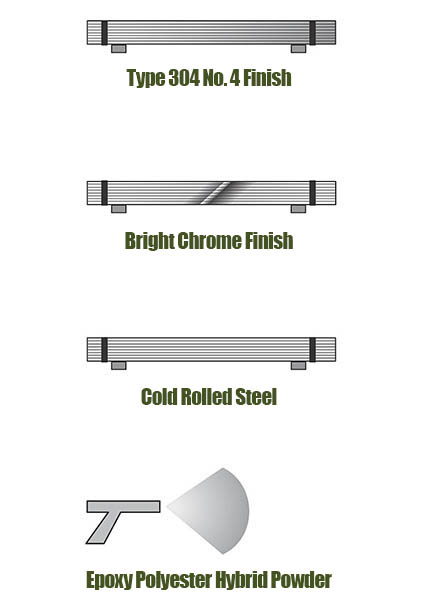

Frost Materials and Finishes

Type 304 No. 4 Finish: Type 304 stainless steel is a standard all-purpose grade, recommended for food, dairy, chemical and medical industries. It is also widely used in architectural applications due to its excellent corrosion resistance. The No.4 finish is widely used in restaurant, architectural, medical and food processing products. All Frost stainless steel products are shipped with a removable protective plastic coating to insure a blemish free product when installed on site.

Bright Chrome Finish: These products are fabricated from pre-chromed sheet steel, using the same processes as stainless steel, to provide an unblemished final product. Frost ships all pre-chromed products with a protective plastic film which is easily peeled off after installation.

Cold Rolled Steel: Frost uses a variety of material thicknesses ranging from 16 to 26 gauge. The variety of material gauges provide the optimum balance between durability and economy. All cold rolled stock is oiled and rust free during fabrication, and degreased before final finishing.

Epoxy Polyester Hybrid Powder: After a thorough degreasing, the assembled cold rolled products are coated with a formulated epoxy hybrid powder to a thickness of approximately 3 mls. An even coating is achieved by electrostatically charging the powder particles and spraying them onto the grounded product. All coated products are then oven cured at 400 degrees F. The result is a superior baked on finish with excellent mechanical/chemical characteristics and U.V. durability.

Detailed technical specifications are available upon request, or see our Downloads tab for information in pdf format.

Guarantee: Frost products are guaranteed from defects in workmanship or material for a period of one year from the date of purchase. If any Frost product proves to be defective, it will be repaired or replaced without charge.
