MARKAR CONTINUOUS HINGES SPECIFICATIONS

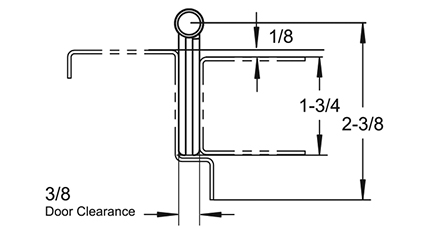

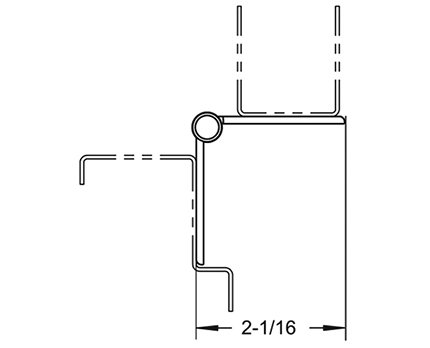

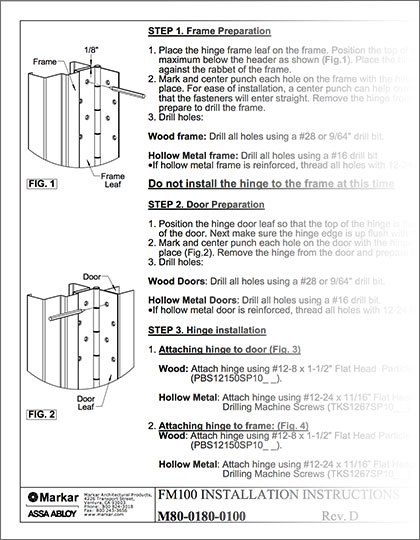

FM100 Edge Mount Aluminum Hinge

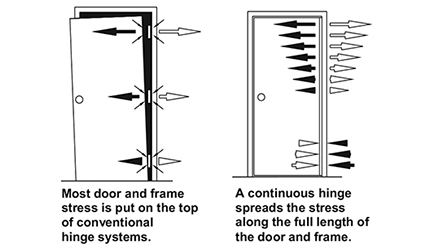

This door-edge mounted aluminum pin & barrel type hinge is extruded using 30% more aluminum than most geared hinges, giving it exceptional strength and durability. This product is specified in lieu of pivots or butt hinges due to its unique design which distributes the weight of the door down the entire length of the hinge. The 100 Series hinge is extruded using 6063-T6 aluminum alloy.

Standard Features:

• Barrel Type Hinge:  0.187" diam. (3/16") stainless steel pin (rod) with flanged nylon bearings and steel end pins
• Bearings:  Life-long medical bearings for permanently lubricated hinges with no metal to metal contact
• Material:  Extruded aluminum 6063-T6 alloy
• Finishes:  Clear Anodized (628),  Dark Bronze Anodized (313)
• Models Available:  Edge mount, Full surface / flush mount, Half surface, Edge guard, Hinge guard
• Standards:  ANSI/BHMA A156.26 Grade 2
• Mounting Hardware:  Fasteners concealed when door is closed; wniversal screw pack provided
• Capacity:  Supports weights up to 600 lbs.; 4/0 maximum door width x 10/0 door height
• Standard Sizes:  6/8, 7/0, 7/2, 8/0, 10/0
• Hole Pattern:  Symmetrically templated
• Handing:  Not required for standard 7/0, 8/0 or 10/0. Handing required for 6/8 and 7/2 and for most optional features listed.

• Finishes:  Light Bronze Anodized (311), Black Anodized (315), Scratch-Resistant Powder Coated Paint

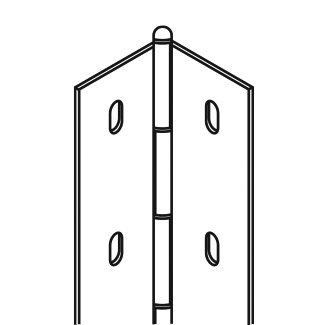

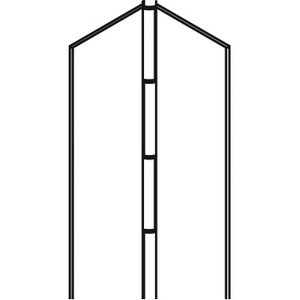

• Custom Lengths:  Specify as inches; custom hole pattern

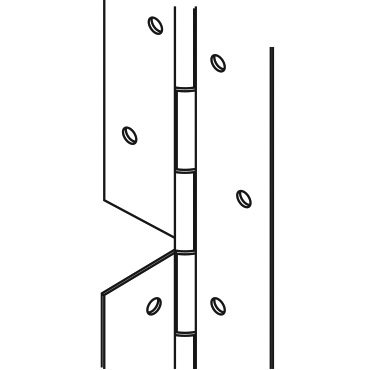

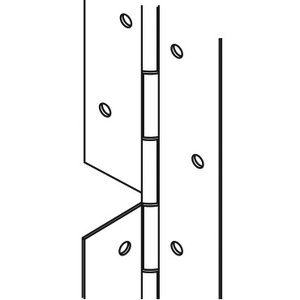

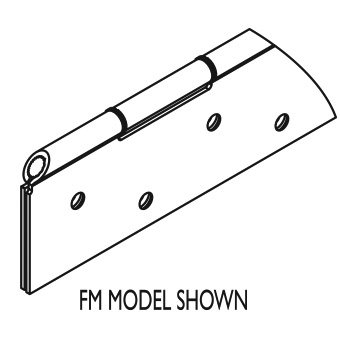

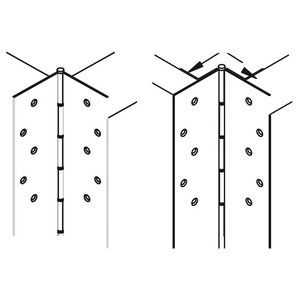

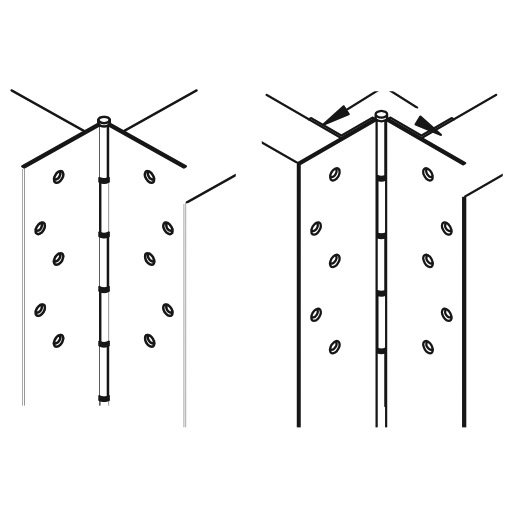

• Custom Options:  Dutch Door hinges - suffix "DDP"; Hospital Tips - suffix "HT"

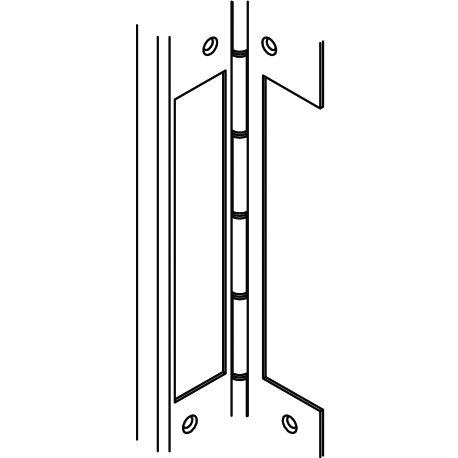

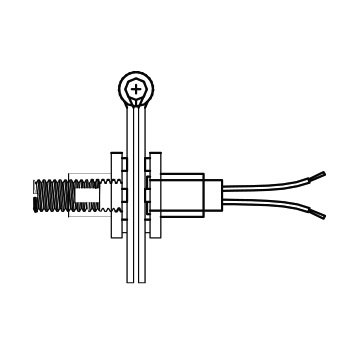

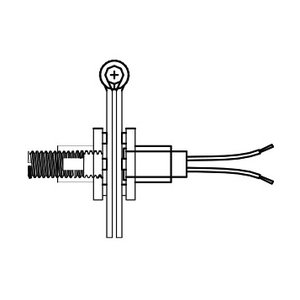

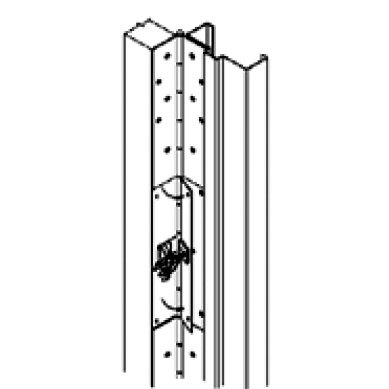

• Electrical Modifications:  Current Transfer Prep - suffix “CTP”; Adjustable Monitoring Switch - suffix “AMS”; Electrical Transfer Access Prep - suffix “ETAP”

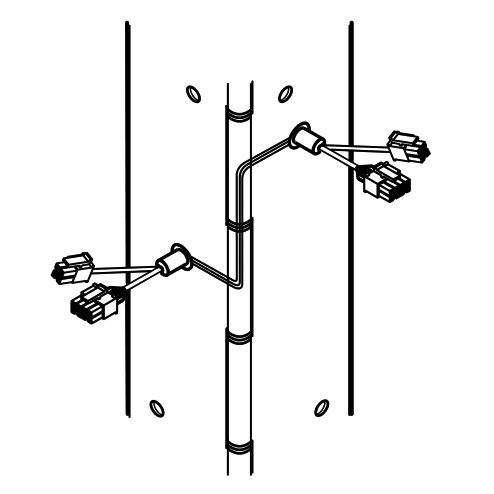

• ElectroLynx™:  EL4 (4 wire),  EL8 (8 wire),  EL12 (12 wire)

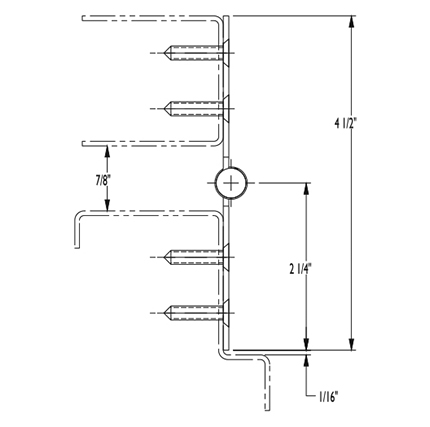

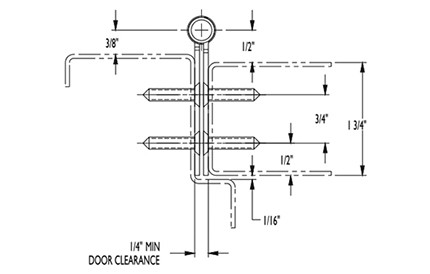

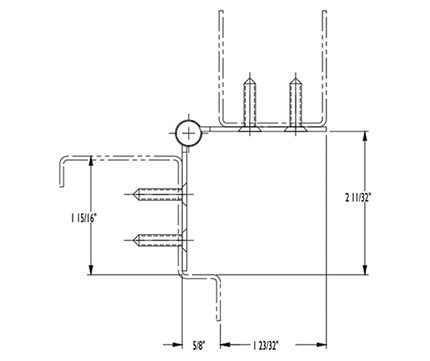

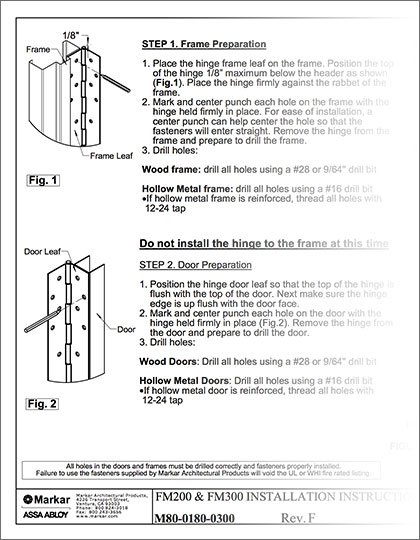

FM300 Fire Rated Edge Mount Stainless Steel Hinge

This edge-mounted pin & barrel hinge is used on many of today’s high traffic, high abuse doors. The hinge works well in locations that would normally call out for anchor hinges, pivot reinforcement hinges or thrust pivot unit and hinge sets. This hinge saves on special door and frame preparation charges and makes the installer’s job easier. It can be used on both fire labeled and non-labeled openings. The 300 Series is manufactured from heavy-duty 14 gauge 304 stainless steel and supports weights up to 600 lbs. A wide variety of configurations are available, including models with Adjust-A-Screw fasteners.

Fire Rating:

• Classified in accordance with UBC standard 7-2 for positive pressure

• 20 minutes – wood doors

• 90 minutes – hollow metal and composite core wood fire doors

• 3 hours – hollow metal doors mounted singly

Standard Features:

• Barrel Type Hinge:  0.187" diam. (3/16") stainless steel pin (rod) with flanged nylon bearings
• Bearings:  Life-long medical bearings for permanently lubricated hinges with no metal to metal contact
• Material:  Heavy-duty 14 gauge stainless steel
• Finishes:  US32D Satin Stainless Steel (630)
• Standards:  ANSI/BHMA Standard A156.26, Grade 1
• Mounting Hardware:  Fasteners concealed when door is closed; universal screw pack provided
• Capacity:  Supports weights up to 600 lbs.; 4/0 maximum door width x 10/0 door height
• Standard Sizes:  6/8, 7/0, 7/2, 8/0, 10/0
• Hole Pattern:  Symmetrically templated
• Handing:  Not required for standard 7/0, 8/0 or 10/0. Handing required for 6/8 and 7/2 and for most optional features listed.
• Fire Rating:  3 hours - hollow metal doors; 90 minutes - hollow metal and composite core wood fire doors; 20 minutes - wood doors
• Classified in accordance with UL10C for positive pressure; fire-rated label

Optional Features:

• Finishes:  Scratch-resistant powder coated paint

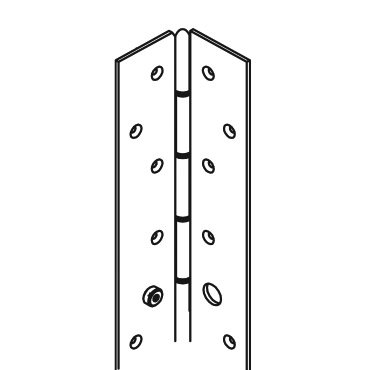

• Fasteners:  Tamper-proof security screws

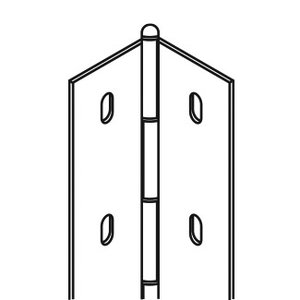

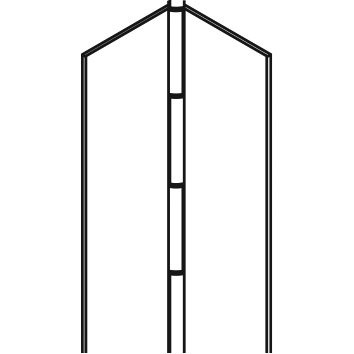

• Custom Lengths:  Specify as inches; custom hole pattern

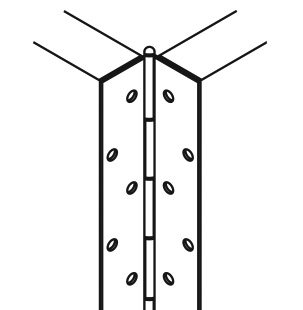

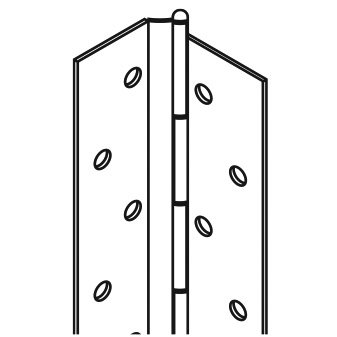

• Custom Options:  Dutch Door hinges - suffix "DDP"; Hospital Tips - suffix "HT"; Raised Barrel - suffix "RB"; Special Sheared Leaf

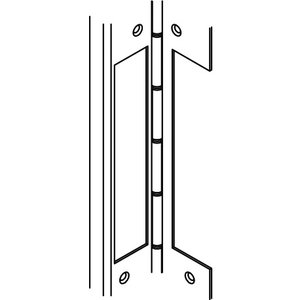

• Electrical Modifications:  Current Transfer Prep - suffix “CTP”; Adjustable Monitoring Switch - suffix “AMS”; Electrical Transfer Access Prep - suffix “ETAP”
• ElectroLynx™:  EL4 (4 wire),  EL8 (8 wire),  EL12 (12 wire)

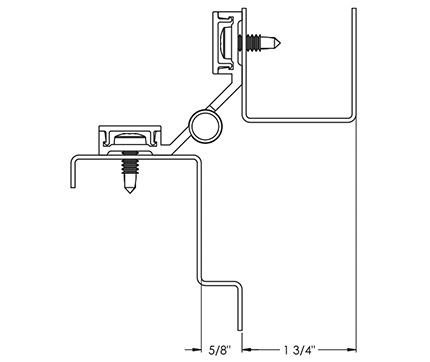

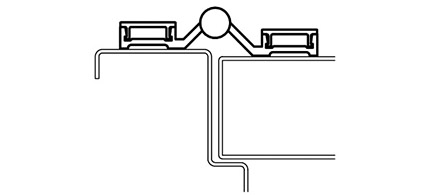

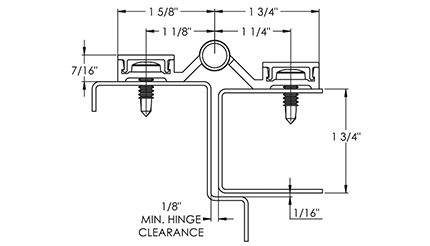

FS101 Full Surface Aluminum Hinge - 1/8" Inset

For all 1-3/4” doors up to 600 lbs. Used to solve door sag problems, aligning retrofit doors to their existing frames with no need to re-adjust weather stripping.

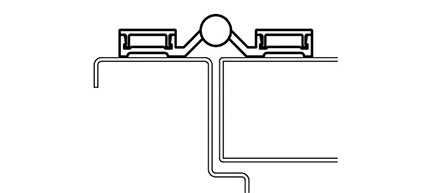

FS102 Full Surface Flush Mount Aluminum Hinge

For all 1-3/4” doors up to 600 lbs. Used to solve door sag problems, aligning retrofit doors to their existing frames.

Standard Features:

• Non-handed
• Barrel Type Hinge:  0.25" diam. (1/4") steel pin (rod) with Teflon coating and hinge pin cap
• Exterior Barrel:  .515 diam. (1/2")
• Each Knuckle:  2”, including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation
• Bearings:  Life-long medical bearings for permanently lubricated hinges with no metal to metal contact
• Material:  Extruded aluminum 6063 -T6 alloy
• Finishes:  Anodized (anodized clear, black, dark bronze, light bronze)
• Standards:  ANSI/BHMA Standard A 156.26, Grade 2
• Mounting Hardware:  Fasteners concealed when door is closed; universal screw pack provided
• Capacity:  Supports weights up to 600 lbs.; 4/0 maximum door width x 10/0 door height
• Hole Pattern:  Symmetrically templated

Optional Features:

• Finishes:  Scratch-resistant powder coated paint
• Fasteners:  Tamper-proof security screws
• Custom Lengths:  Specify as inches; custom hole pattern
• Custom Options:  Dutch Door hinges - suffix "DDP"; Hospital Tips - suffix "HT"

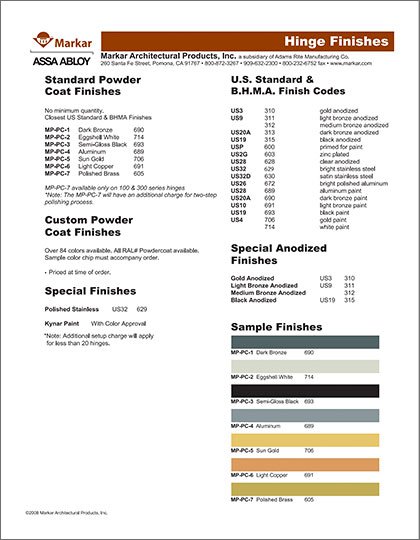

Hinge Finish Options:

Markar hinges are available in a wide range of colors and finishes including Standard Powdercoat finishes and US Standard & BHMA Finishes. Custom Powdercoat and Special Anodized finishes can also be specified.

For additional information, see Downloads tab.

How to Hand a Door

Door handing is typically determined by examining the exterior of the doorway; however keep in mind that door handing and swing terminology may vary slightly depending on the supplier or region. The following diagrams illustrate how to properly hand single and double doors.

For example, if you are standing next to the door—facing away from it with the hinge on your right side and the door opens inward, it is left handed. If the door opens outward from this same position it is left hand reverse.
