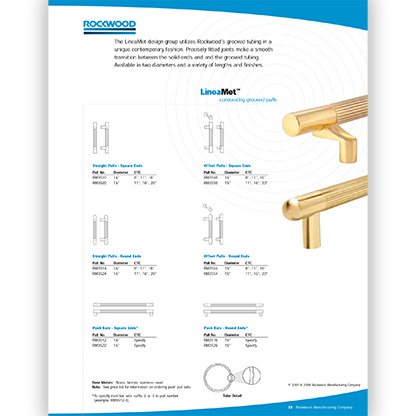

LineaMet Collection

The LineaMet Collection utilizes grooved materials in an unmatched contemporary fashion.

The visual cue on the push bars is subtle but effective in indicating which side of the door swings open.

Available in 3 pull diameters and 2 push bar diameters in a variety of lengths and finishes.

Designs
Specifications
Options
Finishes
Downloads

RM3510 - straight pull, square ends

1-1/4" diameter

8", 11", 16" CTC

3" projection

RM3512 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM3514 - straight pull, round ends

1-1/4" diameter

8", 11", 16" CTC

3" projection

RM3515 - straight push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3516 - push bar, round ends

1-1/4" diameter

Specify CTC

3" projection

RM3517 - straight push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3520 - straight pull, square ends

1-1/2" diameter

11", 16", 20" CTC

3-1/4" projection

RM3522 - push bar, square ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3524 - straight pull, round ends

1-1/2" diameter

11", 16", 20" CTC

3-1/4" projection

RM3525 - straight push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3526 - push bar, round ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3527 - straight push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3540 - offset pull, square ends

1-1/4" diameter

8", 11", 16" CTC

2-3/4" projection

RM3544 - offset pull, round ends

1-1/4" diameter

8", 11", 16" CTC

2-3/4" projection

RM3545 - offset push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3547 - offset push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3550 - offset pull, square ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3554 - offset pull, round ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3555 - offset push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3557 - offset push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-3/4" projection

LineaMet Collection Specifications

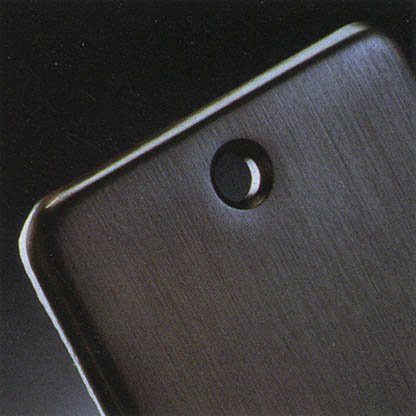

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the LineaMet Collection are stainless steel, brass or bronze.

Rockwood Door Pulls – Mounting Types

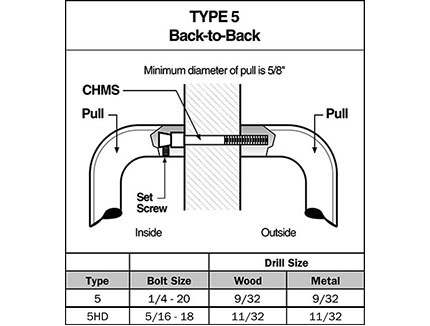

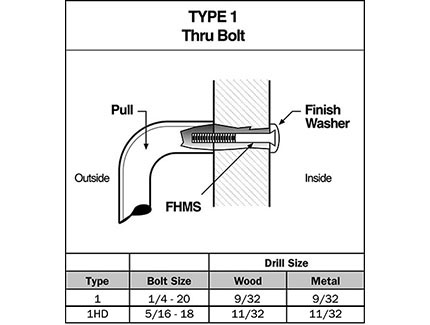

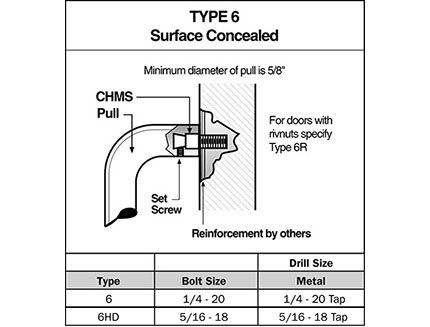

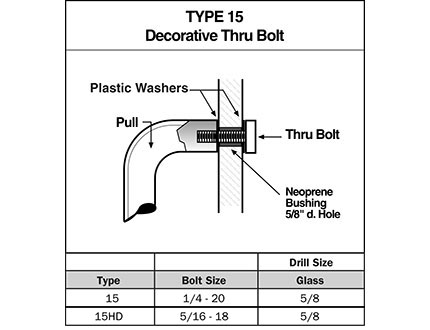

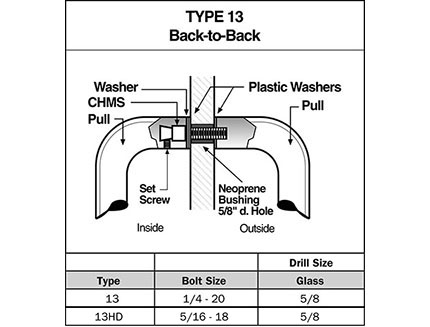

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM3512-2).

Straight Pull - Square Ends

RM3510 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"

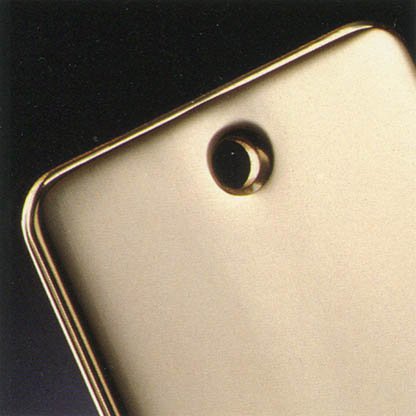

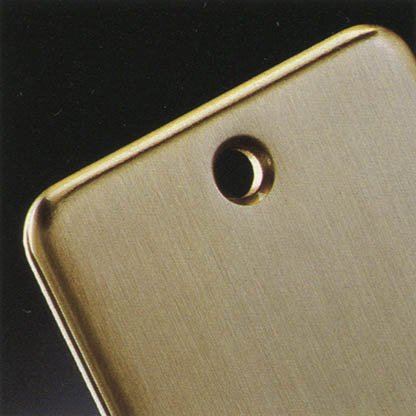

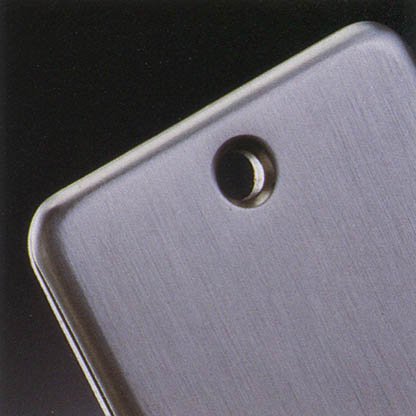

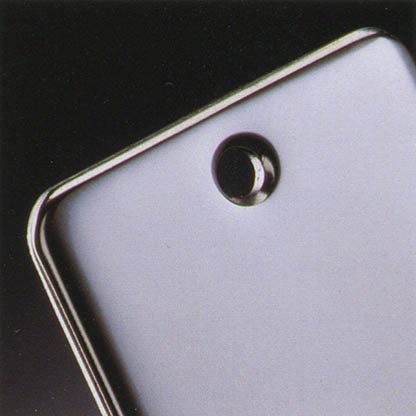

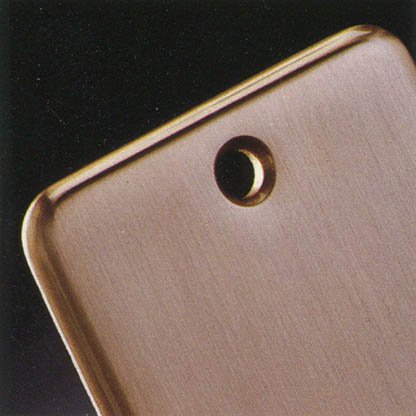

Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3520 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Round Ends

RM3514 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3524 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Square Ends

RM3540 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3550 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Round Ends

RM3544 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3554 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set – Square Ends

RM3515 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3525 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set – Round Ends

RM3517 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3527 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set – Square Ends

RM3545 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3555 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set – Round Ends

RM3547 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3557 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Square Ends

RM3512 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3522 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Round Ends

RM3516 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3526 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
