Hardware > Sliding Tracks > Dual Bypass Track > KN Crowder

Light Duty C-600

Light Duty Bypass Track For Plywood, Special Material, Solid Core & Mirror Covered Doors

C-600 Series, Top Mount (Light Duty):
3/4" to 1-3/8" Door Thickness

This series is top mount for true vertical hang on doors. Six nylon wheels per door. Features vertical adjustment by threaded door top plate and locknut.

Designs
Specifications
Options
Finishes
Downloads

C-600 hanger kit

Top mounting for light loads

3/4" to 1-3/8" door thickness

3 wheels per hanger

75 lbs. load capacity

Crowder C-Series Dual Bypass Track Systems Specifications

COMPLETE KITS AVAILABLE FOR DOORS 24” TO 72” WIDE, WITH HARDWARE INCLUDED FOR TWO DOORS.

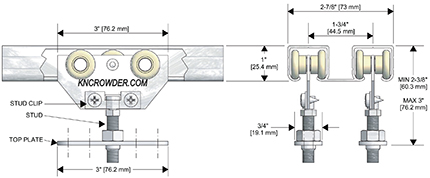

C-600 Top Mount Hanger with C-600 Sliding Track

This series is top hung for true vertical hang on doors. Six nylon wheels per door. Features vertical adjustment by threaded door top plate and locknut.

Residential, Hotel Applications
Light Duty
For 3/4" to 1-3/8" Door Thickness
75 LBS (2 Hangers)
Adjustable Nylon Wheel Hanger

1 - C-600 TRACK LENGTH: 2 X DOOR WIDTH
(EXAMPLE: 36” DOOR = 72” TRACK)

4 - C-600 HANGERS COMPLETE WITH SCREWS

1 - C-1205 SELF-ALIGNING FLOOR GUIDE COMPLETE WITH SCREWS

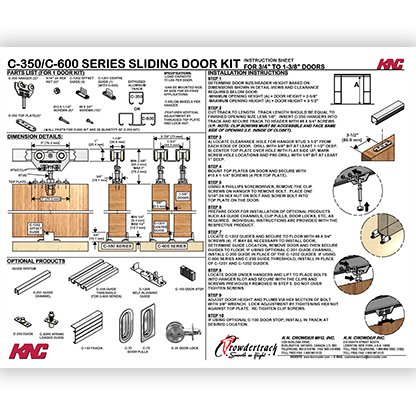

See Downloads tab for additional information and installation instructions.
