LCN 5030 Series

The concealed 5030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1-3/4” aluminum transom.

The double lever arm provides superior door control and the choice of finishes and arm functions meet virtually all architectural requirements.

The 5030 Series is UL listed with regular arms for self-closing doors; tested and certified under ANSI Standard A156.4.

Specifications
Options
Finishes

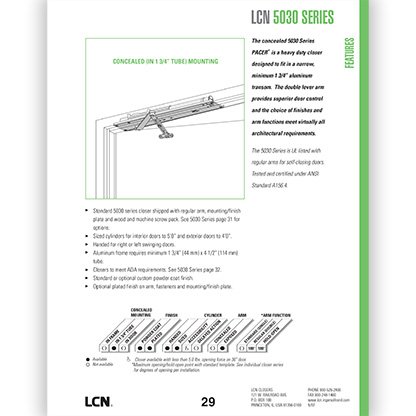

Downloads

Specifications

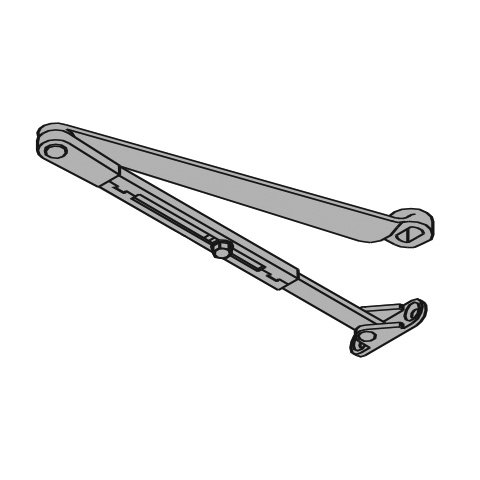

Standard 5030 series closer shipped with regular arm, mounting/finish plate and wood and machine screw pack.
Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
Handed for right or left swinging doors.
Aluminum frame requires minimum 1-3/4” (44 mm) x 4-1/2”
(114 mm) tube.
Closers to meet ADA requirements.
Standard or optional custom powder coat finish.
Optional plated finish on arm, fasteners and mounting/finish plate.

Mounting Details

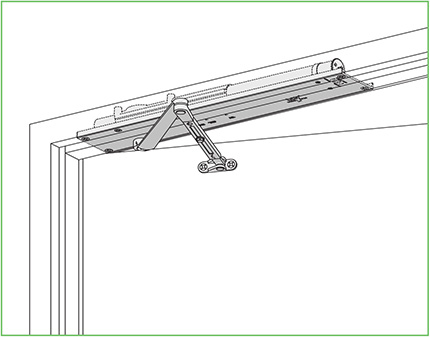

CONCEALED MOUNTING: For interior or exterior doors. Single acting cylinder in head frame. Exposed arm on push side of door.

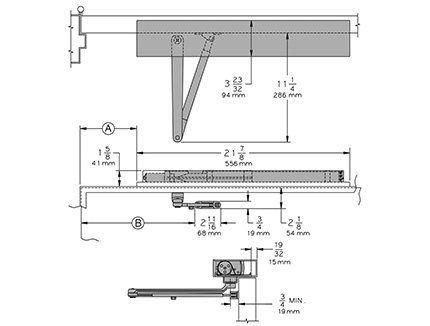

MAXIMUM OPENING: Butt hung doors can be templated for 100°:
A = 5 13/16” (148 mm); B = 11 13/16” (300 mm). Maximum opening to 180°: A = 2 1/16” (52 mm); B = 8 1/16” (205 mm); trim permitting. Hold-open points up to maximum opening with hold-open arms. Center pivot mounting restricts opening to 120°. Offset pivot mounting allows up to 115°, trim permitting.

Butt Hinges should not exceed 6” (152 mm) in width.
Auxiliary Stop is recommended at hold-open point or where the door cannot swing 180°.
Wood Frame installation simplified by WOOD MOUNTING CLIP SET
5030-416 for center pivoted or 5030-417 for offset pivoted and butt hung installations. Consult Penner for preparation details.
Top Rail minimum 2 1/8” (54 mm) required.
Door Thickness maximum 1-3/4” (44 mm); for thicker doors,
consult Penner.

LCN Finishes

STANDARD POWDER COATED FINISH: LCN door closers feature the finest, state-of-the-art metal finishing process available. LCN powder coating provides superior protection against the effects of weathering and is an environmentally friendly process. The high quality, chip resistant finish is far superior to any previously offered. Corrosion resistance surpasses 100 hours salt spray testing (four times the industry standard). Non-metallic components also provide the same high resistance to the effects of the elements. All LCN products must be shipped with a finish.

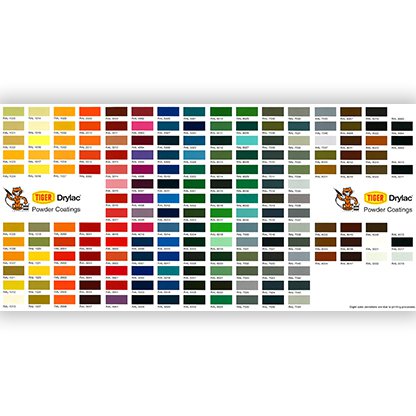

OPTIONAL CUSTOM POWDER COATED FINISHES: LCN offers optional custom powder coat colors to compliment special installations. This provides a custom appearance and all the corrosion resistance of standard powder coated finishes at a nominal additional cost. See Downloads tab for available custom colors.

OPTIONAL PLATED FINISHES: Visible components such as covers, arms, fasteners, and finish plates are plated to match the selected finish. Surface mounted tracks are powder coated to complement the plated finish. Hidden assemblies such as cylinders, tracks, and mounting plates are supplied with a powder coated finish.

SPECIAL RUST INHIBITING (SRI) PROCESS: For installations where a higher level of protection against weathering, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a powder finish coat in your choice of either an LCN standard color or optional extra charge custom colors. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes.
