LCN 4050 Series

A combination of quality, reliability and value, this heavy-duty cast aluminum closer is ideal for commercial building applications and competitive specification situations. The 4050 Series is engineered for durability and built tough to excel in the harsh environments of high frequency, highly abusive traffic areas.

Specifications
Options
Finishes
Downloads

Specifications

Offers premium features such as powder coating, full complement bearing, all-weather fluid and a 25-year limited warranty
Meets BAA (Buy America Act) and ADA reduced opening force requirements
Universal non-handed
Adjustable spring sizes 1-6
The 4050 series is UL and cUL listed
Tested and certified under ANSI/BHMA A156.4 Grade 1

Mounting Details

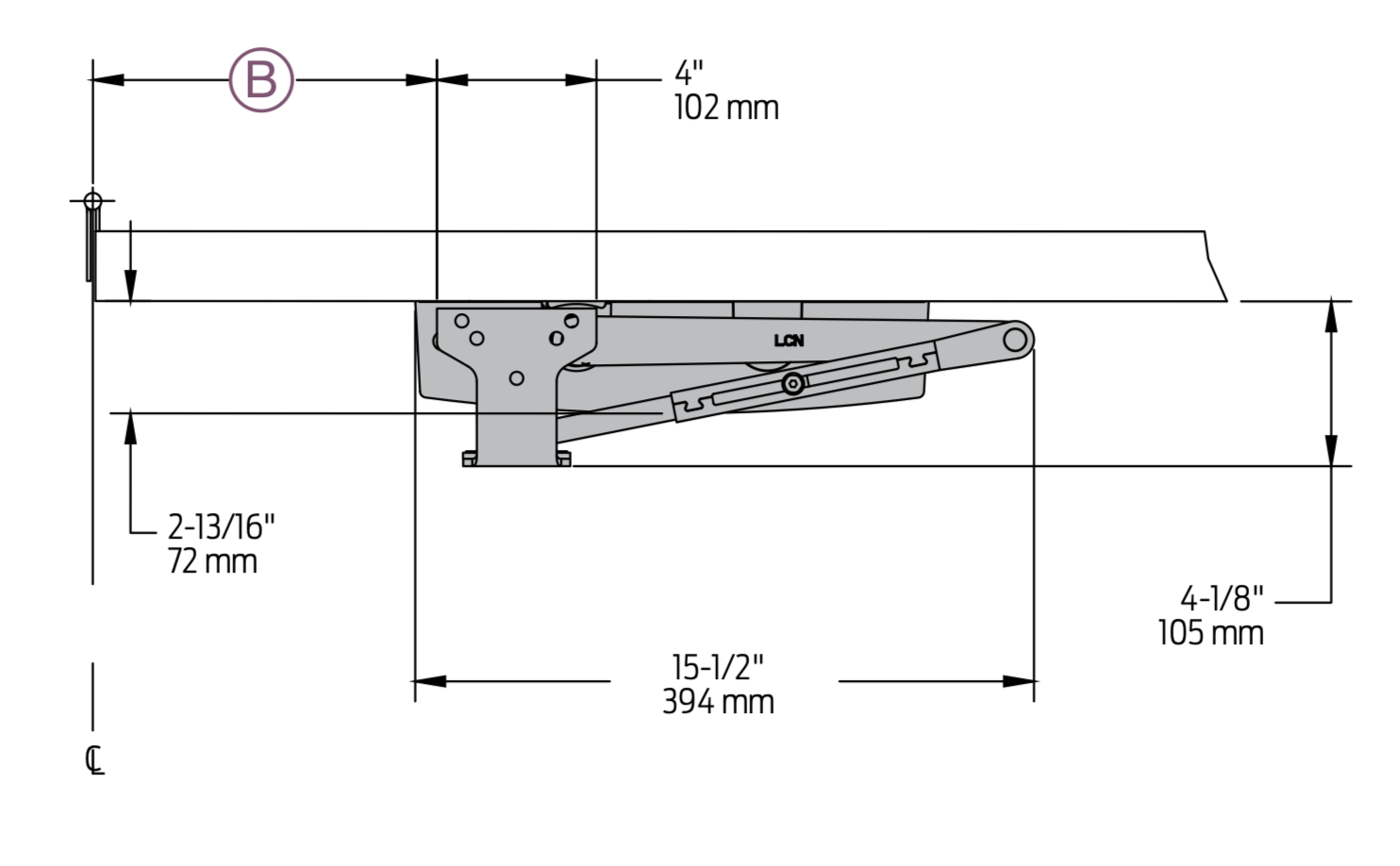

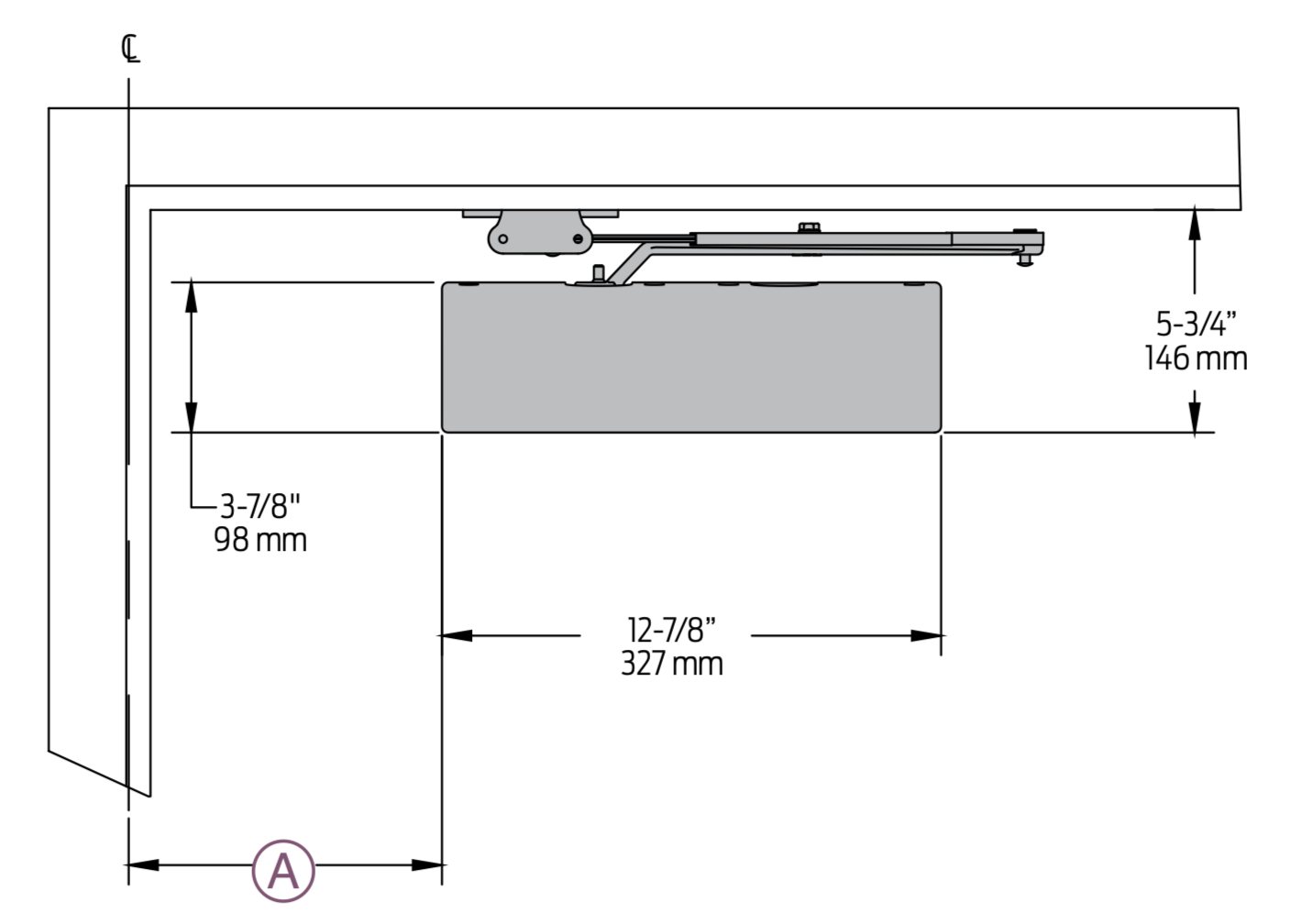

The 4050 Series mounts hinge pull side, push side top jamb and push side parallel arm push side.

LCN Finishes

STANDARD POWDER COATED FINISH: LCN door closers feature the finest, state-of-the-art metal finishing process available. LCN powder coating provides superior protection against the effects of weathering and is an environmentally friendly process. The high quality, chip resistant finish is far superior to any previously offered. Corrosion resistance surpasses 100 hours salt spray testing (four times the industry standard). Non-metallic components also provide the same high resistance to the effects of the elements. All LCN products must be shipped with a finish.

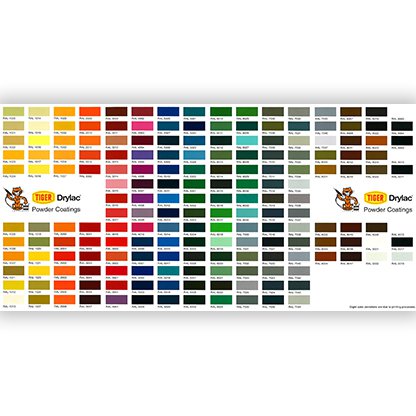

OPTIONAL CUSTOM POWDER COATED FINISHES: LCN offers optional custom powder coat colors to compliment special installations. This provides a custom appearance and all the corrosion resistance of standard powder coated finishes at a nominal additional cost. See Downloads tab for available custom colors.

OPTIONAL PLATED FINISHES: Visible components such as covers, arms, fasteners, and finish plates are plated to match the selected finish. Surface mounted tracks are powder coated to complement the plated finish. Hidden assemblies such as cylinders, tracks, and mounting plates are supplied with a powder coated finish.

SPECIAL RUST INHIBITING (SRI) PROCESS: For installations where a higher level of protection against weathering, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a powder finish coat in your choice of either an LCN standard color or optional extra charge custom colors. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes.

4050-3071 Cast Aluminum Cylinder Assembly

Cast Aluminum Cylinder Assembly, non-handed, heavy duty

4050-3071 DEL cylinder

Cast Aluminum Cylinder Assembly, cylinder used for delayed action closing, non-handed, heavy duty

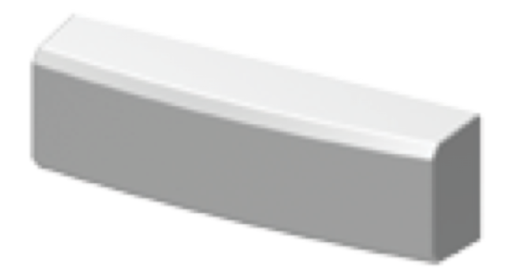

4050-72 cover

Plastic Cover, non-handed, standard

4050-72 MC cover

Metal Cover, non-handed, required for plated finishes and custom powder coat finishes, optional

4050-72 ALT cover

Alternate Cover, non-handed, optional, sold separately (not packed with closer)

4050-72 ALT cover

Alternate Cover, non-handed, optional, sold separately (not packed with closer)

4050-18 plate

Plate, required for hinge side mount where top rail is less than 3-7/8 ̋ (98 mm), requires minimum 1-3/4 ̋ (44 mm) top rail

4050-18 G plate

Plate, locates top jamb mounted closer flush with top of head frame face in flush ceiling condition

4050-18 PA plate

Plate, required for parallel arm mounting where top rail is less than 5-3/4 ̋ (146 mm), measured from the stop, requires 2-1/4 ̋ (57 mm) minimum top rail

4050-30 Cush Shoe Support

Cush shoe support provides anchorage for fifth screw used with CUSH arms, where reveal is less than 3-1/16 ̋ (78 mm)

4050-61 blade stop spacer

Blade Stop Spacer, required to lower parallel arm shoe to clear 1/2 ̋ (13 mm) blade stop

4050-419 flush panel adapter

Provides horizontal mounting surface for parallel arm shoe on single rabetted or flush frame

4050-62A auxiliary shoe

Auxiliary Shoe, requires a top rail of 7-13/16 ̋ (198 mm), replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop, optional

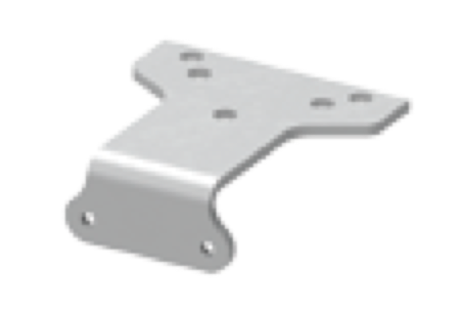

4050-62PA PA Shoe

PA Shoe, required for parallel arm mounting

4050-3077 Regular Arm

Regular Arm, non-handed, mounts pull side or top jamb with shallow reveal, includes PA SHOE, 4050-62PA required for parallel arm mounting

4050-3077l Long Arm

Long Arm, non-handed, includes LONG ROD AND SHOE, 4050-79LR for top jamb mount, optional

4050-3049 Hold-Open Arm

Hold-Open Arm, non-handed, mounts pull side or top jamb with shallow reveal, hold-open adjustable shoe, 4050 closer includes 4050-62PA shoe required for parallel arm mounting, optional

4050-3049 L Long Hold-Open Arm

Long Hold-Open Arm, non-handed, hold-open adjustable shoe, includes LONG HEAD AND TUBE, 4050-3048L for top jamb mount, optional

4050-3077 EDA Extra Duty Arm

Extra Duty Arm, non-handed, features forged, solid steel main and forearm for potentially abusive installations

4050-3049 EDA Hold-Open Extra Duty Arm

Hold-Open Extra Duty Arm, handed, features forged, solid steel main and forearm for potentially abusive installations, hold-open function is adjusted at the shoe

4050-3077 EDA/62G Extra Duty Arm With 62G

Extra Duty Arm With 62G, non-handed, features forged, solid steel main and forearm for potentially abusive installations, 62G shoe provides additional blade stop clearance for use with additional door hardware such as an overhead holder

4050-3049 EDA/62G Hold-Open Extra Duty Arm With 62G

Hold-Open Extra Duty Arm With 62G, handed, features forged, solid steel main and forearm for potentially abusive installations, 62G shoe provides additional blade stop clearance for use with additional door hardware such as an overhead holder hold-open function is adjusted at the shoe

4050-3077 CNS Cush-N-Stop® Arm

Cush-N-Stop® Arm, non-handed, features solid forged steel main arm and forearm with stop in soffit shoe, optional

4050-3049 CNS HCUSH Arm

HCUSH Arm, provides hold-open function with templated stop/hold-open points, handle controls hold-open function

4050-3077 SCNS Spring CUSH Arm

Spring CUSH Arm, non-handed, for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe, optional

4050-3049SCNS Spring HCUSH Arm

Spring HCUSH Arm, non-handed, for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe, handle controls hold-open function, optional
