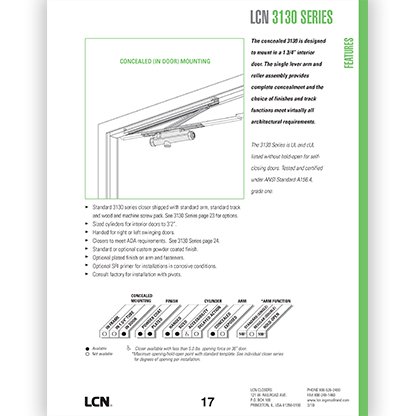

LCN 3130 Series

The concealed 3130 Series is designed to mount in a 1-3/4” interior door.

The single lever arm and roller assembly provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.

(UL and cUL listed without hold-open for self-closing doors; tested and certified under ANSI Standard A156.4, grade one.)

Specifications
Options
Finishes
Downloads

Specifications

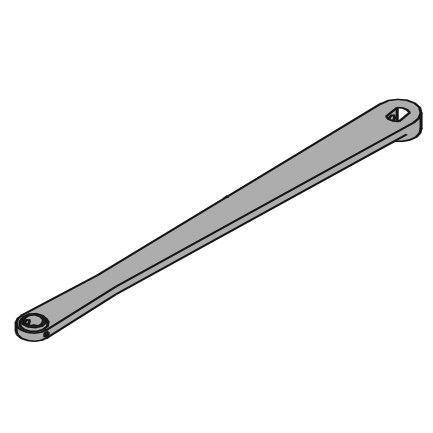

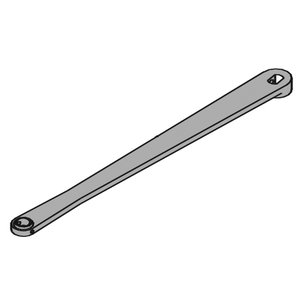

Standard 3130 series closer shipped with standard arm, standard track and wood and machine screw pack

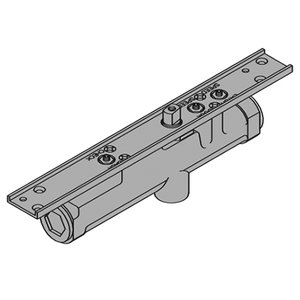

Sized cylinders for interior doors to 3’2”
Handed for right or left swinging doors
Closers to meet ADA requirements
Standard or optional custom powder coated finish
Optional plated finish on arm and fasteners
Optional SRI primer for installations in corrosive conditions
Consult Penner for installation with pivots

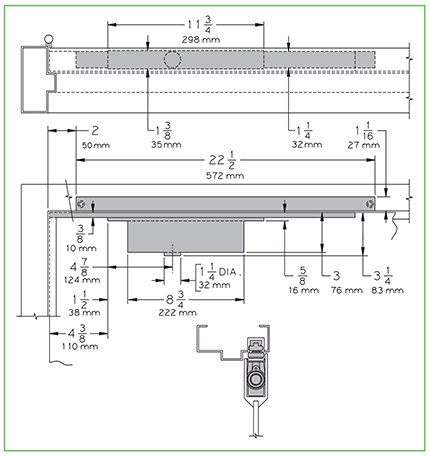

Mounting Details

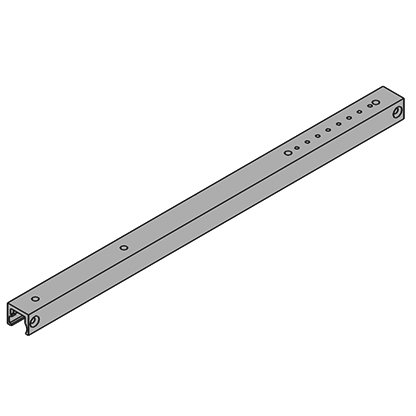

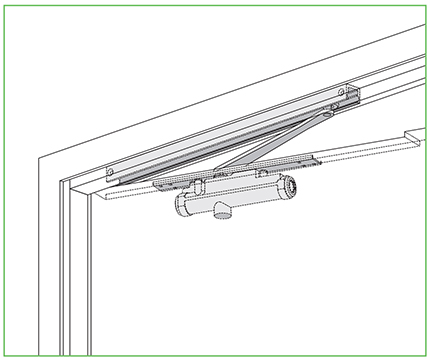

CONCEALED MOUNTING: For interior doors. Single acting cylinder and standard arm in top rail of door. Concealed track in head frame.

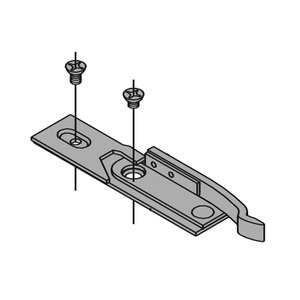

MAXIMUM OPENING: Templating allows 140°, trim permitting. 100° with optional bumper installed. Adjustable hold-open points from 85° to 100°, with hold-open track.

Butt Hinges should not exceed 5” (127 mm) in width.
Auxiliary Stop is recommended at hold-open point or where a door cannot swing 140°.

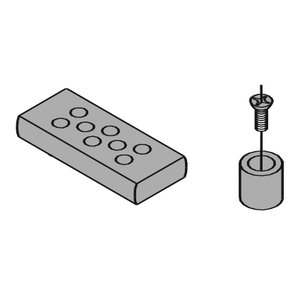

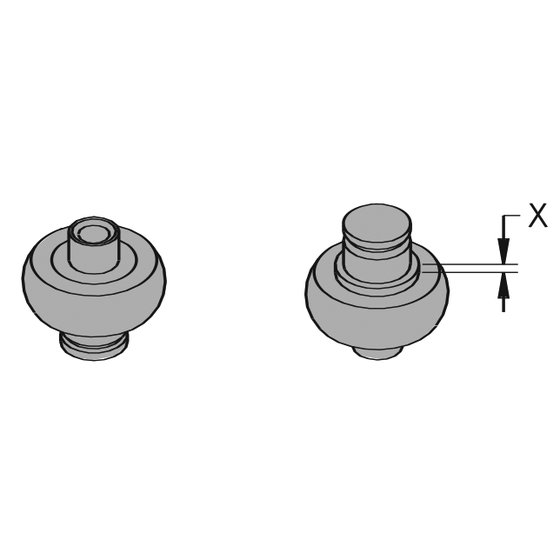

Optional Track Bumper assembly assists backcheck in cushioning the opening swing of the door. It is not intended to replace an auxiliary stop.
Top Rail minimum 4” (102 mm) required.
Door Thickness 1-3/4” (44 mm) minimum. Please consult the door manufacturer to assure that the door integrity and warranty is maintained after installing the 3130 Series door closer in a 1-3/4” thick wood door.
Door Width 2’2” (660 mm) minimum.

LCN Finishes

STANDARD POWDER COATED FINISH: LCN door closers feature the finest, state-of-the-art metal finishing process available. LCN powder coating provides superior protection against the effects of weathering and is an environmentally friendly process. The high quality, chip resistant finish is far superior to any previously offered. Corrosion resistance surpasses 100 hours salt spray testing (four times the industry standard). Non-metallic components also provide the same high resistance to the effects of the elements. All LCN products must be shipped with a finish.

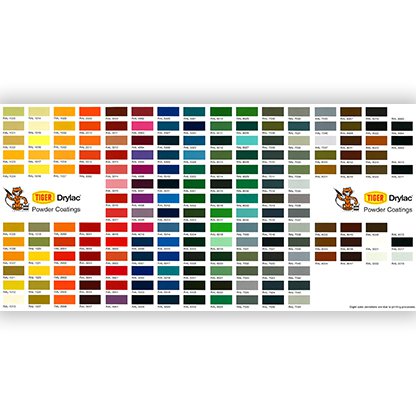

OPTIONAL CUSTOM POWDER COATED FINISHES: LCN offers optional custom powder coat colors to compliment special installations. This provides a custom appearance and all the corrosion resistance of standard powder coated finishes at a nominal additional cost. See Downloads tab for available custom colors.

OPTIONAL PLATED FINISHES: Visible components such as covers, arms, fasteners, and finish plates are plated to match the selected finish. Surface mounted tracks are powder coated to complement the plated finish. Hidden assemblies such as cylinders, tracks, and mounting plates are supplied with a powder coated finish.

SPECIAL RUST INHIBITING (SRI) PROCESS: For installations where a higher level of protection against weathering, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a powder finish coat in your choice of either an LCN standard color or optional extra charge custom colors. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes.
