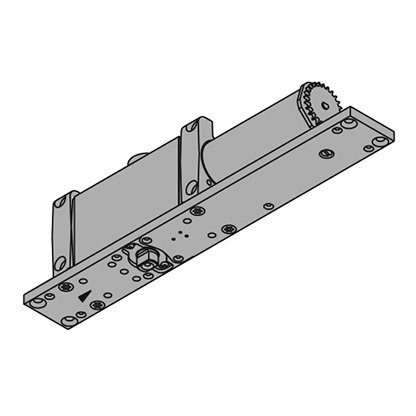

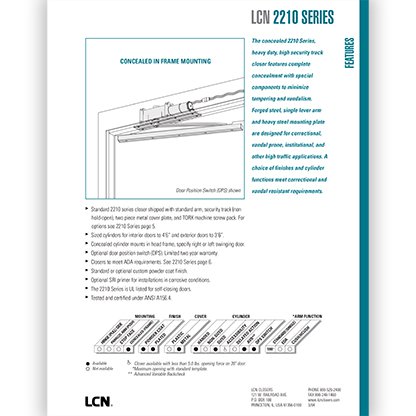

LCN 2210 Series

Specifications

• Standard 2210 series closer shipped with standard arm, security track (non hold-open), two piece metal cover plate, and TORX machine screw pack

• Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”.

• Concealed cylinder mounts in head frame, specify right or left swinging door

• Optional door position switch (DPS); limited two year warranty

• Closers to meet ADA requirements

• Standard or optional custom powder coat finish

• Optional SRI primer for installations in corrosive conditions

• The 2210 Series is UL listed for self-closing doors

• Tested and certified under ANSI A156.4

Mounting Details

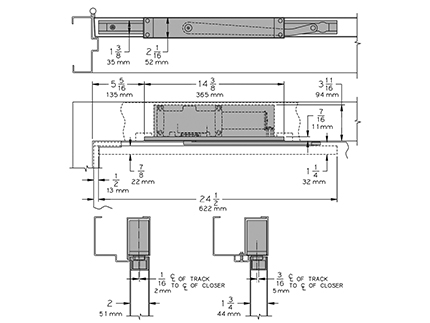

CONCEALED MOUNTING: For interior or exterior doors. Single acting cylinder in head frame. Concealed arm and track in top rail of door.

MAXIMUM OPENING: Templating allows 180°. Consult factory if door will be held open at 180°. Pivot mounting door limits opening to 110° and increases minimum door width to 32” (813 mm). Consult factory.

• Butt Hinges: Should not exceed 4 1/2” (114 mm) in width.

• Auxiliary Stop: Recommended where a door cannot swing 180°.

• Top Rail: 1 1/4” (32 mm) mortise required. 3/8” (10 mm) cutout required at top of door, stop face only.

• Door Thickness: 1 3/4” (44 mm) minimum.

• Door Width: 28” (711 mm) minimum.

• Head Frame: 5 3/4” (146 mm) wide and 4” (102 mm) high with 2 3/16” (56 mm) rabbet required. Consult factory if any dimension is less.

• Steel Mounting Plate: Thickness - 3/8” (10 mm).

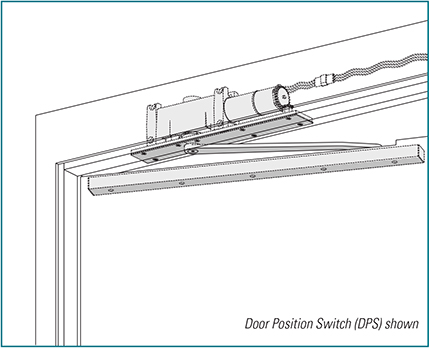

• Door Position Switch: Optional, field adjustable switch can interface with security and monitoring systems. Add suffix “DPS” to selected cylinder. Finish plates must be removed for access to adjustments. Provides normally open (N.O.) and normally closed (N.C.) circuit. A three wire connector harness with 84” (2134 mm), 16 AWG leads is furnished to simplify connection to field wiring. Single pole double throw (SPDT) contacts rated at 125/250 VAC at 10.1 amps maximum resistive load are standard.

• Advanced Variable Backcheck: Cylinder starts backcheck at approximately 45° instead of the normal 75°. Add suffix “AVB” to selected cylinder (eg. 2213 DPS AVB).

LCN Finishes

STANDARD POWDER COATED FINISH: LCN door closers feature the finest, state-of-the-art metal finishing process available. LCN powder coating provides superior protection against the effects of weathering and is an environmentally friendly process. The high quality, chip resistant finish is far superior to any previously offered. Corrosion resistance surpasses 100 hours salt spray testing (four times the industry standard). Non-metallic components also provide the same high resistance to the effects of the elements. All LCN products must be shipped with a finish.

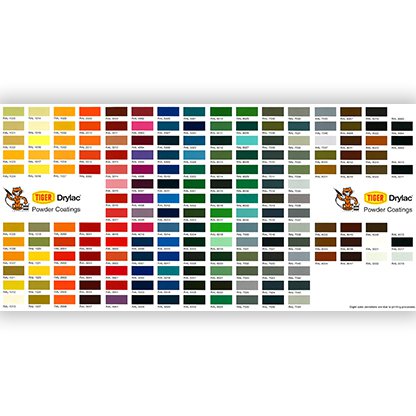

OPTIONAL CUSTOM POWDER COATED FINISHES: LCN offers optional custom powder coat colors to compliment special installations. This provides a custom appearance and all the corrosion resistance of standard powder coated finishes at a nominal additional cost. See Downloads tab for available custom colors.

OPTIONAL PLATED FINISHES: Visible components such as covers, arms, fasteners, and finish plates are plated to match the selected finish. Surface mounted tracks are powder coated to complement the plated finish. Hidden assemblies such as cylinders, tracks, and mounting plates are supplied with a powder coated finish.

SPECIAL RUST INHIBITING (SRI) PROCESS: For installations where a higher level of protection against weathering, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a powder finish coat in your choice of either an LCN standard color or optional extra charge custom colors. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes.
