LCN 2010 Series

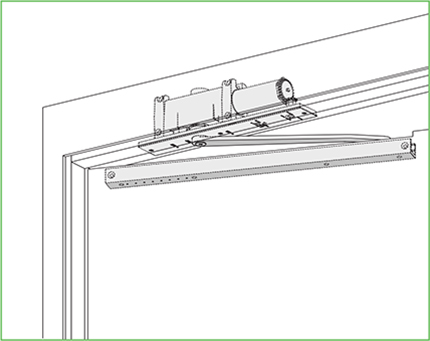

The concealed 2010 Series is a heavy duty closer designed to provide complete concealment.
The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
(The 2010 Series is UL & cUL listed for
self-closing doors without hold-open; tested and certified under ANSI Standard A156.4, grade 1.)
![](https://www.pennerdoors.com/content/product-logos/LCN_logo-variants/extra_large/LCN_logo.jpg)
![](https://www.pennerdoors.com/content/product-logos/cUL%20listed_logo_VKzQ1Wm_FBvxsp4-variants/extra_large/cUL%20listed_logo_VKzQ1Wm_FBvxsp4.png)
![](https://www.pennerdoors.com/content/product-logos/wheelchair_icon_MkI8fZ9-variants/extra_large/wheelchair_icon_MkI8fZ9.png)
- Specifications
- Options
- Finishes
- Downloads
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3071%20cylinder-variants/madero_thumb_square/2010-3071%20cylinder.jpg)
2010-3071 cylinder
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3071%20cylinder-variants/madero_full_tall/2010-3071%20cylinder.jpg)
Close
2010-3071 cylinder
Standard, handed, cast iron cylinder assembly with mounting plate
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3038%20standard%20track-variants/madero_thumb_square/2010-3038%20standard%20track.jpg)

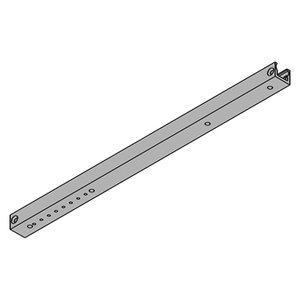

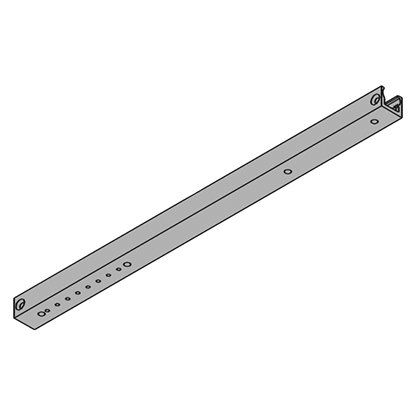

2010-3038 track
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3038%20standard%20track-variants/madero_full_tall/2010-3038%20standard%20track.jpg)
Close
2010-3038 track
Standard, non hold-open, non-handed track
Accepts hold-open clip and/or bumper assembly
Accepts hold-open clip and/or bumper assembly
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3038%20standard%20track_-variants/madero_thumb_square/2010-3038%20standard%20track_.jpg)
2010-3038B track & bumper
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3038%20standard%20track_-variants/madero_full_tall/2010-3038%20standard%20track_.jpg)
Close
2010-3038B track & bumper
Non hold-open, non-handed track with bumper
Accepts hold-open clip
Accepts hold-open clip
![](https://www.pennerdoors.com/content/variant-hero-image/2010-420%20fire%20shield-variants/madero_thumb_square/2010-420%20fire%20shield.jpg)
2010-420 fire shield
![](https://www.pennerdoors.com/content/variant-hero-image/2010-420%20fire%20shield-variants/madero_full_tall/2010-420%20fire%20shield.jpg)
Close
2010-420 fire shield
22 gauge steel liner
Mounts in track mortise of door’s top rail for 20 minute labeled wood doors
Mounts in track mortise of door’s top rail for 20 minute labeled wood doors
![](https://www.pennerdoors.com/content/variant-hero-image/2010-169%20track%20bumper-variants/madero_thumb_square/2010-169%20track%20bumper.jpg)
2010-169 bumper
![](https://www.pennerdoors.com/content/variant-hero-image/2010-169%20track%20bumper-variants/madero_full_tall/2010-169%20track%20bumper.jpg)
Close
2010-169 bumper
Track-mount to assist backcheck
Limits maximum opening
Kit includes bumper, bumper post and mounting screw
NOTE: Track bumper does not replace auxiliary stop
Limits maximum opening
Kit includes bumper, bumper post and mounting screw
NOTE: Track bumper does not replace auxiliary stop
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3054%20h-o%20clip-variants/madero_thumb_square/2010-3054%20h-o%20clip.jpg)
2010-3054 clip
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3054%20h-o%20clip-variants/madero_full_tall/2010-3054%20h-o%20clip.jpg)
Close
2010-3054 clip
Mounts in track to provide hold-open function
Hold-open point controlled by clip location
Hold-open point controlled by clip location
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3034%20track%20roller-variants/madero_thumb_square/2010-3034%20track%20roller.jpg)
2010-3034 track roller
![](https://www.pennerdoors.com/content/variant-hero-image/2010-3034%20track%20roller-variants/madero_full_tall/2010-3034%20track%20roller.jpg)
Close
2010-3034 track roller
Quiet, low friction roller assembly
Shoulder dimension:
"X" = 1/16" (2mm)
Shoulder dimension:
"X" = 1/16" (2mm)
