                K Series

                Standard Metal Hardware works closely with architects, designers and distributors to produce some of the most intricate architectural door hardware in the world.

                Domestic and international projects include: the Royal York Hotel in Toronto, Canada; the Ronald Reagan Building in Washington, D.C.; and the Kathmandu Airport in Nepal.

                New architectural designs and concepts are welcome, and existing products may be tailored upon demand.

                KYDEX®: The specialty thermoplastic sheet for specialty applications.

                Kydex is an ideal replacement for high pressure laminate; it won't chip or break, and it can handle compound curves with 90-degree corners without edge banding.

                This material provides high performance, durability, and regulatory compliance, with custom colours and textures including woograins or granite patterns.

                • Designs
                • Specifications
                • Downloads

                K08 - clear acrylic





                Close

                K08 - clear acrylic

                .125" thickness

                Bevelled edges

                K09 - kydex





                Close

                K09 - kydex

                Choice of .06" or .09" thickness

                Bevelled edges

                Stock colours: beige, black, blue, grey, white

                Custom colours available

                K10-20 - economy





                Close

                K10-20 - economy

                .037" thickness

                20 gauge stainless steel

                K10-430 - economy





                Close

                K10-430 - economy

                Type 430, low grade stainless steel

                K10A - solid metal





                Close

                K10A - solid metal

                .05" thickness

                Specify aluminum, brass, bronze, or stainless steel

                K10B - solid metal





                Close

                K10B - solid metal

                .062" thickness

                Specify aluminum, brass, bronze, or stainless steel

                K10C - solid metal





                Close

                K10C - solid metal

                .125" thickness

                Specify aluminum, brass, bronze, or stainless steel

                K10R - radius corners





                Close

                K10R - radius corners

                Specify aluminum, brass, bronze, or stainless steel

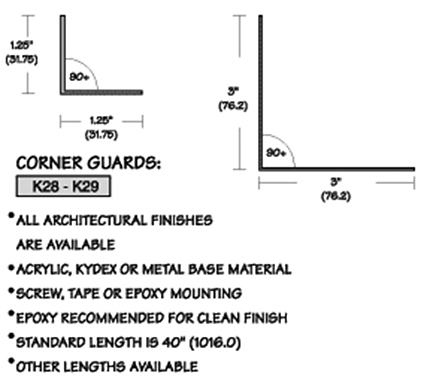

                K28 - corner guard





                Close

                K28 - corner guard

                1.25" x 1.25"

                40" standard length

                Specify metal, kydex or acrylic

                K29 - corner guard





                Close

                K29 - corner guard

                3" x 3"

                40" standard length

                Specify metal, kydex or acrylic

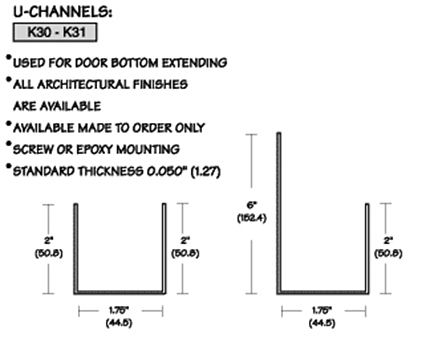

                K30 - U channel





                Close

                K30 - U channel

                Special order

                Fits 1-3/4" door; 2" sides

                K31 - U channel





                Close

                K31 - U channel

                Special order

                Fits 1-3/4" door; 6" & 2" side

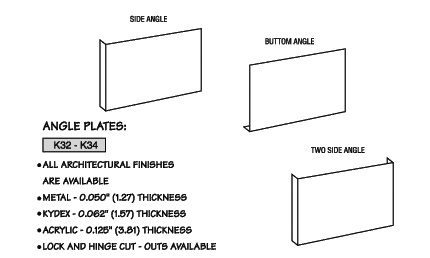

                K32 - side angle





                Close

                K32 - side angle

                Specify metal, kydex or acrylic

                Lock and hinge cutouts available

                K33 - bottom angle





                Close

                K33 - bottom angle

                Specify metal, kydex or acrylic

                Lock and hinge cutouts available

                K34 - two side angle





                Close

                K34 - two side angle

                Specify metal, kydex or acrylic

                Lock and hinge cutouts available

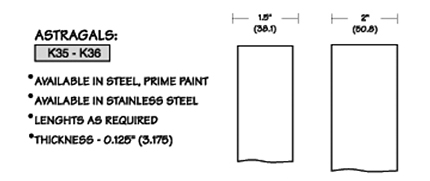

                K35 - astragal





                Close

                K35 - astragal

                1-1/2" width

                Specify length

                1/8" primed or stainless steel

                K36 - astragal





                Close

                K36 - astragal

                2" width

                Specify length

                1/8" primed or stainless steel

                K37 to K40 - mortise





                Close

                K37 to K40 - mortise

                1-3/4" x 7/8"

                Specify length (40" to 96")

                Hinge, latch and strike cutouts available

                K37: 90° angle, 2 sides
                K38: 93° angle, 2 sides
                K39: 90° angle, 1 side
                K40: 93° angle, 1 side

                K41 to K44 - non-mortise





                Close

                K41 to K44 - non-mortise

                1-3/4" x 1-1/4"

                Specify length (40" to 96")

                Hinge, latch and strike cutouts available

                K41: 90° angle, 2 sides
                K42: 93° angle, 2 sides
                K43: 90° angle, 1 side
                K44: 93° angle, 1 side

                K45 to K48 - overlapping





                Close

                K45 to K48 - overlapping

                1-3/4" x 1-1/4"

                Specify length (40" to 96")

                Hinge, latch and strike cutouts available

                K45: 90° angle, 2 sides
                K46: 93° angle, 2 sides
                K47: 90° angle, 1 side
                K48: 93° angle, 1 side
