1500 Pocket Door

1500 Commercial Grade 'Knocked Down' Pocket Door Frame Kit

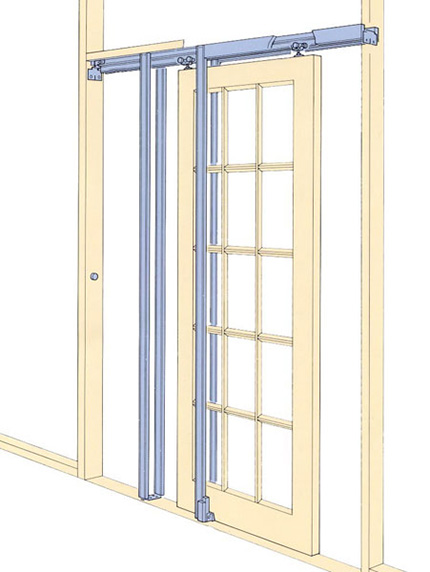

The 1500 Series Pocket Door Frame is designed to carry heavy solid core doors (up to 200 lbs. each) in standard 2x4 timber or steel framed stud walls. The 1500 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. It is a versatile frame and can be adapted for non-standard wall thicknesses, block masonry walls, or cut down to accept any smaller size door size.

MAXIMUM DOOR SIZE: 60" x 108" x 1-3/4" (5' x 9')
MINIMUM WALL STRUCTURE THICKNESS: 3-1/2"
MAXIMUM DOOR WEIGHT: 125lbs. EACH  or
200 lbs. EACH w/ 1125 hangers

• Complete frame kit, commercial grade, lifetime guarantee
• Ideal for standard 2 x 4 interior wall construction
• Accommodates all door sizes up to 5' x 9' x 1-3/4", 200 lbs.

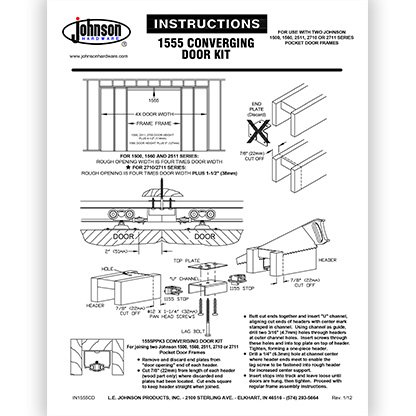

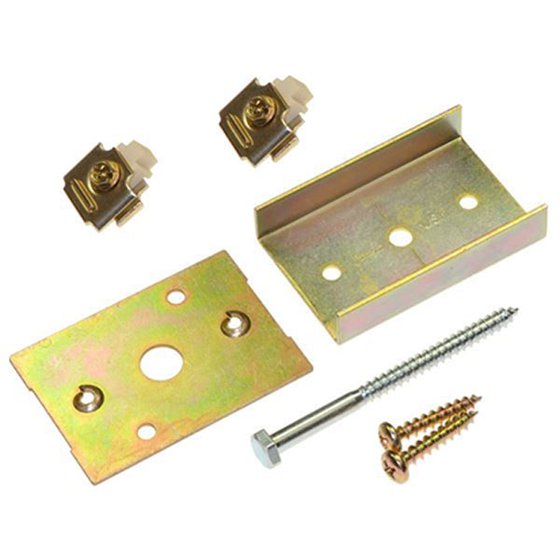

• Bolt 2 frames together for converging 2-door installations

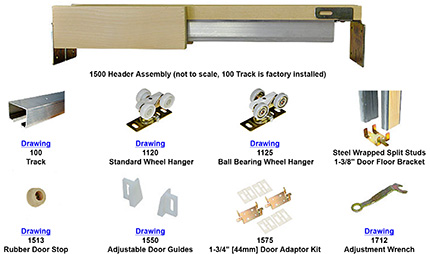

• Pre-installed 100 series box-track
• Steel reinforced split studs for rigid pocket walls
• Adjustable, detachable and jump-proof door hangers
• Delivered knocked down, easy transport, quick assembly

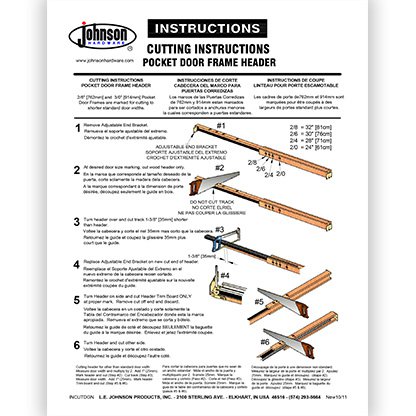

• Frames can be cut down to fit any smaller door size
• Manufactured in Elkhart, Indiana USA

Johnson 1500 Pocket Door Frame Technical Specifications

Dimensions:

• MAX DOOR WEIGHT: 200 lbs. per door (w/ 1125 Door Hanger)
• MAX DOOR WIDTH: 5/0 (60") per door
• MAX DOOR HEIGHT: 9/0 (108")
• MAX DOOR THICKNESS: 1-3/4"
• MIN WALL STRUCTURE THICKNESS: 3-1/2" (2 x 4 walls)

Technical Ratings:

• Grade: Commercial Grade ANSI Certified
• Application: Interior Commercial / Residential
• Max Door Thickness: 1-3/4" [44mm]
• Max Door Width: 60" [1524mm]
• Max Door Height: 108" [2743mm]
• Min. Wall Structure Thickness: 3-1/2" [90mm]

Weight Capacity:

• 1120 Hanger - 125lbs. [57kg] Per Door
• 1125 Hanger - 200lbs. [91kg] Per Door

Manufacturing Specifications:

• Frame Header: Select solid spruce
• Split Studs: Select solid spruce, galvanized steel wrapped
• Track: Aluminum extrusion, mill grade finish
• Steel Components: 12-14 gauge, zinc trivalent plated
• Wheels: Nylon encapsulated sealed ball bearing

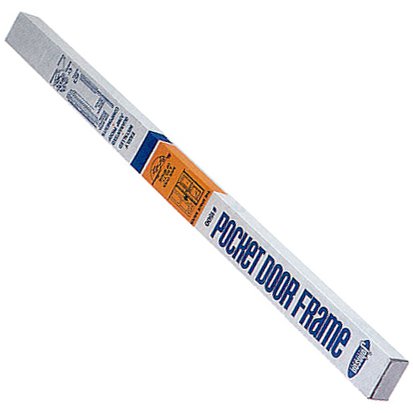

• Packaging: Rigid cardboard box, reinforced ends
• Country of Origin: USA

Johnson Hardware continually strives to improve its products and manufacturing techniques in order to produce the best products possible. Therefore, improvements and physical design changes may be made over time to listed specifications without prior notice.

Johnson Hardware Exceeds ANSI Standards

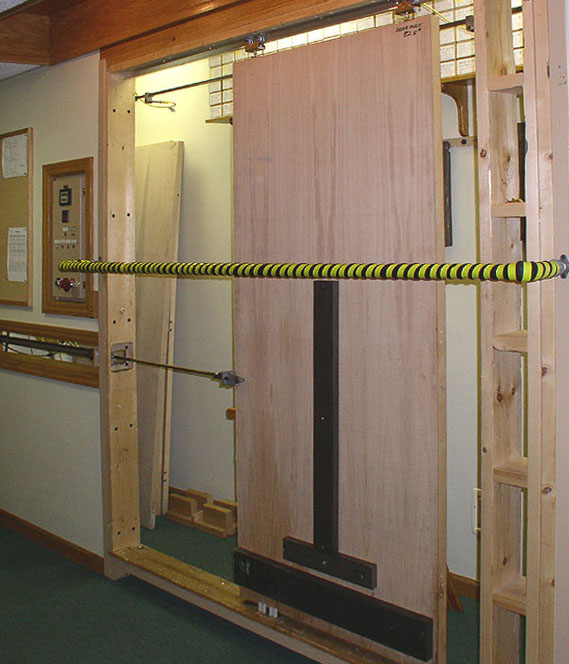

Johnson Hardware® is tested to ANSI (American National Standard Institute) quality standards. All Johnson Hardware® systems are installed in a simulated opening to specified maximum door weight then cycle tested. One cycle equals one complete opening and one complete closing sequence. Commercial grade hardware must exceed 100,000 cycles and residential grade hardware must exceed 35,000 cycles to meet ANSI minimum requirements. Johnson Hardware® exceeds ANSI standards.

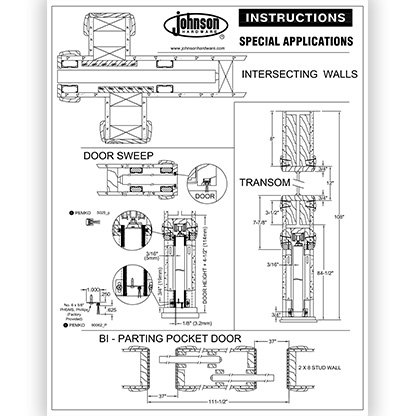

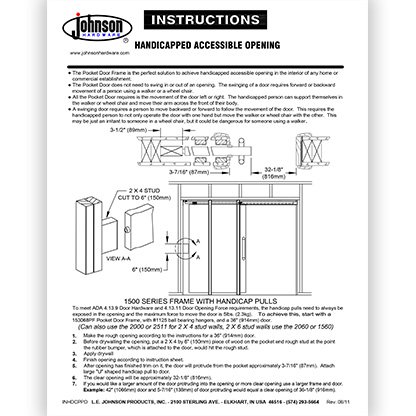

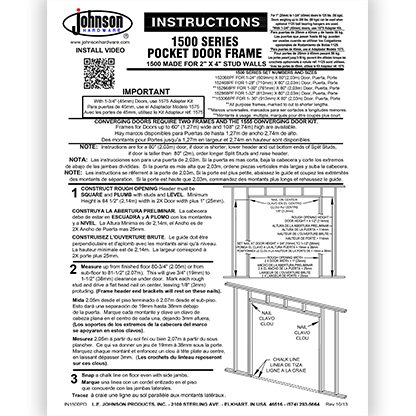

See Downloads tab for additional information and installation instructions.
