Ives Pivots

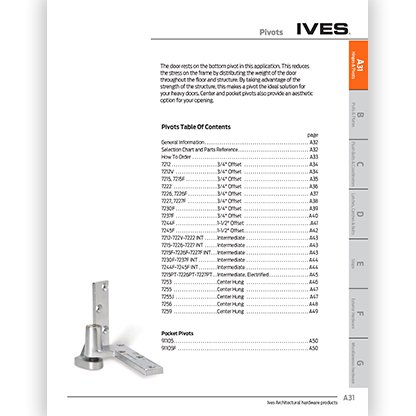

Ives 7200 Series Pivots Specifications

The door rests on the bottom pivot, reducing stress on the frame by distributing the weight of the door throughout the floor and structure. By taking advantage of the strength of the structure, this makes a pivot the ideal solution for your heavy doors. Center and pocket pivots also provide an aesthetic option for your opening. Stainless steel machine screws and wood screws are included as standard.

• Last digit in pivot set number reflects the maximum door weight in hundreds of pounds
  e.g. 7215 = 500 pounds
• For sets designated as “heavy duty”, add 1,000 pounds
  e.g. 7237F HD set = 1700 pounds
• Pivots for lead lined doors are available – consult Penner

Offset Pivots

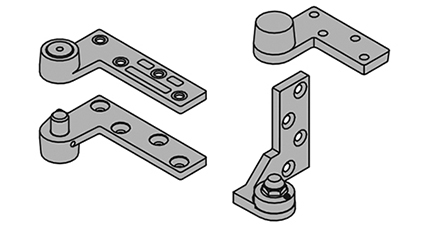

7212:  3/4" Offset Pivot

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking
• Optional 7212-7212V-7222 Intermediate Pivot (handed) for each additional 100 pounds or doors over 7 feet
• Meets ANSI/BHMA A156.4 C07131

7212V:  3/4" Offset Pivot

• Handed
• Top, jamb mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

7215/7215F:  3/4" Offset Pivot

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 500 pounds
• Vertical adjustment range 3/16", with positive locking

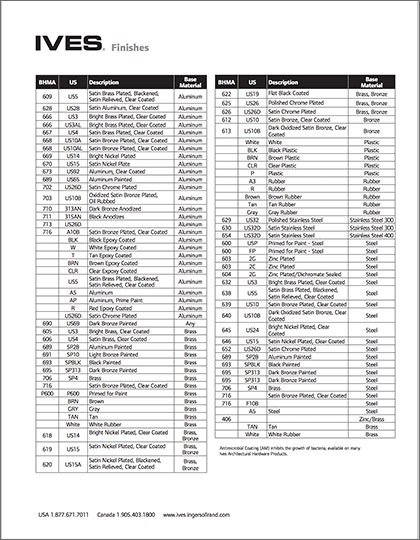

• WP - optional weather resistant bottom pivot is modified for improved corrosion resistance. Available in US26D (626) or US32D (630) only.

7222:  3/4" Offset Pivot

• Handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

7226/7226F:  3/4" Offset Pivot

• Non-handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 600 pounds
• Vertical adjustment range 3/16", with positive locking

7227/7227F:  3/4" Offset Pivot

• Non-handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 700 pounds
• Vertical adjustment range 3/16", with positive locking

7230F:  3/4" Offset Pivot - Heavy Duty

• Non-handed
• Top, header mount
• Bottom, base plate mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 1,000 pounds
• Vertical adjustment range 3/16", with positive locking

7237F:  3/4" Offset Pivot - Heavy Duty

• Non-handed
• Top, header mount
• Bottom, mortised cement case mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 1,750 pounds
• Vertical adjustment range 3/16", with positive locking

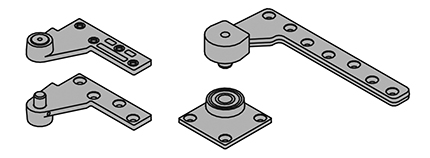

7244F:  1-1/2" Offset Pivot - Heavy Duty

• Non-handed
• Top, header mount
• Bottom, base mount
• Use with 1-3/4" minimum door thickness
• Maximum door load 400 pounds
• Vertical adjustment range 3/16", with positive locking
• Optional 7244F-7245F Intermediate Pivot (handed) for each additional 100 pounds or doors over 7 feet
• Meets ANSI/BHMA A156.4 C07162; UL Listed 3 Hour Fire Doors

7245F:  1-1/2" Offset Pivot - Heavy Duty

• Non-handed
• Top, header mount
• Bottom, mortised cement case mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 500 pounds
• Vertical adjustment range 3/16", with positive locking

Intermediate Pivots

NFPA 80, Section 3-3.8 requires intermediate pivot on some fire door applications; consult Penner. Use for door heights over 7'0" and one every 2'6". Use for door weight over the pivot set limit. One additional for every additional 100 pounds. Door thickness 1-3/4" mimumum with 1/8" bevel in 2".

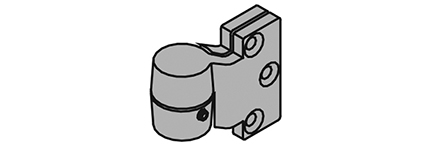

7212-7212V-7222 INT

• Use with 7212, 7212V or 7222 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking
• Meets ANSI/BHMA A156.4 C07382

7215-7226-7227 INT

• Use with 7215, 7226 or 7227 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking

7215F-7226F-7227F INT

• Use with 7215F, 7226F or 7227F 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking

7230F-7237F INT

• Use with 7230F or 7237F 3/4 Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking

7244F-7245F

• Use with 7244F or 7245F 1-1/2" Offset Pivot
• Handed
• Vertical adjustment 3/16", include positive locking

Special Application Pivots

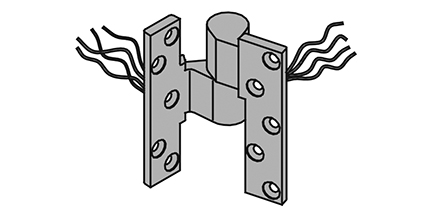

7215PT-7226PT-7227PT:  Power Transfer Pivot

• Use with 7215, 7226 or 7227 3/4" Offset Pivots
• Four wires, 28 guage
• Optional 8 wire available
• Rated 50 VDC or VAC @ 3.5 amps. Continuous or 16 amps pulse, maximum pulse 400 milliseconds.
• Non-load bearing
• Use with 1-3/4" thick door mimimum, 1/8" bevel in 2"

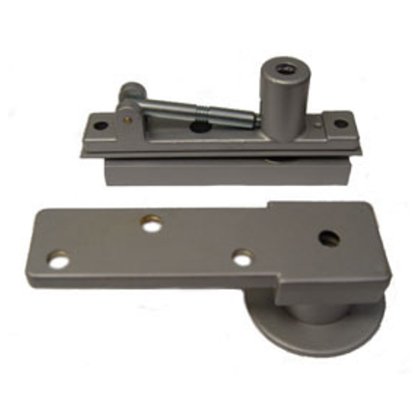

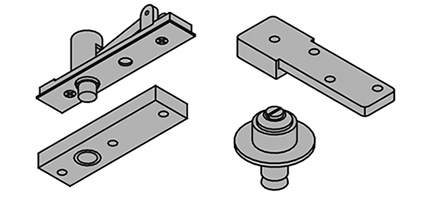

7253:  Center Hung Pivot

• Non-handed
• Top, header mount
• Bottom, base plate mount
• Easy installation tilt on bearing and bearing pin
• Use with 1-3/4" minimum door thickness
• Adjustable floor to door clearance 3/16" to 3/4"
• Maximum door load 300 pounds
• Vertical adjustment range 3/16", with positive locking
• Meets ANSI/BHMA A156.4 C07032

7255:  Center Hung Pivot

• Non-handed
• Top, header mount
• Bottom, base plate mount
• Easy installation tilt on bearing and bearing pin
• Use with 1-3/4" minimum door thickness
• Adjustable floor to door clearance 3/16" to 3/4", consultant factory if greater than 3/4"
• Maximum door load 500 pounds
• Vertical adjustment range 3/16", with positive locking

7255J:  Center Hung Pivot

• Non-handed
• Top, header mount
• Bottom, jamb mount
• Easy installation tilt on bearing and bearing pin
• Use with 1-3/4" minimum door thickness
• Adjustable floor to door clearance 3/16" to 3/4", consult factory if greater than 3/4"
• Maximum door load 500 pounds
• Vertical adjustment range 3/16", with positive locking

7256:  Center Hung Pivot

• Non-handed
• Top, header mount
• Bottom, base frame mount
• Easy installation tilt on bearing and bearing pin
• Use with 1-3/4" minimum door thickness
• Adjustable floor to door clearance 3/16" to 3/4", consult factory if greater than 3/4"
• Maximum door load 600 pounds
• Vertical adjustment range 3/16", with positive locking

7259:  Center Hung Pivot

• Non-handed
• Top, header mount
• Bottom, base frame mount
• Easy installation tilt on bearing and bearing pin
• Use with 2" minimum door thickness
• Adjustable floor to door clearance 3/16" to 3/4", consult factory if greater than 3/4"
• Maximum door load 1,000 pounds
• Vertical adjustment range 3/16", with positive locking

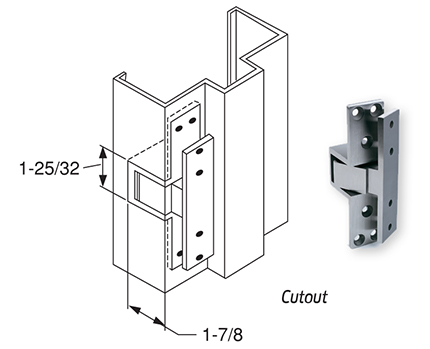

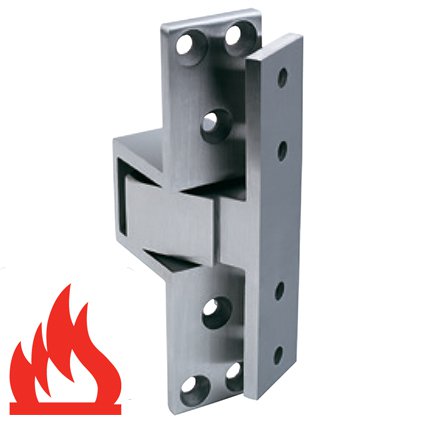

91105F, 91105F-PT:  Pocket Pivot/Hinge

• Non-handed
• All stainless steel construction
• Allows door to open a full 90 degrees
• Full mortise
• 90 pound load bearing
• Use two for doors up to 7'0" and over 7'0" use three
• PT, Power Transfer version has four 28 guage wires. Rated 50 VOC or VAC @ 3.5 amps. Continuous or 16 amps pulse. Maximum pulse 400 milliseconds.
• UL Listed 3 hour fire doors or 20 minute wood fire doors
• Meets ANSI/BHMA A156.4 C07611
