Ives Electrified

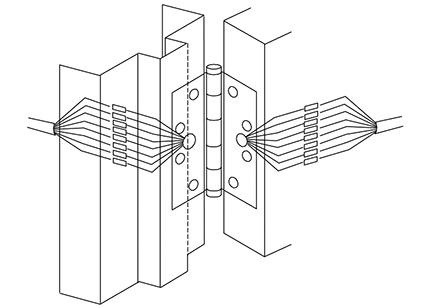

Electric hinges are designed for doors that require concealed low voltage current transfer, concealed electric monitoring, or concealed low voltage current transfer with monitoring.

IVES has produced a full line of quality building hardware for over 120 years, with emphasis placed on customer service, application flexibility, and value.

The IVES extensive hardware line also includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops and more.

Designs
Specifications
Finishes
Downloads

TW4 - thru wire

4 wires

TW8 - thru wire

8 wires

MON - monitor

TW4M - monitor & wire

4 wire

TW8 - monitor & wire

8 wire

IVES Electrified Hinge Specifications

Available Options:

- Through Wire - TW4 (4 wires) & TW8 (8 wires)
- Monitor – MON
- Through Wire with Monitor – TW4M & TW8M

UL Listed - UL634
Meets ANSI/BHMA A156.1
A8111 – Steel
A5111 – Stainless Steel
A2111 – Brass

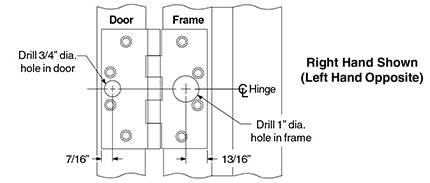

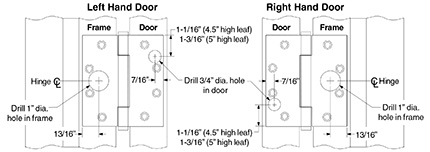

• Available in 3 and 5 Knuckle
• One hinge per box, packed with wood and machine screws
• Hinge is NRP as a standard
• High quality brass ferrules and plastic tubing protect the wires
• Through-wire hinges cycle tested to ensure durability
• Ives warranty applies, 12 months from date of shipment

Through-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second. Monitor rated 30VDC at .5 amp.

Special wire configurations available - contact Penner.
