                Ives Continuous

                Continuous Hinges

                Ives Continuous Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications.

                Continuous hinges are available in two styles; aluminum geared and pin and barrel in steel or stainless steel.

                • Designs
                • Specifications
                • Options
                • Finishes

                Aluminum Geared





                Close

                Aluminum Geared

                Geared continuous hinges utilize a single gear section for the leaf and a separate gear section for the frame side of the door. The two are held in place together by a full length cover channel and rotate on a series of bearings.

                Ives provides two unique series of bearing designs. The HD model features a spread bearing design for lighter weight doors. The XY features a center load bearing design to help reduce frame issues and also has an available hospital tip cap and electric through wire panel with a continuous cover.

                Full Mortise: 026XY, 027XY, 040XY, 041XY, 112XY, 112HD, 114XY, 224XY, 224HD
                Half Surface: 045XY, 046XY, 053XY, 054XY
                Full Surface: 157XY, 210XY

                Pin & Barrel Hinges





                Close

                Pin & Barrel Hinges

                Pin and Barrel hinges share many of the same characteristics of a traditional hinge. Both have a center pin and rolled knuckles. However, a continuous Pin and Barrel hinge stretches along the entire length of the frame. IVES offers both stainless steel and primed steel to best match your specific application. Ives also offers the CS series pin and barrel hinges which provides a patented solution that brings the clean aesthetic design of aluminum geared continuous hinge to the ruggedness and safety afforded by stainless pin and barrel continuous hinges.

                Steel: 600, 602, 611
                Stainless Steel: 700/700CS, 702, 705/705CS, 711/711CS, 715

                EPT available on 600, 700/700CS, 705, 715/715CS

                Exceeding industry standards

                • All hinges are certified to ANSI 156.26, Grade 1 and UL 3-hour standard
                • Limited lifetime warranty
                • Offerings support various applications, including swing clear, wide throw and electrified

                Quality and convenience

                • Designed to keep the door in constant alignment and eliminate door sag
                • A cover channel holds together two separate gear sections, providing a visually pleasing solution
                • Eliminates space between the hinges helping to prevent fingers from being pinched

                Variety of offering

                • Available in full mortise, full surface, and half surface hinges
                • Available with factory modified cutouts to accommodate most electrical frame-to-door requirements; special templates are required
                • Hinges can be cut to length during installation
                • Unique mounting pattern allows to cut up to 6" from the bottom while still having double row fasteners

                XY Series:

                • Rounded gear design for extended life and smooth operation
                • Patented, center-loaded, interlocking bearing design that helps better the opening and closing of the door over time
                • All sizes have 37 bearings
                • XY mounting slot adjustability on all full and half surface models to help with installation
                • Frame guidance lip is further extended for retrofit applications to cover existing heavy-weight architectural hinge preps
                • Improved aesthetics with a curved, articulating cover design that eliminates pinch points

                HD Series:

                Features transmission gear design with bearings that are evenly spaced every 3" on center. Amount of bearings varies by size:

                • 83": 32 bearings
                • 85" : 32 bearings
                • 95": 36 bearings
                • 120" : 47 bearings

                Hinge type

                For a complete list of model numbers and model number specifications, please refer to the Ives full line catalog.

                • Half surface: hinge is mounted on the door stile face and inside of the frame side jamb; only one hinge side and gear cover are visible when the door is closed. Offering includes the following models: 045HD, 046, 053 and 054
                • Full mortise: hinge is mounted on the side of the door stile and inside of the frame side jamb; only the gear cover is visible with the door is closed. Offering includes the following models: 112HD, 224HD
                • Full surface, center pivot: hinge is mounted on the door stile face and the frame side jamb face; the entire hinge is visible when the door is closed. The geared section is located where the door stile and frame side jamb meet. Offering includes the following models: 157XY

                Full surface, swing clear: hinge is mounted on the door stile face and the frame side jamb face; the entire hinge is visible when the door is closed; the geared section is located over the side jamb. Offering includes the following models: 210HD

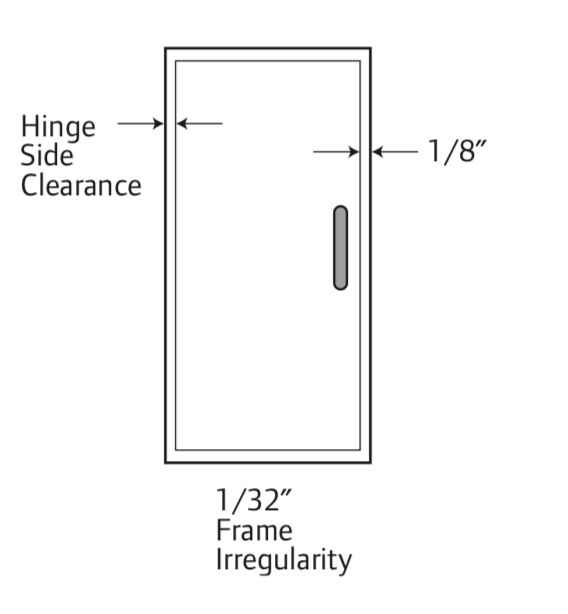

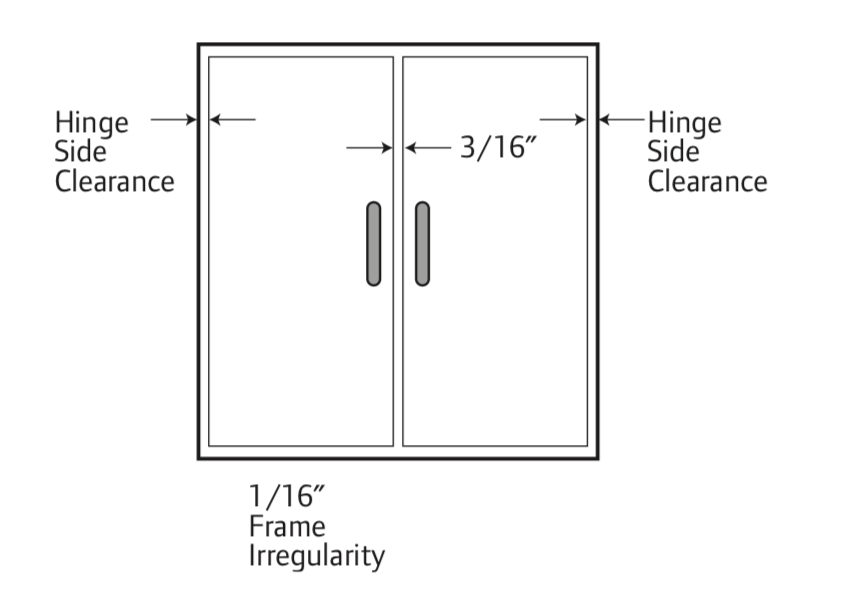

                Clearance Requirements

                Consult your local authority having jurisdiction for specific fire codes relating to fire rated doors.

                Ives geared continuous hinges can be furnished with the following options:

                • Electric power transfer prep (EPT)
                • Electric through wire (TW8)*
                • Through wire panel (TWP)
                • Security fasteners – pin-in-socket
                • Wood fasteners
                • Thread-forming screws (pilot hole is required)
                • Hospital tip (XY models only)

                * Not available with 157XY Continuous Hinge; full mortise models only

                Lifetime Warranty

                Ives continuous hinges carry a limited lifetime warranty, ensuring your opening will function to your satisfaction every time.

                US32D





                Close

                US32D

                Stainless Steel, Satin
