ICF FiberComp

ICF FiberComp Door System Specifications

Smooth White Fiberglass Slab:  Steel-reinforced hardwood construction, polymer stiles and rails with impact-resistant fiberglass GRP (glass reinforced polyester) skin.

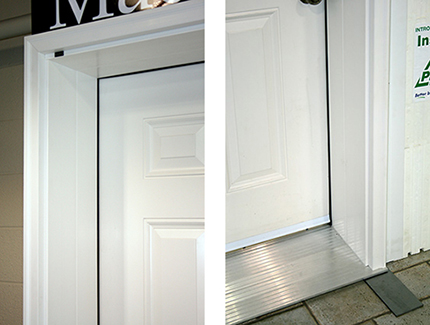

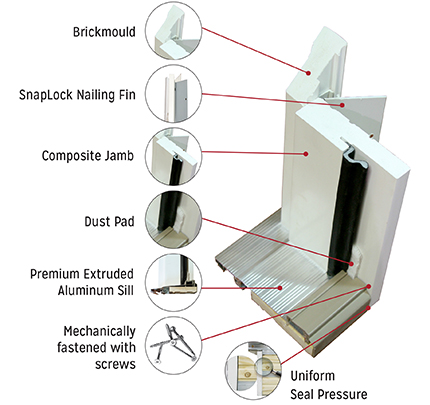

Premium Composite Jamb:  Resilient fiber/resin compound material with high strength-to-weight ratio. Has twice the screw-holding power of wood.

Slab Sizes:  Available in 6/8, 7/0, and 8/0 heights (select designs); standard widths are 2/6, 2/8, 2/10, and 3/0.  1-3/4" thickness only.

Rough Opening Sizes:  For 6/8 height, inswing only.

• 2/6:  32 3/4" x 82 1/2"                                •  2/10:  36 3/4" x 82 1/2"
• 2/8:  34 3/4" x 82 1/2"                                • 3/0:  38 3/4" x 82 1/2"

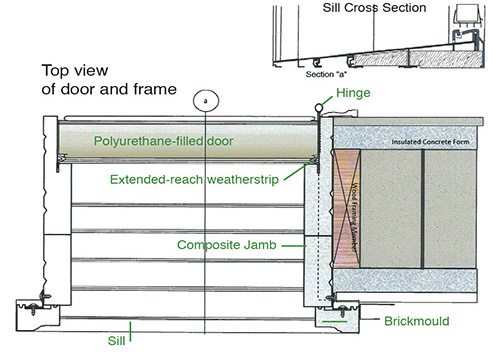

Energy Efficient:  100% CFC free polyurethane-filled door with nine times the thermal efficiency of wood; assembled with a custom-fitted jamb that features a moisture tight seal for prevention of heat loss.

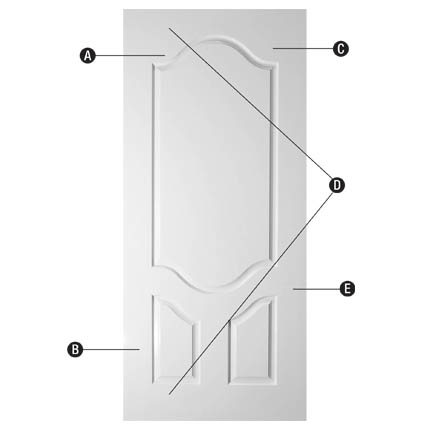

Features of Smooth White Fiberglass Slab

A. Deep Panel Embossing: Deep embossed panels create beautiful shadow lines and the look of a real wood door.

B. Waterproof Composite Stiles: Easy to machine, with stronger screw holding capability. Better performance than wood stiles -- will not delaminate, warp, rot or splinter. Sealed edges and corners; no exposed wood.

C. Fiberglass Reinforced Door Skin:  Made of high compression-moulded fiberglass to provide superior protection and durability. Fiberglass skins won't dent or delaminate like steel; smooth white surface is easy to clean and will not yellow.

D. Waterproof Composite Top & Bottom Rails: No exposed wood; will not absorb moisture and will not rot.

E. Internal Wood Lock Block:  Full length wood and steel reinforcing to prevent thermal and moisture bow. Accepts a full range of door locks and hardware, including multi-point.

Warranty:  25 year limited warranty. Painting not required for warranty.

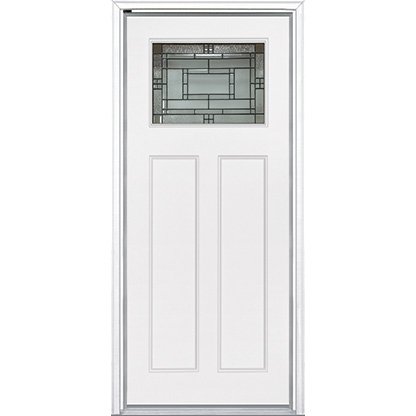

Glazing: See Downloads tab for factory-installed glass options.

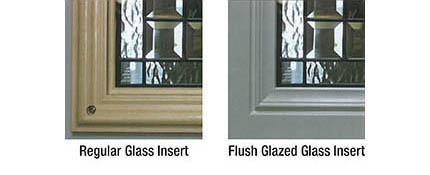

Flush Glazed Option:  "Flush Glazed" or "Open and Beaded" refers to how a piece of glass is set into a door slab. A flush glazed finish creates a clean, uninterrupted look. The bead is premoulded and blends with the door slab surface for a smooth, seamless line. The flush glazing keeps the glass unit water and weather resistant for years to come. A removable stop allows the glass to be easily installed or replaced if needed. Please note the following:

• Standard full-lite open & beaded design (FC12) accepts all standard glass inserts.
• Optional full view open & beaded design offers 32% larger viewing area – clear glass only.

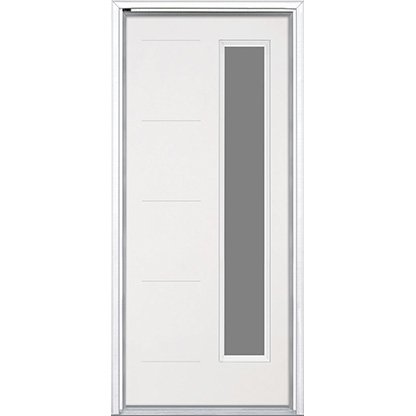

• Narrow-lite open & beaded design (FC11) accepts standard 690 glass (8" x 64").

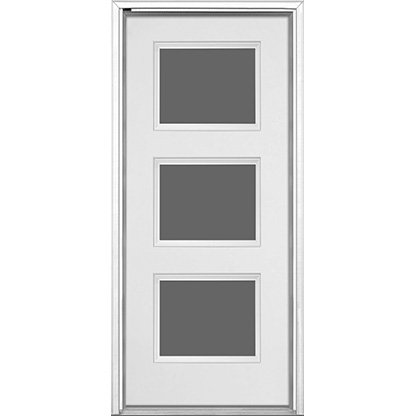

• 3-lite equal design (FC13) accepts custom glass configurations - contact Penner for more information.


Nan Ya Product Highlights

Nan Ya products combine modern technology with functionality and style. In the past 15 years, Nan Ya has revolutionized the door industry with water resistant technology, composite door frame components and the development of the highest quality fiberglass door available today.

Made for the Canadian Climate:  Door components and assembly have been modified to meet the harsh temperature swings of the Canadian climate. Nan Ya fiberglass doors are now recognized as Canada's leading fiberglass door.

Incomparable Strength:  Nan Ya fiberglass doors will not dent, rust, split, warp, swell, crack, or rot. Partnered with a Nan Ya composite frame, the door system will not allow forced entry – providing security and peace of mind. Choose our fiberglass slab for strength and durability.

Water Resistant:  With no exposed wood, the Nan Ya fiberglass door does not allow for water absorbtion.

Guaranteed:  Every door has a 25 year limited warranty. The Nan Ya fiberglass smooth white skin is pre-pigmented and the finish will not yellow. Nan Ya fiberglass doors carry the full warranty without painting or staining.
