DOOR SCOPE
Door Scope® is a revolutionary, patented, high quality security product which virtually eliminates the conventional peephole.
With Door Scope, you don't have to stand at the door nor strain to see visitors through a peephole anymore.

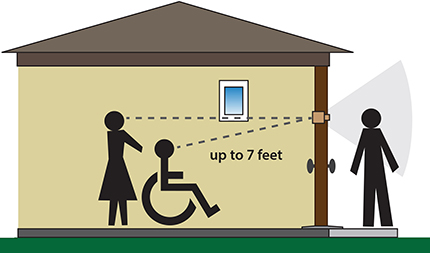

Door Scope provides you with a sharp, clear image of the outside visitor, even at a wheelchair viewing level – up to seven feet away from inside your door.
- Designs
- Specifications
Door Scope® Door Viewers
Fire Rating (Tested by Warnock Hersey)
Testing Standard: CAN S104(1985):NFPA 252(2008):UL 10(c) (2001): UL10(C)(2009)
- DS/1000 (Plastic Model) - 20 Minutes
- DS/2000 (Aluminum Model) - 20 Minutes
WARNING!
Don’t be cheated by imitation products which are illegally produced and imported from China. Their image quality, product sealing and night vision are very poor, and they can be difficult to install.
Door Viewer Comparison Chart
Installation Instructions for All Door Types – Solid, Hollow, or Metal

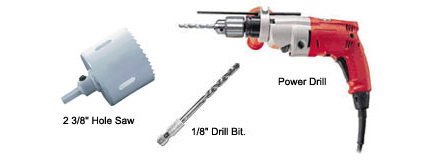

Tools Needed:
- Power Drill
- 2 3/8" Hole Saw
- 1/8" Drill Bit
Instructions
Step 1: Stick the provided transparent template on the outside of door at the desired installation position.
Step 2: With a 2 3/8” hole saw (drill bit attached inside), starting on the exterior side of door, drill two 3/8" holes until the drill bit protrudes through the interior side of door at least 1/8". Then go to the inside and finish drilling the hole out.
Step 3: Drill two 1/8" holes for the retainer ring locking pins approximately 1/8" in depth, as indicated on the template.
Step 4: Separate the locking ring by unscrewing from the main body.
Step 5: Insert main body into hole from the exterior side and place the pins in the holes.
Step 6: Secure snug and turn the locking ring until there is contact with the door surface.

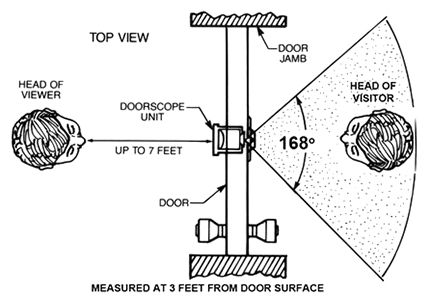

Door Scope Wide Angle View
Door Scope Installation

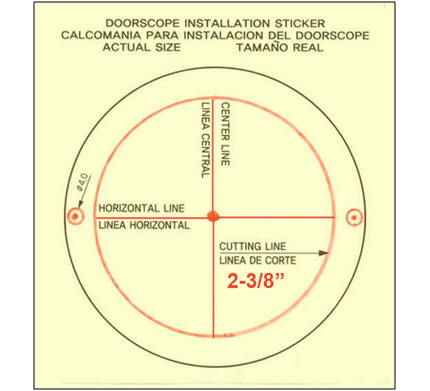

Actual size of template: W 3-3/4” x H 4-0”
