Anemostat Vision Frames

Vision frames may be identified as a lite, lite kit, window frame, door lite, vision panel, vision kit, vision lite, or window kit. All describe the same product, which is the metal or wood frame that holds the glass in place in the door.

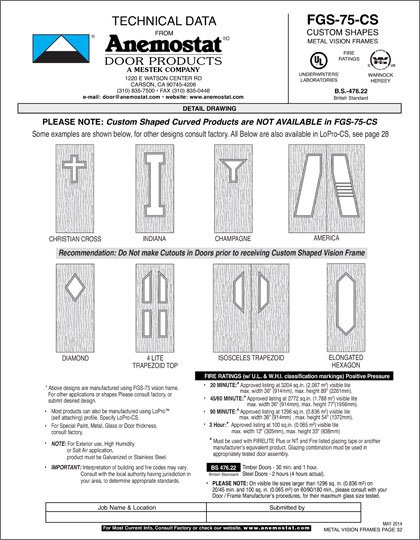

Recommendation: Do not make cutouts in doors prior to receiving Custom Shaped Vision Frame.

Ideally suited for:

• Churches
• Restaurants
• Schools
• Businesses
• Hospitals

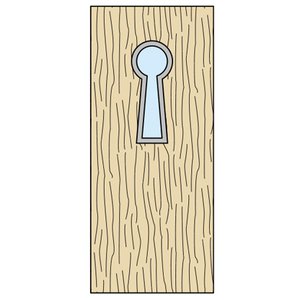

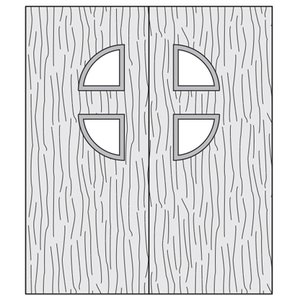

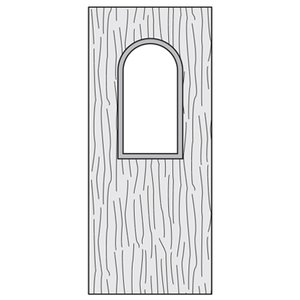

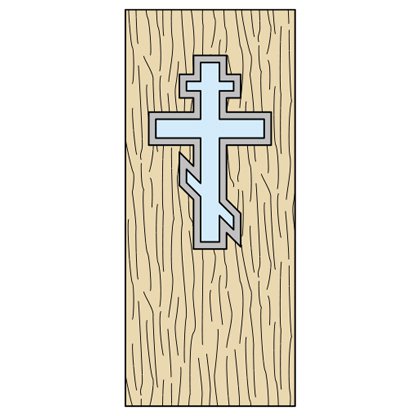

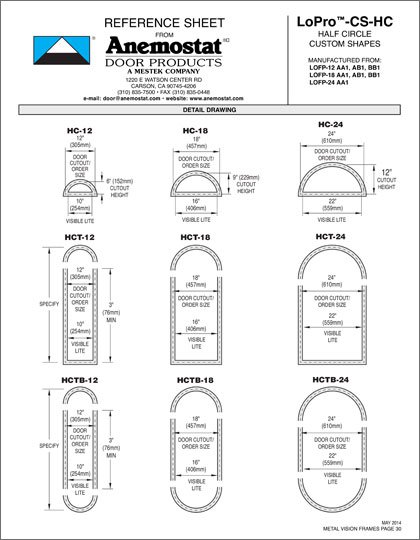

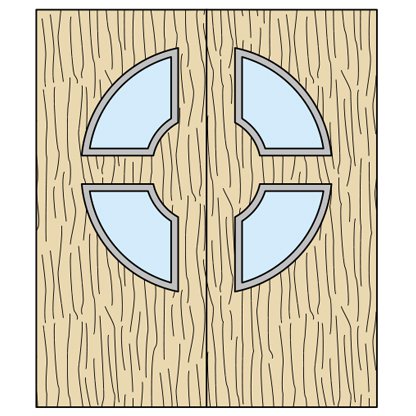

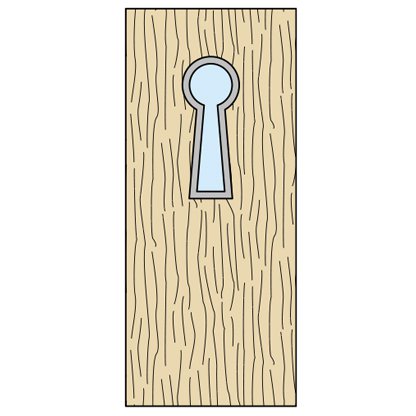

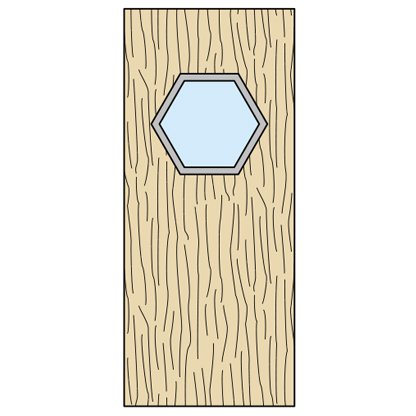

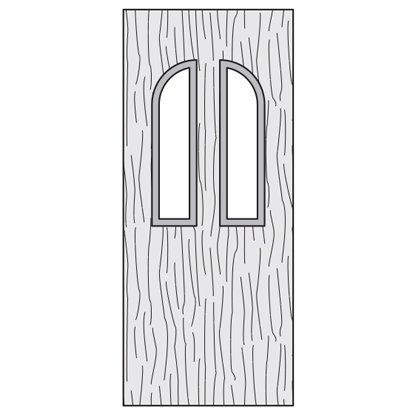

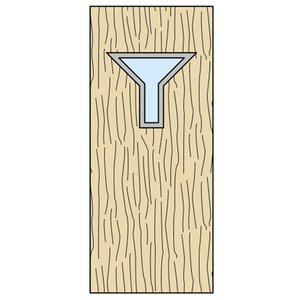

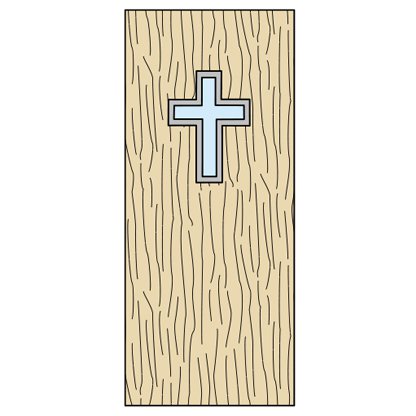

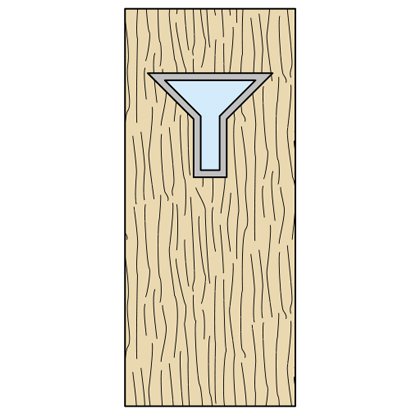

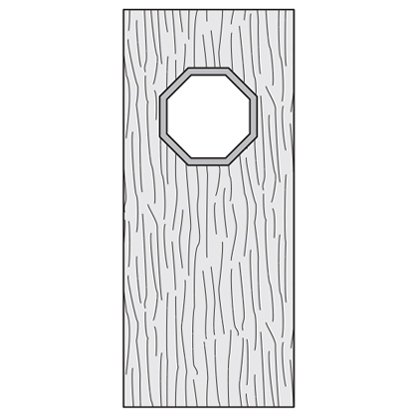

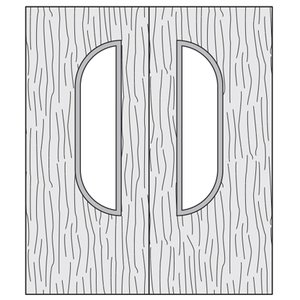

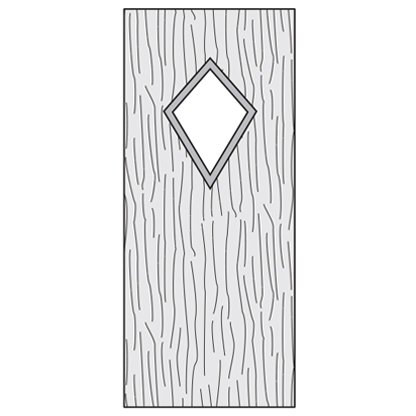

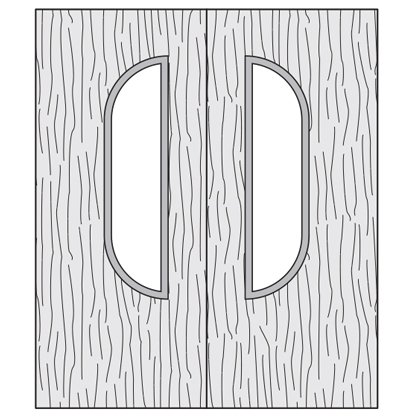

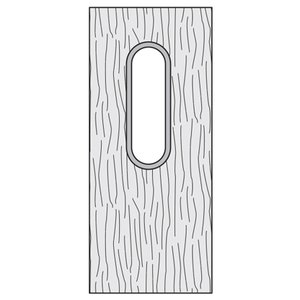

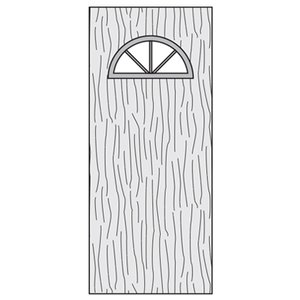

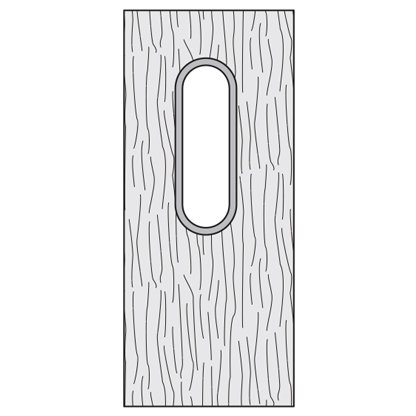

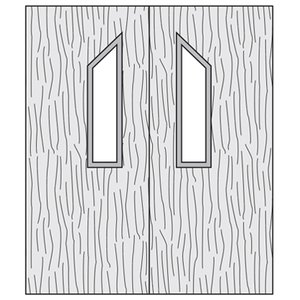

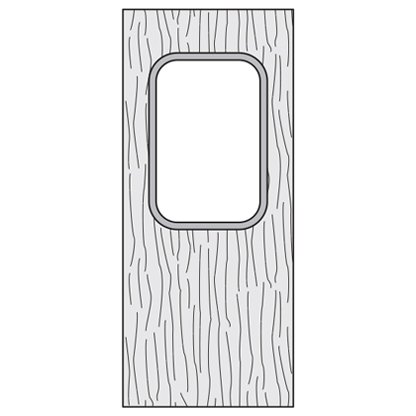

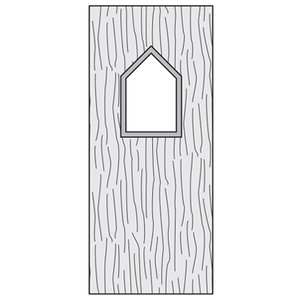

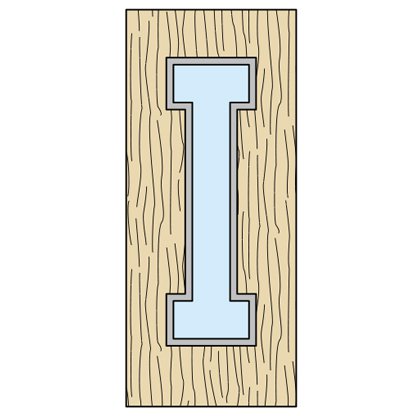

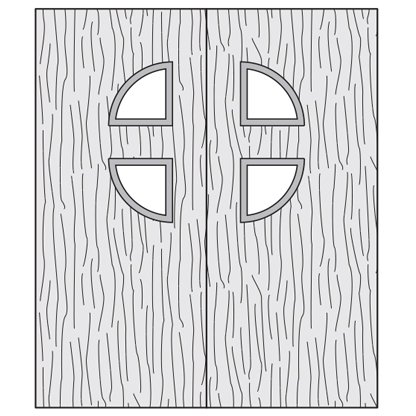

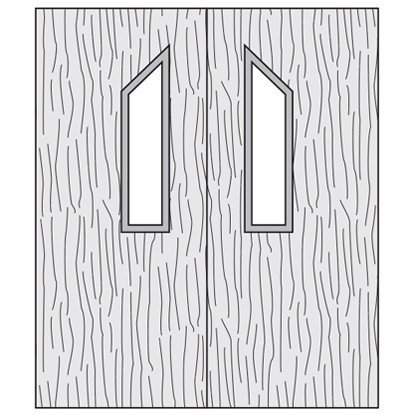

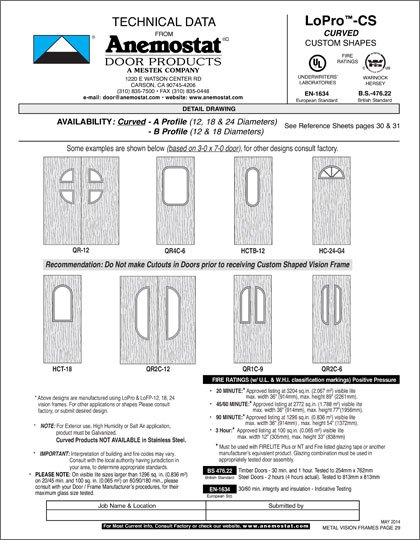

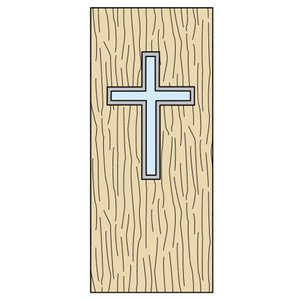

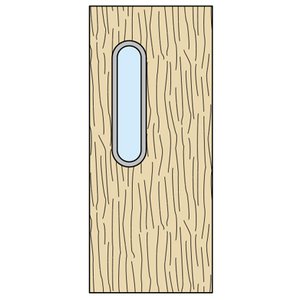

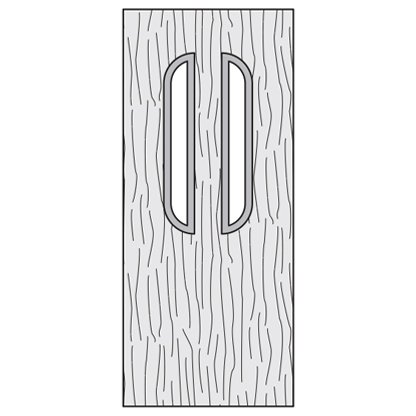

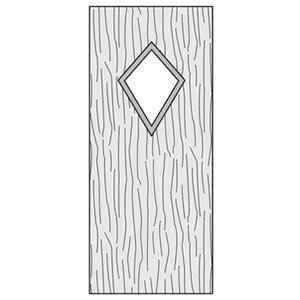

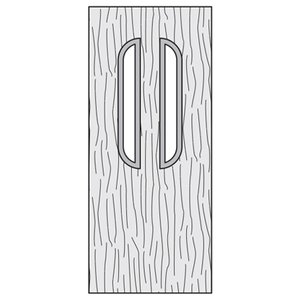

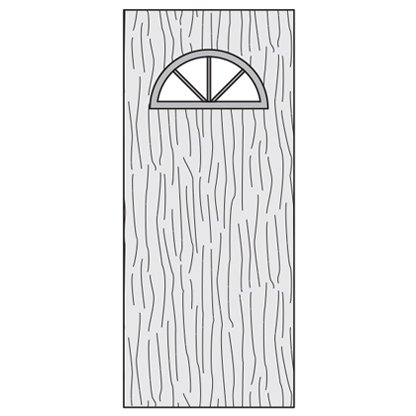

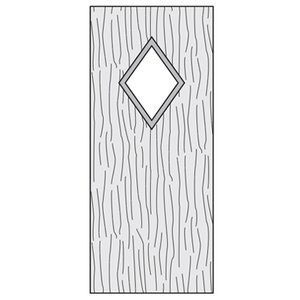

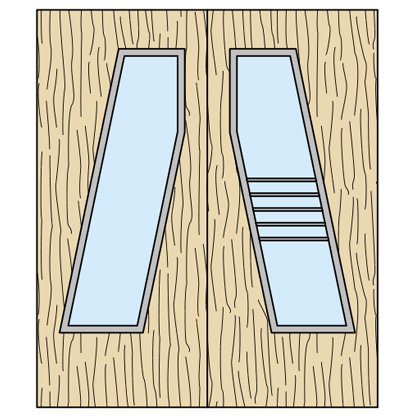

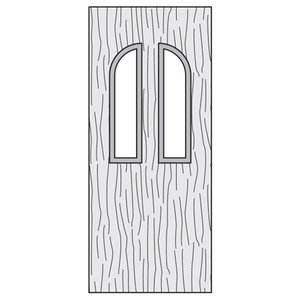

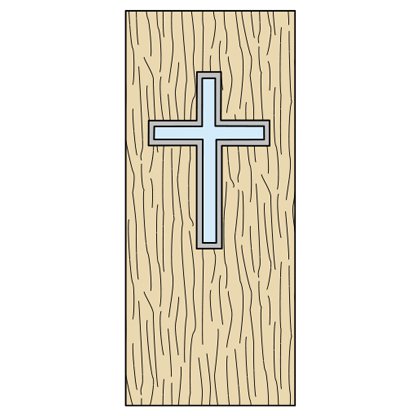

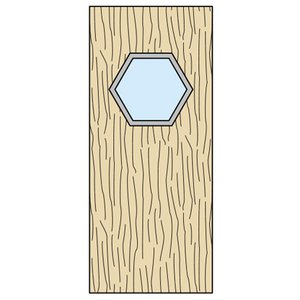

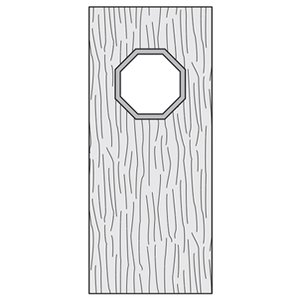

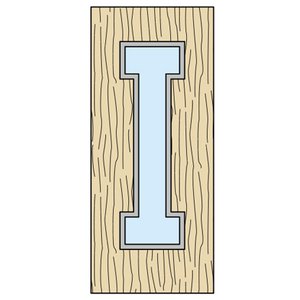

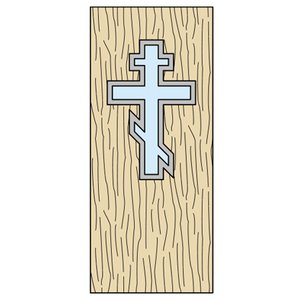

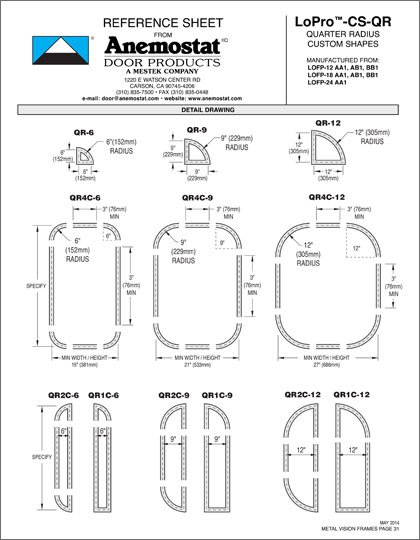

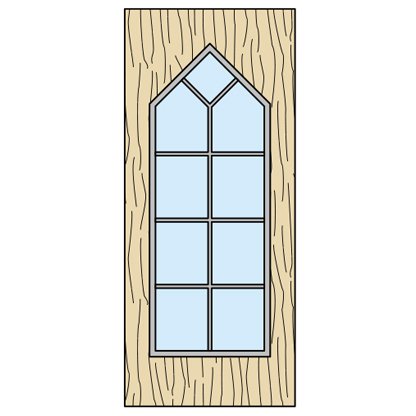

• LoPro™-CS:  Lo-Profile Custom Shape Metal Vision Frame

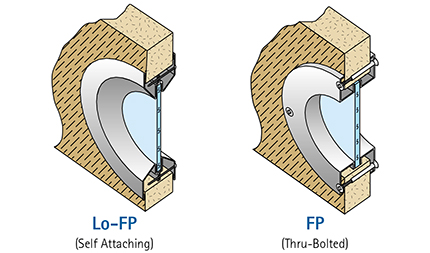

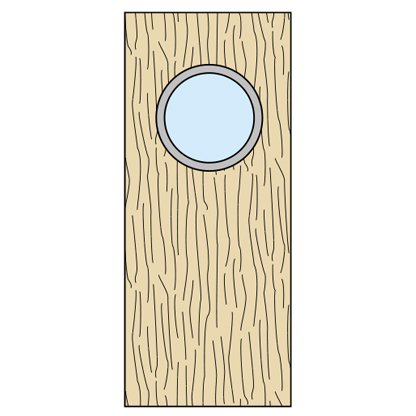

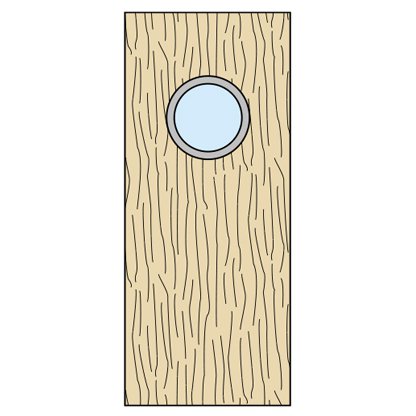

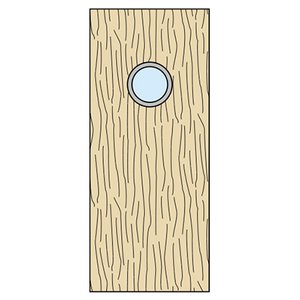

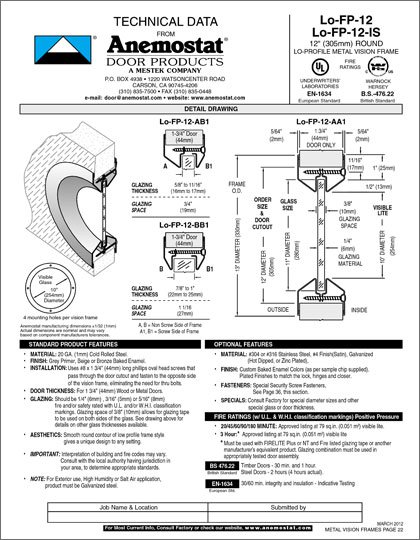

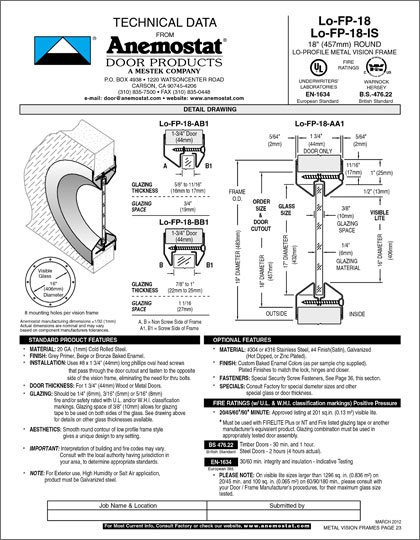

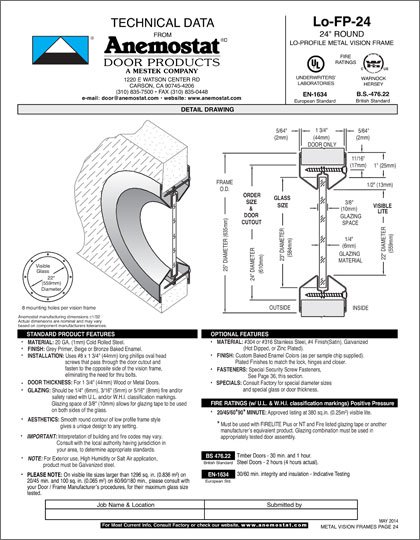

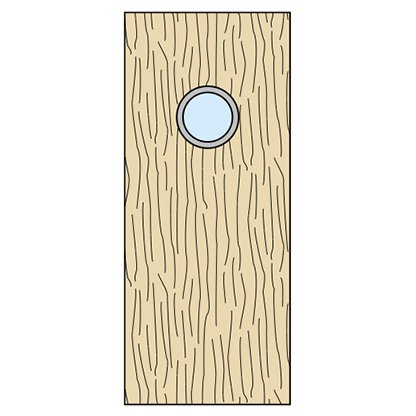

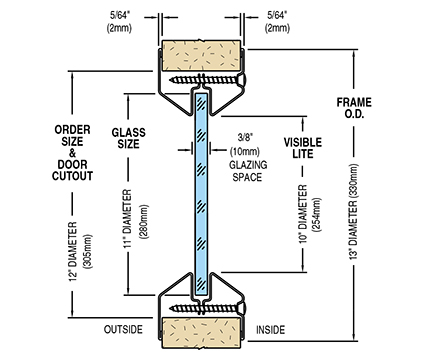

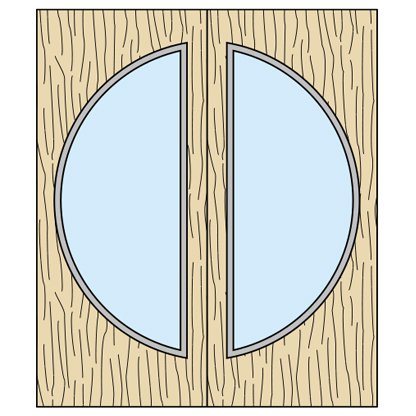

• Lo-FP:  Self-Attaching Lo-Profile Round Metal Vision Frame

• FP:  Thru-Bolted Round Metal Vision Frame

• LoPro™-IS-MB:  Metal Vision Frame with Internal Mini-Blind 1” (25mm) Insulated Glass Unit

• 7 additional models available - consult Penner

Security Vision Frames

Usually incorporates heavier gauges of steel and perforated lattice plates to fit over the glazing material to provide better protection against vandalism or heavy abuse.

NOTE: For Exterior use, High Humidity or Salt Air Application, vision frame product must be Galvanized or Stainless Steel.

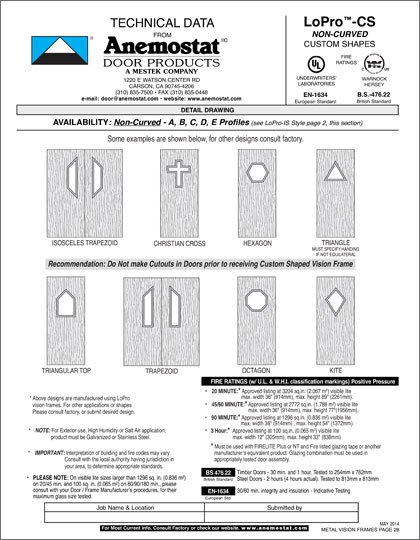

LoPro-CS, Lo-FP and FP Specifications

MATERIAL:  20 GA (1mm) Cold Rolled Steel (LoPro Style); 18 GA (1.2mm) Cold Rolled Steel (FP)

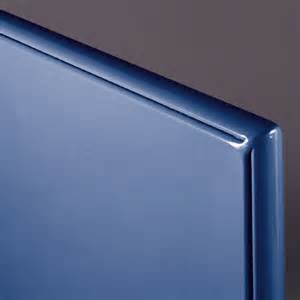

FINISH:  Grey Primer, Beige or Bronze Baked Enamel

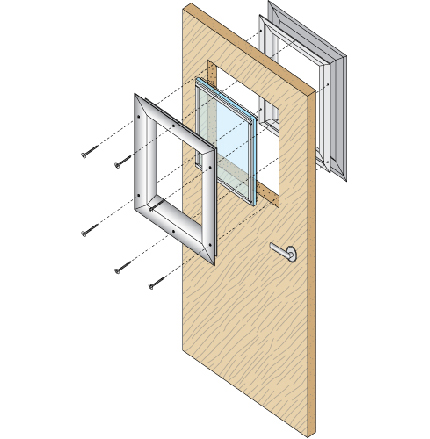

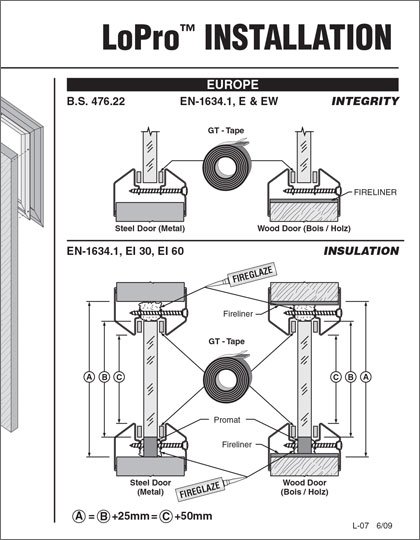

INSTALLATION: Self attaching style. Uses sheet metal screws that pass through the door cutout, and fasten to the opposite side of the vision frame. FP installs with Thru-Bolts.

DOOR THICKNESS: 1-3/4" (44mm) Wood or Metal Doors

GLAZING: 1/4" (6mm), 3/16" (5mm) or 5/16" (8mm) Fire and Safety Rated Glass

AESTHETICS: (LoPro style) Low profile and beveled glass stop provides a clean tapered look.

FIRE TESTED: with U.L. and W.H.I mark

• 20* minute: up to 3204 sq. in. visible lite
• 45*/60* minute: up to 2772 sq. in. visible lite
• 90* minute: up to 1296 sq. in. visible lite
• 180* minute: up to 100 sq. in. visible lite

* Must be used with FireLite Plus or NT and fire listed glazing tape, and be used in an appropriately tested door assembly. Tested to: BS 476.22 and EN-1634.

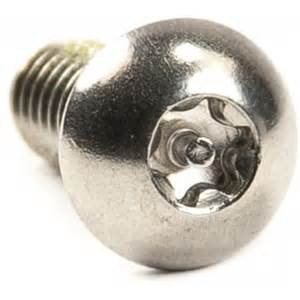

OPTIONAL FEATURES: Galvanized, Stainless Steel, Custom Baked Enamel Paint Colors, Security Screws

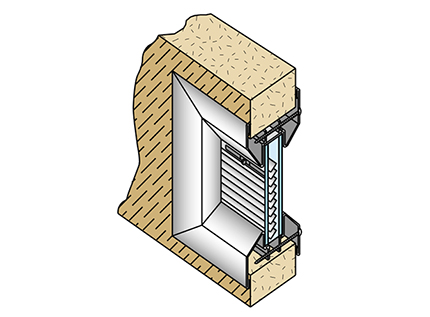

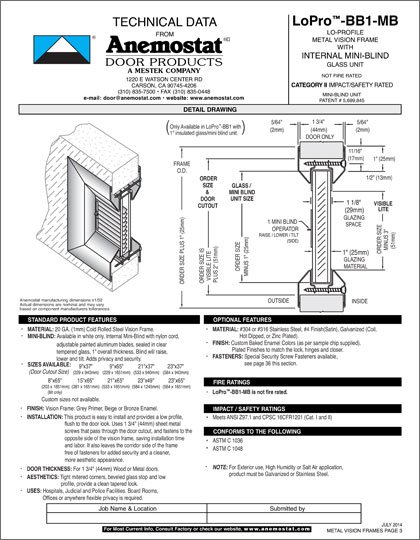

LoPro™-IS-MB for Hospitals & Conference Rooms

• Metal Vision Frame with Internal White Mini-Blind
• 1” (25mm) Clear Tempered Insulated Glass Unit
• Category II Safety Rated
• NOT Fire Rated
• Consult Penner for current sizes and availability
