Cubicle Collection

Bobrick's heavy-duty, vandal-resistent designs provide a complete and functional cubicle.

Commercial quality stainless steel construction withstands heavy traffic and is easy to clean.

Designs
Specifications
Downloads

Bobrick B-541

Spare toilet roll holder

8" height; projects 3-1⁄2"
from wall

Concealed mounting;
2" flange

Holds 1 roll up to 5" diam.; standard core size from 3⁄4" to 1-1⁄2"

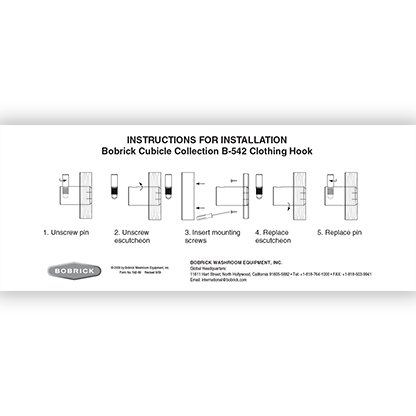

Bobrick B-542

Single coat hook

1/2" hook; projects 1-5⁄16"
from wall

Concealed mounting;
1-15/16" flange

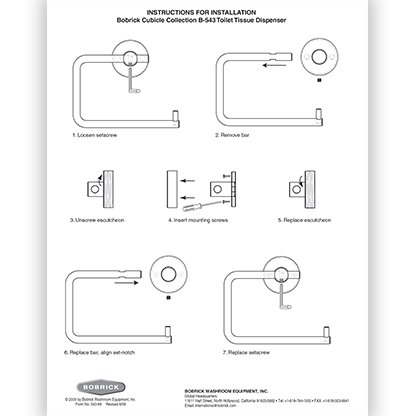

Bobrick B-543

Single roll toilet tissue holder

4-1/2" h x 5-1/2" w; projects 1-5⁄8"
from wall

Concealed mounting;
2" flange

Holds 1 roll up to 4" diam.; standard core size from 3⁄4" to 1-1⁄2"

Bobrick B-544

Heavy duty toilet brush holder

15-7⁄8" height; water reservoir included

Vandal-resistant wall mounting bracket

Stainless steel handle with replaceable nylon brush head

Cubicle Collection Technical Data

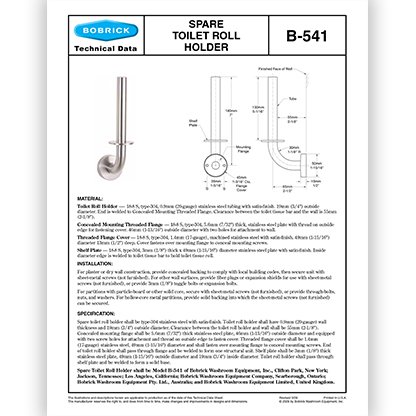

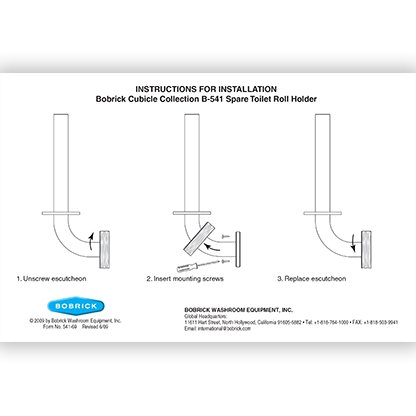

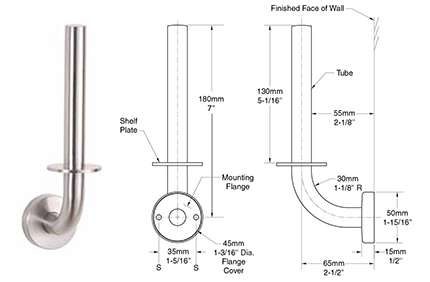

Spare Toilet Roll Holder, Surface Mounted (B-541)

Toilet Roll Holder: 18-8 S, type-304, 0.9mm (20-gauge) stainless steel tubing with satin-finish. 19mm (3/4") outside diameter. End is welded to Concealed Mounting Threaded Flange. Clearance between the toilet tissue bar and the wall is 55mm (2-1/8").
Concealed Mounting Threaded Flange: 18-8 S, type-304, 5.6mm (7/32") thick, stainless steel plate with thread on outside edge for fastening cover. 46mm (1-13/16") outside diameter with two holes for attachment to wall.
Threaded Flange Cover: 18-8 S, type-304, 1.4mm (17-gauge), machined stainless steel with satin-finish. 49mm (1-15/16") diameter 13mm (1/2") deep. Cover fastens over mounting flange to conceal mounting screws.
Shelf Plate: 18-8 S, type-304, 3mm (1/8") thick x 49mm (1-15/16") diameter stainless steel plate with satin-finish. Inside diameter edge is welded to toilet tissue bar to hold toilet tissue roll.

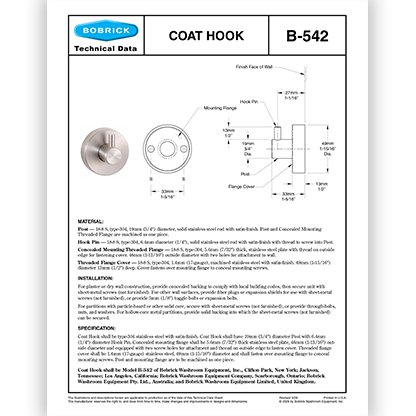

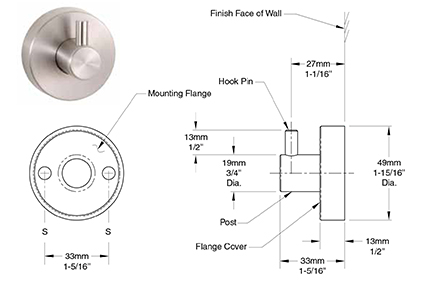

Clothing Hook, Surface Mounted (B-542)

Post: 18-8 S, type-304, 19mm (3/4") diameter, solid stainless steel rod with satin-finish. Post and Concealed Mounting Threaded Flange are machined as one piece.
Hook Pin: 18-8 S, type-304, 6.4mm diameter (1/4"), solid stainless steel rod with satin-finish with thread to screw into Post.
Concealed Mounting Threaded Flange: 18-8 S, type-304, 5.6mm (7/32") thick, stainless steel plate with thread on outside edge for fastening cover. 46mm (1-13/16") outside diameter with two holes for attachment to wall.
Threaded Flange Cover: 18-8 S, type-304, 1.4mm (17-gauge), machined stainless steel with satin-finish. 49mm (1-15/16") diameter 13mm (1/2") deep. Cover fastens over mounting flange to conceal mounting screws.

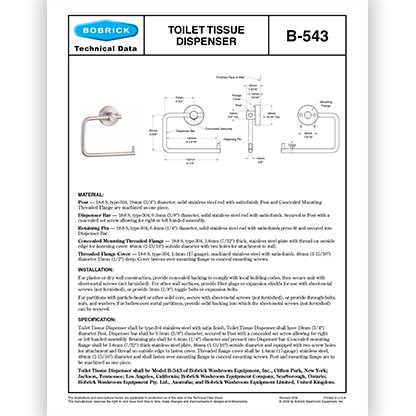

Toilet Tissue Dispenser, Surface Mounted (B-543)

Post: 18-8 S, type-304, 19mm (3/4") diameter, solid stainless steel rod with satin-finish. Post and Concealed Mounting Threaded Flange are machined as one piece.
Dispenser Bar: 18-8 S, type-304, 9.5mm (3/8") diameter, solid stainless steel rod with satin-finish. Secured to Post with a concealed set screw allowing for right or left handed assembly.
Retaining Pin: 18-8 S, type-304, 6.4mm (1/4") diameter, solid stainless steel rod with satin-finish press fit and secured into Dispenser Bar.
Concealed Mounting Threaded Flange: 18-8 S, type-304, 5.6mm (7/32") thick, stainless steel plate with thread on outside edge for fastening cover. 46mm (1-13/16") outside diameter with two holes for attachment to wall.
Threaded Flange Cover: 18-8 S, type-304, 1.4mm (17-gauge), machined stainless steel with satin-finish. 49mm (1-15/16") diameter 13mm (1/2") deep. Cover fastens over mounting flange to conceal mounting screws.

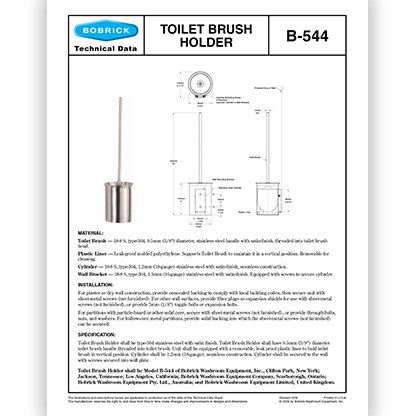

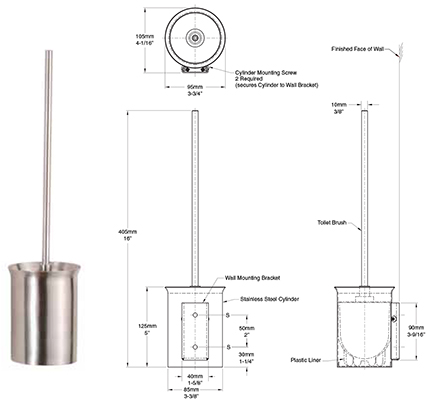

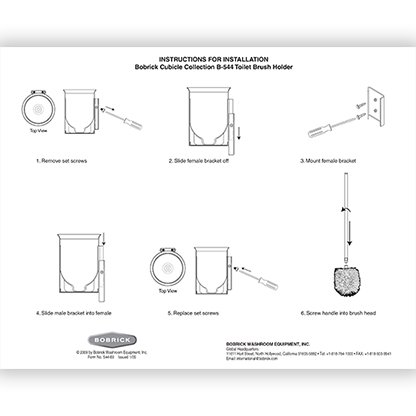

Toilet Brush Holder, Surface Mounted (B-544)

Toilet Brush — 18-8 S, type-304, 9.5mm (3/8") diameter, stainless steel handle with satin-finish, threaded into toilet brush head.
Plastic Liner — Leak-proof molded polyethylene. Supports Toilet Brush to maintain it in a vertical position. Removable for cleaning.
Cylinder — 18-8 S, type-304, 1.2mm (18-gauge) stainless steel with satin-finish, seamless construction.
Wall Bracket — 18-8 S, type-304, 1.5mm (16-gauge) stainless steel with satin-finish. Equipped with screws to secure cylinder.

Bobrick – Building Value Since 1906

Bobrick is a century-old global washroom accessory and partition company with six manufacturing divisions across the United States and Canada, and business operations that extend into 85 markets worldwide.

A leader in product innovation and manufacturing, Bobrick prides itself as a company that delivers best-in-class products and service, while fostering an environment of collaboration and continuous learning.

The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions.
