Hardware > Sliding Tracks > Dual Bypass Track > KN Crowder

Medium Duty C-500

Medium to Light Duty Bypass Track
For Plywood, Special Material,
Solid Core & Mirror Covered Doors

C-500 Series (Medium to Light Duty):
1-3/4" Door Thickness

This series provides the ultimate in smooth performance. Eight precision ball bearing, nylon tire wheels per door. Features vertical adjustment by threaded door top plate and locknut.

Designs
Specifications
Options
Finishes
Downloads

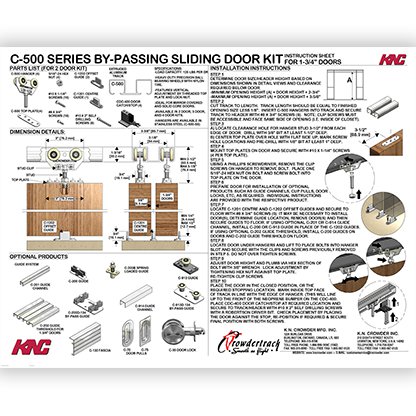

C-500 hanger kit

C-500 hanger kit

Top mounting for medium to light loads

1-3/4" door thickness

4 wheels per hanger

125 lbs. load capacity

Crowder C-Series Dual Bypass Track Systems Specifications

COMPLETE KITS AVAILABLE FOR DOORS 24” TO 72” WIDE, WITH HARDWARE INCLUDED FOR TWO DOORS.

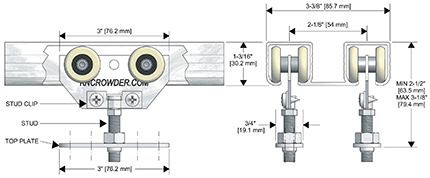

C-500 Top Mount Hanger with C-500 Sliding Track

This series provides the ultimate in smooth performance. Eight precision ball bearing, nylon tire wheels per door. Features vertical adjustment by threaded door top plate and locknut. Ideal for mirror covered and solid core doors.

Residential, Office, Institutional, Hotel Applications
Light and Medium Duty
For 1-3/4" Door Thickness
125 LBS (2 Hangers)
Adjustable Nylon Wheel Hanger

1 - C-500 TRACK LENGTH: 2 X DOOR WIDTH
(EXAMPLE: 36” DOOR = 72” TRACK)

4 - C-500 HANGERS COMPLETE WITH SCREWS

1 - C-1204 FLOOR GUIDE COMPLETE WITH SCREWS

4 - CDC-400 IN-TRACK STOP & CATCH COMPLETE WITH SCREWS

See Downloads tab for additional information and installation instructions.

C-200 Series - guides

C-200 Series - guides

C-200 Guide

C-200D-138 Double Roller Guide

C-200B Spring Loaded Guide & C-201 Guide Channel

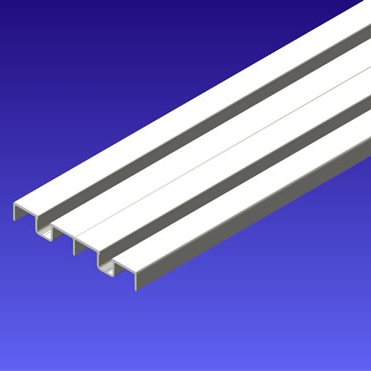

C-202 - guide threshold

C-202 - guide threshold

4-1/4" wide x 9/16" high

(C-202-3: 6-3/8" wide)

C-23 - door pull

C-23 - door pull

Wood door pull for 1-3/8” thick doors

2" wide x 4" high x door thickness

Satin stainless steel finish only

C-25 - door pull

C-25 - door pull

Wood door pull for 1-3/4” thick doors

2" wide x 4" high x door thickness

Satin stainless steel finish only

C-70 - flush pull

C-70 - flush pull

Flush door pull, oval face

2" wide x 4-1/8" high x 1/2" depth

Specify finish: Bright Brass, Bright Chrome, Dull Chrome

C-75 - flush pull

C-75 - flush pull

Flush door pull, rectangular face

2" wide x 4-1/8" high x 1/2" depth

Specify finish: Bright Brass, Bright Chrome, Dull Chrome

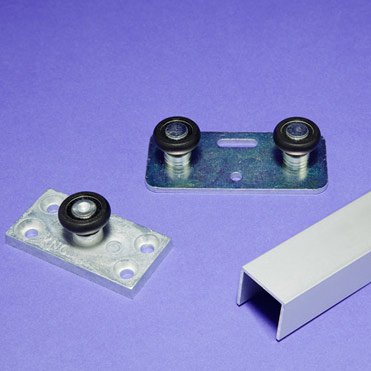

C-913 - roller guide

C-913 - roller guide

(C-913-2: dual rollers)

CDSM-1 - bracket

CDSM-1 - bracket

Custom side mount bracket

3/8" or 1/2" aluminum angle

For single, double & triple track systems

Custom plain fascia

Custom plain fascia

C-130, C-140 - 1" extruded aluminum

C-150, C-160 - 1-3/8" formed aluminum

Max. length 8/0 (96")

Bright Brass

Bright Brass

BHMA 605 (C3)

Bright Chrome

Bright Chrome

BHMA 625 (C26)

Dull Chrome

Dull Chrome

BHMA 626 (C26D)

Satin Stainless Steel

Satin Stainless Steel

BHMA 630 (C32D)

K.N. Crowder Track Catalogue (15MB)

K.N. Crowder Track Catalogue (15MB)

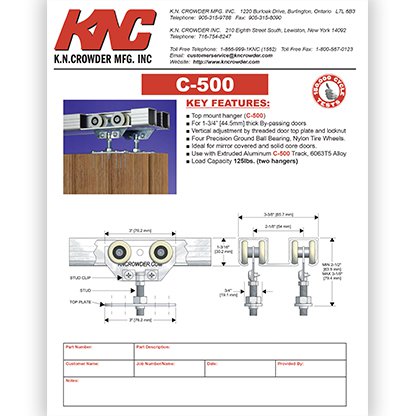

C-500 Hanger & C-500 Track

C-500 Hanger & C-500 Track

K.N. Crowder Warranty

K.N. Crowder Warranty

C-500 Hanger Kit

C-500 Hanger Kit
